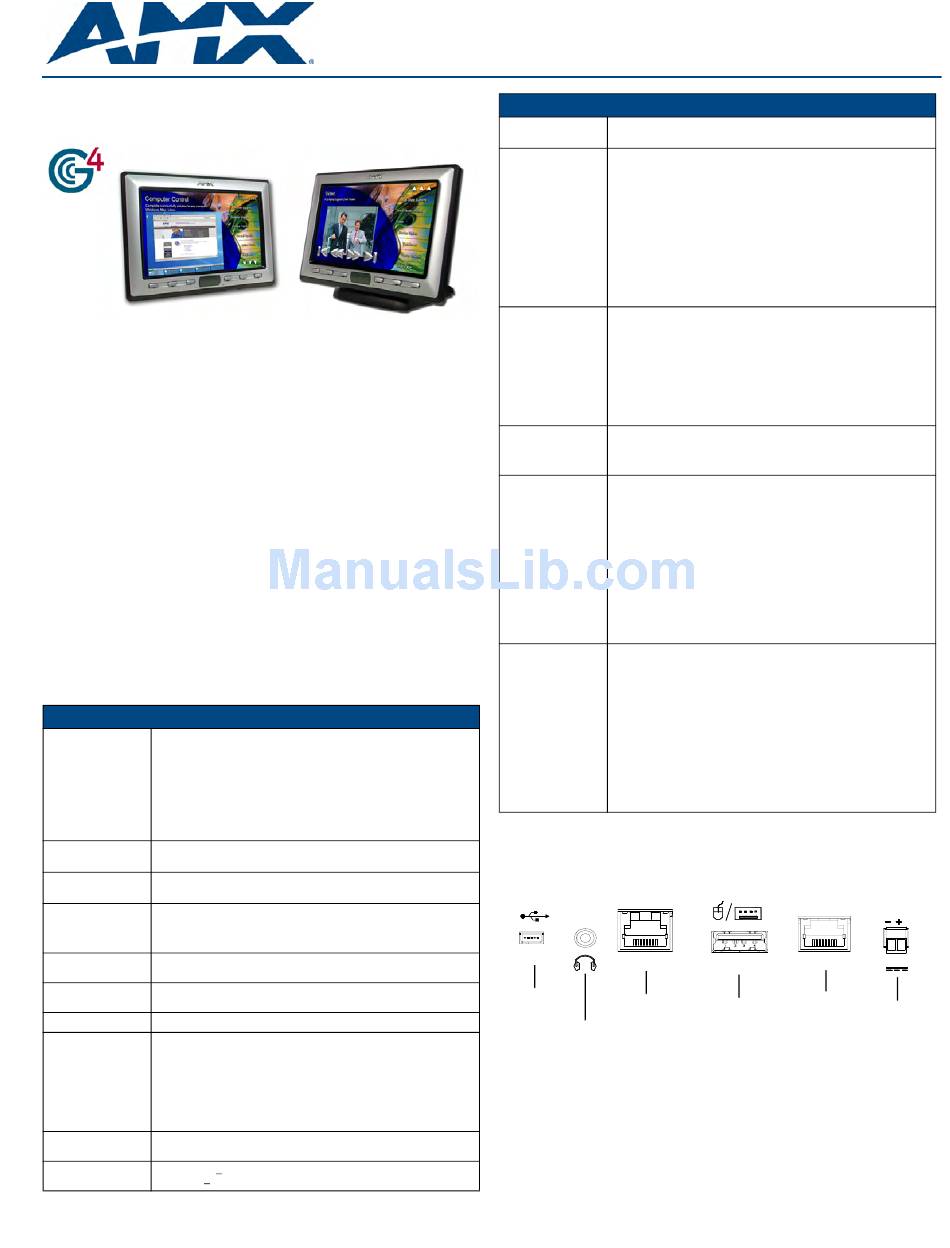

AMX NXD-CV10 Quick Start Manual

For more detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the NXD-CV10/NXT-CV10 Instruction Manual, available on-line at
www.amx.com.
NXD panel
(WallMount)
FIG. 1

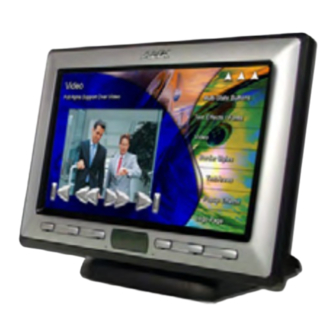

10" Modero Widescreen Video Touch Panels
ATTENTION!
Verify you are using the latest NetLinx Master and Modero touch panel firmware
(available from www.amx.com). Verify the TPDesign4 program being used is
Version 2.6 or higher.
Overview
These are the first 10" diagonal Widescreen Color Active video-capable touch panels
in the control and automation industry.
These Color Video (CV) panels display NTSC/PAL/SECAM video formats within
variable sized windows. They include a built-in microphone, speakers, audio/
headphone connector, and six NetLinx programmable pushbuttons (only available on
CV10 models with the button feature available (-02K and -03K)).
Table Top models use AMX's exclusive SmoothTilt™ technology for effortless
adjustment of the viewing angle.
Each panel is sold only as part of a CV10 Kit which includes both a panel and an
NXA-AVB/ETHERNET Audio/Video Breakout Box (FG2254-10).
The the three available Kit configurations are:
• NXD-CV10 (FG2259-02K) - 10" Wall Mount Kit (with buttons)
(includes an NXD panel and NXA-AVB/ETHERNET Breakout Box).
• NXT-CV10 (FG2259-01K) - 10" Table Top Kit (without buttons)
(includes both an NXT panel and an NXA-AVB/ETHERNET Breakout Box).
• NXT-CV10/PB (FG2259-03K) - 10" Table Top Kit (with buttons)
(includes both an NXT panel and NXA-AVB/ETHERNET Breakout Box).

Specifications

CV10 Specifications
Dimensions (HWD):
NXA-RK10 • 5 RU (rack units) high (22.15 cm)
8.72" x 19.0" x 0.50" (22.15 cm x 48.26 cm x 1.27 cm)
(FG2904-54)
• Faceplate included: 7.96" x 11.16" x 3.32"
NXD-CV10
(20.22 cm x 28.34 cm x 8.43 cm)
(FG2259-02)
• Fully raised: 8.71" x 11.16" x 7.38" (22.12 cm x 28.34 cm x 18.75 cm)
NXT-CV10
Fully lowered height: 4.53" (11.51 cm)
(FG2259-01/03)
• Conduit/wallbox: 5.47" x 7.23" x 3.40"
CB-TP10 (13.90 cm x 18.40 cm x 8.64 cm) (optional)
(FG036-10)
Power Requirements
• Constant current draw: 1.2 A @ 12 VDC (stand-alone)
(stand-alone CV10): • Startup current draw: 1.8 A @ 12 VDC (stand-alone)
Power Requirements
• Constant current draw: 2.6 A @ 12 VDC
• Startup current draw: 3.9 A @ 12 VDC
(CV10 and BASE/1):
Minimum power • PSN2.8 Power Supply (FG423-17)
- when used with a stand-alone CV10 unit.
supply required:
• PSN4.4 Power Supply (FG423-45)
- when a CV10 is connected to a BASE/1.
Memory: • 64 MB SDRAM
• 64 MB Compact Flash (upgradable to 1 GB - factory programmed)
Weight: • NXD-CV10: 2.65 lbs (1.20 kg)
• NXT-CV10: 4.75 lbs (2.15 kg)
Certifications: • FCC Part 15 Class B, CE, and IEC 60950
Panel LCD • Aspect ratio: 16 x 9
• Brightness (luminance): 350 cd/m2
Parameters:
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 250:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.28 mm
• Panel type: TFT Color Active-Matrix
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
• Video format: NTSC, PAL, and SECAM
Viewing Angle: • 95° total viewing angle
• Vertical: + 45° (up from center) and -65° (down from center)
IR Reception Angle: • Horizontal: + 50° (left and right from center)
• Vertical: + 30° (up and down from center)
NXD/T-CV10
CV10 Specifications (Cont.)
Supported Audio
Sample Rates:
NXT panel (Table Top)
Front Panel:
Rear Connectors:
Operating /Storage
Included
Other AMX
Panel Connectors
FIG. 2 shows the connectors located on the CV10 Modero Video panels. The Audio/
Video RJ-45 connector provides differential audio/video signals between the touch
panel and the NXA-AVB/ETHERNET. This connector routes Composite video, Stereo
(left/right) audio, and microphone audio.
(Program Port)
FIG. 2
NXA-AVB/ETHERNET Breakout Box
FIG. 3 shows the front and rear connectors on the NXA-AVB/ETHERNET breakout
box. This breakout box can be mounted on either a horizontal flat surface or in an
equipment rack (by removing the front faceplate and securing it to an optional AC-RK
Rack Kit).
10"Modero Widescreen Video Touch Panels
• 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,
12000Hz, 11025Hz, and 8000Hz.
• Light Sensor: Photosensitive light detector for automatic adjustment of
the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel
when panel is approached
• IR Receiver: 38 KHz and 455 KHz AMX IR frequencies
• Sleep Button: Pushbutton (grey) provides both access to the Setup
and Calibration page and toggles the panel between a "sleep" or
"wake" state
• Microphone: Used for intercom applications (requires the
NXA-AVB/ETHERNET Breakout Box for analog communication)
• Speakers: Stereo output with a frequency response of 500 Hz - 7 KHz
• LEDs: 6 blue LEDs (support On and Off).
- Both the LEDs and pushbuttons are not available with the
NXT-CV10 panel (FG2259-01) containing no buttons.
• 6 programmable pushbuttons
• Mini-USB Connector: 5-pin Mini-USB connector used for
programming, firmware update, and touch panel file transfer between
the PC and the target panel
• Stereo Output Connector: Stereo output through a 3.5mm mini-jack
(for use with external speakers or headphones)
• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication
• USB Connector: Type A USB port connects an external keyboard or
mouse device for use with Virtual PC applications
• Audio/Video Connector: RJ-45 connection for A/V signals (via CAT5)
between the NXA-AVB/ETHERNET Breakout Box and the panel
• Power: 2-pin 3.5 mm mini-Phoenix connector
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
Environments:
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• Installation Kit for 10" NXD panels (KA2259-02):
- 2-pin 3.5 mm mini-Phoenix connector (41-5025)
Accessories:
- Three Drywall clips (62-5924-05) and #6 - sheet metal screws
(80-0192)
- Four Phillips-head screws (#4-40 x 0.250 Black) (80-0112)
• Installation Kit for 10" NXT panels (KA2259-01):
- 2-pin 3.5 mm mini-Phoenix connector (41-5025)
- One CAT5 Table Top Suppression Ferrite (04-0014)
- One cylindrical CAT5 USB Mouse Suppression Ferrite (04-0018-SA)
• Modero Table Top Cable (CA2250-50) provided with all NXT panels
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
- Provides video/audio distribution to the A/V panel over CAT5 cable
(up to 200'/60.96 m) and accepts either Composite or S-Video
• Trim Ring with button openings (60-2259-05)
(factory installed on -02 and -03 panel models only)
• Trim Ring without button openings (60-2259-04) (NXD models only)
• CB-TP10 Conduit/Wallbox (FG036-10)
• CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)
Equipment:
• NXA-BASE/1 Battery Base Kit (FG2255-05K):
- battery base and single NXT-BP battery
• NXA-RK10 Rackmount Kit for 10" Wall Mount panels (FG2904-54)
• NXA-WC80211GCF, 802.11g Compact Flash Wireless Card Upgrade
Kit provides wireless Ethernet support (FG2255-07)
• NXT-BP Battery (FG2255-10)
• NXT-CHG Kit (FG2250-50K): single charger and 2 NXT-BP batteries
• PSN2.8 Power Supply (12 VDC) (FG423-17)
• PSN4.4 Power Supply (12 VDC) (FG423-45)
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CV10CF128M - 128 MB Compact Flash card (FG2116-65)
NXA-CV10CF256M - 256 MB Compact Flash card (FG2116-66)
NXA-CV10CF512M - 512 MB Compact Flash card (FG2116-67)
NXA-CV10CF1G - 1 GB Compact Flash card (FG2116-68)
A L
E TH E R N E T
P R O G R AM
10/100
Mini-USB
Ethernet
Keyboard/Mouse
(CAT5)
Stereo
Output
Connector layout on the CV10 Touch Panels
Quick Start Guide
K E Y B O A R D / A U D IO / V ID E O
M O U S E
Audio-Video from
NXA-AVB/ETHERNET
USB connector
(CAT5)
12V DC
P W R
Power
