AMX NXD-CV7 Specifications

.94 [24MM]
7.94 [202MM]
2.83 [72MM] 3.33 [84MM]
5.93 [151MM]
NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
All information contained herein
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except
to the extent the information
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REV ECN
A 5492 RELEASED TO PRODUCTION
B 5534 CORRECT ILLUSTRATION
7.07 [180MM]
6.10 [155MM]
5.33 [135MM]
REL APPR REL DATE REV APPR
DAS 10/16/03
DRAWN
XX = .010
DB
10/21/03 MAB
XXX = .005 ENGR SERV
RDR
10/21/03 MAB
ENGINEER
UNDER .250 = +/- .005
.250 TO .500 = +.006 -.005 KZ
10/21/03
AVT
PROD ENGR
OVER .500 = +.008 -.005
MD JS
MATL SUP 10/21/03
AK
10/21/03
AK
QUALITY
THIRD ANGLE
PROJECTION
REVISIONS
DESCRIPTION DATE APPROVED
10/21/03

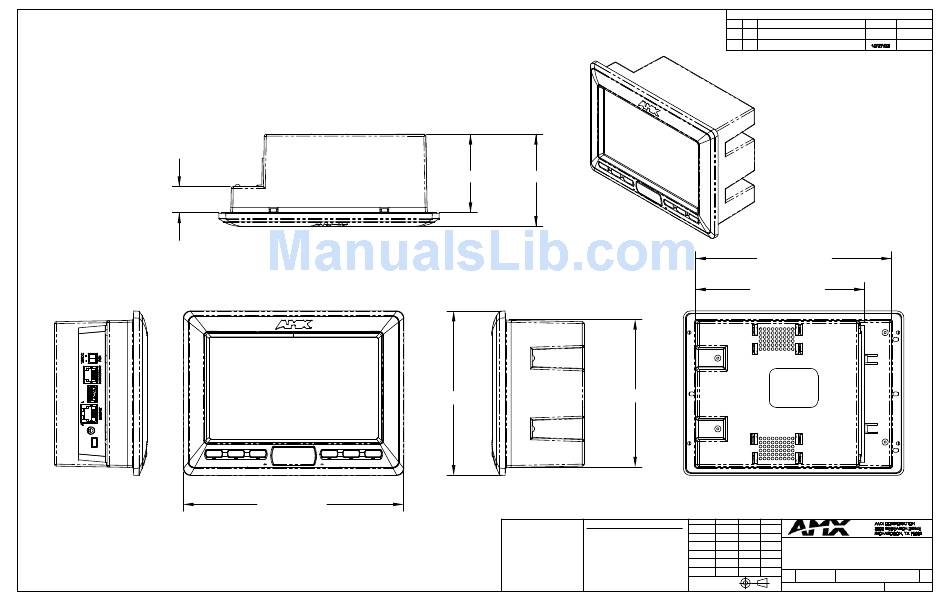

PICTORIAL, NXD-CV7, 7" MODERO
WALLMOUNT WIDESCREEN
VIDEO TOUCH PANEL WITH BUTTONS
SIZE DWG. NO. REV.
95-2258-02
SCALE: 1:2 B
B
SHEET 1 OF 1
95-2258-02
R:\MECH\DEV\_Zionop Level - 95 - SP - Creation \wall\ 95-2258-02
