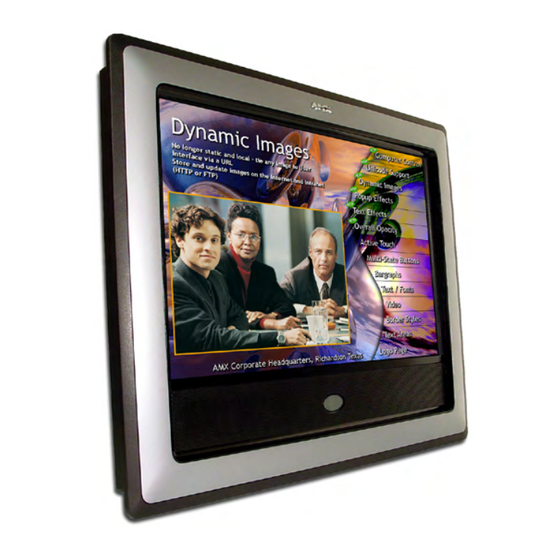

17" modero touch panel
Hide thumbs Also See for NXT-CV17:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Operation/Reference Guide
NXT/D-CV17
®
17" Modero
Touch Panel
Touch Panels
L a s t R e v i s e d : 8 / 0 4 / 2 0 1 0

Advertisement

Table of Contents
loading

Related Manuals for AMX NXT-CV17

Summary of Contents for AMX NXT-CV17

  • Page 1 Operation/Reference Guide NXT/D-CV17 ® 17" Modero Touch Panel Touch Panels L a s t R e v i s e d : 8 / 0 4 / 2 0 1 0...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Introduction ......................1 Product Overview ..................... 1 CV17 Panel Specifications..................2 CV17 Panels - Connector Layout................4 CV17 Touch Panel Accessories ................5 Overview ........................5 NXA-AVB Audio/Video Breakout Box (FG2254-01) ..........5 Product Specifications ....................5 Installing the NXA-AVB Breakout Box................
  • Page 4 Table of Contents Powering the NXT-CHG ....................25 Reading NXT-CHG LED Indicator .................. 25 Charging the NXT-BP batteries using the NXT-CHG ............. 26 Recalibrating the batteries .................... 26 Installation ......................27 Overview ........................ 27 Unpacking the Panel ....................27 Installing the Internal Components ................. 27 Upgrading the Back Box with the MB-TP17 VESA Housing ........
  • Page 5 Table of Contents Wireless communication using a Static IP Address............54 Step 2: Configuring the Card’s Wireless Settings ........... 55 Configuring the panel for unsecured access to the WAP ..........55 Configuring the panel for secured access to a WAP ............. 56 Configuring multiple wireless Moderos to communicate with a target WAP ....
  • Page 6 Table of Contents G4 Web Control Page ....................90 Sensor Setup ......................... 91 Using the Automated Brightness Control feature (DIM Mode) ........93 Password Setup Page....................94 Calibration Page......................95 Secondary Connection Page..................95 System Connection Page....................99 Programming ....................101 Overview ......................
  • Page 7 Table of Contents ^BFB ............................114 ^BIM ............................114 ^BLN ............................114 ^BMC ............................115 ^BMF ............................116 ^BMI ............................118 ^BML ............................118 ^BMP ............................118 ^BNC ............................118 ^BNN ............................119 ^BNT ............................119 ^BOP ............................119 ^BOR ............................119 ^BOS ............................120 ^BPP ............................120 ^BRD ............................120 ^BSF ............................120 ^BSM ............................120 ^BSO ............................121 ^BVL ............................121 ^BVN ............................121 ^BVP ............................121...
  • Page 8 Table of Contents ?BCB ............................130 ?BCF ............................130 ?BCT ............................131 ?BMP ............................131 ?BOP ............................132 ?BRD ............................132 ?BWW ............................. 133 ?FON ............................133 ?ICO ............................134 ?JSB ............................134 ?JSI ............................135 ?JST ............................135 ?TEC ............................136 ?TEF ............................
  • Page 9 Table of Contents ^PWD ............................143 @RPP ............................143 ^VOL ............................143 Dynamic Image Commands................... 144 ^BBR ............................144 ^RAF ............................144 ^RFR ............................144 ^RAF, ^RMF - Embedded Codes ................145 ^RMF ............................145 ^RSR ............................145 Escape Sequences ....................... 146 $DV ............................146 $SY ............................146 $IP ............................146 $HN ............................146 $MC ............................146 $ID ............................146...
  • Page 10 Table of Contents viii CV17 17" Modero Coor Video Touch Panels...

  • Page 11: Introduction

    NXD-CV17 (FG2256K) 17" Widescreen Color Video Wall Mount touch panel with audio/video inputs (includes an NXA-AVB A/V Breakout Box). NXT-CV17 (FG2257K) 17" Widescreen Color Video Table Top touch panel with audio/video inputs (includes an NXA-AVB A/V Breakout Box). Key features common to both panels are: The latest Anamorphic display technology and support AMX's 4th generation graphics (G4) which provide rich colors and high contrast.

  • Page 12: Cv17 Panel Specifications

    • NXD-CV17 (with faceplate): 14.44" x 18.09" x 3.31" (36.68 cm x 45.95 cm x 8.41 cm) • NXT-CV17 (Fully raised): 13.29" x 17.84" x 12.44" (35.31 cm x 45.31 cm x 31.60 cm) • NXT-CV17 (Fully lowered): 6.23" x 17.84" x 12.44"...
  • Page 13 • Stereo output with a frequency response of 450 Hz - 7 KHz PCMCIA card slot: • Provides optional wireless connectivity (using the NXA-WC80211b AMX Wireless Interface Card). Refer to the NXA-WC80211b Wireless Interface Card section on page 13 for more information).

  • Page 14: Cv17 Panels - Connector Layout

    • NXA-RK17 (FG2904-52) - RackMount kit for 17" Wall Mount touch panels (NXD versions). • NXA-WC80211b (FG2255-02) - AMX 802.11b Wireless Interface Card. • NXT-BP (FG2250-10) - Battery pack for Table Top panels. Provides ~ 3 hours of continual operation (NXT versions only).

  • Page 15: Cv17 Touch Panel Accessories

    CV17 Touch Panel Accessories CV17 Touch Panel Accessories Overview The following section outlines and describes the CV17 accessories (both the included and optional). NXA-AVB Audio/Video Breakout Box (FG2254-01) The A/V Breakout Box (FIG. 3) is designed to facilitate the installation and distribution of video, data, and audio to Modero panels.

  • Page 16: Installing The Nxa-Avb Breakout Box

    CV17 Touch Panel Accessories NXA-AVB Specifications (Cont.) Other AMX • AC-RK Accessory RackMount Kit (FG515) Equipment: • Modero Table Top Cable (CA2250-50) • PSN4.4 power supply (FG423-45) • PSN6.5 power supply (FG423-41) Installing the NXA-AVB Breakout Box A PSN power supply can indirectly provide power to a Modero panel by routing power through the NXA-AVB Breakout Box.

  • Page 17: Wiring The Nxa-Avb Connectors And Cables

    Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card. Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this output.

  • Page 18: Wiring The Nxa-Avb For Unbalanced Audio

    CV17 Touch Panel Accessories Wiring the NXA-AVB for Unbalanced Audio Most domestic audio equipment has unbalanced audio inputs and outputs. This means that the audio output (left, right, or mono) appears on a single wire, and is referenced to "0 V" or "Ground". Typical connectors used are RCA "phono"...

  • Page 19: Modero Table Top Cable (Ca2250-50)

    Included Accessories: • One Modero Table Top Cable (CA2250-70) Other AMX Equipment: Note: All touch panels routing an Audio/Video signal from a breakout box must use the appropriate number of CAT5 Suppression Ferrites which are included as part of installation kits accompanying your particular Modero panel.

  • Page 20: Wiring Information For The Modero Table Top Cable

    Video) and a 2-pin mini-Phoenix connector for power. If your installation requires custom cable configurations, you can purchase bulk (non-terminated) cable from Liberty Wire and Cable under the nomenclature "AMX Table Top Cable - Modero" (phone#: (800) 530 8998 or +1-719-388-7518).
  • Page 21 CV17 Touch Panel Accessories The following figures provide a a cross-section view (FIG. 11) and a description (FIG. 12) of the Modero Tabletop Cable: Element #1 Connector #1 & 2 Binder Element #2 Connector #3 Jacket FIG. 11 Tabletop Cable - cross-section view DESCRIPTION: 9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1: TWO 4/PAIR 24 AWG STRANDED TINNED COPPER,...

  • Page 22: Installing Cat5 Suppression Ferrites

    CV17 Touch Panel Accessories Installing CAT5 Suppression Ferrites Before connecting the RJ-45 cables to the Modero Touch Panel, install the necessary number of CAT5 Suppression Ferrites (FIG. 13) to their appropriate locations. These ferrites come as part of the Installation Kits mentioned in the previous Specification table (page 9).

  • Page 23: Nxa-Wc80211B Wireless Interface Card (Fg2255-02)

    NXA-WC80211b Wireless Interface Card (FG2255-02) CV17 touch panels can connect to a wireless network using an optional internal AMX 802.11b compatible Wi- Fi Wireless Interface Card (FG2255-02). This interface card (FIG. 15) is a wireless LAN PC Card that is also IEEE802.11b compatible, consistent with a PCMCIA Standard...

  • Page 24: Installing The Wireless Card

    CV17 Touch Panel Accessories NXA-WC80211b Specifications (Cont.) Sensitivity: • @PER < 8% 11 Mbps: -85 dBm (max.) 5.5 Mbps: -88 dBm (max.) 2 Mbps: -89 dBm (max.) 1 Mbps: -92 dBm (max.) Operating • Temperature: 0 ~ 60°C (operating) and -20 ~ 80°C (storage) Environment: •...

  • Page 25: Installation Of The Compact Flash Card (Table Top Panel)

    CV17 Touch Panel Accessories Installation of the Compact Flash Card (Table Top Panel) These procedures involves removing the outer housing, installing the upgrade card, and then securely replacing the outer housing back onto the NXT panel. Step1: Removing the existing NXT Outer Housing Carefully detach all connectors from the rear of the touch panel.
  • Page 26 CV17 Touch Panel Accessories Tilt bracket Speaker grills Outer Housing Base Memory Module Upgradeable Compact Flash FIG. 17 Location of the Compact Flash and memory modules on NXT panel main board Upgrade the internal components, if desired. Refer to the following procedures in the Step 2: Installing the Upgrade Compact Flash Card section on page 17 for instructions.

  • Page 27: Step 2: Installing The Upgrade Compact Flash Card

    CV17 Touch Panel Accessories Step 2: Installing the Upgrade Compact Flash Card Discharge any static electricity from your body by touching a grounded metal object. Locate the 128 MB Compact Flash card on the main board (for more detailed information on component locations (FIG.

  • Page 28: Installation Of The Compact Flash Card (Wallmount Panel)

    CV17 Touch Panel Accessories Installation of the Compact Flash Card (WallMount Panel) These procedures involves removing the outer housing, installing the card, and then securely replacing the outer housing back onto the NXD panel. Step 1: Removing the existing NXD Outer Housing Carefully detach all connectors from the side of the touch panel and remove the front magnetic faceplate from the NXD unit by firmly gripping the faceplate and pulling outwards, while applying a small amount of pressure to remove it from the main unit.
  • Page 29 CV17 Touch Panel Accessories Outer housing (back box) Remove these 2 screws and the Stereo Output nut before removing the outer housing Stereo Output nut I/O connector plate FIG. 20 Screw locations on the attached I/O connector plate on an NXD panel Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws and slide the I/O connector plate away from the back box housing.

  • Page 30: Step 2: Installing The Upgrade Compact Flash Card (Nxd)

    CV17 Touch Panel Accessories Step 2: Installing the Upgrade Compact Flash Card (NXD) Complete the procedures outline within the Step 2: Installing the Upgrade Compact Flash Card section on page 17 and then continue with the following Step 3. Step 3: Replacing the NXD Outer Housing Once the card has been securely installed, gently place the outer housing back onto the metallic panel casing (with the connector opening on the right-side of the panel) and align the four pan-head Housing Screw holes along the edges of the outer housing.

  • Page 31: Nxa-Base/B Battery Base Kit (Fg2255K)

    (FIG. 23). The NXT-BP batteries can be charged through either the base (only when connected to the NXT-CV17 touch panel) or through an optional NXT-CHG Modero Power Station.

  • Page 32: Checking The Nxt-Bp Battery Charge

    CV17 Touch Panel Accessories Checking the NXT-BP battery charge Press the Battery Life Indicator button (FIG. 24) once to illuminate the Battery Life LEDs and display the percent charge remaining on the battery (this indication lasts a few seconds). Battery Life (Charge) Display Battery Life Indicator button FIG.

  • Page 33: Installing An Nxt-Bp Into The Nxa-Base/B

    Repeat steps 2 through 4 for the other battery. Apply a small amount of pressure to close the battery compartment until the compartment latches. After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is receiving power.

  • Page 34: Charging The Nxt-Bp Batteries With The Nxa-Base/B

    Follow the procedures from the previous sub-section to attach the NXT-CV17 to the NXA-BASE/B. Insert each battery into the battery compartment shown in FIG. 27 on page 24. Insert a 2-pin connector from a power supply to the rear PWR connector on the NXT-CV17 Modero panel.

  • Page 35: Product Specifications

    • Recalibration pushbutton (located between the bays): Initiates recalibration sequence in the left bay only. • Recalibration Time: less than 9 hours Other AMX Equipment: • NXT-BP battery pack (FG2255-10) (additional) The batteries are charged in the order they are inserted into the NXT-CHG. SLOT 1 of the NXT-CHG has the ability to completely discharge and recharge (recalibrate) a battery.

  • Page 36: Charging The Nxt-Bp Batteries Using The Nxt-Chg

    CV17 Touch Panel Accessories • Off: No battery detected. • Green Flashing: Fast charging. • Green Solid: Fully charged. • Yellow Flashing: Recalibration in process. • Yellow/Green: Recalibration complete. • Yellow Solid: Standby (waiting for other battery to charge). • Red Flash: Error (problem with either the battery connection to the internal slot, or with the battery itself).

  • Page 37: Installation

    Installation Installation Overview NXT panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an NXA- BASE/B battery base) configuration. NXD panels are installed into either a pre-wall surface (using the CB- TP17 conduit/wallbox) or a solid surface (using either solid surface or drywall screws). Unpacking the Panel Inspect and confirm the contents of the shipment box to verify that you have all specified parts.

  • Page 38: Installing The Mp-Tp17 Back Box

    Installation DO NOT REMOVE DO NOT REMOVE these these panel panel securing screws securing screws Unscrew these four Housing Screws to remove the back box FIG. 30 Location of the attachment screws on the NXD back box DO NOT REMOVE THE FOUR PANEL SECURING SCREWS. These screws secure the LCD to the metallic casing.

  • Page 39: Cable Installation For The Mp-Tp17 Back Box

    Installation DO NOT REMOVE #6-32 securing MB-TP17 back box screws (62-0033-50) Connector opening Strain relief grommet (Clip facing up) Rim of the strain relief grommet should lie flush against enclosure Securing hole locations (2 on each side) Internal panel casing Four (pan-head) Housing Screws Four (#8-32) screws Rear plastic cover...
  • Page 40 Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the pre-drilled holes on the rear plastic cover. When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.

  • Page 41: Pre-Wall Installation Of The Cb-Tp17 Conduit Box

    Installation Refer to your particular VESA mount manufacturer’s installation procedures for further surface mounting procedures. Pre-wall Installation of the CB-TP17 Conduit Box Wall Mount panels (NXDs) are contained within a metallic outer housing (back box). This back box is not removed when installing the NXD into a Conduit Box (CB-TP17).
  • Page 42 Installation The determining factor in the depth of the cut into the beam is the thickness of the drywall. The mounting tabs MUST BE FLUSH against the drywall and therefore, the depth of the notch depends on that thickness. Insert one side of the conduit box into the indention on the notched stud and rest the other side of the box against the opposite beam.

  • Page 43: Installation Of An Nxd-Cv17

    Installation Installation of an NXD-CV17 The NXD-CV17 can be installed either directly into the (optional) CB-TP17 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws. The following sections describe mounting the touch panel directly into an installed pre-wall Conduit Box, a solid surface or drywall, and optional NXA-RK17 Rack Mount Kit.

  • Page 44: Installing The Nxd-Cv17 Into Drywall Using Expansion Clips

    Installation Disconnect the terminal end of the power cable from the connected PSN power supply. Carefully slide the main NXD unit (B in FIG. 36) into the conduit box, so the Mounting Tab lies flush against the conduit box (C in FIG. 36). Insert and secure four securing #8 flat-head Mounting Screws into their corresponding holes located along the sides of the NXD (FIG.
  • Page 45 Installation Refer to the SP2256-11 engineering drawing on www.amx.com for more detailed framing information Enough room must be left for drywall clips to fold and collapse above and below the back box Offset vertical beam FIG. 37 NXD-CV17 framing installation overview With an existing wall in place, continue with steps 3 and 4 to notch one or both selected beams.
  • Page 46 Installation * Top notches are not symmetrical Connectors Right Side Left Side FIG. 38 NXD-CV17 Wall Mount panel dimensions using expansion clips CV17 17" Modero Coor Video Touch Panels...
  • Page 47 Installation Remove the magnetic faceplate/bezel (A in FIG. 39) from the main NXD unit (B in FIG. 39) by gripping the faceplate and pulling with gentle outward force. Four notches are required if the unit is installed in drywall using the four provided Install the four drywall expansion...

  • Page 48: Installing The Nxd-Cv17 Into A Flat Surface Using #6 Screws

    (on the right) and the connector-side of the unit pressed into the notched beam (on the left). Replacement drywall clip sets must be ordered from AMX. Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush against the wall.
  • Page 49 Installation Locate the edges of the two studs used in this installation. The location of the NXD is site dependant and could involve notching more than one beam. In this sample installation, the left beam is notched and the back box rests against the right beam.
  • Page 50 Installation Notching of one or more stud beams may be 13.554" required if the unit is not (34.43 cm) framed into the wall. Install the four (#6) Mounting Screws into the holes (screws not included) Mounting B - Main NXD unit consists of A - Faceplate the touch panel and housing (bezel)

  • Page 51: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk17)

    Installation Test the incoming wiring by connecting the panel connections to their terminal locations and applying power. Verify the panel is receiving power and functioning properly before finalizing the installation. Disconnect the terminal end of the power cable from the power supply. Follow the procedures outlined within the Step 1: Removing the existing NXD Outer Housing section on page 18 to carefully reinstall the LCD panel back into the back box housing.
  • Page 52 Installation 399.29 Faceplate 15.72 482.60 84.03 19.00 3.31 FIG. 42 NXD-CV17 Wall Mount panel installed into an NXA-RK17 Rack Mount Kit Secure the panel to the NXA-RK17 mount frame by first inserting and then tightening the four #4-40 screws. Insert the NXA-RK17 (with connected NXD unit) into the equipment rack, making sure to align the screw holes along the sides of the NXA-RK17 with the holes in the equipment rack.

  • Page 53: Wiring Guidelines For The 17" Panels

    Installation Wiring Guidelines for the 17" Panels The panels require 12 VDC power from a PSN6.5 NetLinx Power Supply to operate properly. The panels connect to the power supply via a 2-pin 3.5 mm mini-Phoenix connector. These units should only have one source of incoming power. Using more than one source of power to the touch panel can result in damage to the internal components and a possible burn out.

  • Page 54: Audio/Video Rj-45 Connections/Wiring

    Installation ICSNet Pinout Information (EIA/TIA 568 B) Wire Color Function Polarity Orange/White Transmit Orange Transmit Green/White Blue Ground White/Blue 12 VDC Green White/Brown Receive TIA 568B Brown Receive 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 (female) (male) RJ-45 connector - pin configurations...

  • Page 55: Ethernet 10/100 Base-T Rj-45 Connections/Wiring

    Installation Ethernet 10/100 Base-T RJ-45 Connections/Wiring FIG. 44 and the table below describe the pinouts, signals, and pairing for the Ethernet 10/100 Base-T RJ-45 connector and cable. The Ethernet cable is connected to the rear of Table Top and side of the Wall Mount panels.
  • Page 56 Installation CV17 17" Modero Coor Video Touch Panels...

  • Page 57: Panel Calibration

    When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 45). AMX Splash Screen...

  • Page 58: Testing Your Calibration

    Panel Calibration The request to touch the crosshairs is the first on-screen message Calibration successful is the second on-screen message that appears after the calibration process is completed On-screen crosshairs used for calibration of the touch device FIG. 47 Touch Panel Calibration Screens Testing your Calibration Press and hold down the on-screen Calibration button for 6 seconds to enter the Calibration Test page (FIG.

  • Page 59: Configuring Communication

    Configuring Communication Configuring Communication Overview Communication between the Modero panel and the Master consists of using either ETHERNET (DHCP, Static IP) or ICSNet. Ethernet communication can be achieved through either a direct connection or through the use of the optional NXA-WC80211b wireless interface card. If you are currently using a Static IP Address, continue with the IP Settings section - Configuring a Static IP Address over Ethernet section on page 59.
  • Page 60 Configuring Communication When using multiple panels within a NetLinx System, remember to assign unique Device Number values to each panel so that all assigned panels appear in the System listing for the target Master. Press Done to close the keypad, assign the number, and return to the Protected Setup page. FIG.

  • Page 61: Master Connection - Using Icsnet

    Configuring Communication Master Connection - Using ICSNet Verify you are using the latest NetLinx Master firmware. Before beginning: Verify that an ICSNet cable is connected from either the rear (NXT model) or side (NXD model) of the panel to the NetLinx Master and from the Master to an ICSNet port. Verify that the NetLinx Master is receiving power and is turned On.

  • Page 62: Secondary Connection Page - Wireless Access Overview

    Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the NXA- WC80211b AMX Wireless Interface Card (FG2255-02) communicating to the Wireless Access Point (WAP)). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication.

  • Page 63: Configuring A Wireless Access Connection

    Configuring Communication Wireless Equivalent Privacy (WEP) Security is a method by which WLANs protect wireless data streams. A data stream encrypted with WEP can still be intercepted or eavesdropped upon, but the encryption makes the data unintelligible to the interloper. The strength of WEP is measured by the length of the key used to encrypt the data.

  • Page 64: Wireless Communication Using A Static Ip Address

    Configuring Communication The information can be found in either the Workspace - System name > Define Device section of your code (that defines the properties for your panel), or in the Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics dialog.

  • Page 65: Step 2: Configuring The Card's Wireless Settings

    Configuring Communication Step 2: Configuring the Card’s Wireless Settings The second step to successfully setting up your wireless card is to configure the Wireless Settings section of the Secondary Connection page. The section configures both the communication and security parameters from the internal wireless card to the WAP.

  • Page 66: Configuring The Panel For Secured Access To A Wap

    Configuring Communication Verify the IP Settings section fields have been properly set. Refer to the Step 1: Configuring the Panel’s IP Settings section on page 53 for detailed information. Press the Back button to navigate to the Protected Setup page and press the on-screen Reboot button to both save any changes and restart the panel.
  • Page 67 Configuring Communication Shared Key Authentication requires that the panel and the Wireless Access Point have the same WEP Key to authenticate. The Authentication field by default reads Open System. Toggle the Encryption field until it reads WEP64 or WEP128. The 64/128 selection reflects the bit-level of encryption security.

  • Page 68: Configuring Multiple Wireless Moderos To Communicate With A Target Wap

    Configuring Communication The bargraphs have been replaced with descriptions: None, Poor, Fair, Good, Very Good, and Excellent. The signal strength field provides some descriptive text regarding the strength of the connection to a Wireless Access Point. If there is no signal or no IP Address displayed;...

  • Page 69: Ip Settings Section - Configuring A Static Ip Address Over Ethernet

    Configuring Communication DHCP will register the unique MAC Address (factory assigned) on the panel and once the communication setup process is complete, reserve an IP Address, Subnet Mask, and Gateway values from the DHCP Server. Press the optional Host Name field to open a Keyboard and enter the Host Name information. Press Done after you are finished assigning the alpha-numeric string of the host name.

  • Page 70: Step 2: Choosing A Master Connection Mode Setting

    Configuring Communication Step 2: Choosing a Master Connection Mode Setting There are three Ethernet MODE settings used in the Master Connection section of the System Connection page. URL is the most common method. Master Connection MODE options: • URL (Uniform Resource Locator) is the address that defines the route to a file on the Web or any other Internet facility.

  • Page 71: Master Connection - Virtual Master Communication Over Ethernet

    Verify the panel has been configured to communicate either through an Ethernet cable (connected from either the panel to a valid Ethernet Hub) or wireless to the Wireless Access Point. Launch NetLinx Studio 2.4 (default location is Start > Programs > AMX Control Disc > NetLinx Studio > NetLinx Studio 2.4).
  • Page 72 Master (virtual or not). A virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. Press the Master IP/URL field to open a Keyboard and enter the IP Address of the PC used as the Virtual Master.

  • Page 73: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode

    Master (virtual or not). A virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. If the panel does not appear within the OnLine Tree tab of the Workspace window of NetLinx Studio, check to make sure that the NetLinx Master System Number (from within the Device Addressing dialog) is correctly assigned.

  • Page 74: Master Connection Section - Netlinx Master Ethernet Ip Address - Auto Mode

    Configuring Communication System Address reflects the value set in the Device Addressing tab Used to obtain an existing URL List from Master Used to set the URL List on Master FIG. 60 URL List dialog Enter the System and Device number for the specific Master associated with your panel (as seen in the Online Tree tab).

  • Page 75: Using G4 Web Control® To Interact With A G4 Panel

    Refer to the G4 Web Control Page section on page 90 for more detailed field information. Verify your NetLinx Master (ME260 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to your NetLinx Master Instruction Manual for more detailed information on the use of the new web-based NetLinx Security.

  • Page 76: Using Your Netlinx Master To Control The G4 Panel

    Refer to your particular NetLinx Master’s instruction manual for detailed information on how to download the latest firmware from www.amx.com. This firmware build enables SSL certificate identification and encryption, HTTPS communication, ICSP data encryption, and disables the ability to alter the Master security properties via a TELNET session.
  • Page 77 Both HTTP and HTTPS Ports are enabled by default (via the Manage System > Server page). If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog.
  • Page 78 Configuring Communication In some cases, you might get a Connection Details dialog (FIG. 65) requesting a VNC Server IP Address. This is the IP Address not the IP of the Master but of the target touch panel. Depending on which method of communication you are using, it can be found in either the: Wired Ethernet - System Connection >...

  • Page 79: Upgrading Modero Firmware

    NetLinx Master instruction manual to use an address. Note the IP Address and Gateway information. Launch NetLinx Studio 2.4 (default location is Start > Programs > AMX Control Disc > NetLinx Studio > NetLinx Studio 2.4). Select Settings > Master Communication Settings, from the Main menu to open the Master Communication Settings dialog (FIG.
  • Page 80 Upgrading Modero Firmware List of previously saved IP Addresses FIG. 66 Assigning Communication Settings and TCP/IP Settings Click the Communications Settings button to open the Communications Settings dialog. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are working with a NetLinx Master (such as the NXC-ME260 or NI-Series of Integrated Controllers).

  • Page 81: Preparing The Panel For Communication Via An Ip

    If the panel firmware version is not the latest available; locate the latest firmware file from the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero Panels section of the website.
  • Page 82 Upgrading Modero Firmware Selected Firmware file Description field for selected KIT file Firmware download status Device value and System number must match the values listed in the Workspace window FIG. 68 Send to NetLinx Device dialog (showing Modero firmware update via IP) Select the panel’s KIT file from the Files section (FIG.

  • Page 83: Upgrading The Nxa-Base/B Firmware Via An Ip Address

    Upgrading Modero Firmware Upgrading the NXA-BASE/B Firmware via an IP Address The following accessory devices are firmware upgradeable: NXA-BASE/B Battery Base (FG2255-10) This device is not given unique device number which would ordinarily appear within the Online Tree tab of NetLinx Studio.

  • Page 84: Upgrading The Nxa-Base/B Firmware Via An Ip

    Master, verify the panel appears in the OnLine Tree tab of the Workspace window. The default Modero panel value is 10001. The NXA-BASE/B will not appear on the system listing. Locate the latest firmware file from the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero Battery Base section of the website.
  • Page 85 Upgrading Modero Firmware Selected Battery Base Firmware file Description field for selected KIT file Firmware download status Device value and System number must match the values listed in the Workspace window FIG. 71 Send to NetLinx Device dialog (showing NXA-BASE/B firmware update via IP) The firmware for the battery base can not be downloaded directly.
  • Page 86 Upgrading Modero Firmware CV17 17" Modero Coor Video Touch Panels...

  • Page 87: Firmware Pages And Descriptions

    Firmware Pages and Descriptions Firmware Pages and Descriptions Overview This section describes each firmware page and their specific functional elements. Setup Navigation Buttons These Setup Navigation Buttons (FIG. 72) appear on the left of the panel screen when the Setup page is currently active.

  • Page 88: Setup Page

    Firmware Pages and Descriptions Setup Navigation Button Elements (Cont.) Protected Setup: Press the Protected Setup button to access the Protected Setup page section that provides access to the panel’s sensors, calibration features, and connection settings. • Refer to both the Protected Setup Navigation Buttons section on page 87 and Protected Setup Page section on page 88 for more detailed information.
  • Page 89 Firmware Pages and Descriptions Setup Page Elements (Cont.) Connection Status: Displays whether the panel is communicating externally, the encryption status of the communicating Master, what connection type is being used (Ethernet or ICSNet), and what System the panel is a part of. This visual display of the connection status is also reflected at the upper-right of each firmware page.

  • Page 90: Project Information Page

    Firmware Pages and Descriptions Project Information Page The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected Modero panel (FIG. 74). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information on uploading TPDesign4 files to a panel. Sample TPD4 Project Wizard dialog FIG.

  • Page 91: Panel Information Page

    Displays the model of the Modero panel being used. Firmware Version: Displays the G4 firmware version being used by the panel. • Verify you have the latest version from www.amx.com. Setup Port: Displays the setup port information/value being used by the panel.

  • Page 92: Time & Date Setup Page

    Firmware Pages and Descriptions Panel Information Page Elements (Cont.) Start Up String: Displays the start-up string. Wake Up String: Displays the wake up string used after an activation from a timeout. Sleep String: Displays the sleep string used during a panel’s sleep mode. File System: Displays the amount of Compact Flash memory available on the Modero panel.

  • Page 93: Volume Page

    Firmware Pages and Descriptions Time & Date Setup Page Elements (Cont.) Set Date/Time: This section provides a user with both UP/DN arrow buttons to alter the Master’s calendar date and time. The blue circle indicates which field is cur- rently selected. •...

  • Page 94: Supported Sampling Rates For Wav

    Firmware Pages and Descriptions Volume Page Elements (Cont.) Default Panel Sounds: Sets the Modero panel to play either the default Button Hit sound (when you touch an active button) and/or the default Button Miss sound (when you touch a non-active button or any area outside of the active button). Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker:...

  • Page 95: Protected Setup Page

    Firmware Pages and Descriptions Video Setup Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is currently active.
  • Page 96 Firmware Pages and Descriptions This page is ONLY available on Modero Table Top panels (NXT) using an NXA-BASE/B. The elements of the Battery Base page are described in the table below: Battery Base Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is...

  • Page 97: Protected Setup Navigation Buttons

    Firmware Pages and Descriptions Battery Base Page Elements (Cont.) Battery Power Brightness The DISABLE/DISABLED button acts as a power save feature with two Limit: available choices: • Disable - activates the brightness limit set on the Modero panel and is used to conserve battery power.

  • Page 98: Protected Setup Page

    Firmware Pages and Descriptions Protected Setup Navigation Buttons (Cont.) Passwords: Press the Passwords button to access the Passwords Setup page where you can specify up to five security passwords. Default password is 1988. • Refer to the Password Setup Page section on page 94 for more detailed information.
  • Page 99 • The Remove User Pages button allows you remove all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 82) which asks you to confirm your selection.

  • Page 100: G4 Web Control Page

    Firmware Pages and Descriptions Channel Code Channel Port Channel Code Number Channel Port Number 7,10 3,132 Address Slider Address Port Button Level Port Port Level Port 3,50 Channel Code Channel Code Address Code Address Code Number Number Number Number FIG. 83 Button/slider Function Show example G4 Web Control Page The G4 Web Control page (FIG.

  • Page 101: Sensor Setup

    Firmware Pages and Descriptions G4 Web Control Page Elements (Cont.) Web Control Name Allows you to enter a unique alpha-numeric string that is used as the display name of the panel within the Manage WebControls window of the new NetLinx Security browser window.
  • Page 102 Firmware Pages and Descriptions A light level value between the Minimum and Maximum DIM Mode values delivers an average light level. The DIM mode Min Level can never exceed the DIM Mode Max Level. The elements of the Sensor Setup page are described in the table below: Sensor Setup Page Elements Back: Saves the changes and returns you to the previously active touch panel page.

  • Page 103: Using The Automated Brightness Control Feature (Dim Mode)

    Firmware Pages and Descriptions Sensor Setup Page Elements (Cont.) Dim Mode Minimum Bright- Allows you to alter the sensitivity of the Modero panel light sensor: ness: • Toggle the Enable/Enabled button to either active/inactive the DIM Mode feature: - Enable - activates this feature. Once active (by receiving a value below the Dim Mode Min Level value), the current light level ramps to the DIM Mode value within a few seconds.

  • Page 104: Password Setup Page

    Firmware Pages and Descriptions Set the Minimum brightness of the Dimmer (Dim Mode Max Level) below the detected drop. This will make sure that the panel does not react to variations in the lighting conditions of a normal working environment. The minimum (lower level) of the dimmer should be at least 10% lower than the minimum detected level (ex: lower dimmer level at 30% if the detected lighting of the room is at 40%).

  • Page 105: Calibration Page

    Modero panel. These panels can use the optional NXA-WC80211b AMX Wireless Interface Card for wireless communication. This card also supports Wired Encryption Protocol (WEP) encryption of 64-bit and 128-bit key lengths. Refer to both the Secondary...
  • Page 106 Firmware Pages and Descriptions Secondary Connection Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is currently active.
  • Page 107 3rd-party Wireless Access Point, it comes back with 1a:2b:3c:4d:etc. Entering the same apple in the Passphrase generator of any Modero panel generates a different key: a1:b2:c3:d4:etc. Only AMX Modero panels generate the same Current Key by using a unique Passphrase key generation technology.
  • Page 108 Firmware Pages and Descriptions Secondary Connection Page Elements (Cont.) WEP Keys This feature provides you with another level of security by selecting a Key value. • A single button is available for each WEP key up to a maximum of four keys. •...

  • Page 109: System Connection Page

    Firmware Pages and Descriptions Refer to both the Secondary Connection Page - Wireless Access Overview section on page 52 and Configuring a Wireless Access Connection section on page 53 for more detailed information of setting up the Modero panel for wireless network access. System Connection Page The System Connection page (FIG.
  • Page 110 • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. MAC Address Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Master Connection: Sets the NetLinx Master communication values:...

  • Page 111: Programming

    Programming Programming Overview You can program the touch panel, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).

  • Page 112: Dpg

    Programming Page Commands (Cont.) Syntax: @DPG Delete a specific "'@DPG-<popup page name>;<popup group name>'" popup page from Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the popup page. group if it exists. popup group name = 1 - 50 ASCII characters. Name of the popup group. Example: SEND_COMMAND Panel,"'@DPG-Popup1;Group1'"...

  • Page 113: Ppa

    Programming Page Commands (Cont.) If the page name is empty, the current page is used. Same as the ’Clear Page’ command @PPA in TPDesign4. Close all popups Syntax: on a specified page. "'@PPA-<page name>'" Variable: page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'@PPA-Page1'"...

  • Page 114: Ppm

    Programming Page Commands (Cont.) A Modal popup page, when active, only allows you to use the buttons and features on that @PPM popup page. All other buttons on the panel page are inactivated. Set the modality Syntax: of a specific popup page to "'@PPM-<popup page name>;<mode>'"...

  • Page 115: Pse

    Programming Page Commands (Cont.) Syntax: @PSE Set the show "'@PSE-<popup page name>;<show effect name>'" effect for the Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed page to the named show show effect name = Refers to the popup effect name being used.

  • Page 116: Programming Numbers

    Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). Toggling refers to the PPOG activating/deactivating (On/Off) of a popup page. This command works in the same way Toggle a as the ’Toggle Popup’ command in TPDesign4. specific popup Syntax: page on either a...
  • Page 117 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Very Light Yellow Light Yellow Yellow Medium Yellow Dark Yellow Very Dark Yellow Very Light Lime Light Lime Lime Medium Lime Dark Lime Very Dark Lime Very Light Green Light Green Green...
  • Page 118 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Purple Medium Purple Dark Purple Very Dark Purple Very Light Magenta Light Magenta Magenta Medium Magenta Dark Magenta Very Dark Magenta Very Light Pink Light Pink Pink Medium Pink Dark Pink...

  • Page 119: Font Styles And Id Numbers

    The TPDesign4 Touch Panel Design program has pre-set border styles that are user selectable. TPD4 border styles can ONLY be changed by using the name. TPD4 Border Styles by Name Border styles Border styles None Diamond 55 AMX Elite -L Diamond 65 AMX Elite -M Diamond 75 AMX Elite -S Double Bevel -L Bevel -L...
  • Page 120 Programming TPD4 Border Styles by Name Border styles Border styles Circle 125 Menu Bottom Rounded 85 Circle 135 Menu Bottom Rounded 95 Circle 145 Menu Bottom Rounded 105 Circle 155 Menu Bottom Rounded 115 Circle 165 Menu Bottom Rounded 125 Circle 175 Menu Bottom Rounded 135 Circle 185...

  • Page 121: Button Commands

    Programming TPD4 Border Styles by Name Border styles Border styles Menu Right Rounded 145 Oval H 100x50 Menu Right Rounded 155 Oval H 150x75 Menu Right Rounded 165 Oval H 200x100 Menu Right Rounded 175 Picture Frame Menu Right Rounded 185 Quad Line Menu Right Rounded 195 Single Line...

  • Page 122: Bat

    Programming "^" Button Commands (Cont.) Syntax: ^BAT Append "'^BAT-<vt addr range>,<button states range>,<new text>'" non-unicode text. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 123: Bcf

    Programming "^" Button Commands (Cont.) Only if the specified fill color is not the same as the current color. ^BCF Note: Color can be assigned by color name (without spaces), number or R,G,B value Set the fill color to (RRGGBB or RRGGBBAA). the specified color.

  • Page 124: Bfb

    Programming "^" Button Commands (Cont.) ONLY works on General-type buttons. ^BFB Syntax: Set the feedback type of the button. "'^BFB-<vt addr range>,<feedback type>'" Variable: variable text address range = 1 - 4000. feedback type = (None, Channel, Invert, On (Always on), Momentary, and Blink). Example: SEND_COMMAND Panel,"'^BFB-500,Momentary'"...

  • Page 125: Bmc

    Programming "^" Button Commands (Cont.) Note that the source is a single button state. Each state must be copied as a separate ^BMC command. The <codes> section represents what attributes will be copied. All codes are Button copy 2 char pairs that can be separated by comma, space, percent or just ran together. command.

  • Page 126: Bmf

    Programming "^" Button Commands (Cont.) Syntax: ^BMF Set any/all button "'^BMF-<vt addr range>,<button states range>,<data>'" parameters by Variables: sending variable text address char array = 1 - 4000. embedded codes button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons and data.
  • Page 127 Programming "^" Button Commands (Cont.) ^BMF (Cont.) For some of these commands and values, refer to theRGB Values for all 88 Basic Colors table on page 106. ’%CF<on fill color>’ = Set Fill Color. ’%CB<on border color>’ = Set Border Color. ’%CT<on text color>’...

  • Page 128: Bmi

    Programming "^" Button Commands (Cont.) Mask image is used to crop a borderless button to a non-square shape. This is typically ^BMI used with a bitmap. Set the button Syntax: mask image. "'^BMI-<vt addr range>,<button states range>,<mask image>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 129: Bnn

    Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515. SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 109 for more information.

  • Page 130: Bos

    Programming "^" Button Commands (Cont.) Syntax: ^BOS Set the button to "'^BOS-<vt addr range>,<button states range>,<video state>'" display either a Variable: Video or variable text address range = 1 - 4000. Non-Video button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons window.

  • Page 131: Bso

    Programming "^" Button Commands (Cont.) If the sound name is blank the sound is then cleared. If the sound name is not matched, ^BSO the button sound is not changed. Set the sound Syntax: played when a button is pressed. "'^BSO-<vt addr range>,<button states range>,<sound name>'"...

  • Page 132: Bww

    Programming "^" Button Commands (Cont.) By default, word-wrap is Off. ^BWW Syntax: Set the button word wrap "'^BWW-<vt addr range>,<button states range>,<word wrap>'" feature to those Variable: buttons with a variable text address range = 1 - 4000. defined address button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons range.

  • Page 133: Gdi

    Programming "^" Button Commands (Cont.) Font ID numbers are generated by the TPDesign4 programmers report. ^FON Syntax: Set a font to a specific Font ID "'^FON-<vt addr range>,<button states range>,<font value>'" value for those Variable: buttons with a variable text address range = 1 - 4000. defined address button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons range.

  • Page 134: Glh

    Programming "^" Button Commands (Cont.) Syntax: ^GLH Change the "'^GLH-<vt addr range>,<bargraph hi>'" bargraph upper Variable: limit. variable text address range = 1 - 4000. bargraph limit range = 1 - 65535 (bargraph upper limit range). Example: SEND_COMMAND Panel,"'^GLH-500,1000'" Changes the bargraph upper limit to 1000. Syntax: ^GLL Change the...

  • Page 135: Gsn

    Programming "^" Button Commands (Cont.) Slider names and cursor names can be found in the TPDesign4 slider name and cursor ^GSN drop-down list. Change the Syntax: bargraph slider name or joystick "'^GSN-<vt addr range>,<bargraph slider name>'" cursor name. Variable: variable text address range = 1 - 4000. bargraph slider name = See table below.

  • Page 136: Jsi

    Programming "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JSI to the upper left corner of the button. Set icon Syntax: alignment using a numeric keypad "'^JSI-<vt addr range>,<button states range>,<new icon layout for those alignment>'"...

  • Page 137: Mdc

    Programming "^" Button Commands (Cont.) Syntax: ^MDC Turn On the "'^MDC'" ’Mouse Example: double-click’ SEND COMMAND Panel,"'^MDC'" feature for the Sets the mouse double-click for use with the virtual PC. virtual PC. Syntax: ^SHO Show or hide a "'^SHO-<vt addr range>,<command value>'" button with a set Variable: variable text...

  • Page 138: Text Effect Names

    Programming "^" Button Commands (Cont.) For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ^UNI ASCII-HEX nibbles. Set Unicode text. Syntax: "'^UNI-<vt addr range>,<button states range>,<unicode text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 139: Button Query Commands

    Programming Button Query Commands Button Query commands reply back with a custom event. There will be one custom event for each button/state combination. Each query is assigned a unique custom event type. The following example is for debug purposes only: NetLinx Example: CUSTOM_EVENT[device, Address, Custom event type] DEFINE_EVENT CUSTOM_EVENT[TP,529,1001]...

  • Page 140: Bcb

    Programming Button Query Commands Syntax: ?BCB Get the current "'?BCB-<vt addr range>,<button states range>'" border color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 141: Bct

    Programming Button Query Commands (Cont.) Syntax: ?BCT Get the current "'?BCT-<vt addr range>,<button states range>'" text color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 142: Bop

    Programming Button Query Commands (Cont.) Syntax: ?BOP Get the overall "'?BOP-<vt addr range>,<button states range>'" button opacity. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 143: Bww

    Programming Button Query Commands (Cont.) Syntax: ?BWW Get the current "'?BWW-<vt addr range>,<button states range>'" word wrap flag Variable: status. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 144: Ico

    Programming Button Query Commands (Cont.) Syntax: ?ICO Get the current "'?ICO-<vt addr range>,<button states range>'" icon index. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 145: Jsi

    Programming Button Query Commands (Cont.) Syntax: ?JSI Get the current "'?JSI-<vt addr range>,<button states range>'" icon Variable: justification. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 146: Tec

    Programming Button Query Commands (Cont.) Syntax: ?TEC Get the current "'?TEC-<vt addr range>,<button states range>'" text effect color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 147: Panel Runtime Operations

    Programming Button Query Commands (Cont.) Syntax: ?TXT Get the current "'?TXT-<vt addr range>,<button states range>,<optional index>'" text information. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 148: Akeyb

    Programming Panel Runtime Operation Commands (Cont.) Keyboard string is set to null on power up and is stored until power is lost. AKEYB Syntax: Pop up the keyboard icon and "'AKEYB-<initial text>'" initialize the text Variables: string to that initial text = 1 - 50 ASCII characters. specified.

  • Page 149: Brit

    Programming Panel Runtime Operation Commands (Cont.) Syntax: BRIT Set the panel "'BRIT-<brightness level>'" brightness. Variable: brightness level = 0 - 100. Example: SEND COMMAND Panel,"'BRIT-50'" Sets the brightness level to 50. Syntax: @BRT Set the panel "'@BRT-<brightness level>'" brightness. Variable: brightness level = 0 - 100.

  • Page 150: Setup

    Programming Panel Runtime Operation Commands (Cont.) Syntax: SETUP Send panel to "'SETUP'" SETUP page. Example: SEND COMMAND Panel,"'SETUP'" Sends the panel to the Setup Page. Syntax: SHUTDOWN Shut down the "'SHUTDOWN'" batteries providing Example: power to the SEND COMMAND Panel,"'SHUTDOWN'" panel.

  • Page 151: Input Commands

    Programming Panel Runtime Operation Commands (Cont.) Syntax: @VKB Popup the "'@VKB'" virtual Example: keyboard. SEND COMMAND Panel,"'@VKB'" Pops-up the virtual keyboard. Syntax: WAKE Force the panel "'WAKE'" out of screen Example: saver mode. SEND COMMAND Panel,"'WAKE'" Forces the panel out of the screen saver mode. Input Commands These Send Commands are case insensitive.

  • Page 152: Embedded Codes

    Programming Embedded Codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke ($08) Backspace ($0D) Enter ($1B) ($80) CTRL key down ($81) ALT key down ($82) Shift key down ($83) ($84) ($85) ($86) ($87)

  • Page 153: Panel Setup Commands

    Programming Panel Setup Commands These commands are case insensitive. Panel Setup Commands Syntax: ^MUT Set the panel "'^MUT-<mute state>'" mute state. Variable: mute state= 0 = Mute Off and 1 = Mute On. Example: SEND_COMMAND Panel,"'^MUT-1''" Sets the panel’s master volume to mute. @PWD sets the level 1 password only.

  • Page 154: Dynamic Image Commands

    Adds a new resource. • The resource name is ’New Image’ • %P (protocol) is an HTTP • %H (host name) is AMX.COM • %A (file path) is Lab/Test_file • %F (file name) is test.jpg. Note that the %%5F in the file path is actually encoded as %5F.

  • Page 155: Raf, ^Rmf - Embedded Codes

    Programming Dynamic Image Commands (Cont.) Modifies any and all resource parameters by sending embedded codes and data. ^RMF Since the embedded codes are preceded by a '%' character, any '%' character contained Modify an in the URL must be escaped with a second '%' character (see example). existing resource.

  • Page 156: Escape Sequences

    Current state Address code Address port Channel code Channel port Level code Level port X Resolution of Current button Y Resolution of Current button Name of Button For instance, http://www.amx.com/img.asp?device=$DV would become http://www.amx.com/img.asp?device=10001. CV17 17" Modero Coor Video Touch Panels...

  • Page 157: Appendix

    Appendix Appendix Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text. The following is a code list used for bargraphs: Bargraph Text Code Inputs Code...

  • Page 158: Text Area Input Masking

    Appendix Text Area Input Masking Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, you could limit them to 5 mandatory numerical digits and 4 optional numerical digits.

  • Page 159: Input Mask Ranges

    Appendix Input mask ranges These ranges allow a user to specify the minimum and maximum numeric value for a field. Only one range is allowed per field. Using a range implies a numeric entry ONLY. Input Mask Ranges Character Meaning Start range End range Range Separator...

  • Page 160: Input Mask Output Examples

    This URL indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).

  • Page 161: Special Escape Sequences

    CGI scripts or active server pages. However; the system will parse the URL looking for special escape codes. When it finds an escape code it replaces that code with a particular piece of panel, button, or state information. For example, "http://www.amx.com/img.asp?device=$DV" would become "http://www.amx.com/ img.asp?device=10001". Other used escape sequences include: Escape Sequences...
  • Page 162 Appendix CV17 17" Modero Coor Video Touch Panels...

  • Page 163: Troubleshooting

    • This is due to the graphics controller settings in the firmware. • Update firmware to the latest v2.XX. firmware. • Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels. Then Download the KIT file to your computer.
  • Page 164 • The NXA-BASE/B Battery base should be updated with the latest firmware (part of the Modero firmware KIT file) from www.amx.com. • The base can only charge batteries while the NXT panel is in Sleep Mode. If the panel parameters are set to their highest values, the priority for the power draw becomes the active panel functions and no power is routed to the base for charging.
  • Page 165 "graphics hierarchy" errors, etc.… indicating problems with the Compact Flash. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Compact Flash.
  • Page 166 • Click Send to reload the new base KIT file onto the NXA-BASE/B. If this above steps do not cause the base to be recognized by the NXT touch panel on the Setup page, contact AMX Technical Support for further assistance.
  • Page 167 Troubleshooting CV17 17" Modero Coor Video Touch Panels...
  • Page 168 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...

This manual is also suitable for:

Nxd-cv17

Table of Contents
