Purmo H10 Quick Manual

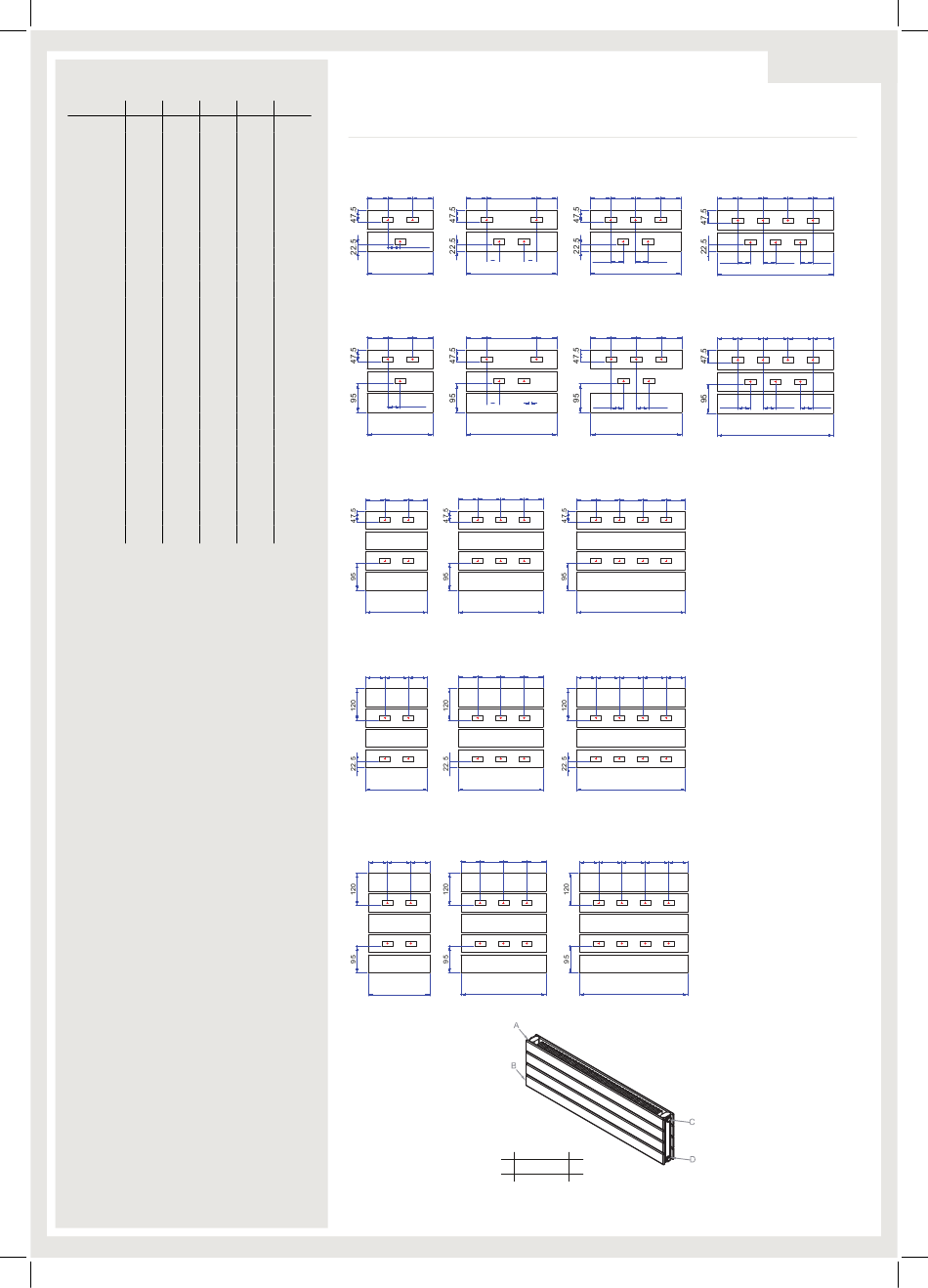

Bracket locations:

LENGTH H J K
500 140 220 140
600 150 300 150
700 150 400 150
800 140 520 140
900 150 600 150
1000 140 720 140
1100 150 800 150
1200 150 900 150
1300 140 1020 140
1400 150 1100 150
1500 150 1200 150
1600 140 1320 140
1700 150 700 700
1800 150 720 780
1900 150 800 800
2000 150 820 880
2100 140 900 920
2200 150 920 980
2300 150 1000 1000
2400 140 1060 1060
2500 150 1100 1100
2600 150 1120 1180
2700 140 1200 1220
2800 150 1220 1280
2900 140 1300 1320
3000 150 900 900

Safety Precaution:

Radiators are hot when in use, and as such,
present a risk of burns to users on prolonged
contact.
The temperature of a radiator is dependent on
the temperature of the system water, as set by
the system installer or end user.
Installers and users should ensure that those
who come in to close proximity to hot radiators
are aware of the risks of burns.
Installers and users should take all necessary
steps to minimise the risk of burns. If the risk
is significant, consideration should be given
to installing low temperature radiators, or to
placing guards in front of radiators.
For the correct installation of radiators it is
essential that the fixing of the radiator is carried
out in such a way that it is suitable for intended
use AND predictable misuse.
A number of elements need to be taken into
consideration including fixing method used to
secure the radiator to the wall, the type and
condition of the wall itself, and any additional
potential forces or weights, prior to finalising
installation.
IN ALL CASES IT IS STRONGLY
RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE
INSTALLATION.
PLEASE NOTE: The fixing materials provided
are only intended for installation on walls made
of solid wood, bricks, concrete or on timber
frame stud walls where the fixing is in to the
timber. All walls being considered should have
no more than a maximum of 3 mm wall finishing.
For walls made of other materials, for example
hollow bricks, please consult your installer or
specialist supplier. ONCE AGAIN, IF YOU ARE
UNSURE, IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL
INSTALLER OR SIMILAR TRADESPERSON
CARRIES OUT THE INSTALLATION.

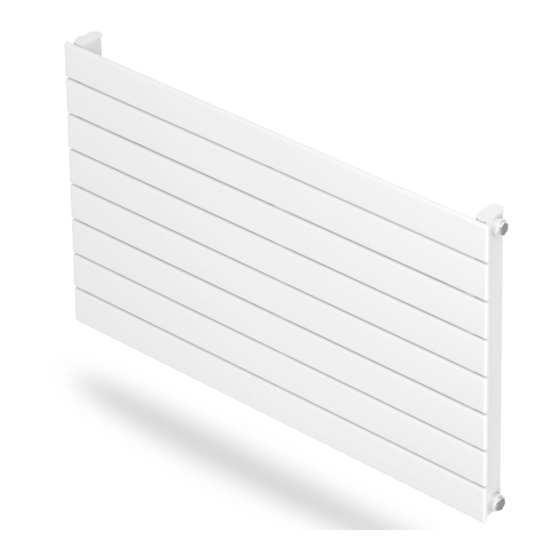

Horizontal Flat Tube Radiator
L M
Models*: H10, H11 (FF/RF), H20, H21(FF/RF) H22 (FF/RF)
Height: 143mm
H10, H20, H11 FF, H21 FF, H22 FF
H J K
'J/2'
LENGTH
500
Height: 215mm
H10, H20, H11 FF, H21 FF, H22 FF
150
H J K
150
150
150
140
J/2
150
LENGTH
150
500
140
150
Height: 288mm
150 H11 RF
140
H J K
150
140
900 150
LENGTH
500-1600
Height: 288mm
H10, H20, H11 FF, H21 FF, H22 FF, H21 RF, H22 RF
H J K
LENGTH
500-1600
Height: 360 - 868mm
H10, H20, H11 FF, H11 RF, H21, H21RF, H22, H22 RF
H J K
LENGTH
500-1600
The standard connection configuration is ABCD. Same end connections require a baffle. Any non standard configurations should be
specified at time of order
* FF = Full Fin, RF = Reduced fin
H J K H J
100 100 J/2
LENGTH 600-1600 LENGTH 1700-2900
H J K H J
100 100
J/2
LENGTH 600-1600 LENGTH 1700-2900
H J K L
H J K
LENGTH 1700-2900 LENGTH 3000
H J K L H J K
LENGTH 1700 - 2900 LENGTH 3000
H J K L H J K
LENGTH 1700-2900 LENGTH 3000

CONNECTION DETAILS

CONNECTION LADDER
G H
A C
B D
E F
Purmo Group, Gateshead, NE11 0PG; Purmo Group Newcastle West, V42 TD39
DSHI-001
(E12 & E24 LST only)
K L H J K L M
K/2
J/2 K/2 L/2
LENGTH 3000
K L
H J K L M
K/2 J/2 K/2 L/2
LENGTH 3000
L M
L M
L M
