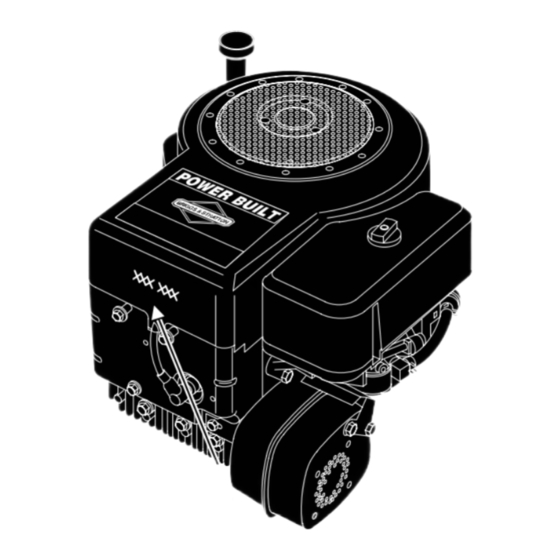

Model Series
Covered in
This Manual
190000
280000
Note: General Model Series number noted above is inclusive of the specific model
number found on your engine. To get replacement parts or technical assistance in
the future, write your engine Model, Type, Code and date of purchase here.
TABLE OF CONTENTS
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Information
. . . . . . . . . . . . . . . . . . . . . .
Oil
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel and Starting Information
Starting and Stopping
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . .
Parts and Service & Storage
Warranty Information
PRINTED IN U.S.A.
Model
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
9-10
11-13
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
© Copyright 2004 by Briggs & Stratton Corporation
Operating & Maintenance
Type
3-5
Briggs & Stratton does not approve or authorize the use of
5-6
these engines on 3-wheel All Terrain Vehicles (ATVs), motor
7
bikes, fun/recreational go-karts, aircraft products or vehicles
intended for use in competitive events. Use of these engines in
8
such applications could result in property damage, serious
injury (including paralysis), or even death.
Need assistance? Go to
14
for detailed information regarding Briggs & Stratton engines.
1-800-233-3723
15
Or call,
to hear a menu of pre-recorded messages
offering engine maintenance information.
Instructions
Code
Month Day Year
WARNING
www.briggsandstratton.com
, (U.S.A. and Canada)
FORM NO. 274787-7/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 190000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Briggs & Stratton 190000 Series

Summary of Contents for Briggs & Stratton 190000 Series

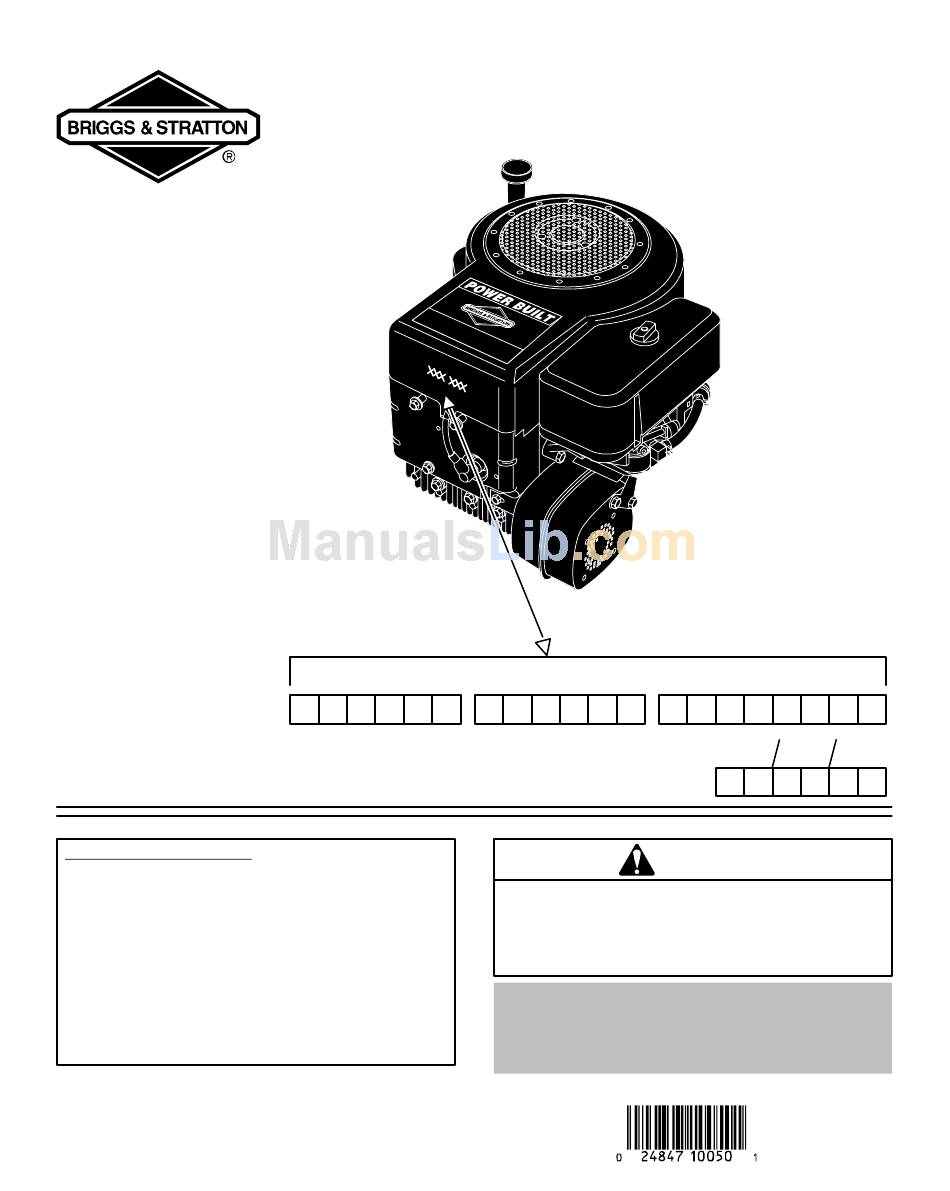

  • Page 1 Model Series Covered in This Manual 190000 280000 Model Note: General Model Series number noted above is inclusive of the specific model number found on your engine. To get replacement parts or technical assistance in the future, write your engine Model, Type, Code and date of purchase here.
