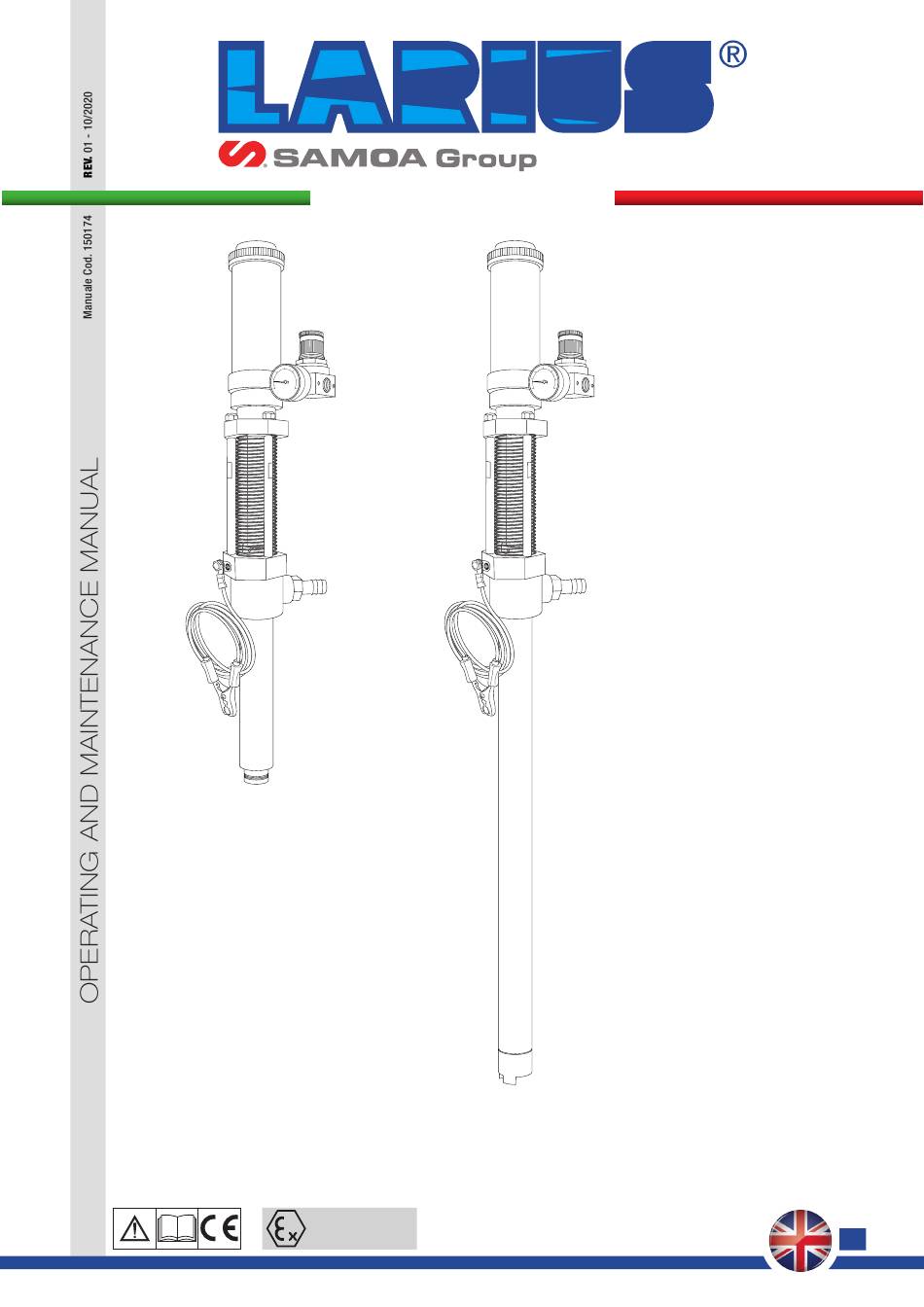

- Page 1 w w w . l a r i u s . c o m Pneumatic tranfer pump Stubby version Cod. 3610 Long version Cod. 3600 Stainless steel stubby Cod. 3611 Stainless steel long version Cod. 3601 II 2 G c IIB T4...
- Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
-
Page 3: Table Of Contents
P33 1:1 P33 1:1 Pneumatic transfer pump INDEX WARNINGS ..................................2 WORKING PRINCIPLE ..............................3 TECHNICAL DATA ................................3 DESCRIPTION OF THE EQUIPMENT ..........................4 TRANSPORT AND UNPACKING ..........................5 CONDITIONS OF GUARANTEE ...........................5 SAFETY RULES ................................5 TYPICAL INSTALLATION ..............................6 SETTING-UP ................................7 PROBLEMS AND SOLUTIONS ............................7 GENERAL MAINTENAINCE ............................7 WORKING ..................................7 COMPLETE PNEUMATIC MOTOR P33 1:1 .........................8... -
Page 4: Awarnings
P33 1:1 WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •... -
Page 5: Bworking Principle
P33 1:1 WORKING PRINCIPLE P33 1:1 pump is a pneumatic pump designed for the transfer of The pumps are available for application on a 200 lt drums (long low viscosity productswith the ability to transfer large quantities series), on demand, it's supplied for 60 lt drums (short series) of liquid. -
Page 6: Ddescription Of The Equipment
P33 1:1 DESCRIPTION OF THE EQUIPMENT P33 short version pump P33 long version pump Fig. 1D Pos. Description Pos. Description Pneumatic motor group Grounding cable Manometer Pumping material tube Outlet material Material inlet Air inlet www.larius.com REV. 01 - 10/2020 - Cod. 150174... -
Page 7: Etransport And Unpacking
P33 1:1 TRANSPORT AND SAFETY RULES UNPACKING Read carefully and entirely the following instructions before using the product. Please save these • The packed parts should be handled as indicated in the symbols instructions in a safe place. and markings on the outside of the packing. •... -
Page 8: Htypical Installation
P33 1:1 REPLACE THE PARTS DAMAGED OR WORN. If the product to be used is toxic, avoid inhalation • (IF PROVIDED) TIGHTEN AND CHECK ALL THE FITTINGS and contact by using protection gloves, goggles FOR CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND and proper face shields. -
Page 9: Isetting-Up
P33 1:1 PROBLEMS AND SOLUTIONS PROBLEMS The pump accelerates or works too rapidly. SOLUTIONS Immediately stop pumping and check the feeding of the fluid pumped. If the fluid pumped tends to dry or to harden, fill GENERAL MAINTENAINCE NORME GENERALI DI LUBRIFICAZIONE •... -
Page 10: Mcomplete Pneumatic Motor P33 1:1
P33 1:1 COMPLETE PNEUMATIC MOTOR P33 1:1 ATTENTION: always indicate code and quantity of each requested detail Fig. 1M www.larius.com REV. 01 - 10/2020 - Cod. 150174... - Page 11 P33 1:1 Pos. Code Description Q. ty 3620 Complete pneumatic motor 3301 Cylinder cover 3303 Upper spring for piston 3302 PTFE packing 3304 Pneumatic motor cylinder 3701 Label 19255 Atex plate 10112 Stainless steel label 3621 Complete motor piston 3312 Washer 3313 Lower piston spring...
-
Page 12: Npumping Complete Group P33 1:1
P33 1:1 PUMPING COMPLETE GROUP P33 1:1 ATTENTION: always indicate code and quantity of each requested detail SHORT LONG CORTA LUNGA Fig. 1N www.larius.com REV. 01 - 10/2020 - Cod. 150174... - Page 13 P33 1:1 Pos. Code Description Q. ty Pos. Code Description Q. ty 3517 3649 Tie rod (long version) Complete pumping group- long version 3519 3803 Stainless steel tie rod (long version) Complete pumping group- short version 3817 3807 Piston upper section stainless steel Complete pumping group s.s.
-
Page 14: Ocomplete Pumps Versions
P33 1:1 COMPLETE PUMPS VERSIONS Fig. 1O Fig. 2O Code Description Code Description 3610 P33 short version 3600 P33 long version 3611 P33 stainless steel short version 3601 P33 stainless steel long version www.larius.com REV. 01 - 10/2020 - Cod. 150174... -
Page 15: Atex Certificate
P33 1:1 www.larius.com REV. 01 - 10/2020 - Cod. 150174... -
Page 16: Declaration Of Conformity
P33 1:1 CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: P33 1:1 Pneumatic transfer pump complies with the directives: - EC Directive 2006/42 Machinery Directive furthermore to the... - Page 18 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
