Brand: KACO
Type: Solar On Grid String Inverter
Models: KACO Blueplanet Series with Modbus TCP Communication (Sunspec)

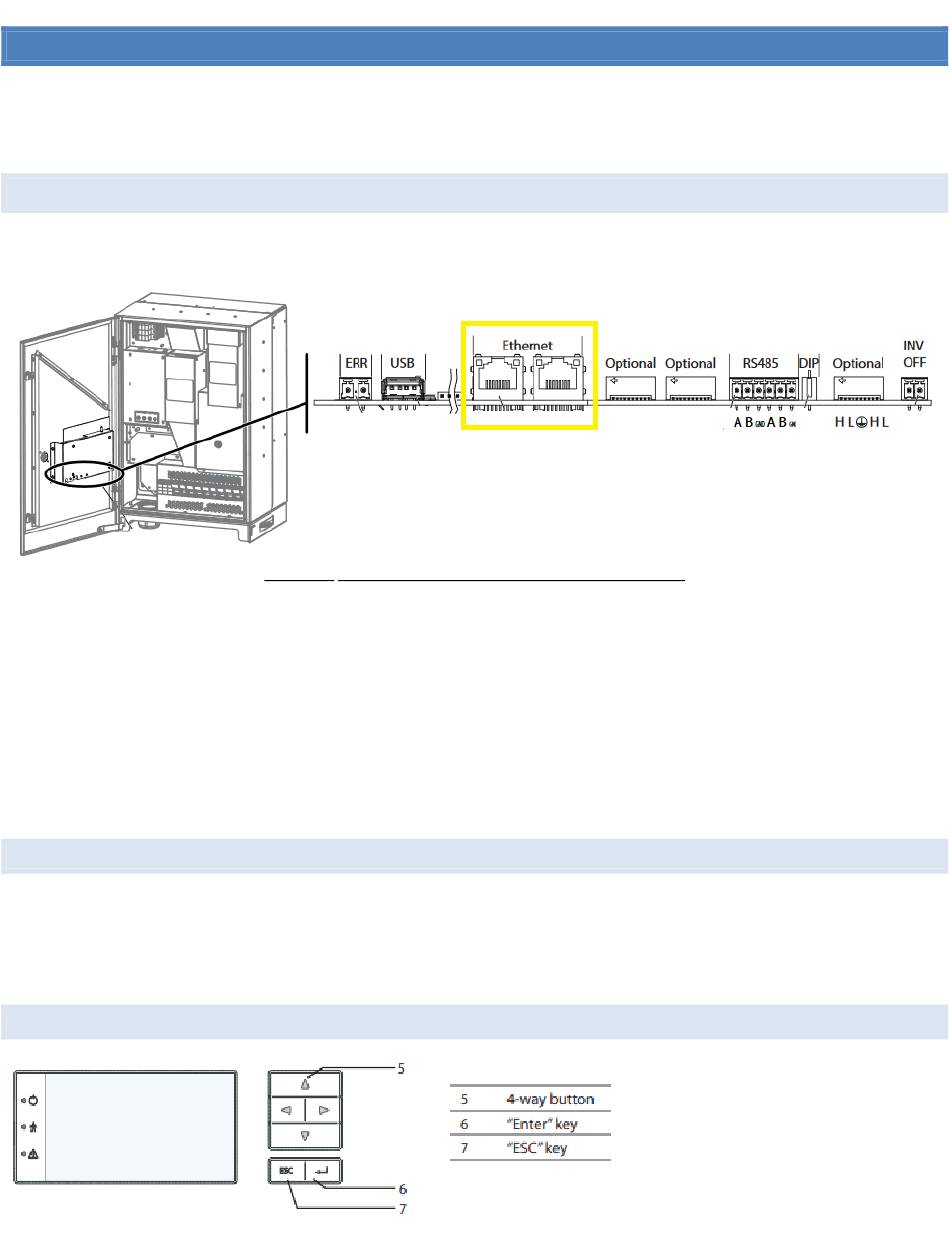

CONNECTION DIAGRAM
Locate communication terminals (Ethernet Port) as shown in the picture below.
Connection steps
Locate the communication card as shown in Figure S1
•
•
Guide the network cable (LAN) through the cable glands and Connect the Ethernet cable to the inverter.
•
Configure the Ethernet interface in the configuration menu.
Connect the Ethernet cable to the Data Logger
•
•
Configure the Ethernet settings in the settings menu
•
Provide 12V DC external supply to Data Logger
•
Provide Internet to Data Logger
DEFAULT CONFIGURATION IN DATA LOGGER
Inv-1 -> ID-1, IP-192.168.0.10, Port-502
Inv-2 -> ID-2, IP-192.168.0.11, Port-502
Inv-3 -> ID-3, IP-192.168.0.12, Port-502
continuous to the max no. inverters allowed.
CONFIGURATION AT THE INVERTER END
TRACKSO INSTALLATION GUIDE FOR KACO INVERTERS
Figure K1: Kaco String Inverter Communication Circuit Board
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kaco Blueplanet Series
Summary of Contents for Kaco Blueplanet Series
- Page 1 TRACKSO INSTALLATION GUIDE FOR KACO INVERTERS Brand: KACO Type: Solar On Grid String Inverter Models: KACO Blueplanet Series with Modbus TCP Communication (Sunspec) CONNECTION DIAGRAM Locate communication terminals (Ethernet Port) as shown in the picture below. Figure K1: Kaco String Inverter Communication Circuit Board...
- Page 2 SETTING THE IP ADDRESS IN INVERTER ID Set correct IP ADDRESS 1) Go to Inverter Settings 2) Deactivate DHCP 3) Assign IP Address, Subnet Mask, Gateway and DNS Server either as mentioned on Logger or as per Site Ethernet Details. SET COMMUNICATION PROTOCOL In Network, Activate Modbus TCP and Set Port to 502 (Default) or as per site Ethernet Details SET DATE &...
- Page 3 If multiple inverters are used, connect all in chain as shown below. Set different ip address for each inverter. Inverters The maximum length of a network segment is 100 m NOTE: The above details are mentioned in the Installation & Operation Manual for KACO Blueplanet 50.0 TL3...
- Page 4 TRACKSO WORKING 1. Insure correct connections as detailed in the installation guide. 2. Insert the SIM card. 3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required) 4. Power LED (Red) of TrackSo IoT gateway glows and stays ON. NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the installed location.
- Page 5 5. To check the exact network status send the following message to mobile number of the device SMS Command= *2222#<Stat.gsm> IMEI IMEI No. of the data logger (Device Key) Network SIGN Signal Strength out of 31 GPRS CONT- connected , NC- not connected Connected to TrackSo Server or not CONT- connected, NC- not connected no.
- Page 6 9. If the state remains Not receiveing for more than 10 minutes, click on your email ID at the top right of the screen and click on ‘Event Ingestion Logs’ in the dropdown. 10. Check if there is some log generated at the time of installation of the TrackSo IoT Gateway device. If NO, please restart the device and try the same flow again.
