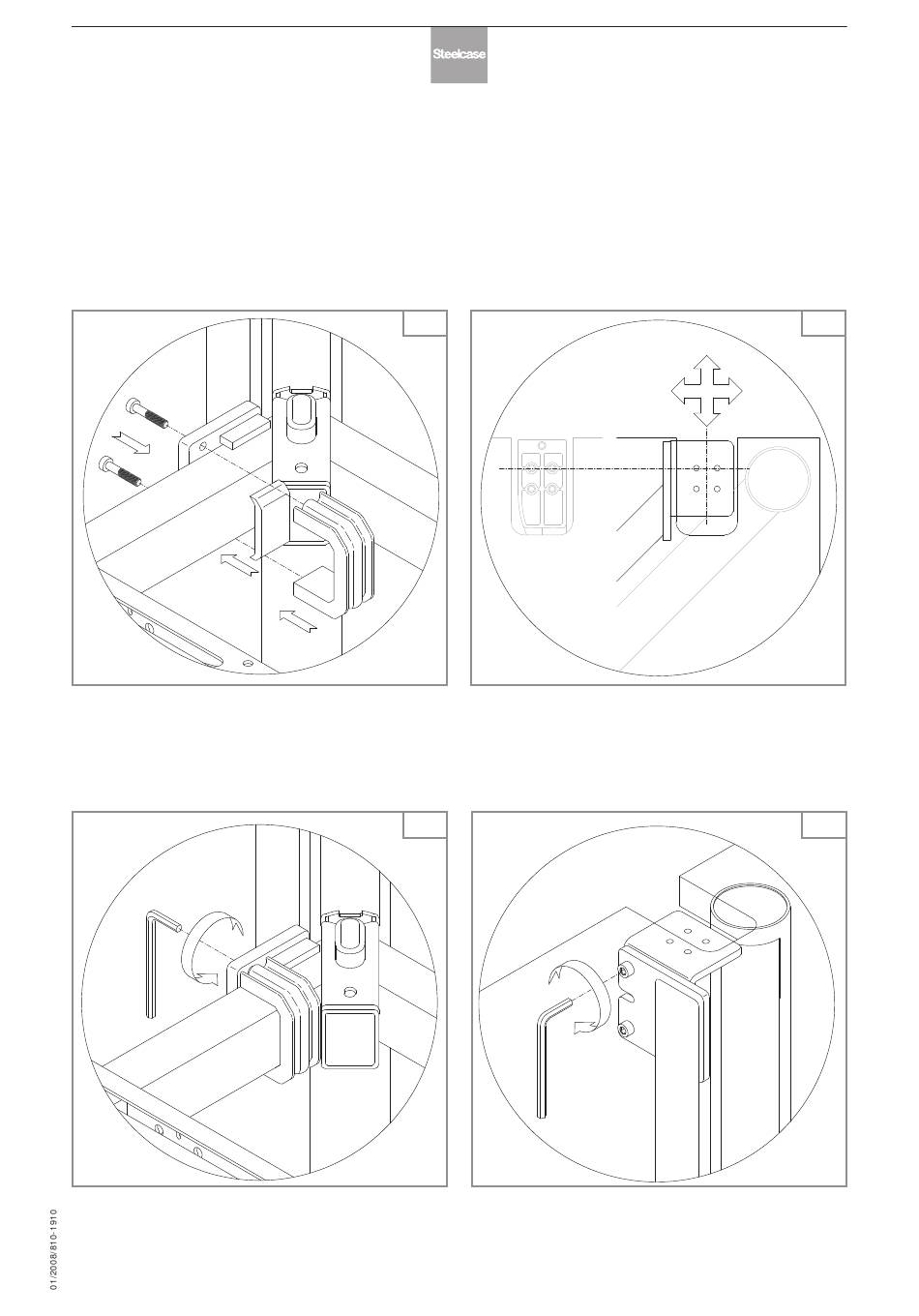

Montageanleitung - Basis-Wand auf Tisch & für Blockstellung Plattform
Assembly instruction - Basic screen on desk & back to back configuration on
platform
Notice de montage - Ecran de base sur structure & dos à dos pour plateforme
Tischadapter 2 ansetzen
Attach desk adapter 2
Positionner l'adaptateur 2
Tischadapter 2 festschrauben 5Nm
Tighten desk adapter 2 (5Nm)
Serrer l'adaptateur 2 à 5Nm
1.9
1.11
Trägerplatte am Tischadapter 2 festschrauben 3Nm
Attach the backing plate to desk adapter 2 (3Nm)
Fixer la plaque support sur l'adaptateur 2, serrer à 3Nm
31/53
Tischadapter 2 ausrichten
Adjust desk adapter 2
Ajuster l'adaptateur 2
1.10
1.12
