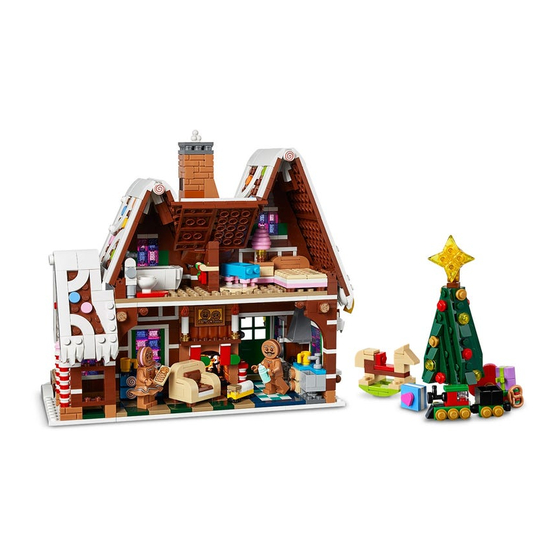

LIGHT MY BRICKS : LEGO Gingerbread House
10267 Lighting Kit
The following page is the instructions for the
Light My Bricks LEGO
Gingerbread House (10267) LED light kit.
If you run into any issues, please refer to the
online troubleshooting guide.
To ensure a trouble-free installation of your light kit, please read and follow
each step carefully. These instructions can be downloaded in PDF format
here
Please note: This page lists instructions for the LED light kit only. If you are
wishing to purchase the Light My Bricks LEGO Gingerbread House (10267) LED
light kit , please click
here
to view the product page

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO Gingerbread House 10267 Lighting Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS LEGO Gingerbread House 10267 Lighting Kit

Summary of Contents for LIGHT MY BRICKS LEGO Gingerbread House 10267 Lighting Kit

  • Page 1 These instructions can be downloaded in PDF format here Please note: This page lists instructions for the LED light kit only. If you are wishing to purchase the Light My Bricks LEGO Gingerbread House (10267) LED light kit , please click here...

  • Page 2: Package Contents

    Package Contents: 4x Pink 30cm Bit Lights 2x White 30cm Bit Lights 10x White 15cm Bit Lights 7x Flashing White 15cm Bit Lights 2x White 15cm Micro Bit Lights 1x Micro 4-Port Expansion Board 3x 6-Port Expansion Boards 2x 8-Port Expansion Boards 1x Flicker Effects Board 2x 5cm Connecting Cables 2x 15cm Connecting Cables...
  • Page 3 providing they are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together around cables; instead ensure they are laying comfortably in between each stud. CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable and light.
  • Page 4 Incorrectly inserting the connector can can result in bent pins inside the port or possible overheating of the expansion board when connected. Connecting cable connectors to Strip Lights Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way.
  • Page 5 Take extra care when inserting the micro connectors to micro ports of Micro Expansion Boards. Connecting Micro Bit Lights to Micro Expansion Boards is similar to connecting lights and cables to Strip Lights. With the expansion board facing up, ensure the side of the connector with the wires exposed is facing down.
  • Page 6 OK, Let’s Begin! 1.) We will first install lights to the christmas tree on the side of the Gingerbread House. First disconnect the star followed by the four panel sections around the tree.
  • Page 7 Disconnect the bottom sections from the front of the star as shown below, then reconnect the 1×2 plate with open studs. 2.) Take a Flashing White 15cm Bit Light and place it in between the two open studs, in the centre of the star. Secure the Bit Light in place by reconnecting the trans yellow triangular pieces over the top.
  • Page 8 Thread the other end of the Bit Light cable through the gap at the bottom of the star, then pull the cable all the way out from behind. Reconnect the star to the tree.
  • Page 9 3.) We will now light up the tree panels starting with the two that have the two trans yellow round plates on them. Take one panel and disconnect the bottom triangular plate from underneath, then disconnect the trans yellow round plate from the top.
  • Page 10 Disconnect the following few pieces from the bottom of the panel, then take another Flashing White 15cm Bit Light and with the cable facing the right, place it over the green stud. Secure the Bit Light in place by reconnecting the trans yellow round plate, followed by the other pieces we disconnected earlier.
  • Page 11 4.) Fold the cable from the left underneath the plate as shown below, then take the cable from the right and bring it under the plate and lay it in between the studs of the plate that connects underneath this section. Reconnect the sections ensuring the cables are laid in between studs.
  • Page 12 5.) Follow the previous steps to install another 2x Flashing White 15cm Bit Lights to the other tree panel with two trans yellow round plates.
  • Page 14 6.) Take one of the panels and fold the two bit light cables down so they are facing the bottom. Tuck the top cable down underneath in the side of the plate, then reconnect the panel to the front of the tree.
  • Page 15 Turn the tree around and bring the cable from the star down and lay it in between the studs before reconnecting the other panel over it. Ensure the top cable from the panel is also laid underneath the plate on the side. 7.) Take the other two tree panels and disconnect sections from one of them to install another Flashing White 15cm Bit Light to it.
  • Page 16 Fold the Bit Light cable underneath the plate and lay it in between studs of the plate that it connects on top of, then securely reconnect the plates together.
  • Page 17 8.) Repeat the previous step to install another Flashing White 15cm Bit Light to the remaining tree panel.
  • Page 18 Fold each cable down toward the bottom of each panel, then reconnect each panel to the tree ensuring you connect the plates over the Bit Light cables from the other panels underneath. 9.) Turn the tree around so that we are facing the back, then connect all seven bit light cables to an 8-Port Expansion Board.
  • Page 20 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 21 the ends so it forms one larger cable. Reconnect the all the lights to the expansion board, then neatly bunch up the cables toward the end so they all come together. Position the components behind the tree, then connect a 30cm Connecting Cable to the remaining port. We will use this cable to connect to the rest of the Gingerbread House lights later on.
  • Page 23 11.) We will now install lights to the Gingerbread House. We will need to disconnect quite a few sections from the top. First turn the set around to the back and disconnect the two roof sections as shown below:...
  • Page 25 Continue to remove roof and chimney sections as per below:...
  • Page 26 12.) Turn the set around to the front, then disconnect the following sections on top of the fire place to allow us to remove the LEGO light brick section.
  • Page 27 Remove the window wall section, followed by the front roof, then continue to remove sections from the top of the fire place.
  • Page 28 13.) Use your LEGO Removal Tool to create a gap between the white and brown plates above the front door, then disconnect the two lamps at the front.
  • Page 29 Disconnect the black round plate from one of the lamps, then take a White 15cm Bit Light and place it directly over the stud of the black round plate. Secure the Bit Light in place by reconnecting the lamp over the top, ensuring the cable is facing the back of the lamp.
  • Page 30 Wind the cable around the lamp post, then bring the lamp towards the house and thread the cable through the gap we created earlier, pulling the cable out from the inside until we can reconnect the lamp to the front.
  • Page 31 14.) Repeat previous step to install another White 15cm Bit Light to the other lamp, then thread the cable through the gap and reconnect it to the front of the house.
  • Page 32 Ensure both cables are laid in between the brown studs, then close up the gap by securely reconnecting the top section.
  • Page 33 Turn the set around and connect the two Bit Light cables we just installed to a 6-Port Expansion Board. Take the AA Battery Pack and connect it to a spare port on the expansion board, then turn it ON to test the two front lamps are working OK.
  • Page 34 issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide. 15.) We will now light up both front and inside sections of the fireplace. First disconnect the AA Battery Pack from the expansion board, then disconnect the chair followed by the fire section from the inside fireplace, by the black 2×4 plate as shown below:...
  • Page 35 Turn the set around, then disconnect the fire section from the front of the firepalce by the black 2×4 plate. 16.) Take one of the fire sections and disconnect and discard the trans orange round plate from the front. Take a White 15cm Bit Light and ensuring the cable is facing the right side, place it over the black stud underneath where the trans orange stud was.
  • Page 36 Disconnect and disassemble the flame section behind, then install another White 15cm Bit Light ensuring the cable is this time laid toward the left side.
  • Page 37 Using a pair of scissors, snip the tip at the bottom of the flame piece off to allow us to then reconnect the flame section to the trans orange stud as shown below:...
  • Page 38 Group the two Bit Light cables together, then thread both cables up the chimney in the inside of the set. Pull them out from the top, then reconnect the black 2×4 plate.
  • Page 39 17.) Repeat the previous step to install another 2x White 15cm Bit Lights to the fire place section on the front side. Discard the trans orange round plate with open stud that came with the set and replace it with another provided LEGO Trans Orange Round Plate 1×1.
  • Page 40 Turn the set around to the front, then group the two Bit Light Cables from the fire section and thread them up the chimney, pulling them both out from above. Reconnect the fire place via the black 2×4 plate.
  • Page 41 18.) Connect all four Bit Light cables from the fireplace to a new 6-Port Expansion Board, then take a 5cm Connecting Cable and connect it to a spare port. Connect the other end of the 5cm Cable to one of the OUT ports on a Flicker Effects Board.
  • Page 42 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 43 Disconnect the AA Battery Pack from the flicker effects board, then reconnect the chair back to the inside of the house. Hide the cables from the fireplace by using your LEGO removal tool to push down and cables from each side of the fireplace down into each corner.
  • Page 44 19.) Use the LEGO Removal Tool to create gaps just above the bottom floor, underneath the white plates, then disconnect the entire top floor as shown below.
  • Page 45 Disconnect the two candles above the fireplace, then disconnect the brown 1×6 plate above to allow us to remove the following wall sections.
  • Page 47 20.) Take one of the candles and disconnect the flame piece, then take a White 15cm Micro Bit Light and slightly bend the LED down so that we can place it inside the candle as shown below. With the LED inside the hole of the candle, reconnect the flame piece to secure the light in place, then reconnect the candle on top of the fire place ensuring the cable is laid behind.
  • Page 48 Repeat this step to install another White 15cm Micro Bit Light to the other candle.
  • Page 49 21.) Ensure the Micro Bit Light cables are laid in between studs of the brown plate behind, then reconnect the wall sections over the top. Connect the lights...
  • Page 50 to a Micro 4-Port Expansion Board, then take a 5cm Connecting Cable and connect it to the larger port on the expansion board. Connect the other end of the connecting cable to a different OUT port on the Flicker Effects Board. Take a 15cm Connecting Cable and connect it to the IN port on the Flicker Effects Board, then bring the other end of the cable across the right and connect it to a spare port on the 6-Port Expansion Board we connected the...
  • Page 51 22.) Take a new 15cm Connecting Cable and connect it to the end port on the 6-Port Expansion Board, then take 2x Adhesive Squares and stick them to the back of the Expansion Board. Stick the expansion board to the inside of the building in the following position against the right wall as shown below.
  • Page 52 Pull up the cables from the front lamps to ensure they don’t sag down, then disconnect the dark grey 1×1 brick behind them and lay the cables in between studs before reconnect the brick over the top. Bring the 15cm Connecting Cable over the bricks and toward the bottom of the set, then connect it to a new 6-Port Expansion Board.
  • Page 53 and connect it to another spare port on the expansion board, then turn it ON to test the candle lights are working and flickering OK.
  • Page 54 23.) Group all the components from the flickering lights together and twist and wind them into a neat bunch.
  • Page 55 Lay the 15cm Connecting Cable that it connected between the flicker effects board and 6-port expansion board in between the following studs, then reconnect the dark brown wall section we removed earlier, over the top. Tuck all the components neatly inside the chimney, then reconnect the brown 1×6 plate to the top of the wall section.
  • Page 56 Reconnect the following brown plates above the fire place, as well as other sections we removed earlier, surrounding the chimney, then turn the set around to the front and reconnect the LEGO light brick section followed by bricks above.
  • Page 57 24.) We will now install a light in the front kitchen area. Carefully turn the set upside down so we can see underneath this area, then take a White 15cm Bit Light and with the cable facing toward you, place the LED (facing up) in the following position.
  • Page 58 With the set turn back upright, bring the Bit Light cable out and connect it to a spare port on the 6-Port Expansion Board mounted to the wall. Turn the Battery Pack ON to test the light is working OK. N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 59 25.) Pull the excess cable from the White 15cm Bit Light up to ensure it is not dangling down and visible . Disconnect the following brown 1×1 brick at the top, then bring the 15cm Connecting Cable over the left arched brick and lay it in between studs as shown below.
  • Page 60 26.) Take the entire top floor over the bottom floor and place it onto it’s side, then take another White 15cm Bit Light and connect it to the remaining port on the 6-Port Expansion Board mounted to the wall. With the cable facing the right, place the LED underneath the top floor in the following position.
  • Page 61 Loop the cable around to the left, then secure underneath the top floor by tucking it into the sides of the white plates. Reconnect the top floor then check underneath and ensure all cables from the Bit Light are tucked up, then turn the battery pack ON to test the lights are working OK.
  • Page 62 27.) Take a 30cm Connecting Cable and connect it to a spare port on the 6-Port Expansion Board at the bottom of the set, then bring the other end of the cable across to the left side. Lift up the roof panel section on the left, then disconnect the following pieces from the inside.
  • Page 63 Take the other end of the 30cm Connecting Cable and connect it to a new 8- Port Expansion Board.
  • Page 64 28.) Reconnect the following section behind the chimney, then reconnect the middle roof section via the brown clip pieces as shown below. Turn the set around to the front and reconnect the following window section as well as the remaining sections of the chimney.
  • Page 65 29.) From the back of the set, remove the bed and bedside table, then disconnect the brown round plate from the bottom of the bedside lamp.
  • Page 66 Take a White 30cm Bit Light and place it over the top of the brown plate. Secure the light in place by reconnecting the lamp over the top, then reconnect the lamp to the bedside table ensuring the cable is behind. Reconnect the bedside table to the set, then lay the cable to the right, around the room before reconnecting the bed.
  • Page 67 Bring the cable down and connect it to the 6-Port Expansion Board at the bottom of the set, then eliminate excess cable between the top and bottom floor by looping the cable around the brown hinge piece on the right side 2-3 times.
  • Page 68 30.) Turn the set around to the front, then take the roof section that connects over the front door and place it on it’s back. Take a Pink 30cm Bit Light and stick it to an Adhesive Square. With the cable facing the inside of the roof, stick the Bit Light to the following position underneath the front of the roof tip.
  • Page 69 Bring the cable underneath the black hinge brick on the roof, then reconnect the roof ensuring you first lay the cable toward the right, behind the chimney. You may also need to disconnect the window section behind in order to securely reconnect the roof.
  • Page 70 Bring the cable over to the right side ensuring you lay it in between sections as shown below.
  • Page 71 31.) Turn the set around to the back, then take the roof section that sits above the bedroom and turn it onto it’s right side so we can access underneath of it. Take a White 30cm Bit Light and with the cable facing the right, place it in the following position underneath the right roof panel.
  • Page 72 Bring the cable down to the right side and secure it underneath the white rounded bottom plate. 32.) Flip the roof section over and lay it onto it’s back, then take a Pink 30cm Bit...
  • Page 73 Light and stick the LED to an Adhesive Square. With the cable facing the inside of the roof, stick the Bit Light to the following position underneath the front of the roof tip. Bring the roof over the house and reconnect it over the bedroom via the brown clip plate, then bring the other end of the White Bit Light cable up over the brown angled clip piece before securely reconnecting the right roof panel by pushing it down.
  • Page 74 Bring the other end of the Pink Bit Light cable across to the far left side of the house ensuring you slip the cable along with the other pink bit light cable in between the bath and wall sections as shown below.
  • Page 76 33.) Bring the two Pink Bit Light cables down and connect them to the 8-Port Expansion Board. Secure the two cables underneath the following brown hinge brick ensuring they are laid in between studs underneath. This will also ensure the cables stay hidden neatly behind the bath. Turn the Battery Pack ON to test the pink roof lights as well as the bedroom lights are working OK...
  • Page 77 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 78 Use 2x Adhesive Squares to stick the 6-Port Expansion Board to the bottom of the set in the following position. 35.) Take the roof that sits over the bathroom and flip it around and lay it on it’s back so we can access the front side of it. Take another Pink 30cm Bit Light and stick it underneath the tip of the roof like we did for the other Pink lights using an Adhesive Square.
  • Page 79 Lay the roof onto it’s right side so we can access underneath. Take a White 15cm Bit Light and with the cable facing down, place the LED in the following position underneath the right roof panel. Secure the Bit Light in place by connecting another provided Trans Clear Plate w Rounded Bottom 2×2 over the top of it.
  • Page 80 Reconnect the roof over the bathroom using the brown clip plate on the right and the hinge brick on the left ensuring both White and Pink Bit Light cables are laid behind the hinge brick. Bring both pink and white bit light cables down the left side and connect them to the 8-Port Expansion Board.
  • Page 81 36.) We will now install the remaining light to the left side of the bottom floor. Carefully turn the house over onto it’s front then turn it upside down so we can access underneath the top floor. Take the remaining White 15cm Bit Light and with the cable facing the left and led facing up, place it underneath the top floor in the following position.
  • Page 82 Turn the set back over and thread the other end of the Bit Light cable through to the top floor, then pull it all the way out from the other side. Connect the Bit Light to a spare port on the 8-port Expansion Board and proceed to the next step.
  • Page 83 37.) Disconnect the roof from the left window and place it onto it’s back side so we can access underneath the front of the roof tip. Take the remaining Pink 30cm Bit Light and stick it underneath this section using an Adhesive Square.
  • Page 84 Bring the roof over the left window and reconnect the left side (side facing the front) only. Bring the cable down and connect it to a spare port on the 8-Port Expansion Board below. Turn the Battery Pack ON to test the left window roof light and internal lights are working OK.
  • Page 85 issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 86 Lay the 30cm Connecting Cable from the expansion board in between studs before securing it down by reconnecting the brown 1×1 plate over the top. Reconnect the hinge brick to allow us to then securely reconnect the right roof panel.
  • Page 87 Secure the 30cm Connecting Cable to the brown pillar using tape, then hide the rest of the cable running along the bottom underneath this set. Secure it down using tape.
  • Page 88 39.) Position the Christmas Tree next to the Gingerbread House, then take the 30cm Connecting Cable from the bottom of the tree and connect it to a spare port on the 8-Port Expansion Board on the right side of the House. Finally test all the lights are working OK!
  • Page 89 This finally completes installation of the Light My Bricks Gingerbread House Light Kit. We thank you for purchasing this product and hope you ENJOY!
