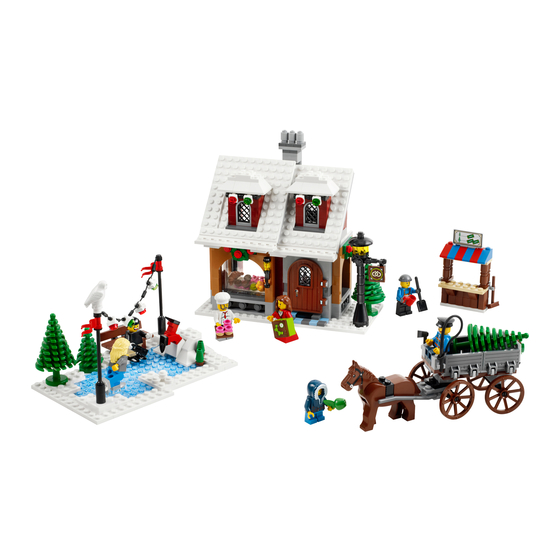

LIGHT MY BRICKS: LEGO Winter Village Bakery 10216
Lighting Kit
The following page is the instructions for the
Light My Bricks LEGO Winter Village Bakery (10216)
LED light kit.
If you run into any issues, please refer to the
online troubleshooting guide.
To ensure a trouble-free installation of your light kit, please read and follow each step carefully.
Please note: This page lists instructions for the LED light kit only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO Winter Village Bakery 10216 Lighting Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS LEGO Winter Village Bakery 10216 Lighting Kit

Summary of Contents for LIGHT MY BRICKS LEGO Winter Village Bakery 10216 Lighting Kit

  • Page 1 LIGHT MY BRICKS: LEGO Winter Village Bakery 10216 Lighting Kit The following page is the instructions for the Light My Bricks LEGO Winter Village Bakery (10216) LED light kit. If you run into any issues, please refer to the online troubleshooting guide.

  • Page 2: Package Contents

    Package Contents: 2x White 30cm Bit Lights 3x White 15cm Bit Lights 1x Blue 30cm Bit Light 4x White 15cm Micro Bit Lights 4x Flashing White 30cm Micro Bit Lights 4x Flashing White 15cm Micro Bit Lights 1x White Strip Light 3x Micro 4-Port Expansion Boards 1x 8-Port Expansion Board 1x Flicker Effects Board...
  • Page 3 CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable and light. Connecting cable connectors to Expansion Boards Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered “=” symbol on the left side of the port.
  • Page 4 Incorrectly inserting the connector can can result in bent pins inside the port or possible overheating of the expansion board when connected. Connecting cable connectors to Strip Lights Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way.
  • Page 5 Installing Bit Lights under LEGO® bricks and plates. When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO® studs or in between. OK, Let’s Begin!
  • Page 6 We will first install lights to the Ice rink. Disconnect the following sectionssurrounding the snow pile on the right side as shown below: Take a Blue 30cm Bit Light and bend the LED up at approximately 1cm from the end. With the LED facing the Ice rink, place the cable in between the white studs, then secure it in place by reconnecting the white angled brick as shown below:...
  • Page 7 Reconnect the surrounding pieces, then turn this section around to the sideand bring the cable towards the back. Disconnect the light post section and lay the cable in between studs underneath it. Reconnect the light post to secure the cable in place.
  • Page 8 Turn the set around to the back and connect the Blue Bit Light into a large port on a Micro 4-Port Expansion Board. Take the AA Battery Pack and insert 3x NEW AA Batteries to it. Connect the Battery Pack cable to the other large port on the Micro Expansion Board, then turn ON the power to test the blue light is working OK.
  • Page 9 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 10 We will now install flashing lights to the lights hanging over the ice rink.Disconnect the two light sections on the right, then disassemble them as shown below. Take a Flashing White 15cm Micro Bit Light and place the LED inside one of the white plates with clips.
  • Page 11 Repeat this step to install another Flashing White 15cm Micro Bit Light to the other light section.
  • Page 12 Reconnect the red light to the overhead string, ensuring the trans red plateis facing down. Bring the cable across and over the flag, then reconnect the green light ensuring the cable from the red light is laid inside the white clip of the green light.
  • Page 13 Bring both cables over the flag, then disconnect the pole and wind both cables around it three times. Secure the two cables underneath the white 2×2 plate underneath the pole as shown below. Ensure the two cables are laid in between studs underneath and towards the back of this section.
  • Page 14 Turn the set around to the back and connect both Micro Bit Light cables to the Micro Expansion Board (smaller ports). Turn the AA Battery Pack ON to test the flashing lights are working OK.
  • Page 15 We will now install the other two flashing lights above the rink. Disconnect the two light sections on the left side, then following the same process used in previous steps, install another 2x Flashing White 15cm Micro Bit Lights to these lights.
  • Page 17 Reconnect the green light first, ensuring the trans green plate is facingdown, then bring the cable over the flag. Reconnect the red light ensuring the cable from the green light is clipped inside the white clip of the red light. Bring both cables over the flag. Wind both cables around the pole twice, then secure the cables underneath the white plate on the bottom of the pole.
  • Page 18 Turn the set around to the back and disconnect the white 2×4 plate underneath the larger tree on the right. Lay the two cables down in between studs as shown below, then reconnect the white plate as well as the larger tree.
  • Page 19 Connect the two Micro Bit Lights to the remaining ports on the Micro Expansion Board. Turn ON the Battery Pack to test the flashing lights are all working OK.
  • Page 20 Disconnect the AA Battery Pack from the expansion board, then disconnectthe bench as well as the white 2×4 plate to the right of it. Lay the cables from the Blue Bit Light and the two Flashing Micro Bit Lights toward the centre of this section in between studs. Reconnect the 2×4 plate over the top followed by the bench.
  • Page 21 Secure the cables underneath the smaller tree, then twist the cables around each other a few times just behind the smaller tree. Take 2x Adhesive Squares and stick them to the back of the expansion board, then stick the expansion board on the back of the white plates behind the bench.
  • Page 22 Continue to twist and fold up the cables into a neat bunch, then tuck any remaining cable underneath the plates.
  • Page 23 Take a 30cm Connecting Cable and connect it to the larger port on the Micro Expansion Board. Leave the other end of the cable disconnected for now as this will be used to connect to an expansion board on the back of the bakery later on. We will now install lights to the bakery.
  • Page 25 Follow the below images to continue to disconnect sections from the top half of the bakery.
  • Page 27 Turn the set around to the front and disconnect the following sections surrounding the front window.
  • Page 28 10.) Take the front lamp section and disassemble it as shown below, then take aWhite 15cm Bit Light and thread the connector end of the cable through the bottom of the trans yellow cone piece. Thread the cable all the way through then, with the LED facing the front, reconnect the black post piece and re-clip it back to the orange brick.
  • Page 29 Bring the cable down behind the black post, then underneath the brown brick before reconnecting it to the front of the Bakery. Ensuring the cable is laid in between studs, reconnect the red ‘L’ bricks over the top. 11.) Connect the White 15cm Bit Light to a White Strip Light, then take the AA Battery Pack and connect it to the Strip Light’s other port.
  • Page 30 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 31 12.) We will now install a light to the lamp post. First disconnect anddisassemble to lamp post as shown below:...
  • Page 32 Take a White 30cm Bit Light and place it in the centre of the black round plate. Secure the Bit Light in place by reconnecting the trans yellow brick with black dish over the top. Thread the Bit Light cable through the top of the sign section via the top open stud on the black brick. Pull the cable all the way out from the bottom, then reconnect the lamp.
  • Page 33 13.) Continue to thread the cable through all the black round bricks as well asthe black cone brick at the bottom, then reconnect everything together (without the black bar). Reconnect the lamp post to the front of the set, then lay the cable behind it, in between studs. Reposition the tree in the middle of the plate to cover up the wire.
  • Page 34 Turn the set around, then connect the Bit Light cable from the lamp post to an...
  • Page 35 8-Port Expansion Board. Take the AA Battery Pack and connect it to the expansion board, then turn ON the battery pack to test the lamp post is working OK. Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 36 14.) Take a 30cm Connecting Cable and connect it to the 8-Port Expansion Board, then connect the other end of the cable to the other port on the White Strip Light from previous step. Using it’s adhesive backing, stick the right side of the Strip Light underneath the red bricks on the right.
  • Page 37 Secure the White 15cm Bit Light cable underneath the left roof pieces ensuring you first pull the cable up to prevent it from being seen from the outside. Lay the 30cm Connecting Cable across the top of the bottom floor in between studs as shown below.
  • Page 38 15.) We will now install flickering lights to the bakery oven. Follow the belowimages to disconnect sections of the oven to allow us to disconnect the trans orange round plates.
  • Page 39 Take a White 15cm Micro Bit Light and with the cable facing the back corner, place the LED over the top left black stud. Secure the Micro Bit Light in place by reconnecting one of the trans orange round plates over the top. Repeat this to install another White 15cm Micro Bit Light to the right side.
  • Page 40 Install another 2x White 15cm Micro Bit Lights to the bottom two studs, ensuring the cables are this time facing the bottom corners before reconnecting the trans orange round plates over the top. Pull the front two cables up before reconnecting the light grey ‘L’ plates.
  • Page 41 16.) Take the upper oven section and disconnect the following sections fromthe bottom of it. Reconnect these two sections to the oven, then lay the two cables from each side, over the top of these sections, laying them in between studs.
  • Page 42 Disconnect the following sections from the bottom of the oven section, then reconnect these pieces over the top of the cables.
  • Page 43 Pull all four cables up, then thread them through underneath the space on the remaining oven section pieces. Reconnect the top of the oven, then pull the cables toward to back (front of the bakery).
  • Page 44 17.) Take the second level section which sits above the left side of the bakeryand disconnect the two bricks from underneath of it. Ensuring the four micro bit light cables are laid in between studs, reconnect the two light grey bricks over the top of them. Lay the 30cm Connecting Cable in between the following studs (over the dark grey roof brick as well as in between studs below) before reconnecting the second level section over the top.
  • Page 45 Take a new Micro 4-Port Expansion Board, and connect the four Micro Bit Lights to it. Slip the cables in between the bricks and leave the expansion board behind the brown crate for now, as we will connect this up later. Ensure the cables are laid in between studs (30cm cable and white 15cm bit light cable), then reconnect the upper chimney section.
  • Page 46 section, then turn ON the Battery Pack to test the strip light is working and lighting up the bakery floor. 18.) Disconnect the crate from the second level, then take a 5cm Connecting Cable and connect it to the large port on the Micro Expansion Board. Connect the other end of the 5cm cable to one of the OUT ports on a Flicker Effects Board.
  • Page 47 Take another 5cm Connecting Cable and connect it to the IN port on the Flicker Effects Board. Connect the other end of the 5cm connecting cable to the large port on a new Micro 4-Port Expansion Board. Take a 15cm Connecting Cable and connect it to the other large port on the Micro Expansion Board we just connected, then bring the cable down the left side of the bakery and connect it to...
  • Page 48 a spare port on the 8-Port Expansion Board at the bottom of the set. Turn the Battery Pack ON to test the oven lights are working and flickering OK. Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 49 19.) Disconnect the white tile on the left side of the bakery, then disconnect theleft wall section. Turn the set around to the front, then reconnect the window section to the left side. Remove all the light sections above both windows on the second floor, disconnecting them from the black plates with clips.
  • Page 51 20.) Take a Flashing White 15cm Micro Bit Light and place the LED inside the white plate with clip. Secure the Bit Light in place by reconnecting one of the trans red round plates. Remember – Do not forcefully connect the LEGO plate back inside the white plate. Because of the size of the micro LED, the plate will not fully connect inside.
  • Page 52 Lay the cable underneath the middle of the black plate, before reconnecting this section back to the top of the left window. Ensure the cable is laid in between studs underneath. Install another Flashing White 15cm Micro Bit Light to the other light section, then reconnect it to the top of the left window.
  • Page 53 Ensuring both cables are laid in between studs, reconnect the red 1×4 plate behind, then bring both cables across to the right side and secure them down underneath the following angled red brick.
  • Page 54 21.) Repeat the previous step to install another 2x Flashing White 15cm Micro Bit Lights to the remaining light sections, then reconnect them above the right window. Ensuring the cables are laid in between studs, reconnect the red 1×4 plate behind.
  • Page 55 Turn the set around to the back and connect all four flashing micro bit lights to the Micro 4-Port Expansion Board (one with nothing connected to it). Turn ON the Battery Pack to test the flashing lights above the windows are working OK.
  • Page 56 22.) Neaten up all the excess cabling from the Flashing lights by twisting andfolding them altogether into a neat bunch. Group all the components on the second floor together, then lay the 15cm Connecting Cable in between studs on the left side. Secure the cable down by reconnecting the white tile and the left wall section we removed earlier.
  • Page 57 23.) We will now install a light to the bottom section of the bakery. Turn the setaround to the side, and use your LEGO removal tool to create a gap just underneath the light grey plate above the side window. Take a White 15cm Bit Light and turn it over so that the LED is facing down, then thread the Bit Light through the gap we just created.
  • Page 58 Close up the gap we created, ensuring the Bit Light cable is laid in between studs, then connect the Bit Light to a spare port on the 8-Port Expansion Board at the bottom of the set. Turn ON the Battery Pack to test the internal light is working OK.
  • Page 59 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 60 Turn the set around and reconnect the top of the chimney, then reconnect the crate to the second floor ensuring the components are nicely tucked in and hidden behind it.
  • Page 61 25.) The last light we need to install to the bakery is the one just above the frontdoor. Take the remaining White 15cm Bit Light and stick it to an Adhesive Square. With the cable facing the right side, stick the Bit Light underneath the white plate above the door. Bring the cable underneath the roof section and around to the back, then secure it underneath the white tile on the side of the building.
  • Page 63 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 64 27.) We will now install a light to the tree shop. First disconnect the roof fromthis section, then flip it over so we can access underneath. Take a White 30cm Bit Light and with the cable on the left side, place the LED underneath the roof in the middle. Secure the Bit Light in place by connecting the remaining provided Trans Clear Plate w Rounded Bottom 2×2 over the top.
  • Page 65 Flip the roof section back over and reconnect it to the tree shop, then bring the cable down the side of the shop and secure it underneath the side bricks, with the cable facing out.
  • Page 66 28.) Position the Ice Rink section on the left side of the Bakery. Take the otherend of the 30cm Connecting Cable from this section and connect it to a spare port on the 8-Port Expansion Board.
  • Page 67 Position the Tree Shop to the other side of the Bakery, then connect the bit light cable to the remaining spare port on the 8-Port Expansion Board. Turn the Battery Pack ON to test all the lights connected are working OK.
