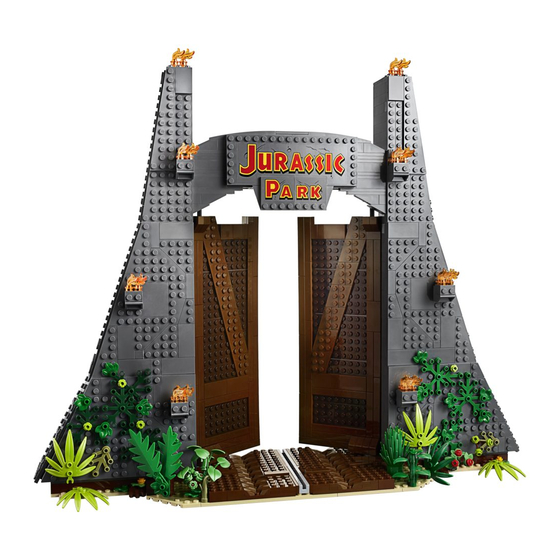

Light My Bricks: LEGO Jurassic Park – T.Rex

Rampage 75936 Lighting Kit

The following page is the instructions for the

Light My Bricks LEGO Jurassic

Park – T.Rex Rampage (75936) LED light kit.

If you run into any issues, please refer to the

online troubleshooting guide.

Need help?

Do you have a question about the LEGO Jurassic Park T.Rex Rampage 75936 Lighting Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for LIGHT MY BRICKS LEGO Jurassic Park T.Rex Rampage 75936 Lighting Kit

Page 1 Light My Bricks: LEGO Jurassic Park – T.Rex Rampage 75936 Lighting Kit The following page is the instructions for the Light My Bricks LEGO Jurassic Park – T.Rex Rampage (75936) LED light kit. If you run into any issues, please refer to the...
Page 2: Package Contents
These instructions can be downloaded in PDF format here Please note: This page lists instructions for the LED light kit only. If you are wishing to purchase the Light My Bricks LEGO Jurassic Park – T.Rex Rampage (75936) LED light kit , please click here...
Page 3 3x Black Technic Pin with Friction Ridges Lengthwise with Centre 3x Black Speargun Miniﬁg Weapon 1x Trans Clear Plate w Rounded Bottom 2×2 Important things to note: Laying cables in between and underneath bricks Cables can ﬁt in between and underneath LEGO® bricks, plates, and tiles providing they are laid correctly between the LEGO®...
Page 4 Connecting cable connectors to Expansion Boards Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered “=” symbol on the left side of the port. The connector side with the wires exposed should be facing toward the soldered “=”...
Page 5 Connecting Micro Cable connectors to Micro Expansion Board Ports Take extra care when inserting the micro connectors to micro ports of Micro Expansion Boards. Connecting Micro Bit Lights to Micro Expansion Boards is similar to connecting lights and cables to Strip Lights. With the expansion board facing up, ensure the side of the connector with the wires exposed is facing down.
Page 6 When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO® studs or in between. OK, Let’s Begin! 1.) First disconnect the front wall panels as well as the ﬁre sections from the right side of the entrance.
Page 8 Next, take out the following provided LEGO pieces shown below: 2x Black Tile 1×1 with Clip 2x Black 1×1 Modiﬁed Plate Rounded with Handle 2x Black Round Plate 1×1 with open stud...
Page 9 2.) Take one of the black round plates with open stud and thread the connector end of a Green 30cm Bit Light through the bottom of the black plate. Thread it all the way through, then slightly bend the Bit Light on a 90 degree angle so that it can sit ﬂat against the bottom of the black round plate as per below:...
Page 10 Connect this piece to one of the Black 1×1 Modiﬁed Plate Rounded with Handle pieces, then thread the connector side of the cable through the space just above the handle. Pull the cable all the way out from the other side, then attach the plate with clip at the bottom.
Page 11 3.) Attach the assembled spot light facing up, to the bottom of the set in the following position(facing diagonally up left), then disconnect the the plant from the left. Repeat the previous step to assemble another spot light and install another Green 30cm Bit Light.
Page 13 Connect the assembled spot light to the following position, facing the wall. Bring the cable behind and to the right side Disconnect the following brown piece and lay the cable from the left spot light along the wall in between studs, then reconnect the piece over the top.
Page 14 Disconnect the following two sections, then lay the cable from the left spot light along the wall in between studs. Reconnect the ﬁrst section, then lay the cable from the right spot light underneath the leaves, then around the right corner stud before reconnecting the ﬂower section over the top.
Page 15 4.) Bring both the cables around the corner to the back side of the set, then connect them to an 8-Port Expansion Board. Take out the USB Power Cable and connect it to expansion board. Connect the other end to a USB Power Bank or wall adaptor (sold separately) and turn it ON to test the green lights are...
Page 16 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to...
Page 17 verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide. 5.) We will now install another Green light to the Mud room at the top of the back side.
Page 18 Disconnect the following angled tile toward the back, then lay the cable in between studs before reconnecting the angled tile over the top. This will help secure the cable. Bring the other end of the cable out, then bring it around the front and down towards the bottom to connect to the 8-Port Expansion Board underneath.
Page 19 6.) We will now light up the restaurant room underneath. Take out a White 30cm Bit Light and stick it to another Adhesive Square. Lift up the side ﬂap and thread the Bit Light down the following space on the side. Stick the Bit Light to the the front of the top section inside this room as shown below.
Page 21 Disconnect the following tile, then bring the cable down and lay it across toward the front of the set in between studs, before reconnecting the tile over the top. This will help secure the cable.
Page 22 Bring the other end of the cable out, then bring it down underneath the bottom side ﬂap, to connect to the 8-Port Expansion Board underneath. Turn the USB Power Bank ON to test the light is working OK. N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
Page 23 7.) We will now light up the underground bunker at the bottom ﬂoor. First, we want to create a gap just above the room (above the green plate). To create this gap, gently push your ﬁnger up the roof plate of this room to slightly disconnect this section on the top left side as shown below.
Page 24 Bring the set back to it’s upright position and push down the section above the bunker room to close up the gap we created earlier. Bring the Bit Light cable down and connect it to the 8-Port Expansion Board underneath, then turn ON the USB Power Bank to test the light is working OK.
Page 25 8.) Take the 2x White Strip Lights and connect them together using a 5cm Connecting Cable. Take a 50cm Connecting Cable and connect one end it to the left strip light. Take a 30cm Connecting Cable and connect one end to the right strip light.
Page 26 Carefully place the entire set back over onto it’s front, then using their adhesive backings, stick the two strip lights underneath the following section as shown below: Do your best to stick them as closely as possible next to one another.
Page 27 9.) Carefully bring the set back to it’s upright position, then take the 50cm connecting cable from the left side and thread it all the way up the top left corner behind the gears. Thread the cable back down in between the wall and the black bar and pull it out over the top of the light grey plate as show below: Completely disconnect the smaller technic bar, then disconnect just the...
Page 28 bottom section of the longer technic bar. Bring the cable over to the left, then reconnect both technic bars, securing the cable in place. Bring the cable down and then across toward the front, then tuck it in underneath the top side ﬂap.
Page 29 Bring the cable down toward the bottom and connect it to the 8-Port Expansion Board. Lift up the bottom side ﬂap and bring the connecting cable underneath it. Turn the USB Power Bank ON to test the strip lights are working...
Page 30 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 31 Pull the two spot light cables out the back side, then twist and fold them around each other into a neat bunch. Twist the two bunched up cables together into one larger bunch.
Page 32 11.) Turn the set around to the front side as we will now light up the ﬁre sections on the right. Take the bottom wall plate as well as the ﬁre section. Disconnect and disassemble to trans orange ﬂame pieces as shown below: Take a White 30cm Bit Light and with the cable facing the back and in between studs, place it over the front right stud of the grey brick section as shown below.
Page 33 Repeat this step to install another 3x White 30cm Bit Lights to this section ensuring all cables are facing the back and laid in between studs as shown below:...
Page 34 12.) Take the four trans orange ﬂame pieces and carefully snip off the tips using a pair of scissors.
Page 35 Reconnect the ﬂames pieces to the trans orange round plates over the bit lights before reconnecting this section back to the wall. Ensure the cables are laid out toward the left side. Turn the wall section around and disconnect the large dark grey plate on the right side.
Page 36 13.) Reconnect this bottom wall section, then bring the cables out toward the back, underneath the bottom side ﬂap. Connect the four cables to a 6-Port Expansion Board.
Page 37 Take a 5cm Connecting Cable and connect it to the 6-Port Expansion Board. Connect the other end of the cable to one of the OUT ports on a Flicker Effects Board.
Page 38 Take another 5cm Connecting Cable and connect it to the IN port on the Flicker Effects Board. Connect the other end of the cable to the 8-Port Expansion Board from previous steps. Reconnect the USB power Cable to the remaining port on the 8-Port Expansion Board.
Page 39 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 40 the pieces from the ﬂame section, then using the same method used to install lights to the bottom ﬁre section, install 4x White 15cm Bit Lights to this middle ﬁre section.
Page 42 15.) Reconnect the ﬁre section to the middle wall section ensuring the cables are laid behind to the right side. Reconnect the middle wall section to the gate, then bring the cables to the right side underneath the middle side ﬂap. The four cables should ﬁt nicely into the gaps of the bottom of the wall plate.
Page 43 Connect the four cables to a new 6-Port Expansion Board. Take a 15cm Connecting Cable and connect it to the 6-Port Expansion Board. Bring the other end of the cable down to the bottom to connect to a different OUT port on the Flicker Effects Board.
Page 44 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 45 the expansion board to the dark grey wall plate on the side, then ensure the four cables are neatly laid and tucked into the space behind the wall plate. 16.) Take the top wall section along with the ﬁre torch section on the very top, then disassemble the ﬂame pieces.
Page 48 Reconnect the ﬁre section to the top wall panel ensuring the cables are this time, laid behind toward the left.
Page 49 17.) Before we reconnect the wall section, take the ﬁre section on the very top of the gate and disconnect the ﬂame sections as per below: Take a White 15cm Bit Light and with the cable facing behind, place it in between studs in the following position.
Page 50 Reconnect the plate with ﬂame pieces to the top of the gate, then tuck both of the cables underneath. Bring the cables underneath the side ﬂap section to the back as shown below: 18.) Take the top wall section and fold the cables behind and across the left section.
Page 51 Bring the cables to the back, underneath the top ﬂap section, then connect them along with the two bit light cables from the top to a new 8-Port Expansion Board. Take a 30cm Connecting Cable and connect it to a spare port on the 8-port expansion board.
Page 52 USB Power Bank to test the top ﬁre torches are all working and ﬂickering OK.
Page 53 19.) Now that we have completed installation of all the lights on the right side of the gate, take the time to neaten up cables and components. Starting with the bottom section, neatly tuck in all the components and cables (leaving the USB cable out).
Page 54 Moving up to the middle section, neatly tuck the 30cm Connecting Cable into the side section. Lift up the top side ﬂap and group the cables together into a neat bunch by twisting and folding them around each other. Stick 2x Adhesive Squares to the...
Page 55 back of the 8-Port Expansion Board. Mount the expansion board to the following position on the side of the set, then securely reconnect the top side ﬂap. Reconnect the remaining two tiles at the very top. The back of the set should look like below, without any cables visible.
Page 56 20.) Turn the set to the back, then take the other end of the 30cm Connecting Cable from the White strip Light on the right side and thread it all the way up the top right corner. Thread the cable back down and then pull it out from the front in between the wall and black technic bar.
Page 58 Disconnect the smaller technic bar as well as the bottom part of the larger technic bar. Pull the cable across to the right as per below, then reconnect the technic bars to secure the cable in place.
Page 59 Bring the 30cm Connecting Cable down and connect it to the ﬁrst available port on a new 8-Port Expansion Board. Take a 15cm Connecting Cable and connect it to the end port on that expansion board, then connect the other end of the 15cm cable to another 8-Port Expansion Board.
Page 60 21.) Turn the set around to the front side, then disconnect the wall sections as well as all the ﬁre torch sections.
Page 62 Repeat step 2 to install another 2x Green 30cm Bit Lights to another two assembled LEGO spot lights using the provided LEGO pieces.
Page 64 22.) Disconnect the following two plants from the left side of the set, then connect one of the spot lights in the below position (facing diagonally up to the left): Bring the cable behind and to the left side before reconnecting the two plants we disconnected earlier.
Page 65 Disconnect the following plant section and ﬂower pieces behind it, then lay the cable in between studs against the wall before reconnecting the ﬂower pieces over it.
Page 66 23.) Disconnect the following plant at the brown plate, then connect the second spot light to the top of it ensuring the it is angled to the right as shown below. Tuck the cable underneath the leaves toward the back right. Lay the cable along with the cable from the right spotlight over to the left in between studs before reconnecting this section over the top.
Page 67 Bring the two cables around to the back and secure them underneath the following angled tile. Connect the two bit light cables to the lower 8-Port Expansion Board from previous step. Turn the USB Power Bank ON to test the spot lights on this side are working OK.
Page 68 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 69 Disassemble the control panel light section as per below, then take the bottom section and disconnect the trans green plate.
Page 70 25.) Take a Flashing White 15cm Bit Light and with the cable facing toward you, place it over the stud on the right. Secure the light in place by reconnecting the trans green plate over the top. Reconnect the second section, then disconnect the trans green plate from the top of it as per below:...
Page 71 Take a White 15cm Bit Light and with the cable facing toward you, place it over the stud on the right. Secure the light in place by reconnecting the trans green plate over the top. Reconnect the next section, then disconnect the trans red 1×1 plate from the top right of it as per below: Take another White 15cm Bit Light and with the cable facing toward you, place it over the stud on the right.
Page 72 Take Flashing White 15cm Bit Light and with the cable facing toward you, place it over the left stud. Secure the Bit Light in place by reconnecting the trans red 2×2 plate, then reconnect the top section...
Page 73 26.) Reconnect the control panel wall section back to the control room by connecting the bottom ﬁrst, then slightly lifting up the upper section in order to tuck in the top of the control panel. Close up the gap by pushing down and reconnecting all the sections above.
Page 74 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 75 Turn the set around to the back and bring the 30cm Connecting Cable from above, underneath the top side ﬂap, toward the front.
Page 76 27.) We will now light up the toilet and the computer room. First take a White 15cm Bit Light and stick it to an Adhesive Square. Lift up the middle side ﬂap and stick the Bit Light above the toilet on the inside of the top section as shown below: Secure the Bit Light cable underneath the following angled tile towards the...
Page 77 front of the set, then connect the cable to the 8-Port Expansion Board nearby. Turn ON the USB Power Bank to test the toilet light is working OK. 28.) Take another White 15cm Bit Light and stick it to an Adhesive Square. Lift up the middle side ﬂap again and stick the Bit Light above the computer room on the inside of the top section as shown below:...
Page 78 Secure the Bit Light cable underneath the following angled brick towards the front of the set by slightly lifting up this section, laying the cable underneath, then reconnecting the angled brick over the top. Connect the cable to the 8- Port Expansion Board nearby, then turn ON the USB Power Bank to test the computer room light is working OK.
Page 79 N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to...
Page 80 verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide. 29.) We will now install some spotlights to shine up on the “Jurassic Park” sign. First disconnect the following section from the top, then turn the set around to the front and disconnect the Jurassic Park Sign plates.
Page 81 2x Black Technic Pin with Friction Ridges Lengthwise with Centre 2x Black Speargun Miniﬁg Weapon Connect the Black Tile 1×1 with Clip to the Spear Gun Miniﬁg weapon as shown below, then stick an Adhesive Square inside the Black Tile. Take a White 30cm Bit Light and with the cable facing down, stick the Bit Light to the adhesive square.
Page 82 Connect the Technic Pin to the Technic Brick, then thread the Bit Light cable through the technic pin. Pull the cable all the way out from the other side of the technic brick and ensure there is no excess cable, by pulling the cable all the way out before connecting the speargun to the technic pin.
Page 83 Repeat this step to install another White 30cm Bit Light to another assembled spotlight using another Adhesive Square.
Page 84 30.) Connect both spotlights underneath the light grey horizontal brick in the following positions, then turn the set around and pull both cables out.
Page 85 Take the cable from the left and thread it up the following space in the middle, then thread it back down the right corner. Pull the cable out from underneath, the same way we threaded the 30cm Connecting Cable from the Strip Light in step 20...
Page 86 Take the Bit Light cable from the right side and thread it up the following space that leads up to the right corner, then thread the cable back down and pull it out the front, the same way we did for the Bit Light cable from the left side.
Page 87 31.) Assemble another spotlight using the below provided pieces, then Install another White 30cm Bit Light to it using an Adhesive Square. 1x Black Tile 1×1 with Clip 1x Technic Brick 1×1 with hole (Black or Grey) 1x Black Technic Pin with Friction Ridges Lengthwise with Centre 1x Black Speargun Miniﬁg Weapon...
Page 88 Reposition the clip toward the right so that the Bit Light is facing the right side, then connect the spot light to the following position. Angle the light so that it is facing slightly diagonally down toward the dinosaur eggs.
Page 89 32.) Bring the cable toward the right side then pull it out the middle space as shown below. Thread the cable down the right corner and pull it out the front, the same we did for the other two Bit Light cables. Neatly tuck the cable underneath the egg shells and leaf pieces.
Page 90 Disconnect the following two technic bars, then pull all three Bit Light cables across the right side, before reconnecting the technic bars to secure the cables in place.
Page 91 Bring the three cables down around the right side and connect them to the 8- Port Expansion Board underneath the middle side ﬂap.
Page 92 Reconnect the top bar section, then turn the set around to the front and reconnect the “Jurassic Park” sign. Turn ON the USB Power Bank to test all the spot lights are working OK. N ote: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
Page 93 33.) We will now install lights to the ﬁre sections on the left side of the gate. Take the bottom wall section and disconnect and disassemble the ﬁre torches. Install 4x White 30cm Bit Lights to them, the same way we did for the torches on the right side.
Page 95 34.) Reconnect the torch section to the wall ensuring the cables are laid behind to the right, then turn it around and disconnect the vertical dark grey plate on the left. Pull the four cables across to the right side and while ensuring the cables are side by side (rather than on top of each other), reconnect the dark grey plate.
Page 96 Pull the four Bit Light cables from the control room across to the left. Ensure they are all spread out neatly, then reconnect the lower wall plate to the set. To allow the wall to reconnect properly, disconnect the top fern piece at the bottom and reconnect it to a different position slightly higher.
Page 97 Connect the four Bit Lights from the ﬁre torch to a new 6-Port Expansion Board. Connect a new 5cm Connecting Cable to this expansion board and connect the other end of the cable to one of the OUT ports on a new Flicker Effects Board.
Page 98 Take another 5cm Connecting Cable and connect it to the IN port on the Flicker Effects Board, then connect the other end of the cable to the remaining port on the 8-Port Expansion Board above. Turn the USB Power Bank ON to test the front lights are working and ﬂickering OK.
Page 100 36.) Reconnect the torch section to the wall ensuring the cables are laid behind to the left side, then reconnect the wall to the gate. Connect the four Bit Lights to a new 6-Port Expansion Board. Take a 15cm Connecting Cable and connect it to the 6-port Expansion Board, then bring the expansion board and cables toward the back, underneath the middle side ﬂap.
Page 101 take the other end of the 15cm Connecting Cable and connect it to another OUT port on the Flicker Effects Board.
Page 102 Turn the USB Power Bank ON to test the middle ﬁre torches are working and ﬂickering OK. N ote: If you experience any issues with the lights not working and suspect an...
Page 103 issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
Page 104 Expansion Board, then stick the expansion board to the dark grey wall piece in the following position: Take another 2x Adhesive Squares and stick them to the back of the 8-Port Expansion Board, then mount the expansion board to the inside of the wall facing the back.
Page 105 38.) We will now light up the top part of the gate. First disconnect and disassemble to torches connected to the top wall section, then install another 4x White 15cm Bit Lights to it as shown below:...
Page 107 39.) Reconnect the ﬁre torch section to the wall ensuring the cables are laid behind to the right, then turn the wall plate around and pull the cables across to the right side. Ensure the cables are laying in between the spaces of the...
Page 108 bottom of the angled plate studs, before reconnecting the top wall section to the front of the gate. Connect the four Bit Lights to the remaining 8-Port Expansion Board.
Page 109 40.) Disassemble the top torch section as shown below, then install the remaining 2x White 15cm Bit Lights (the same way we did for the top ﬁre torches on the right side – step 17) Reconnect the top ﬁre torches ensuring you tuck the two cables underneath and out toward the back, then connect them to the 8-Port Expansion Board.
Page 110 Take a 30cm Connecting Cable and connect one end to the 8-Port Expansion Board. Bring the other end of the cable down and connect it to the remaining OUT port on the Flicker Effects Board. Turn the USB Power Bank ON to test all the ﬁre torches are working and ﬂickering OK.
Page 111 41.) Starting from the very bottom, tuck all the components and cables into the bottom compartment before securely connecting the bottom side ﬂap. Move up to the middle section, and hide the connecting cables running down by securing them underneath the following dark grey tile. Ensure all components and cables are neatly tucked in and hidden inside before securely reconnecting the middle side ﬂap.
Page 112 Move up to the top section and neaten up cabling by grouping the four cables from the top wall ﬁre section and folding and twisting them around each other into a neat bunch. Use 2x Adhesive Squares to mount the 8-Port Expansion Board to the top of the angled pieces as shown below.
Page 113 Twist and fold up the two cables from the top ﬁre section into a neat bunch, then tuck everything inside before securely closing the top side ﬂap and reconnecting the two ﬂat tiles on the very top.
Page 114 This ﬁnally completes installation of the Light My Bricks LEGO Jurassic Park T.Rex Rampage set for 75936. f you experience any issues during this installation, please refer to our online troubleshooting guide. If you have any other issues or questions please email the customer service team: info@lightmybricks.com...
