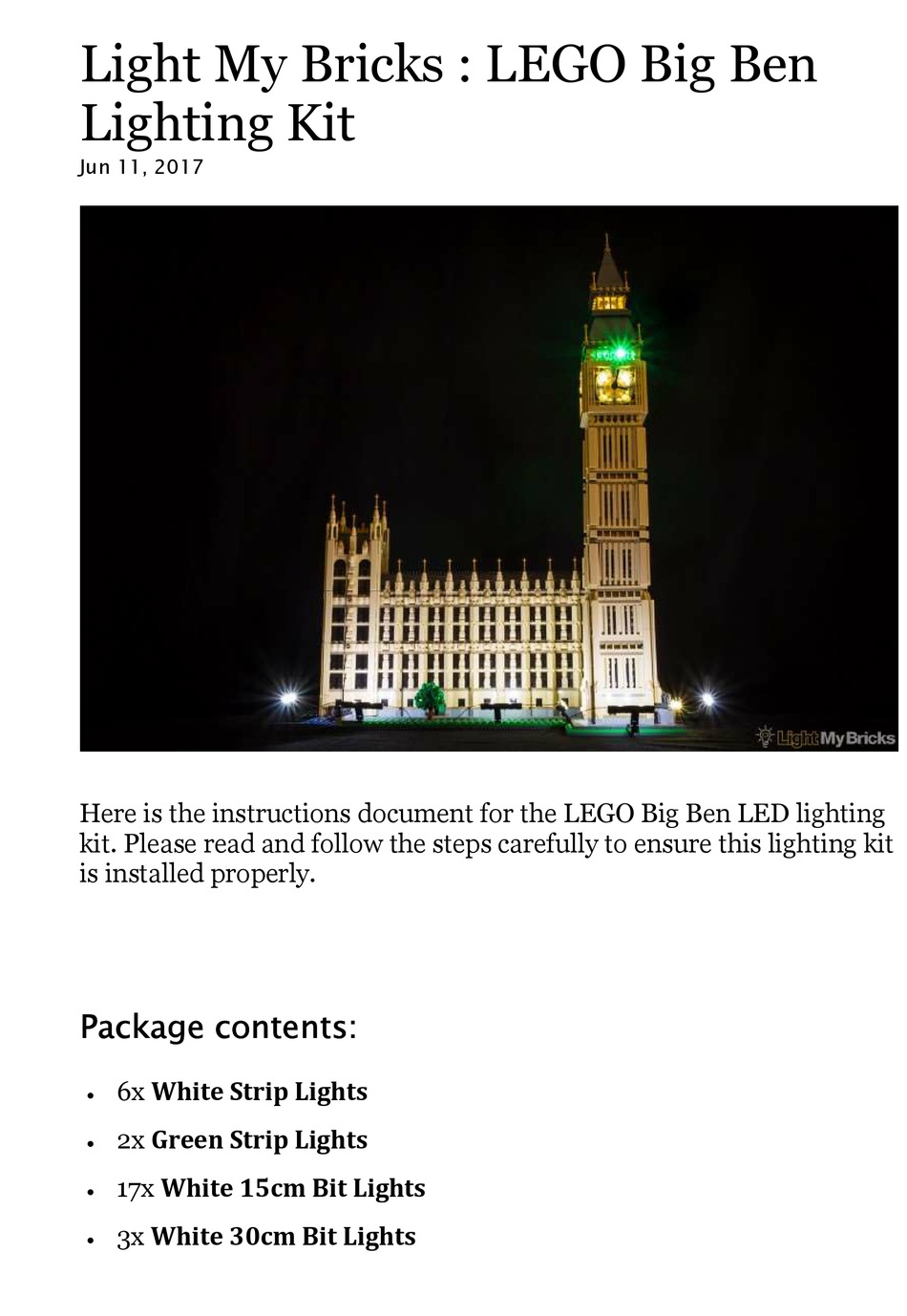

Light My Bricks : LEGO Big Ben
Lighting Kit
Jun 11, 2017
Here is the instructions document for the LEGO Big Ben LED lighting
kit. Please read and follow the steps carefully to ensure this lighting kit
is installed properly.
Package contents:
6x White Strip Lights
2x Green Strip Lights
17x White 15cm Bit Lights
3x White 30cm Bit Lights

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO Big Ben Lighting Kit and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS LEGO Big Ben Lighting Kit

Summary of Contents for LIGHT MY BRICKS LEGO Big Ben Lighting Kit

  • Page 1 Light My Bricks : LEGO Big Ben Lighting Kit Jun 11, 2017 Here is the instructions document for the LEGO Big Ben LED lighting kit. Please read and follow the steps carefully to ensure this lighting kit is installed properly.
  • Page 2 2x 6-Port Expansion Boards  2x 8-Port Expansion Boards  5x 5cm Connecting Cables  4x 15cm Connecting Cables  1x 30cm Connecting Cable  1x 50cm Connecting Cable  16x Adhesive Squares  1x AA Battery Pack (requires 3x AA Batteries) ...
  • Page 4 CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable and light. Connecting cable connectors to Strip Lights Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way. With the Strip Light facing up, ensure the side of the connector with the wires exposed is facing down.
  • Page 5 Connecting cable connectors to Expansion Boards Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered “=” symbol on the left side of the port.
  • Page 6 toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily into a port connector, do not force it. WARNING: Incorrectly inserting the connector can result in bent pins inside the port or possible...
  • Page 7 overheating of the expansion board when connected. Installing Bit Lights under LEGO® bricks and plates. When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO® studs or in between.
  • Page 9 OK, Let’s Begin! Instructions for installing this kit 1.) We will first install lights to clock tower. To start, disconnect the the top part of the tower from where the bottom of the clock is.
  • Page 13 Disconnect the 3 sections of the tower as per below:...
  • Page 15 Remove clock border sections from all four sides of the tower and then remove the top section above the clock...
  • Page 17 Carefully remove clock sections from all four sides of the tower as per below.
  • Page 19 Remove the light grey 2x6 technic plate from the centre.
  • Page 20 2.) Take 2x White 15cm Bit Lights and then stick them to the following positions using 2x Adhesive Squares.
  • Page 21 Take another 2x White 15cm Bit Lights and then stick them to adhesive squares before bending the cable up in a 90 degree angle as per below.
  • Page 22 Stick both Bit Lights to the following positions (directly over black studs):...
  • Page 23 Take the top 2 Bit Light cables and then bring them together before looping the connector sides through the first hole of the light grey technic plate we removed earlier.
  • Page 24 Repeat this step to install another 4x White 15cm Bit Lights to the opposite side of the tower.
  • Page 26 After threading the top two Bit Light cables through the whole of the technic plate, reconnect the plate in place ensuring cables underneath are in between studs.
  • Page 27 3.) Turn to the next side along and then install another 4x White 15cm Bit Lights to the top and bottom corners in the below positions. (You will notice on these sides of the tower that there is only one plate to stick the top 2 lights on.
  • Page 28 Follow this same method to install another 4x White 15cm Bit Lights to the remaining side of the tower.
  • Page 29 4.) Take one of the clock sections and carefully reconnect it to the tower ensuring cables are neatly laid in between studs as you connect it. Ensure you first reconnect the clock section to the side you have just installed Bit Lights to.
  • Page 30 Next, reconnect the clock section to the opposite side of the tower, ensuring you are keeping studs underneath free from cables.
  • Page 31 Turn to the next side and then carefully reconnect the clock section.
  • Page 32 4.) Before we reconnect the remaining clock section, take the 50cm Connecting Cable and thread one side through the first hole from the top of the light grey technic plate.
  • Page 34 Pull the cable down all the way until you have about 10cm of cable slack between the top of the light grey plate and the connector before connecting it to a 6-Port Expansion Board.
  • Page 35 Carefully disconnect the 1x6 tile from below and then thread the cable through one of the gaps. Pull the cable all the way down from underneath but ensure you still leave the 10cm of excess cable above.
  • Page 37 Reconnect the 1x6 tile ensuring the cable is neatly laid in between studs and then carefully reconnect the remaining clock section.
  • Page 38 5.) Take all the Bit Light cables and bring them together by twisting them around each other to form one larger cable.
  • Page 39 Take the section we removed from above and then thread all cables as well as the expansion board through the bottom of it before securely reconnecting on top of the clock section.
  • Page 41 Take 2x 5cm Connecting Cables and 2x 8-Port Expansion Boards and connect the the cables to end ports to join the expansion boards together.
  • Page 43 Connect the other end of the 5cm cable to the 6-port expansion board on top of the clock and then connect all Bit Light Cables to available ports.
  • Page 44 Now take the time to test all the lights we have installed so far. Take the AA Battery Pack and insert 3x AA Batteries into it. Connect the battery pack cable into the spare port on the expansion board and turn on to verify all 4 lights from each side of the tower are working OK.
  • Page 46 Once you have verified all is OK, disconnect the battery pack and then reconnect to the border sections to each side.
  • Page 47 6.) We will now install lights to the top sections. Take the middle section and then disconnect pieces as per below.
  • Page 49 Take a White 15cm Bit Light and then place it in the very centre of the base. Secure it in place by reconnecting the trans-clear pieces directly over the top.
  • Page 50 Reconnect remaining piece we removed earlier and then reconnect the roof.
  • Page 51 NOTE: The side with the exposed cable will be facing toward the back.
  • Page 52 7.) Take the section below and then turn over so we can access underneath of it.
  • Page 53 Take the 2x Green Strip Lights and connect 2x 5cm Connecting Cables (one in between strip lights and another to the other side of a strip light). Use their adhesive backing to stick the green strip lights to the below positions underneath.
  • Page 54 Ensure the strip lights are stuck in the exact position as shown above otherwise we will not be able to reconnect this section. Push the 5cm cable in between strip lights inward so that it does not get caught and stick out when we reconnect this section.
  • Page 55 8.) Take the top roof and then thread the Bit Light cable down below before reconnecting over the section we just installed strip lights to.
  • Page 57 Pull the Bit Light cable down just enough to be able to then connect it into the strip light with the spare port.
  • Page 58 Tuck the expansion boards from the top of the tower in as much as possible and then take the roof section and connect the 5cm cable...
  • Page 59 from the green strip light into the remaining port on the expansion board.
  • Page 61 Reconnect roof on top of the clock section and ensure all is secure.
  • Page 62 You can now test what we have done so far by connecting the 50cm cable from the base of the clock to a spare expansion board and connect up the battery pack again. Verify all is working OK.
  • Page 63 If all is OK, reconnect this whole section back to the rest of the tower and ensure you leave the 50cm cable outside the back.
  • Page 66 9.) Turn Big Ben over to the back and remove the roof.
  • Page 67 You will require the LEGO removal tool to assist with this next step.
  • Page 68 Follow below images to get in between sections to allow us to remove a few 1x1 Bricks from the back. This will allow us to thread cable inside the building. Disclaimer: You will notice you will have another 3x trans-black bricks which are not pictured in this user guide.
  • Page 71 After successfully removing bricks you can reconnect all sections back together, without the bricks we were required to remove.
  • Page 72 10.) We will now install lights to the lamp posts at the bottom. First remove all three lamp posts and disconnect the tops.
  • Page 74 Take a White 30cm Bit Light and then place it directly over the lamp post piece. Secure it in place by reconnecting the top pieces directly over the Bit Light as shown below.
  • Page 75 Repeat this step to install another 2x White 30cm Bit Lights to the remaining 2 lamp posts.
  • Page 76 11.) Disconnect the following pieces from the bottom.
  • Page 78 Connect the first lamp post and then lay the cable in between studs before reconnecting one of the light grey tiles over the top of it to secure it in place.
  • Page 79 Continue to lay the cable down and securing it place by reconnecting more tiles.
  • Page 81 Take a Black Plate 1x6 (which came in this light kit) and connect it to the following position. Take a Dark Bluish Grey Tile 1x1 and connect it to the next stud along.
  • Page 82 Take the second lamp post and thread the connector side of it through the following space and then thread all along until it reaches the back. Pull it all the way through and then connect the lamp post on the black stud.
  • Page 84 Ensure the cable for the lamp post is pushed down and then reconnect the light grey tile over the top.
  • Page 85 Reconnect the next lot of dark grey tiles.
  • Page 86 Take the cable from the first lamp post we connected and thread the cable through the last space and then out the back so that both cables are through.
  • Page 87 Connect the remaining lamp post and then push down the cable to allow us to reconnect the remaining light grey tile.
  • Page 88 12.) Take the remaining 6-Port Expansion Board and connect a 30cm Connecting Cable to it followed by the 3 Bit Light cables from the lamp posts.
  • Page 90 Thread the expansion board and cables through the spacing we created when we removed the bricks from the corner of the building.
  • Page 91 Take the 50cm cable from the tower and connect it to the expansion board we just threaded through. We will not have enough cable length to allow us to easily do this so we will need to disconnect top sections...
  • Page 92 of the wall. Follow the below images to remove sections to allow us to connect the cable to the expansion board.
  • Page 94 Pull the Bit Light cables in from the inside so that minimal cabling is left on the outside, then secure the Bit Light cables to the back of the wall using tape. Ensure you do not pull in the 30cm cable.
  • Page 96 Reconnect sections we removed earlier (trans black bricks in the corner).
  • Page 97 Hide the 50cm cable underneath tiles as shown below and then reconnect the roof.
  • Page 101 13.) We will now install spot lights to light the outside of the building. Starting from the side where we already have a black 1x6 plate connected, locate the following LEGO pieces which came provided in this light kit and then assemble them together according to images below.
  • Page 103 Take a White Strip Light and stick it to the base of the Lego plate using the adhesive backing. Since we will be installing a total of 6 Strip Lights to use as spotlights we will identify this particular one as striplight#1...
  • Page 104 Locate the spare end of the 30cm connecting cable from the corner of the building and thread it through the spacing at the back of the building and then out through the second space behind the lamp posts. Connect this cable to the right port of striplight#1.
  • Page 107 Take a 15cm Connecting Cable and connect it to the left port of striplight#1 and then connect the base of the spot light to the black 1x6 plate.
  • Page 108 Turn the building around to the front and then remove the following 1x2 LEGO tile and then replace with a black 1x6 plate as well as a dark grey 1x1 tile.
  • Page 110 Take another Plate, Modified 1x2 with handle on End  —   C lose Ends, Blackand Tile, Modified 1x1 with Clip, Black and assemble them together to make another spot light. Take another White Strip Light (striplight#2) and stick it onto another Black 1x6 Plate.
  • Page 111 Locate LEGO pieces to assemble another 2 spotlight bases and then connect them to the following positions as per below.
  • Page 112 Take 2x White Strip Lights and stick them onto Lego 1x6 plates (striplight#3 & striplight#4). Connect the two together using a 5cm...
  • Page 113 Connecting Cable and then connect a 15cm Connecting Cable to the right port of the striplight#4 Connect the 15cm connecting cable from striplight#2 to the right port of striplight#3 and then connect both plates to the spot light bases as per below.
  • Page 114 Assemble another few spot light pieces and connect them to the following position.
  • Page 115 Take another White Strip Light (striplight#5) and stick it onto a 1x6 plate. Connect another 15cm connecting cable to the left port of striplight#5 and then connect the other end of the 15cm cable from striplight#4 to the right port.
  • Page 116 Connect the plate with striplight#5 onto the spot light base.
  • Page 117 Turn over to the left side of the building and then connect a black 1x6 plate as well as spot light pieces to the following position.
  • Page 118 Take the last White Strip Light (striplight#6) and then stick onto the remaining 1x6 plate. Connect the other end of the 15cm cable from...
  • Page 119 striplight#5 to the right port and then connect the plate with striplight#6 to the spotlight base.
  • Page 120 14.) Take the AA Battery Pack and position against the back wall and connect the battery pack cable to the left port on striplight#6.
  • Page 121 Finally, turn on the battery pack and ensure all spot lights are working. Adjust the angles of the spotlights to ensure they are all shining evenly onto the building. This completes installation of the Big Ben LED Lighting Kit. ENJOY!
