4 | Assembly and Mounting

Check the LED luminaire before installation to ensure it is complete and shows no
signs of damage. Do not use the luminaire or accessories if they are damaged, as
there is a risk of injury.
The LED luminaire comes fully assembled. Optional there are following mounting ac-
cessories for this luminaire:
Luminaire bracket PROFILED und SYSTEMLED for T-slots, pair 240400-01
Luminaire bracket PROFILED und SYSTEMLED for rotatable
mounting , pair
When mounting the luminaire, make sure that the luminaire is
fastened securely and stably. If the luminaire falls down, its weight
poses a risk of injury!

5 | Connection and initial operation

Suitable connection material, cables and accessories can be found in the accessory
range of LED2WORK.

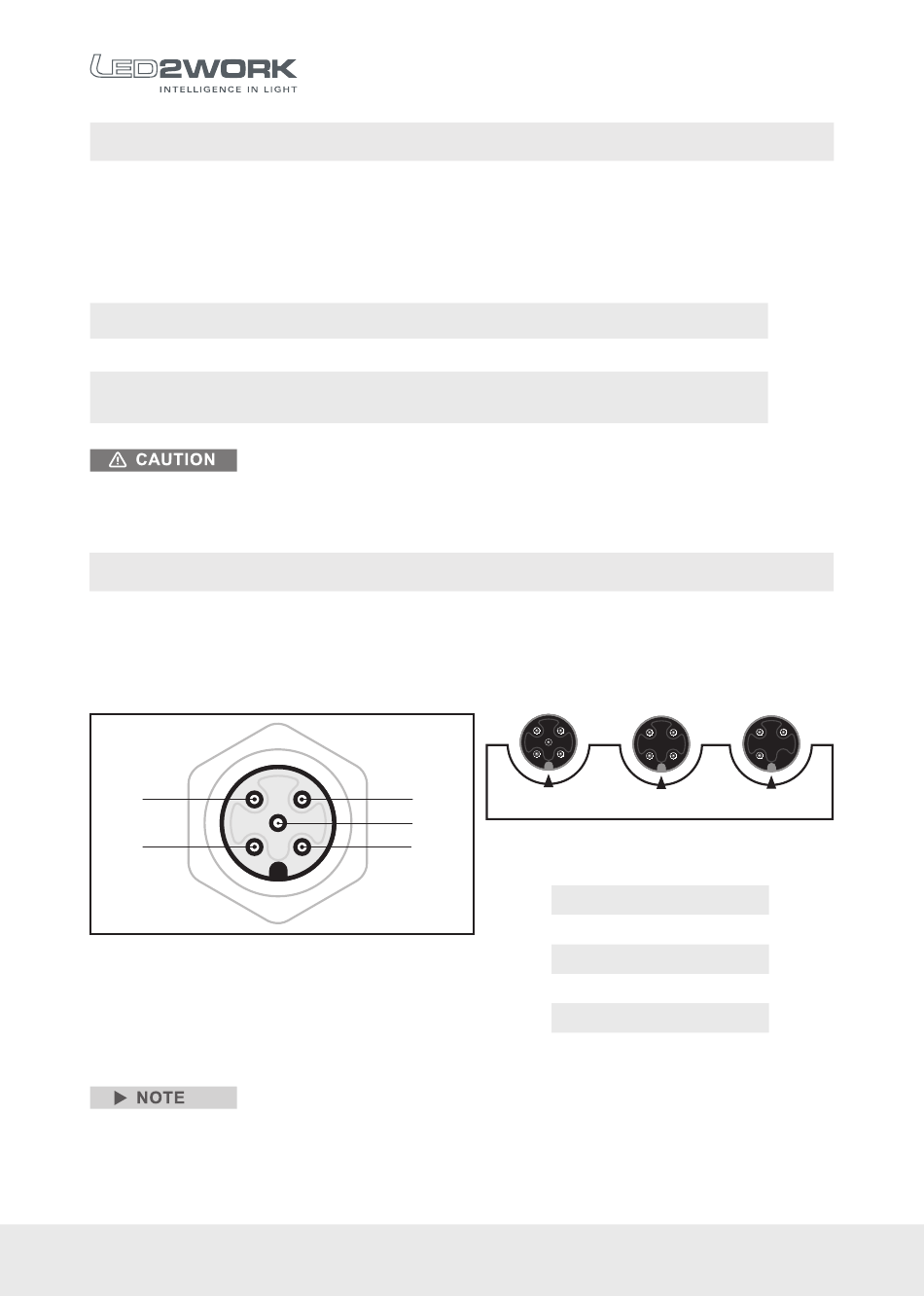

PIN assignment of the M12 connector is as follows:
4
1
Schematic drawing of M12 plug
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN 1 or
PIN 4. It is not necessary to assign both PINs (PIN 1 and PIN 4) at
once!
10 | BA PROFILED DC_ . BA 11/2019
3
Possible variants of the M12 connector
5
2
PIN allocation
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
Item no.
240400-02
= 24V DC
= not used
= GND
= 24V DC
= not used
