3 | Safety information
Only use the device if it is completely free of faults, and with safety
and awareness in mind. If warnings or symbols are attached to the
luminaire, they must not be removed.
4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no
signs of damage. Do not use the luminaire or accessories if they are damaged, as
there is a risk of injury.
The LED luminaire comes fully assembled.The luminaire is attached via the delivered
holder made of detectable PP (holder and zip ties) or via optional mounting hardware:
INROLED_50 spring clip, steel galvanized, pair
INROLED_50 luminaire bracket, FDA conform, pair
Spare part: INROLED_50 zip ties, F+B, detectable PP, blue, pair 210200-13
When mounting the luminaire, make sure that the luminaire is
fastened securely and stably. If the luminaire falls down, its weight
poses a risk of injury!

5 | Connection

On the luminaire is an input for about a M12 connector S-coded. About this jack and
with suitable connection material the luminaire is connected with a 230V AC electric
power supply system. Suitable connection material and cables can be found in the
accessory range of LED2WORK.
For the installation on the power supply system the luminaire must
be electrically load-free. A direct connection of a luminaire via a
running machine can destroy the LEDs!

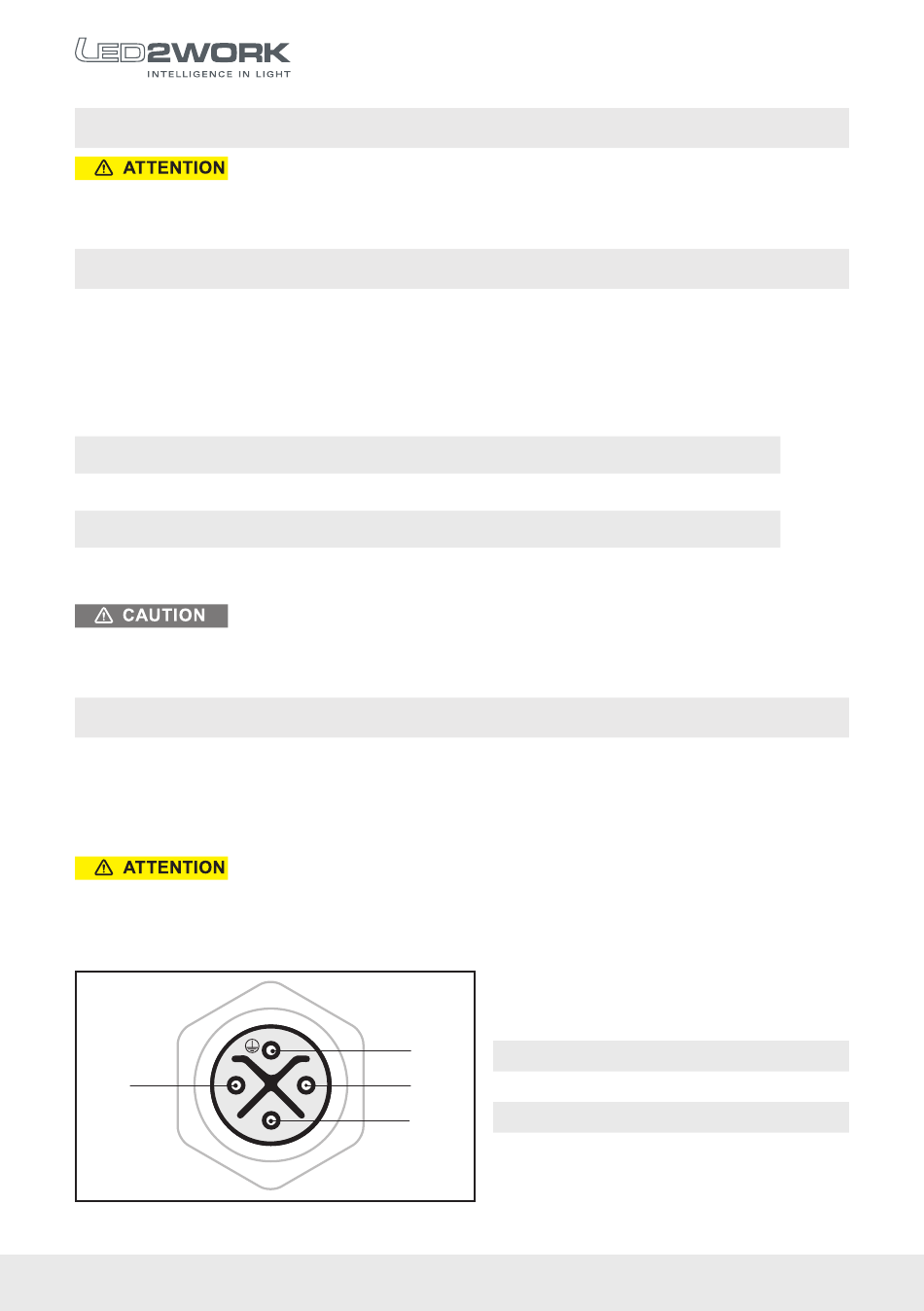

PIN assignment of the M12 connector is as follows:
1
Schematic drawing of M12 plug, S-coded
10 | BA INROLED_50 ECOLAB 230V AC . BA 11/2020
PIN allocation
4
PIN 1 = not connected
3
PIN 2 = external conductor/phase (L)
PIN 3 = neutral conductor (N)
2
PIN 4 = protective earth conductor
(PE)
Item no.
210200-17
210200-09
