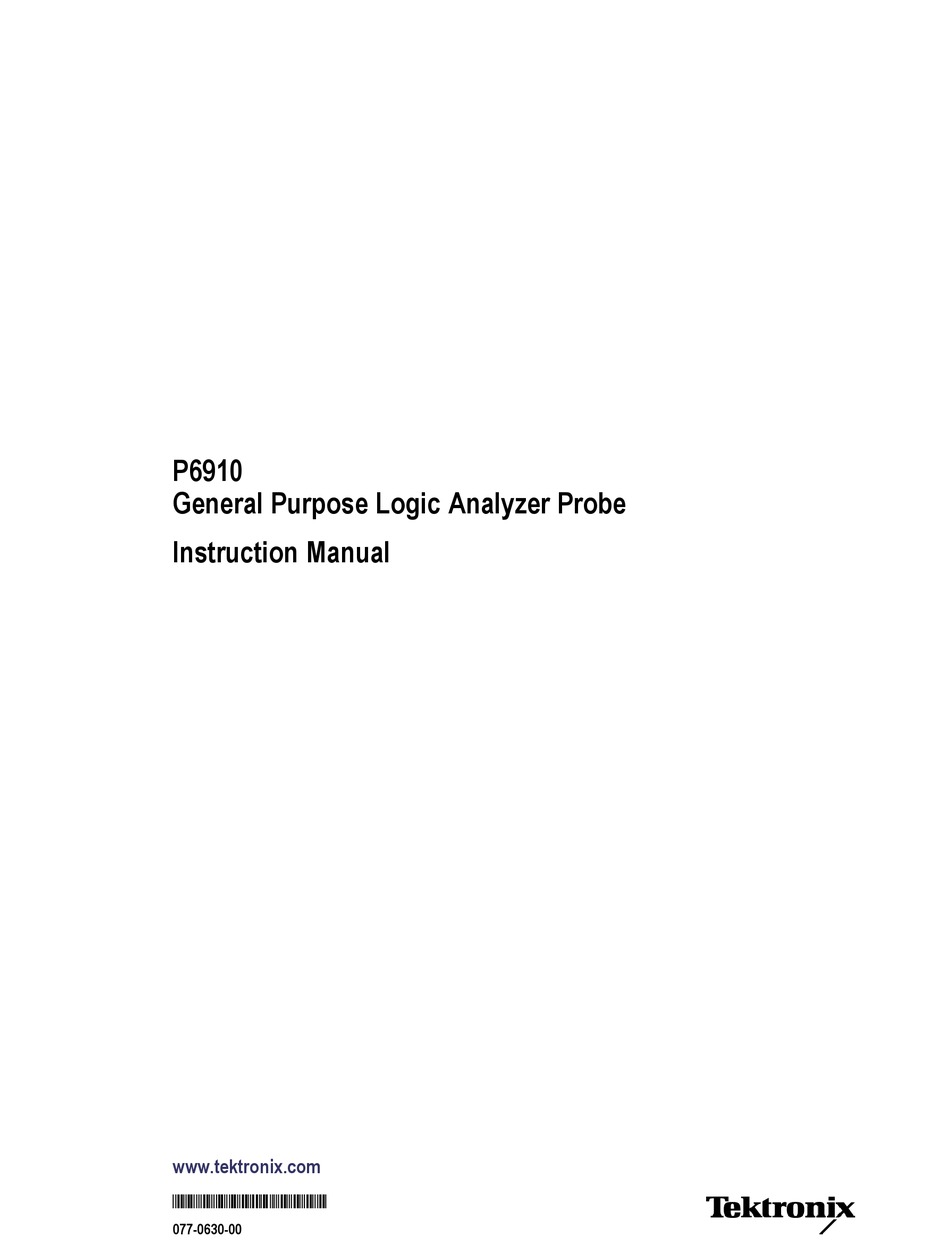

- Page 1 P6910 General Purpose Logic Analyzer Probe Instruction Manual www.tektronix.com *P077063000* 077-0630-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
-
Page 5: Table Of Contents
Load models ....................Specifications....................Maintenance......................Probe calibration information ................Probe service strategy information................Perform the functional check ................Inspect or clean the probe..................Repackage the probe ..................Replaceable parts ....................Parts ordering information ................... Glossary Index P6910 General Purpose Probe Instruction Manual... - Page 6 Table of Contents List of Figures Figure 1: Example of a sheet of P6910 probe labels ............Figure 2: Attaching the probe labels ................Figure 3: Connect the probe to the logic analyzer .............. Figure 4: Option 1K accessories ..................
-
Page 7: General Safety Summary
Do not operate with suspected failures. If you suspect that there is damage to this product, have it inspected by qualified service personnel. Avoid exposed circuitry. Do not touch exposed connections and components when power is present. P6910 General Purpose Probe Instruction Manual... - Page 8 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: P6910 General Purpose Probe Instruction Manual...
-
Page 9: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. P6910 General Purpose Probe Instruction Manual... -
Page 10: Compliance Information
Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Pollution degree Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor use only. P6910 General Purpose Probe Instruction Manual... -
Page 11: Environmental Considerations
Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of hazardous This product is classified as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive. substances P6910 General Purpose Probe Instruction Manual... - Page 12 Compliance information viii P6910 General Purpose Probe Instruction Manual...
-
Page 13: Preface
Preface Preface Related documentation The following list and table provide information on the related documentation available for your Tektronix product. For additional information, refer to the Tektronix Web site (www.tektronix.com/manuals). Related documentation Item Purpose TLA Quick Start User Manuals High-level operational overview... - Page 14 Preface P6910 General Purpose Probe Instruction Manual...
-
Page 15: Operating Basics
+5 V and the maximum negative voltage does not exceed –2.5 V P6910 probe accessory information The P6910 probe includes accessories to connect the logic analyzer to the SUT. The following accessories are available for the P6910 probe: Option 1K provides accessories for probing applications for less than 100 MHz. -
Page 16: Probe Label Overview
The logic analyzer probe comes with a sheet of labels to apply to the probe before connecting the probe to the instrument and SUT. Tektronix provides a sheet of color-coded labels to apply to the probe to help identify the connections to the logic analyzer and to the SUT. The label color is designed to match the color of the probe connections on the logic analyzer. -
Page 17: Figure 1: Example Of A Sheet Of P6910 Probe Labels
Operating basics Figure 1: Example of a sheet of P6910 probe labels P6910 General Purpose Probe Instruction Manual... -
Page 18: Apply The Labels To The Probe
8. Repeat step 7 for the second way station of the same color (but different label shape). 9. Repeat the above steps for the other logic analyzer-end label colors. After applying the labels to the probes, you are ready to connect the probes to the logic analyzer. P6910 General Purpose Probe Instruction Manual... -
Page 19: Figure 2: Attaching The Probe Labels
Operating basics Figure 2: Attaching the probe labels P6910 General Purpose Probe Instruction Manual... -
Page 20: Connect The Probe To The Instrument
Over-tightening can result in stripped screws. NOTE. The P6910 probe can be connected to the logic analyzer when it is powered on. The probe head can also be connected to the SUT without turning the power off. -
Page 21: Connect The Probe Directly To The Sut
SUT. Incorrect handling of the probe while connecting it to the SUT can damage the probe or the mating connector on the SUT. Always position the probe perpendicularly to the mating connector and then connect the probe. P6910 General Purpose Probe Instruction Manual... - Page 22 The lead sets have true differential inputs. For single-ended use, the negative input of the lead set can be connected to ground. However, the ground lead from each way station is provided to connect the probe ground to the SUT ground. P6910 General Purpose Probe Instruction Manual...
-
Page 23: Option 1K Accessories
Operating basics Option 1K accessories Option 1K provides probe accessories to connect the P6910 probe to the SUT for applications for less than 100 MHz. The following table and illustration show the probe accessories. Tektronix number Item Quantity part number... -
Page 24: Option 2K Accessories
The accessory kit is identical to the one used with the P6780 MSO probe. Either the P6780 or P6910 probes can connect to any of the accessories in the kit. The accessories enable users to share accessories between either probe as well as switching between logic analyzer and oscilloscope probing applications. -
Page 25: Figure 5: Option 2K Accessory Kit Contents
2. Trim the wire tubing to the desired length and slide it over the adapter leads. (See Figure 6 on page 11.) Figure 6: Installing the standard adapter on the PCB P6910 General Purpose Probe Instruction Manual... -
Page 26: Figure 7: Install The Wide Body Adapter On The Pcb
5. Identify where to place the wide body adapter on the PCB and glue it into place. (See Figure 7 on page 12.) Figure 7: Install the wide body adapter on the PCB 6. Connect the probe lead set to the adapter. P6910 General Purpose Probe Instruction Manual... -
Page 27: Figure 8: Install The Adapter To The Sut With The Insulated Wire
Rotate the holder to work at either angle. 2. Position the holder so that the leads of the flex adapter or standard adapter align to the connections on the circuit board and glue the holder into place. (See Figure 9.) P6910 General Purpose Probe Instruction Manual... -
Page 28: Figure 9: Install The Adapter Holder By Gluing It To The Circuit Board
1. Insert the lead set into the hand browser. (See Figure 10.) Figure 10: Insert the lead set into the hand browser 2. Position the probe tips as needed to connect to the signal of interest on the SUT. The probe tips swivel 360°. P6910 General Purpose Probe Instruction Manual... -
Page 29: Figure 11: Use The Grouper To Hold The Lead Sets Together
3. Remove the header from the lead sets. 4. Connect the assembly to the SUT. Note the insertion force and clearance guidelines when connecting the probe to the SUT. (See Figure 12 on page 16.) P6910 General Purpose Probe Instruction Manual... -
Page 30: Figure 12: Clearance And Insertion Force Information For The Lead Sets
To avoid damaging the lead sets, do not exceed the clearances or insertion force for the lead sets and square pins. Refer to the following illustration for clearance and insertion force information. Figure 12: Clearance and insertion force information for the lead sets P6910 General Purpose Probe Instruction Manual... -
Page 31: Reference
Some forethought in signal routing can greatly expand the ways to latch and analyze data. P6910 General Purpose Probe Instruction Manual... -
Page 32: Multiplexed Buses
— C2:7-0 C0:7-0 C0:7-0 — — — E3:7-0 E1:7-0 — — — E2:7-0 E0:7-0 — — CLK:0 QUAL:1 QUAL:1 — — CLK:1 QUAL:0 QUAL:0 — — — CLK:2 QUAL:3 — — — CLK:3 QUAL:2 P6910 General Purpose Probe Instruction Manual... -
Page 33: Range Recognizers
The above example assumes a 136-channel logic analyzer. The missing channels in instruments with fewer than 136 channels are ignored. With merged modules, range recognition extends across the first three modules: the master module contains the most-significant channels. P6910 General Purpose Probe Instruction Manual... -
Page 34: Probe Signal Names
A3:1- A2:1- D3:1- D2:1- Data 1+ E3:1+ E2:1+ E1:1+ E0:1+ A3:1+ A2:1+ D3:1+ D2:1+ Data 0- E3:0- E2:0- E1:0- E0:0- A3:0- A2:0- D3:0- D2:0- Data 0+ E3:0+ E2:0+ E1:0+ E0:0+ A3:0+ A2:0+ D3:0+ D2:0+ P6910 General Purpose Probe Instruction Manual... -
Page 35: Table 5: Signal Connections On 102- And 136-Channel Instruments For Probe 2 And Probe 1
C3:1- C2:1- C1:1- C0:1- Data 1+ A1:1+ A0:1+ D1:1+ D0:1+ C3:1+ C2:1+ C1:1+ C0:1+ Data 0- A1:0- A0:0- D1:0- D0:0- C3:0- C2:0- C1:0- C0:0- Data 0+ A1:0+ A0:0+ D1:0+ D0:0+ C3:0+ C2:0+ C1:0+ C0:0+ P6910 General Purpose Probe Instruction Manual... -
Page 36: Table 6: Signal Connections On 68- And 34-Channel Instruments
A1:1- A0:1- D1:1- D0:1- C3:1- C2:1- A2:1- Data 1+ A1:1+ A0:1+ D1:1+ D0:1+ C3:1+ C2:1+ A2:1+ Data 0- A1:0- A0:0- D1:0- D0:0- C3:0- C2:0- A2:0- Data 0+ A1:0+ A0:0+ D1:0+ D0:0+ C3:0+ C2:0+ A2:0+ P6910 General Purpose Probe Instruction Manual... -
Page 37: Probe Footprints
Pin spacing allows for space tolerances between the podlet holder and the clock/qualifier configurations. Refer to the following figure for footprint information. (See Figure 13.) Negative inputs of differential signals can be grounded to support single-ended signal inputs. Figure 13: P6910 General-Purpose probe land footprint P6910 General Purpose Probe Instruction Manual... -
Page 38: Load Models
P6910 probe. The electrical specifications apply when the probe is connected between a compatible logic analyzer and a SUT. Refer to the Tektronix Logic Analyzer Series Product Specifications & Performance Verification Technical Reference Manual (available on the TLA Documentation CD or downloadable from the Tektronix Web site) for a complete list of system and module specifications. -
Page 39: Table 8: Environmental Specifications
Description Probe length 1.8 m (6 ft) Operating range +5 V to –2.5 V P6910 single podlet input capacitance is 0.7 pF, but podlets in a group will have <1 pF input capacitance. Table 8: Environmental specifications Characteristic Description Temperature Operating 0 °C to 50 °C (32 °F to 122 °F) with 5 °C/hour maximum... - Page 40 Reference P6910 General Purpose Probe Instruction Manual...
-
Page 41: Maintenance
The probe does not require calibration. If a probe failure occurs, return the entire probe to your Tektronix representative for repair. Probe service strategy information The following service options are available when you order your Tektronix product: Table 9: Service options... -
Page 42: Inspect Or Clean The Probe
If the original packaging is not available, use a corrugated cardboard shipping carton. 2. Add cushioning material to prevent the probes from moving inside the shipping container. 3. Enclose the following information when shipping the probe to a Tektronix Center: Owner’s address Name and phone number of a contact person... -
Page 43: Replaceable Parts
Replacement parts are available through your local Tektronix field office or representative. The P6910 probe contains no user-replaceable parts. However, probe accessories can be replaced. (See page 1, P6910 probe accessory information.) Contact your local Tektronix representative for replacement information. Changes to Tektronix products are sometimes made to accommodate improved components as they become available and to give you the benefit of the latest... - Page 44 Replaceable parts P6910 General Purpose Probe Instruction Manual...
-
Page 45: Glossary
Podlet holder A removable clip that groups eight individual podlets into a single 8-wide P6910 probe assembly. This provides ease when connecting to a row of 2 x 8 2.54 mm (0.100 in) square pins. An acronym for Printed Circuit Board. - Page 46 Glossary P6910 General Purpose Probe Instruction Manual...
-
Page 47: Index
10 strain relief, 13 ordering parts, 29 ferrite bead, 11, 12 flex adapter, 13 connecting probes, 7 footprint, 23 functional check, 27 P6910 footprint, 23 podlet holder, 23 timing analysis, 17 hand browser, 14 P6910 General Purpose Probe Instruction Manual... - Page 48 Index way stations, 4 wide body adapter, 12 wire tubing, 11, 12 P6910 General Purpose Probe Instruction Manual...
