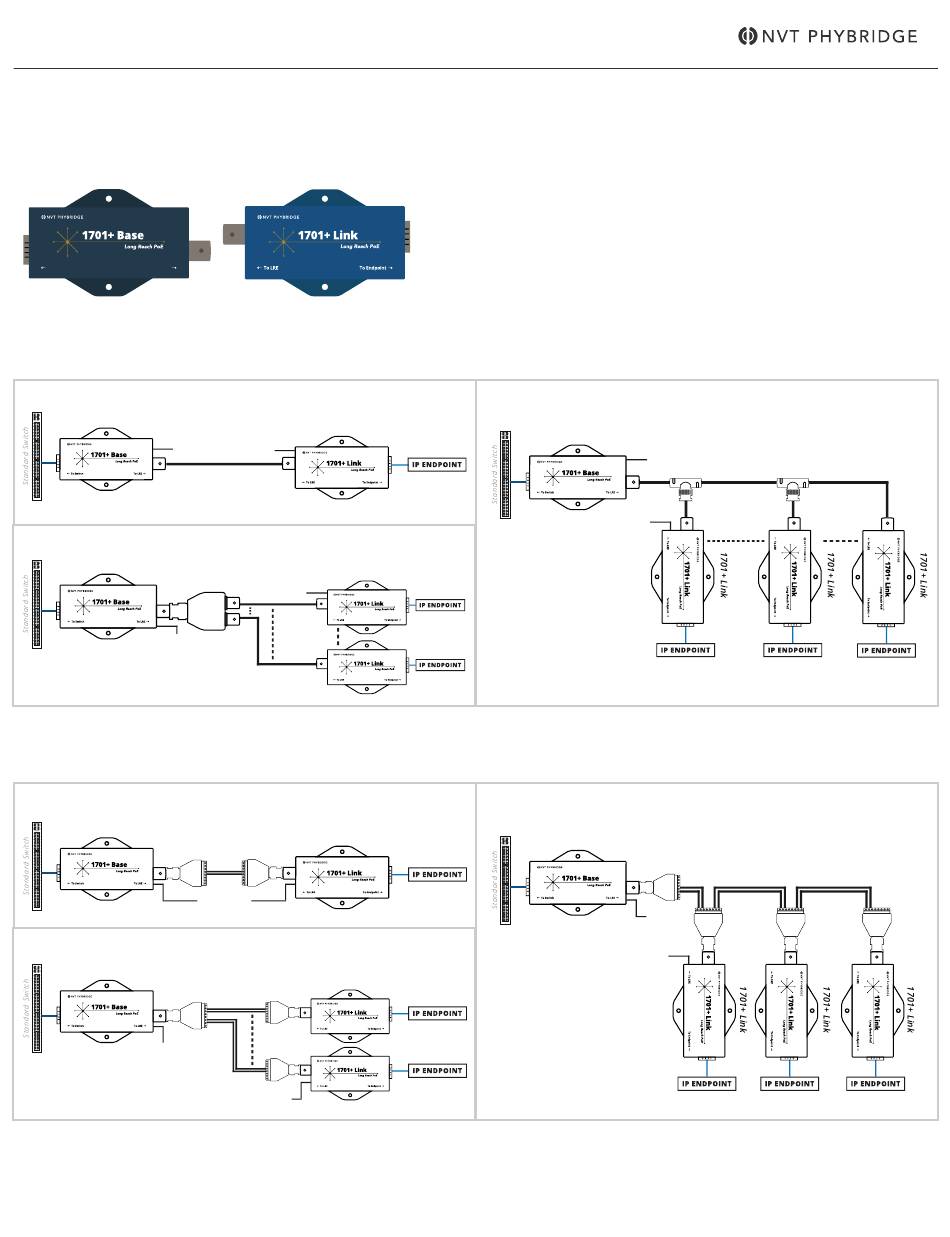

NVT Phybridge 1701+ Base Quick Install Manual

QUICK INSTALL GUIDE
The 1701+ Long Reach PoE extenders deliver up to 420Mbps and power over
Coax, UTP (Unshielded Twisted Pair), or Non-twisted cable with reach of up
to 8,000ft (2.4km) on RG6. You can extend PoE connectivity to 4 endpoints
with a single base unit in a point to point or point to multi-point topology.
1701+ Base
To Switch To LRE

Coax Usage Scenarios:

Point to Point
1701+ Base
Local Power Option
Point to Multi-Point (Star)
1701+ Base
NV-EC4BNC
Local Power Option

UTP Usage Scenarios:

Point to Point
Note: NV-BNCA is polarity sensitive
1701+ Base
NV-BNCA
Point to Multi-Point (Star)
Note: NV-BNCA is polarity sensitive
1701+ Base
NV-BNCA
Local Power
Option
888.901.3633 | +44 (0) 208 977 6614 | www.nvtphybridge.com
1701+ Link
1701+ Link
1701+ Link
Local Power
Option
Up to 4
1701+ Link
NV-BNCA
Local Power
Option
1701+ Link
NV-BNCA
Up to 4
Local Power
Option
1701+ Base (NV-EC1701PLS-BSE)
• Paired with 1701+ Link
• Up to 100W PoE*
• Local power option
• IEEE 802.3at compliant
1701+ Link (NV-EC1701PLS-LK)
• Paired with 1701+ Base
• Up to 50W PoE on 4-pairs
• Local power option
• IEEE 802.3at compliant
Point to Multi-Point (Daisy Chain)
1701+ Base
Local Power Option
Local Power
Option
Point to Multi-Point (Daisy Chain)
Note: NV-BNCA is polarity sensitive
1701+ Base
NV-BNCA
Local
Power
Option
Local Power
Option
Copyright 2021 NVT Phybridge| 445-0033 REV. A | 2.18.2021
NV-BNCT
Up to 4
NV-BNCA
Up to 4
*Laboratory tested; 50W UL tested
