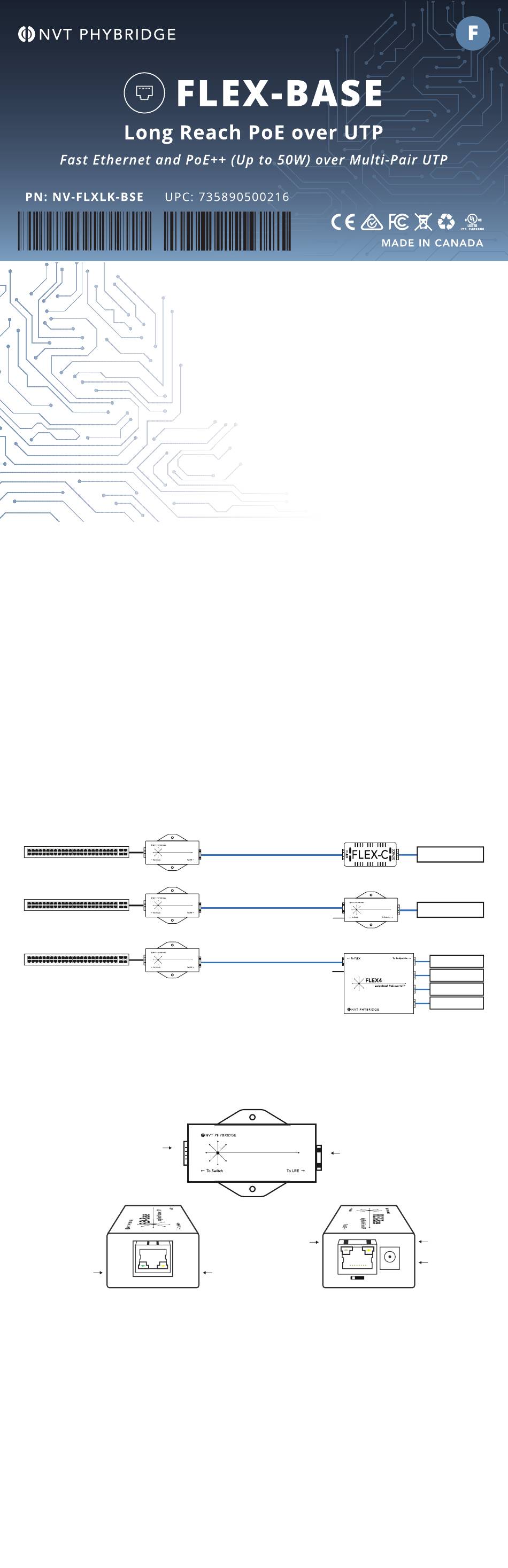

NVT Phybridge FLEX-Base Quick Install Manual

FLEX-Base Extender Applications
FLEX-Base Extender Solution is designed to supercharge the downlink ports of a standard
Ethernet switch delivering 10/100Mbps symmetrical (full duplex) and PoE over Multi-Pair
UTP infrastructure with distances up to 2,000ft (610m). The FLEX offering is designed
specifically to enable easy deployment over UTP for reaches beyond that of standard
Ethernet eliminating the costs and disruption associated with IDF closet requirements.
10/100Mbps (full duplex, symmetrical) & PoE++ over multi-pair UTP with 2,000ft (610M) reach.
Standard PoE Switch
SFP 1 SFP+1
47 43 41 15 3 5 1 9 11 7 31 39 33 45 37 35 29 27 23 19 13 21 25 17
SFP+2 SFP 2 42 44 34 36 46 40 26 38 32 48 30 28 24 20 14 22 16 18 12 8 4 6 2 10
Standard PoE Switch
SFP+1 SFP 1
21 41 37 45 47 43 39 15 33 25 27 29 23 19 13 31 17 35 3 5 1 9 11 7
SFP+2 SFP 2 36 32 14 40 48 44 42 46 22 26 34 28 30 24 20 38 18 16 12 8 4 6 2 10
Standard PoE Switch
SFP 1 SFP+1
17 13 31 39 45 37 25 33 27 29 23 19 47 21 43 15 3 5 1 9 11 7 41 35
SFP+2 SFP 2 22 18 14 12 8 16 4 6 2 10 36 46 24 28 20 26 30 40 34 44 32 38 42 48
FLEX-Link max. power 50W over 4 pairs and
FLEX-C maximum power 30W over 2 pairs
*Base Extender can be powered locally for use with non-PoE switches.
FLEX-Base Quick Install Guide
To Switch
Link
1. Remove the FLEX-Base from its packaging.
2. Must ensure cable is properly terminated before connecting any FLEX product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are not
connected when you connect the FLEX-Base.
4. Connect FLEX-Base (Switch side) to downlink port on switch.
5. Connect the Network Infrastructure cable from the FLEX-Base (LRE side) to FLEX-Link
FLEX-C or FLEX4 (LRE side).
6. Using CAT5 or higher category cable, connect the endpoint to the FLEX-Link, FLEX-C or
FLEX4 (Endpoint/Device side).
NOTE: FLEX-Base can be used with FLEX-Link, FLEX-C and FLEX4
888.901.3633 | +44 (0) 208 977 6614
www.nvtphybridge.com

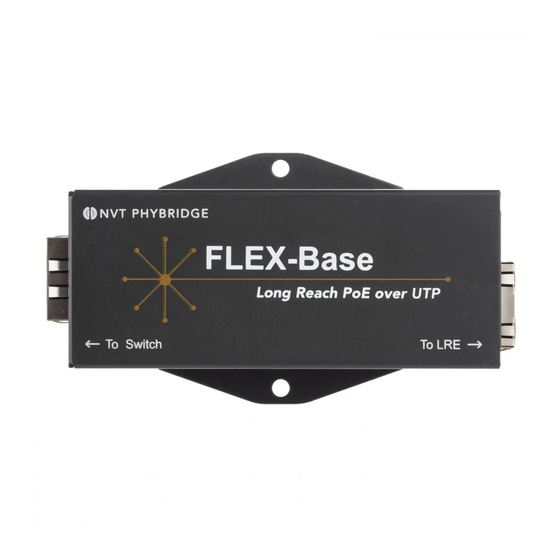

FLEX-Base
• Paired with FLEX-C, FLEX-Link or FLEX4
• Up to 50W PoE
• Local power option
• IEEE compliant
NV-FLXLK-BSE
*
FLEX-Base
Long Reach PoE over UTP
FLEX-Base
Long Reach PoE over UTP
FLEX-Base
Long Reach PoE over UTP
LNK ACT
Activity
TO SWITCH
(NV-FLXLK-BSE)
Multi-Pair UTP Cable
up to 2,000ft (610m)
Multi-Pair UTP Cable
up to 2,000ft (610m)
Local Power Option
Multi-Pair UTP Cable
up to 2,000ft (610m)
Local Power Option
FLEX-Base
Long Reach PoE over UTP
Link/Speed
Green:
100Mbps
Orange:
10Mbps
NV-FLXLK-C
IP ENDPOINT
NV-FLXLK
IP ENDPOINT
FLEX-Link
Long Reach PoE over UTP
NV-FLX-04
To LRE
(Long Reach Ethernet)
ACT
LNK
37-55V
100 GR 10 GR
SPD
TO LRE
Copyright 2019 NVT Phybridge
IP ENDPOINT
IP ENDPOINT
IP ENDPOINT
IP ENDPOINT
Activity
37-55V
DC IN
445-0018-A
