GENERAL
PRECAUTIONS & INSPECTION &
SAFETY WARNINGS

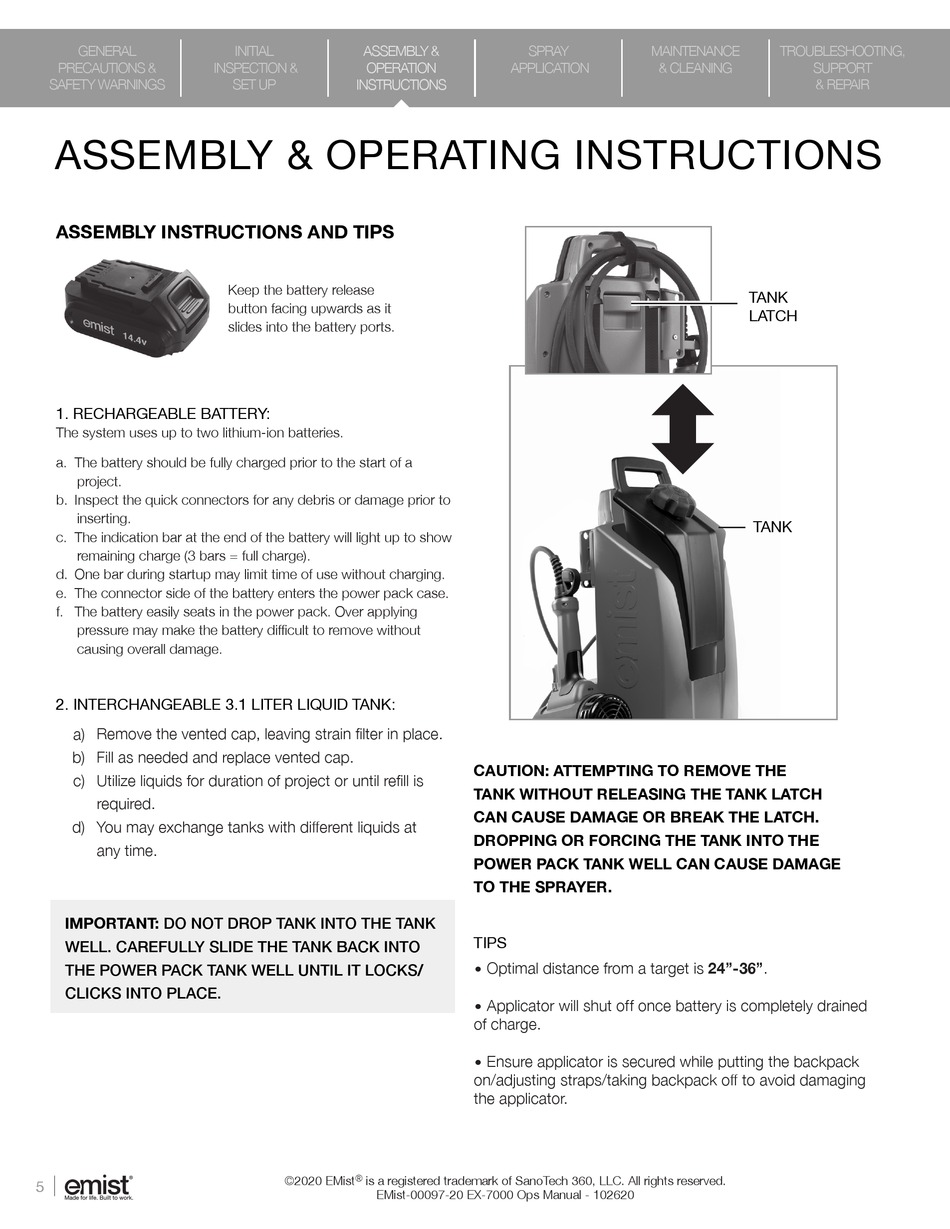

ASSEMBLY & OPERATING INSTRUCTIONS
ASSEMBLY INSTRUCTIONS AND TIPS

1. RECHARGEABLE BATTERY:

The system uses up to two lithium-ion batteries.
a. The battery should be fully charged prior to the start of a
project.
b. Inspect the quick connectors for any debris or damage prior to
inserting.
c. The indication bar at the end of the battery will light up to show
remaining charge (3 bars = full charge).
d. One bar during startup may limit time of use without charging.
e. The connector side of the battery enters the power pack case.
f. The battery easily seats in the power pack. Over applying
pressure may make the battery difficult to remove without
causing overall damage.
2. INTERCHANGEABLE 3.1 LITER LIQUID TANK:
a) Remove the vented cap, leaving strain filter in place.
b) Fill as needed and replace vented cap.
c) Utilize liquids for duration of project or until refill is
required.
You may exchange tanks with different liquids at
d)
any time.
IMPORTANT: DO NOT DROP TANK INTO THE TANK
WELL. CAREFULLY SLIDE THE TANK BACK INTO
THE POWER PACK TANK WELL UNTIL IT LOCKS/
CLICKS INTO PLACE.
5
INITIAL ASSEMBLY &
ASSEMBLY &
OPERATION OPERATION
SET UP INSTRUCTIONS INSTRUCTIONS
Keep the battery release
button facing upwards as it
slides into the battery ports.
©2020 EMist ® is a registered trademark of SanoTech 360, LLC. All rights reserved.
EMist-00097-20 EX-7000 Ops Manual - 102620
SPRAY MAINTENANCE
APPLICATION
CAUTION: ATTEMPTING TO REMOVE THE
TANK WITHOUT RELEASING THE TANK LATCH
CAN CAUSE DAMAGE OR BREAK THE LATCH.
DROPPING OR FORCING THE TANK INTO THE
POWER PACK TANK WELL CAN CAUSE DAMAGE
TO THE SPRAYER.
TIPS
� Optimal distance from a target is 24"-36".
� Applicator will shut of f once battery is completely drained
of charge.
� Ensure applicator is secured while putting the backpack
on/adjusting straps/taking backpack off to avoid damaging
the applicator.
TROUBLESHOOTING,
& CLEANING SUPPORT
& REPAIR
TANK
LATCH
TANK
