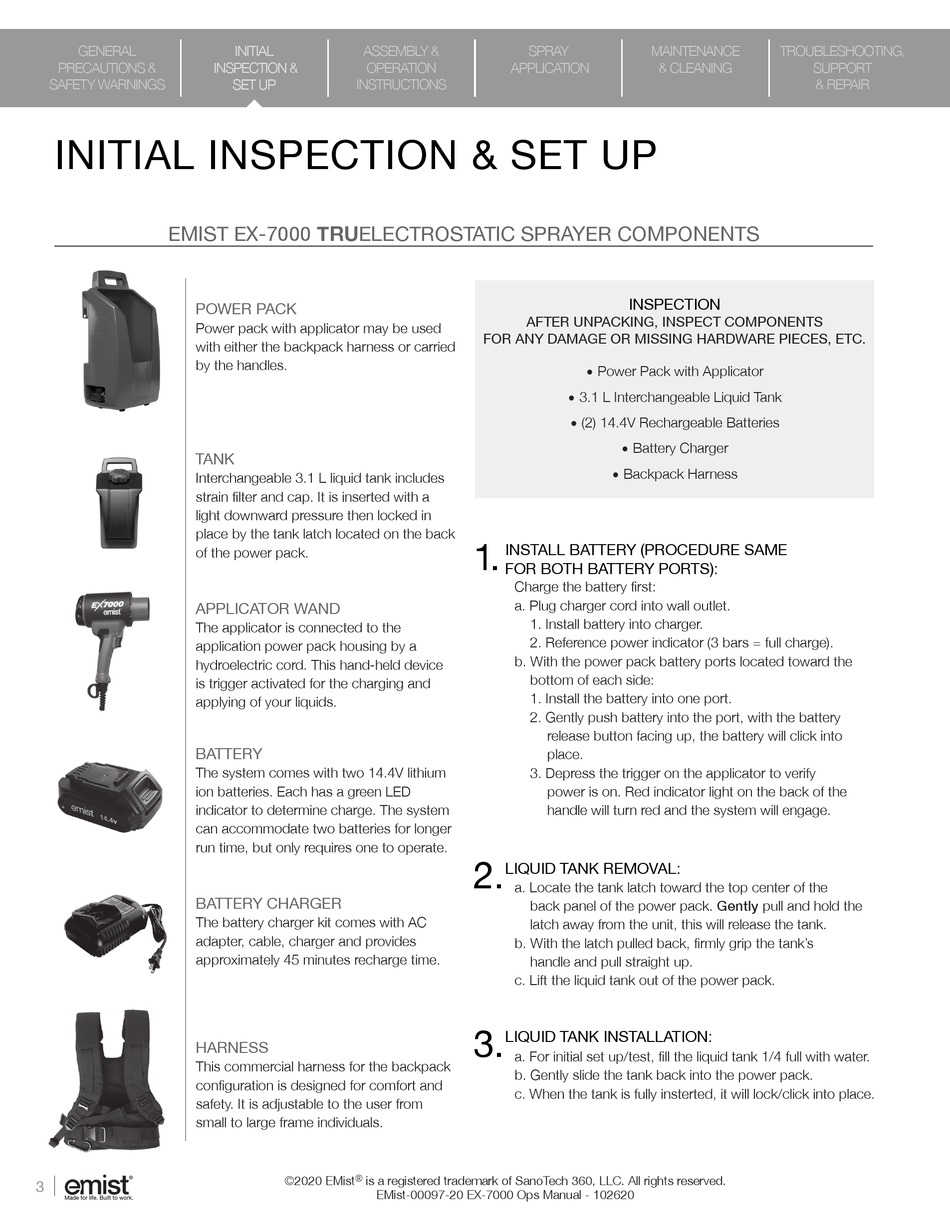

INITIAL INSPECTION & SET UP
EMIST EX-7000 TRUELECTROSTATIC SPRAYER COMPONENTS
POWER PACK
Power pack with applicator may be used
with either the backpack harness or carried
by the handles.
TANK
Interchangeable 3.1 L liquid tank includes
strain filter and cap. It is inserted with a
light downward pressure then locked in
place by the tank latch located on the back
of the power pack.
APPLICATOR WAND
The applicator is connected to the
application power pack housing by a
hydroelectric cord. This hand-held device
is trigger activated for the charging and
applying of your liquids.
BATTERY
The system comes with two 14.4V lithium
ion batteries. Each has a green LED
indicator to determine charge. The system
can accommodate two batteries for longer
run time, but only requires one to operate.
BATTERY CHARGER
The battery charger kit comes with AC
adapter, cable, charger and provides
approximately 45 minutes recharge time.
HARNESS
This commercial harness for the backpack
configuration is designed for comfort and
safety. It is adjustable to the user from
small to large frame individuals.
3
INITIAL ASSEMBLY &
INITIAL
OPERATION
SET UP SET UP INSTRUCTIONS
