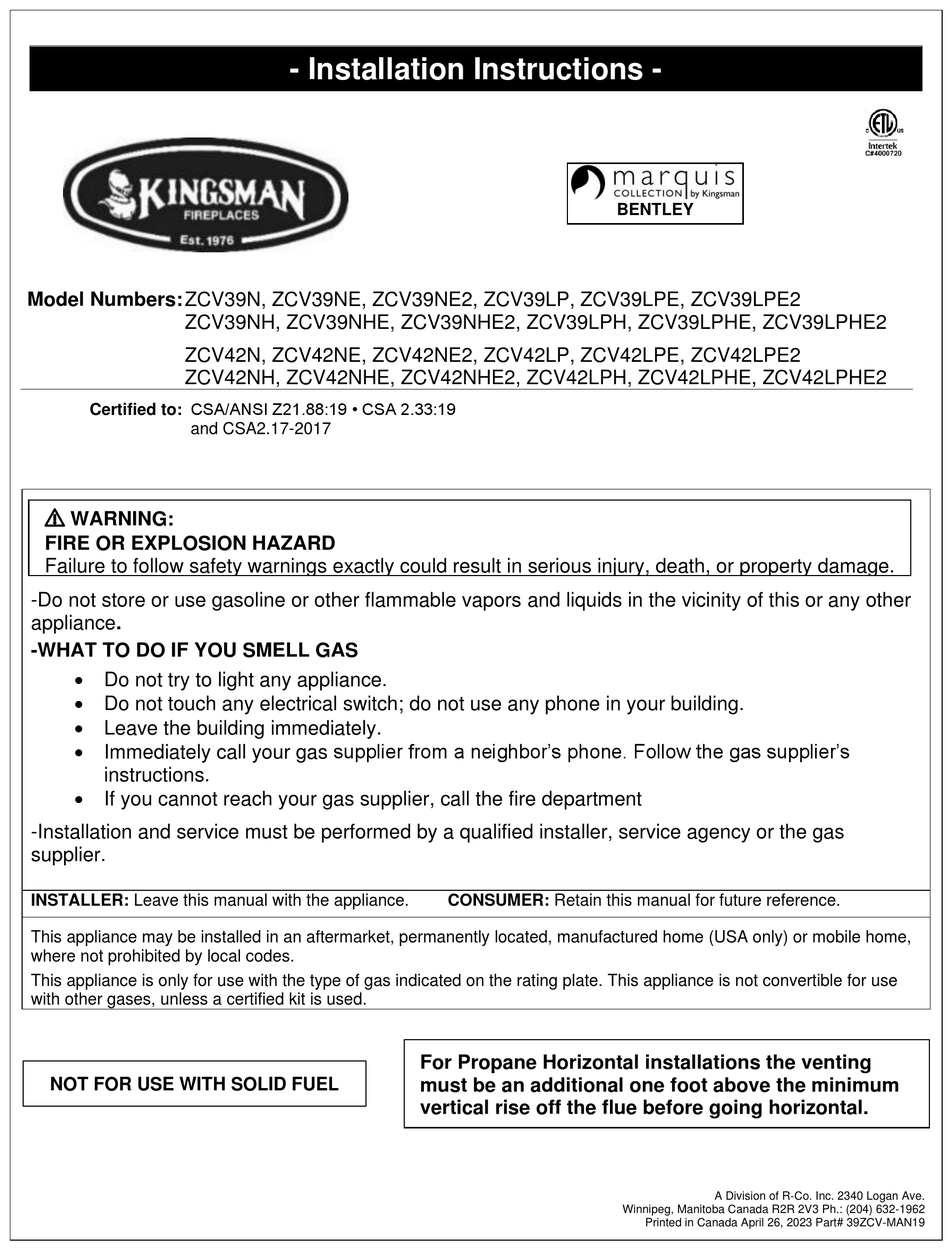

Model Numbers: ZCV39N, ZCV39NE, ZCV39NE2, ZCV39LP, ZCV39LPE, ZCV39LPE2
ZCV39NH, ZCV39NHE, ZCV39NHE2, ZCV39LPH, ZCV39LPHE, ZCV39LPHE2
ZCV42N, ZCV42NE, ZCV42NE2, ZCV42LP, ZCV42LPE, ZCV42LPE2
ZCV42NH, ZCV42NHE, ZCV42NHE2, ZCV42LPH, ZCV42LPHE, ZCV42LPHE2
Certified to: CSA/ANSI Z21.88:19 • CSA 2.33:19
and CSA2.17-2017
⚠
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department
-Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
NOT FOR USE WITH SOLID FUEL
- Installation Instructions -
CONSUMER: Retain this manual for future reference.
For Propane Horizontal installations the venting
must be an additional one foot above the minimum
vertical rise off the flue before going horizontal.
BENTLEY
A Division of R-Co. Inc. 2340 Logan Ave.
Winnipeg, Manitoba Canada R2R 2V3 Ph.: (204) 632-1962
Printed in Canada April 26, 2023 Part# 39ZCV-MAN19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the marquis BENTLEY ZCV39N and is the answer not in the manual?

Questions and answers

Related Manuals for Kingsman Fireplaces marquis BENTLEY ZCV39N

Summary of Contents for Kingsman Fireplaces marquis BENTLEY ZCV39N

  • Page 1 - Installation Instructions - BENTLEY Model Numbers: ZCV39N, ZCV39NE, ZCV39NE2, ZCV39LP, ZCV39LPE, ZCV39LPE2 ZCV39NH, ZCV39NHE, ZCV39NHE2, ZCV39LPH, ZCV39LPHE, ZCV39LPHE2 ZCV42N, ZCV42NE, ZCV42NE2, ZCV42LP, ZCV42LPE, ZCV42LPE2 ZCV42NH, ZCV42NHE, ZCV42NHE2, ZCV42LPH, ZCV42LPHE, ZCV42LPHE2 Certified to: CSA/ANSI Z21.88:19 • CSA 2.33:19 and CSA2.17-2017 ⚠...
  • Page 2 IT IS THE RESPONSIBILITY OF THE HOME OWNER TO ENSURE THAT NO ONE TOUCHES A HOT APPLIANCE. • If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. • Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents........3-4 Facing Requirements for Vented Chase………………………………………… 29 Warnings, Installations and Operations - ZCV39 – Electrical Receptacle in a Vented Installation Regulations…………………….. 5 Chase………………………………………… 30 Installation Requirements for the Commonwealth of Massachusetts, Carbon ZCV42 INSTALLATION – NON-VENTED CHASE Monoxide (CO) Detector…………………….
  • Page 4 Operating the Receiver Without Batteries Kits and Accessories For GT / EGT / GTM / EGTM Remote 51UHS Box / Component Locations………. 57 Controls………………………………………. 93 Z46FK Fan Kit Installation………………….. 58 Configuration #3: Remote ON/OFF, Split Receptacle- Fan Speed Control variable HI/LO, and fan capabilities……….. 94 Outside of Fireplace…………………………...

  • Page 5: Warnings, Installations And Operations - Installation Regulations

    Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.

  • Page 6: Installation Requirements For The

    Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below.

  • Page 7: Pre-Installation Questions And Answers

    Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used.

  • Page 8: Fireplace Installations In Covered Outdoor Locations

    Fireplace Installations in Covered Outdoor Locations – FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS- CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The Intertek safety certification will not apply to this installation method.

  • Page 9: Mobile Home/Manufactured Housing Installation

    Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.

  • Page 10: Framing Your Gas Fireplace

    ZCV39 / ZCV42 Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance.

  • Page 11: Non-Vented Chase Vs Vented Chase - Choose Your Installation

    ZCV39 / 42 – Non-Vented Chase VS Vented Chase - Choose Your Installation FRAMED AS NON-VENTED CHASE: (Fireplace is installed As Shipped, with Ventilation Plates in place.) This is a traditional fireplace installation where the fireplace is built into a non-vented chase. •...

  • Page 12: Vented Chase Requirements

    ZCV39 / 42 – Vented Chase Requirements If using insulation in vented chase (i.e. for outside HEAT CANNOT BE DISCHARGED INTO THE wall), wall board / drywall is required to support all WALLS, FLOOR, OR CEILING. insulation. Vented chase must be clean and free of all •...

  • Page 13: V39Eg Grill Installation For Zcv39 / 42 Vented Chase

    V39EG Grill Installation for ZCV39 / 42 Vented Chase -Option- Ventilation Plates must be removed before installation into a Vented Chase ⚠ Grill openings must be within 3/4” of enclosure top. This is to prevent excess heat from becoming trapped in the top of the chase.

  • Page 14: V39Egs Side Grill Installation For Zcv39 / 42 Vented Chase

    V39EGS Side Grill Installation for ZCV39 / 42 Vented Chase -Option- Ventilation Plates must be removed before installation into a Vented Chase ⚠ Grill openings must be within 3/4” of enclosure top. This is to prevent excess heat from becoming trapped in the top of the chase.

  • Page 15: Framing- Nailing Tab Guide

    ZCV39 / ZCV42 Framing- Nailing Tab Guide [Qty]2 Nailing Tabs are located on each side of the front frame. These Nailing Tabs can be used in two ways: 1/2” Drywall Flush with Face of Fireplace – Framing Flush with Face of Fireplace -Fireplace to be covered Fireplace and Combustible Wall to be covered with Non-Combustibles (e.g.

  • Page 16: Dimensions

    ZCV39 Locating Your Appliance LOCATION KEY: Flat on Wall Across the Corner As an Island As a Room Divider Flat on Wall Corner Exterior Wall See Mantel Leg Clearances Instruction for the proper placement of fireplace. Island installation with a top vent is possible as long as the horizontal portion of the vent system does not exceed 20 feet (6.1 m).

  • Page 17: Framing Dimensions For Non-Vented Chase

    ZCV39 Framing Dimensions for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Determine whether face of fireplace will be: • Flush with finished wall (e.g., for surround, cultured stone, or other noncombustible covering). • Flush with framing (to be covered with concrete board for a Flat Wall appearance). Refer to Nailing Tab Guide section also.

  • Page 18: Chase Built Outside Of Room

    ZCV39 Framing Dimensions for Non-Vented Chase Built Outside of Room Fireplace is installed As Shipped, with Ventilation Plates in place. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also. NOTE: These structures are not load bearing. No loose Combustibles (wood, wiring, etc.) are allowed inside the Chase area.

  • Page 19: Mantel Clearances For Non-Vented Chase

    39ZCV Mantel Clearances for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Before installing any mantels it is important to determine the combustibility of its material(s). There are two types of mantels to consider: Combustible and Non-Combustible.

  • Page 20: Clearance To Combustibles For Non-Vented Chase

    ZCV39 Clearance to Combustibles for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Clearance to Combustibles ZCV39 36” [92cm] Front 0” [0cm] Back (from Stand-offs) 0” [0cm] Side (from Stand-offs) 0” [0cm] Floor* NG: 55-1/2” [141cm] Propane: 67-1/2” [172cm] Minimum Ceiling Height (from bottom of fireplace) 0”...

  • Page 21: Facing Requirements For Non-Vented Chase

    ZCV39 Facing Requirements for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Required: ANY MATERIALS COVERING THE FACE OF THE Recommended: FIREPLACE MUST BE NON- Non-Combustible 39-1/2” x 41” COMBUSTIBLE (i.e. brick, This is to allow concrete board to stone, tile, concrete board).

  • Page 22: Framing Dimensions For Vented Chase (Built Outside Of Room) V39Eg Grill

    ZCV39 Framing Dimensions for Vented Chase (built outside of room) V39EG Grill Ventilation Plates must be removed before installation into a Vented Chase Grill MUST be located at top of chase. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also.

  • Page 23: Framing Dimensions For Vented Chase With V39Eg -Or- V39Egs Grills

    ZCV39 Framing Dimensions for Vented Chase with V39EG -OR- V39EGS Grills Ventilation Plates must be removed before installation into a Vented Chase Grills MUST be located at top of chase. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also.

  • Page 24: Framing Dimensions For Vented Chase With Open Top

    ZCV39 Framing Dimensions for Vented Chase with Open Top Ventilation Plates must be removed before installation into a Vented Chase Determine whether face of fireplace will be flush with framing or finished -Remove Ventilation Plates- wall. Refer to Nailing Tab Guide also. NOTE: These structures are not See Removal of Vent Covers section.

  • Page 25: Grills

    ZCV39 Framing Dimensions - Recessed Vented Chase - V39EG -OR- V39EGS Grills Ventilation Plates must be removed before installation into a Vented Chase Grills MUST be located at top of chase Determine whether face of -Remove Ventilation Plates- fireplace will be flush with framing or finished wall. Refer to Nailing Tab See Removal of Vent Covers section.

  • Page 26: Framing Dimensions - Recessed Vented Chase With Open Top

    ZCV39 Framing Dimensions - Recessed Vented Chase with Open Top Ventilation Plates must be removed before installation into a Vented Chase Determine whether face of fireplace will be flush with framing or finished -Remove Ventilation Plates- wall. Refer to Nailing Tab Guide also. NOTE: These structures are not See Removal of Vent Covers section.

  • Page 27: Mantel Clearances- For Vented Chase

    ZCV39 -Mantel Clearances- for Vented Chase Ventilation Plates must be removed before installation into a Vented Chase -Remove Ventilation Plates- See Removal of Vent Covers section. A Combustible Mantel can be placed immediately Right Side View above the fireplace opening. A Combustible Hearth can be placed immediately below the fireplace...

  • Page 28: Clearance To Combustibles For Vented Chase

    ZCV39 Clearance to Combustibles for Vented Chase Ventilation Plates must be removed before installation into a Vented Chase 36” [92cm] Front 0” [0cm] Back (from Stand-offs) 0” [0cm] *Note: If appliance is installed Side (from Stand-offs) directly on carpeting or other 0”...

  • Page 29: Facing Requirements For Vented Chase

    ZCV39 - Facing Requirements for Vented Chase - Ventilation Plates must be removed before installation into a Vented Chase Unit and Framing can be covered with a combustible i.e., drywall up to the fireplace opening. NOTE: FIREPLACE CHASE MUST BE •...

  • Page 30: Zcv39 - Electrical Receptacle In A Vented Chase

    ZCV39 – Electrical Receptacle in a Vented Chase ELECTRICAL WIRES IN CHASE MUST BE PROPERLY ATTACHED TO INSIDE WALL OF CHASE. DO NOT RUN WIRES DIRECTLY ABOVE APPLIANCE. Please follow the current CSA C22.1 Canadian Electrical Code or the National Electrical Code; ANSI/NFPA 70 when installed in the United States. An electrical receptacle may be located in the front of a vented chase if the following guidelines are adhered to: •...

  • Page 31: Dimensions

    ZCV42 Locating Your Appliance LOCATION KEY: Flat on Wall Across the Corner As an Island As a Room Divider Flat on Wall Corner Exterior Wall See Mantel Leg Clearances Instruction for the proper placement of fireplace. Island installation with a top vent is possible as long as the horizontal portion of the vent system does not exceed 20 feet (6.1 m).

  • Page 32: Framing Dimensions For Non-Vented Chase

    ZCV42 Framing Dimensions for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Determine whether face of fireplace will be: • Flush with finished wall (e.g., for surround, cultured stone or other non combustible covering). • Flush with framing (to be covered with concrete board for a Flat Wall appearance). Refer to Nailing Tab Guide section also.

  • Page 33: Chase Built Outside Of Room

    ZCV42 Framing Dimensions for Non-Vented Chase Built Outside of Room Fireplace is installed As Shipped, with Ventilation Plates in place. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also. NOTE: These structures are not load bearing. No loose Combustibles (wood, wiring, etc.) are allowed inside the Chase area.

  • Page 34: Mantel Clearances For Non-Vented Chase

    42ZCV Mantel Clearances for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Before installing any mantels it is important to determine the combustibility of its material(s). There are two types of mantels to consider: Combustible and Non-Combustible. A Combustible Mantel is one that consists of material(s) that may discolor, combust, or lose its integrity...

  • Page 35: Clearance To Combustibles For Non-Vented Chase

    ZCV42 Clearance to Combustibles for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Clearance to Combustibles ZCV42 36” [92cm] Front 0” [0cm] Back (from Stand-offs) 0” [0cm] Side (from Stand-offs) 0” [0cm] Floor* NG: 59.5” [151cm] LP: 71-1/2” [182 cm] Minimum Ceiling Height (from bottom of fireplace) 0”...

  • Page 36: Facing Requirements For Non-Vented Chase

    ZCV42 Facing Requirements for Non-Vented Chase Fireplace is installed As Shipped, with Ventilation Plates in place. Required: ANY MATERIALS COVERING Recommended: THE FACE OF THE Non-Combustible 42-5/8” x 44” FIREPLACE MUST BE NON- COMBUSTIBLE (i.e. brick, This is to allow concrete board to stone, tile, concrete board).

  • Page 37: Framing Dimensions For Vented Chase (Built Outside Of Room) V39Eg Grill

    ZCV42 Framing Dimensions for Vented Chase (built outside of room) V39EG Grill Ventilation Plates must be removed before installation into a Vented Chase Grill MUST be located at top of chase. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also.

  • Page 38: Framing Dimensions For Vented Chase With V39Eg -Or- V39Egs Grills

    ZCV42 Framing Dimensions for Vented Chase with V39EG -OR- V39EGS Grills Ventilation Plates must be removed before installation into a Vented Chase Grills MUST be located at top of chase. Determine whether face of fireplace will be flush with framing or finished wall. Refer to Nailing Tab Guide also.

  • Page 39: Framing Dimensions For Vented Chase With Open Top

    ZCV42 Framing Dimensions for Vented Chase with Open Top Ventilation Plates must be removed before installation into a Vented Chase Determine whether face of fireplace will be flush with framing or finished -Remove Ventilation Plates- wall. Refer to Nailing Tab Guide also. NOTE: These structures are not See Removal of Vent Covers section.

  • Page 40: Framing Dimensions - Recessed Vented Chase - V39Eg -Or- V39Egs Grills

    ZCV42 Framing Dimensions - Recessed Vented Chase - V39EG -OR- V39EGS Grills Ventilation Plates must be removed before installation into a Vented Chase Grills MUST be located at top of chase Determine whether face of -Remove Ventilation Plates- fireplace will be flush with framing or finished wall. Refer to Nailing Tab See Removal of Vent Covers section.

  • Page 41: Framing Dimensions - Recessed Vented Chase With Open Top

    ZCV42 Framing Dimensions - Recessed Vented Chase with Open Top Ventilation Plates must be removed before installation into a Vented Chase Determine whether face of fireplace will be flush with framing or finished -Remove Ventilation Plates- wall. Refer to Nailing Tab Guide also. NOTE: These structures are not See Removal of Vent Covers section.

  • Page 42: Mantel Clearances- For Vented Chase

    ZCV42 -Mantel Clearances- for Vented Chase Ventilation Plates must be removed before installation into a Vented Chase -Remove Ventilation Plates- See Removal of Vent Covers section. A Combustible Mantel can be placed immediately above the fireplace Right Side View opening. A Combustible Hearth can be placed immediately below the fireplace...

  • Page 43: Clearance To Combustibles For Vented Chase

    ZCV42 Clearance to Combustibles for Vented Chase Ventilation Plates must be removed before installation into a Vented Chase 36” [92cm] Front 0” [0cm] Back (from Stand-offs) 0” [0cm] *Note: If appliance is installed Side (from Stand-offs) directly on carpeting or other 0”...

  • Page 44: Facing Requirements For Vented Chase

    ZCV42 - Facing Requirements for Vented Chase - Ventilation Plates must be removed before installation into a Vented Chase Unit and Framing can be covered with a combustible i.e., drywall up to the fireplace opening. NOTE: FIREPLACE CHASE MUST BE VENTED AT THE TOP OF THE •...

  • Page 45: Zcv42 - Electrical Receptacle In A Vented Chase

    ZCV42 – Electrical Receptacle in a Vented Chase ELECTRICAL WIRES IN CHASE MUST BE PROPERLY ATTACHED TO INSIDE WALL OF CHASE. DO NOT RUN WIRES DIRECTLY ABOVE APPLIANCE. Please follow the current CSA C22.1 Canadian Electrical Code or the National Electrical Code; ANSI/NFPA 70 when installed in the United States. An electrical receptacle may be located in the front of a vented chase if the following guidelines are adhered to: •...

  • Page 46: Inside Fit Safety Screen Installation

    ZCV39 / 42 / 48 Inside Fit Safety Screen Installation (Shipped with unit after September 2022) ZCV39CSS2 / ZCV42CSS2 / ZCV48CSS2 Contents of Kit: [1] Child Safety Screen NOTE: For installation of Surrounds when using Inside Fit Safety Screens, refer to VF Surround Installations in the fireplace manual.

  • Page 47: Surround Installation

    ZCV 39 / 42 / 48 Surround Installation for Inside Fit Screens- (Shipped with unit after September 2022) ZCV39S1 / ZCV39S1PF / ZCV39S2PF / ZCV42S1 / ZCV42S1PF / ZCV47S1 For S1/ S1PF Surrounds: Place surround face down on protected surface. Bend Top Hook and Lower Mount Tab up 90° from surface. For S2PF Surrounds: Bend down Screen Fold Mount Tabs up 90°...

  • Page 48: Basic Finishing For S1 Or S1Pf Surround

    ZCV39 / ZCV42 Basic Finishing for S1 or S1PF Surround Step One: Frame Fireplace with nailing tabs oriented as Step Two: Use Drywall to finish face of wall. shown. NOTE: Drywall will be flush with fireplace face. Drywall Fireplace Frame Nailing Tab Step 3: Once wall is completely finished, Screen with Surround IMPORTANT NOTE!:...
  • Page 49 S1PF Surround Required Clearance ZCV39 Fireplace Opening Bottom of Unit S1 Surround Required Clearance ZCV42 Fireplace Opening Bottom of Unit S1PF Surround Required ZCV42 Clearance Fireplace Opening Bottom of Unit...

  • Page 50: Concrete Board

    ZCV39 / ZCV42 Basic Finishing for S2PF Surround: Concrete Board Behind (3/4” Maximum Total Thickness) Step One: Step Two: Use Concrete Board to cover fireplace face. Frame Fireplace with nailing tabs oriented as shown (flush with face of fireplace). NOTE: Optional ZCV-TLK Tile Kit is available. Maintain clearances shown.

  • Page 51: Basic Finishing For S2Pf Surround: Stone Or Brick

    ZCV39 / ZCV42 Basic Finishing for S2PF Surround: Stone or Brick Step One: Step Two: Use Drywall to finish face of wall. Frame Fireplace with nailing tabs oriented as shown. NOTE: Drywall will be flush with fireplace face. Drywall Fireplace Frame Nailing Tab Step 3: A stone, brick, or other non-combustible border IMPORTANT NOTE!:...

  • Page 52: Border

    ZCV39 / ZCV42 Basic Finishing for S2PF Surround: Tile Border Behind (3/4” Maximum Total Thickness) Step One: Step Two: Use Drywall to finish face of wall. Frame Fireplace with nailing tabs oriented as shown. NOTE: Drywall will be flush with fireplace face. Drywall Fireplace Frame Nailing Tab...

  • Page 53: Mq39Dd / Mq42Dd Doors: Stone, Brick, Or Tile Border

    ZCV39 / ZCV42 Basic Finishing for MQ39DD / MQ42DD Doors: Stone, Brick, or Tile Border Step One: Frame Fireplace with nailing tabs oriented as Step Two: Use Drywall to finish face of wall. shown. NOTE: Wall will be flush with fireplace face. Drywall Fireplace Frame Nailing Tab...
  • Page 54 NOTE: When a DD Door c/w Safety Screen is used, the original Safety Screen supplied with the fireplace is not required. 1/2” Clearance is Required for Door to Open All DD Doors are flush with bottom of appliance. ⚠ NOTE FINISHED AREA IN FRONT OF FIREPLACE (FLOOR, HEARTH, ETC.) 1/2”...

  • Page 55: Mqzcv39Dd / Mqzcv42Dd Designer Door Installations

    MQZCV39DD / MQZCV42DD Designer Door Installations Each Kit contains: Back Frame, Front Frame, and Screen.  If protruding facing materials (i.e., concrete board, brick or tile) are to be used, refer to Facing Material Dimension Requirements section.  Designer Doors require a minimum 1/8” space on top and sides to allow for installation & removal. ...

  • Page 56: Zcv-Tlk Tile Lip Kit

    ZCV-TLK Tile Lip Kit Contents of Kit: Qty. [4] Tile Lip pieces 47” long, Qty. [12] screws. Instructions: Refer to the charts below to find your installation choice. -Cut [2] tile lip pieces to height of sides, and [2] to length of top &...

  • Page 57: 51Uhs Box / Component Locations

    ZCV39 / ZCV42 51UHS Box Included with base model. The 51-UHS is designed for millivolt and IPI units for in-unit installation of the Remote Receiver, Fan Control Module, and the IPI Module. 51-UHS can be inserted & removed from beneath fireplace through access panel opening (Remove glass door first). NOTE: When using a remote control, the 51-UHS must be used.

  • Page 58: Z46Fk Fan Kit Installation

    ZCV39 / ZCV42 Z46FK Fan Kit Installation ⚠ WARNING The fan can be installed through the side of the fireplace. Electrical Grounding Instructions This appliance is equipped with a three prong (grounding) plug for your protection against If fireplace is already installed, the shock hazard and should be plugged directly into a properly grounded three-prong burner pan must be removed to receptacle.

  • Page 59: Split Receptacle- Fan Speed Control

    Split Receptacle- Fan Speed Control Outside of Fireplace If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below.

  • Page 60: Porcelain Liner Installation

    ZCV39PL / ZCV42PL Liner Installation ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. ZCV39PL / ZCV42PL Consists of: [1] –...

  • Page 61: Brick Liner Installation

    ZCV39 RLT / RLH / RRH / RLS & ZCV 42RLT / RLH / RRH / RLS Brick Liner Installation NOTE: To use with GT Glass Tray, refer to Cutting Refractory Liners page in manual. Step One: Remove Log Holder. Step Two: Place Back Liner against back wall of firebox.
  • Page 62 ZCV39 / ZCV42 -Cutting Refractory Liners to work with GT Glass Trays- Refractory Liners must be cut if they are to be used with a Glass Tray. Caution: Liners are extremely fragile. Handle with care. 1. Using a utility knife, measure and cut Back Liner, removing the two side portions at the bottom.

  • Page 63: Zcv39Gt/ Zcv42Gt Glass Tray Setup

    ZCV39GT/ ZCV42GT Glass Tray Setup Parts List: [1] Glass Tray,[1] Pilot Shield, [1] Glass Retainer, [3] DT Screws. NOTE: To use with Refractory Liners, refer to Cutting Refractory Liners page in manual. Installation: Remove Log Holder and Log Grate. Place Glass Tray over Burner. Insert Pilot Cover into slots in Glass Tray. Glass Tray sits behind Door Latch Screws.

  • Page 64: Ulk2 Universal Light Kit

    ULK2 Universal Light Kit ( Optional Accent Lighting Kit) Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. Contents of Kit:  [2] 12V Halogen Lamps  Lamp Plate with Insulated Studs & wiring ...
  • Page 65 Screw Screw ZCV39 / ZCV42 STEP 3: Place Lamps in position in firebox. Attach to fireplace with a single screw at the locations shown above for each unit. Lamps can be placed facing upward or sideways. Replace burner and false bottom if used, along with pilot shield.

  • Page 66: Logf3- 7 Piece Setup

    ZCV39 / ZCV42 LogF3- 7 Piece Setup NOTE: Set Primary Air Opening at 1/8” for Natural Gas. Refer to Gas Conversion and Burner Removal sections in manual. These items Insulation are supplied Lava Wool with the Rock fireplace: Embers Pull Up [4] Log Tabs Pull up [4] Log Tabs on Burner.

  • Page 67: Log C3 / F3 - 5 Piece Setup

    ZCV39 / ZCV42 Log C3 / F3 - 5 Piece Setup NOTE: Set Primary Air Opening at 1/8” for Natural Gas. Refer to Gas Conversion and Burner Removal sections in manual. Pull Up [4] Log Tabs *These items are supplied with the fireplace: *Insulation Wool *Lava Rock Pull up [4] Log Tabs on Burner.

  • Page 68: Mqlogf39Bw 7 Piece Birch Log Set

    MQLOGF39BW 7 Piece Birch Log Set MQZCV39 / 42 Lava Rock NOTE: THESE COMPONENTS ARE SUPPLIED WITH THE FIREPLACE. Insulation Wool Insulation Lava Rock Wool Embers Embers ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury...

  • Page 69: Mq42D Driftwood

    ZCV39 / ZCV42 MQ42D NOTE: ZCV39GT OR ZCV42GT REQUIRED. *NOTE: THESE ITEMS ARE SUPPLIED WITH THE FIREPLACE: LOG 1 *Insulation Wool LOG 4 *Embers LOG 5 *Lava Rock LOG 2 LOG 3 LOG 6 STEP 1: Place LOG 1, LOG 2, and LOG 3 as shown.
  • Page 70 LOG 6 Place Log 6 as shown above. Setup is complete. ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury...

  • Page 71: Rbcb1 Cannonballs

    RBCB1 -Cannonballs- Installation Instructions *Must be used with ZCV39GT/ ZCV42GT Glass Tray Assorted size and colors. Place randomly as desired inside fireplace. Can be used with MQ Glass, MQ Ember, and / or Lava Rock. Do not place Cannonballs directly on burner ports. If sooting occurs change position of or remove affected objects.

  • Page 72: Mq Dealer Accessories For Zcv39 / Zcv42

    MQ Dealer Accessories for ZCV39 / ZCV42 The following Accessories are available through MQ Dealers only. • GLASS (MQG5W, MQG5C, MQG5A, MQG5B, MQG5ZG) ACCESSORY ITEM DESCRIPTION If you wish to use this media evenly spread the glass embers onto the false bottom and burner.
  • Page 73 NOTE • Pilot Area Must Not Be Covered, as delayed ignition can occur. Insulation Wool & MQ EMBER (shown, supplied with Base Unit), or MQ Glass can be placed on Burner. MQ Stone (shown), MQ Rock 2 or 3, or MQ Glass can be placed on Glass Tray.
  • Page 74 MQ STONE DECORATIVE STONE SET- Must be used with ZCV39GT/ ZCV42GT Glass Tray MQ Stone can be placed on or around Burner. Lava Rock (Supplied with Base MQ EMBER (shown) can be placed on Burner. Unit). Do not place on Burner. MQ Glass can be placed on Burner and Glass Tray.

  • Page 75: Mq Log F9 Setup

    MQ Log F9 Setup NOTE: Set Primary Air Opening at 3/16” for Natural Gas. Refer to Gas Conversion and Burner Removal sections in manual. Pull Up [4] Log Tabs *Embers *Insulation *Lava Rock Wool Pull up [4] Log Tabs on Burner. Match with Holes in Logs 4 &...
  • Page 76 Logs 8-10 are placed along Front Grate. Embers & Insulation Wool On Burner Lava Rock on Firebox Bottom...

  • Page 77: Glass Door Installation

    ZCV39 / ZCV42 / MCVST42 / MCVP42 Door Installation To install Door: 1. Remove Access Cover below Glass Door. 30° 15° 2. Engage door in lower latches at an angle of between 15 and 30 degrees. 3. Swing door up and pull top latches over door lip at each corner. Door Bottom Latch ⚠...

  • Page 78: Door And Glass Information

    Door and Glass Information Glass Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. It is therefore recommended that initially the glass be cleaned two or three times with a fireplace glass cleaner.

  • Page 79: Gas Line Installation

    Gas Line Installation This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN/CGA - B149.1 or .2 installation codes for Gas Burning appliances and equipment in Canada and the National Fuel Gas Code ANSI Z223 in the U.S.A.

  • Page 80: Millivolt System, Lighting, And Burner Control

    Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When ...

  • Page 81: Lighting Instructions For Millivolt Valve With 7 Day Timer

    - Lighting Instructions for Millivolt Valve with 7 Day Timer - FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. •...

  • Page 82: Annual Inspection List For Determining Safe Operation Of A Direct Vent Gas Fireplace

    Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate.

  • Page 83: Burner System Maintenance

    Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance.
  • Page 84 Gas Conversion Part A ZCV39 / ZCV42 IMPORTANT: Always check for gas leaks with a soap and water solution. DO NOT USE OPEN FLAME FOR LEAK TESTING. Main Burner Air Shutter & Screw Pilot Orifice Main Burner Orifice Brass Nipple Parts List: ...

  • Page 85: Gas Conversion For Top Convertible Pilot - Part B

    SIT Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to PROPANE and from PROPANE to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions.

  • Page 86: Gas Conversion For Modulator - Part C

    SIT Gas Conversion for Modulator – PART C...

  • Page 87: Burner Removal / Burner System Removal / Installation

    ZCV39 / ZCV42 Burner Removal To remove grate, remove two [2] screws from grate bar assembly. To remove burner, remove four [4] screws from burner. Slide burner to the left and lift to remove. -⚠ WARNING- Turn off Unit and allow to cool before cleaning.

  • Page 88: Overview

    IPI Electronic Ignition System Overview Cover The IPI system is an advanced burner controller that provides you with the option of having either a Standing- Pilot, or an intermittent igniting system. This alternating Backup mode is controlled by the CPI/IPI Switch (Continuous Pilot Battery Ignition/Intermittent Pilot Ignition) located on the IPI System Pack...

  • Page 89: Remote Control Operation

    Proflame 1 -Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart *thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room *thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room *thermostat.

  • Page 90: Ipi Electronic Ignition Parts List

    Proflame 1 -IPI System Parts List- PART NO. DESCRIPTION 1006-P002SI Valve IPI Hi/Lo NG 11. 1002-P012SI IPI Stepper Kit - LP 907.012 1006-P003SI Valve IPI Hi/Lo LP 12. 1002-P013SI IPI Stepper Kit - NG 907.013 13. 1002-P014SI IPI Reg Kit - LP Hi-Lo 907.014 1002-P302SI IPI Ignition Board 14.

  • Page 91: Ipi Schematic Drawing #1: Basic Manual Hi / Lo - Manual On / Off

    Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities.

  • Page 92: Configuration #2: Remote On/Off And Manual Hi/Lo Capabilities

    Proflame 1- Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown. SCHEMATIC 1001-P221SI PICTURE...

  • Page 93: Operating The Receiver Without Batteries For Gt / Egt / Gtm / Egtm Remote Controls

    Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries.

  • Page 94: Configuration #3: Remote On/Off, Variable Hi/Lo, And Fan Capabilities

    Proflame 1- Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities Refer to the fan installation/removal section for fan installation. NOTE: This Configuration is not available on all models of SCHEMATIC fireplace. Check with your dealer. NOTE: Fan Option PICTURE is not available on some models of fireplace.

  • Page 95: Ipi Lighting Instructions

    - IPI LIGHTING INSTRUCTIONS - FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. • This appliance is equipped with an ignition device which If you cannot reach your gas supplier, call the fire automatically lights the pilot.

  • Page 96: Proflame 2 Ipi System Parts List

    Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 13. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 14.

  • Page 97: Proflame 2 Ifc Module And Remote Control

    Proflame 2 IPI - IFC Module and Remote Control Batteries IFC Module Button • Within 10 seconds press the button again until Pairing Remote Control: you hear it beep. • Install the 3 AAA type batteries in the battery bay, •...

  • Page 98: Cold Climates - Cpi Setting - Proflame 2 Remote Control

    Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather.

  • Page 99: Proflame 2 Remote Control

    Proflame 2 Remote Control...
  • Page 100 Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode.

  • Page 102: Wmbh - Wall Mount Battery Holder-Option

    WMBH – Wall Mount Battery Holder – Proflame 1 and 2 IPI Models - Option The WMBH provides the option for a more convenient and accessible location for the backup batteries. NOTE: The WMBH is NOT a remote control receiver. It functions as a Battery Holder and mode selector switch ONLY. ⚠...

  • Page 103: Vent Terminal Clearances

    Vent Terminal Clearances NOTE: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Clearances are to the edge of the terminal plate. Add 6-3/4” to clearances to arrive at centerline. Local codes or regulations may require different clearances.

  • Page 104: General Vent Installation Information

    General Vent Installation Information This gas appliance is approved to be vented either through offset installation support straps should be used to stabilize the side wall or vertically through the roof. Only Kingsman pipe. Flex (Z-Flex) Venting Kits and components specifically Expand 4”...

  • Page 105: Installation Of Side Wall Venting

    Installation of Side Wall Venting To determine the minimum distance from the bottom of fireplace to center of vent see the Framing Your Gas Fireplace section. Cut a hole through the wall allowing for an 11” x 11” (inside diameter) in combustible walls for wall thimble or an 8”...

  • Page 106: Venting Routes And Components / Horizontal Vent Table

    Venting Routes And Components Venting Routes and Components Since it is very important that the vent system maintain its How to Use the Horizontal Vent Table balance between the combustion air intake and the flue gas 1. Determine the height of the system and the number of exhaust, certain limitations as to vent configurations apply and bends required.

  • Page 107: Horizontal Snorkel Terminations

    Z47ST24 / Z47ST36 Horizontal Snorkel Terminations Two snorkel terminations are available if a vertical rise is necessary on the exterior side of a building: Z47ST24 (24” Tall, 14-1/2” Center to Center) Z47ST36 (36” Tall, 26-1/2” Center to Center) Follow standard horizontal venting installation procedures. If the Snorkel Termination is to be located below grade, a window well is recommended with adequate and proper drainage as per local codes.

  • Page 108: Venting Straight Up Through Roof

    Venting Straight Up Through Roof An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney. When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"...
  • Page 109 -Restrictor- Remove for Runs Under 15 Feet Clearances in horizontal venting. FDVVT40 Clearance to perpendicular wall 24 inches (60 cm). (Recommended to prevent re- circulation of exhaust products. For additional requirements check local codes.) 24” 18” MIN Clearance above highest point of exit on roof 18 inches (45cm) 43ft...

  • Page 110: Venting - Cathedral Ceiling

    ZCV39 / 42 / 48 Venting - Cathedral Ceiling Just as with a normal ceiling, an Attic Insulation Shield must be WARNING: HEAT CANNOT BE DISCHARGED installed where the fireplace vent passes from a lower living space into INTO THE WALLS, FLOOR, OR CEILING. Heat must exit through the required 2”...

  • Page 111: Fireplace Installations Using Co Linear Flex Kits

    Fireplace Installations Using Co Linear Flex Kits WARNING CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON- COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD RESULT IN A FIRE. MININMUM VENT HEIGHT IS 12 FEET. MAXIMUM VENT HEIGHT IS 43 FEET. Approved for: ZCV39N, ZCV39NE, ZCV39NE2, ZCV39LP, ZCV39LPE, ZCV39LPE2, ZCV42N, ZCV42NE, ZCV42NE2, ZCV42LP, ZCV42LPE, ZCV42LPE2 IDVVT36...

  • Page 112: Approved For Pvh58 / Pvh58Fm Power Vent

    Approved for Power Vent PVH58 / PVH58FM - This appliance is approved for use with a Kingsman PVH58 Horizontal Power Vent - A Horizontal Power Vent Termination is intended for use where standard venting configurations are not possible. NOTE: MODELS EQUIPPPED WITH MILLIVOLT/ STANDING PILOT IGNITION: Downward vertical vent runs are NOT permitted.

  • Page 113: Power Vent Control Module Installation

    Bentley ZCV39 / ZCV42 Power Vent Control Module Installation FIREPLACE IS SUPPLIED WITH ONE JUNCTION BOX. ADDITIONAL OUTLETS MAY BE REQUIRED. CONSULT A QUALIFIED ELECTRICIAN. MAIN WIRING HARNESS IPI SYSTEM POWER VENT CONTROL MODULE DOUBLE POLE SWITCH MV SYSTEMS ONLY MAIN WIRING HARNESS NOTE: Fireplace glass door must be removed to...

  • Page 114: Power Vent Parts List For 4/7 Venting

    PVH58 Power Vent Parts List for 4/7 Venting POWER VENT PARTS LIST – 4/7 VENTING Note: Must use a one-foot section of 5/8 DV hard pipe (not supplied) to connect to the Power Vent NUMBER DESCRIPTION Termination. PVH58 Horizontal Power Vent Starter Kit ‐ SECTION 3 DIRECT VENT HARD PIPE 3/5"...

  • Page 115: Parts Lists

    ZCV39 Parts List MQ39D Driftwood Log Set- 4pcs Part Number Description MQSTONE Decorative Stones Fireplaces MQROCK2 Rock Set Natural ZCV39N (Millivolt) Fireplace Heater rated, NG, MQROCK3 Rock Set Multi-Color Tempered Glass, Safety Screen MQEMBER Glowing Embers ZCV39NH (Millivolt) Fireplace Heater rated, NG, Ceramic Glass, Safety Screen MQG5W Decorative Glass 1/2”...
  • Page 116 39ZCV-BCKLP LP Ceramic Glass / upgrade Kit for ZCV39LP / 1000-215 Pal Nut (18MMXI.5MM)BLK (1364.03) LPE to ZCV39LPH /LPHE 1000-218 Switch Ivory (1451/001) 1000-227 Cover Ivory (86001/001) Accessories Z1MT Thermostat Millivolt Wall Mount 1000-255 Orifice Brass - (State Size) Z80PT Thermostat Programmable Digital Millivolt Wall 2000-080 Thermodisc 2450 (For Blower)

  • Page 117: Zcv42 Parts List

    ZCV42 Parts List MQSTONE Decorative Stones Part Number Description MQROCK2 Rock Set Natural Fireplaces MQROCK3 Rock Set Multi-Color ZCV42N (Millivolt) Fireplace Heater rated, NG, MQEMBER Glowing Embers Tempered Glass, Safety Screen MQG5W Decorative Glass 1/2” White 5LB ZCV42NH (Millivolt) Fireplace Heater rated, NG, Ceramic MQG5A Decorative Ember Glass Cobalt Blue 5LB Glass, Safety Screen...
  • Page 118 42ZCV-BCKLP LP Ceramic Glass / upgrade Kit for ZCV42LP / 1000-215 Pal Nut (18mm x 1.5mm) BLK (1364.03) LPE to ZCV42LPH /LPHE 1000-218 Switch Ivory (1451/001) 1000-227 Cover Ivory (86001/001) Accessories 1000-255 Orifice Brass - (State Size) Z1MT Thermostat Millivolt Wall Mount 2000-080 Thermodisc 2450 (For Blower) Z80PT...

  • Page 119: Troubleshooting The Gas Control System

    Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is...

  • Page 120: Limited Lifetime Warranty

    This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.

This manual is also suitable for:

Marquis bentley zcv39neMarquis bentley zcv39ne2Marquis bentley zcv39lpMarquis bentley zcv39lpeMarquis bentley zcv39lpe2Marquis bentley zcv39nh ... Show all

Table of Contents
