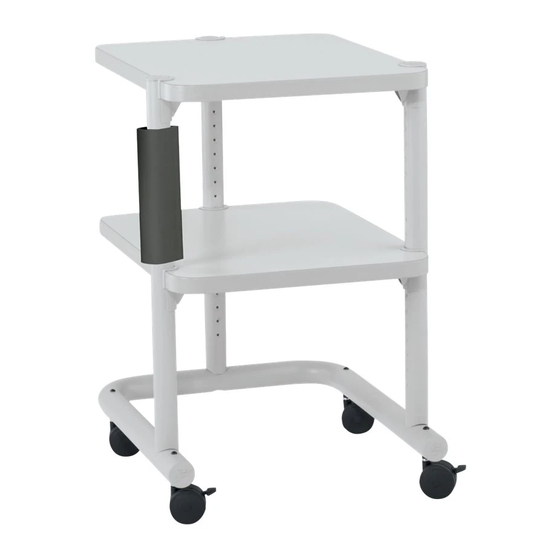

Ergotron Anthro MiniCart GT23 Series Assembly Instructions

Built with Anthro-DNA™
These Assembly Instructions are
for the GT23xx.
Before beginning assembly of your
Anthro MiniCart, please take a moment
to review the parts list below to verify
that your shipment is complete.
Does your Cart have 4" Casters?*
Then these are your casters:
4" Locking Caster
4" Non-Locking Caster
150-5011-03
150-5010-03
TOOLS
To make the assembly of your cart
even easier, we have included all of the
required tools . Use the handy Hex Driver
Bit in your electric drill in place of the Hex
Driver.
Hex Driver 5/32" .............. 375-5000-00
Hex Driver Bit 5/32" ........ 375-5003-00
8 oz. Rubber Mallet ......... 375-5022-00

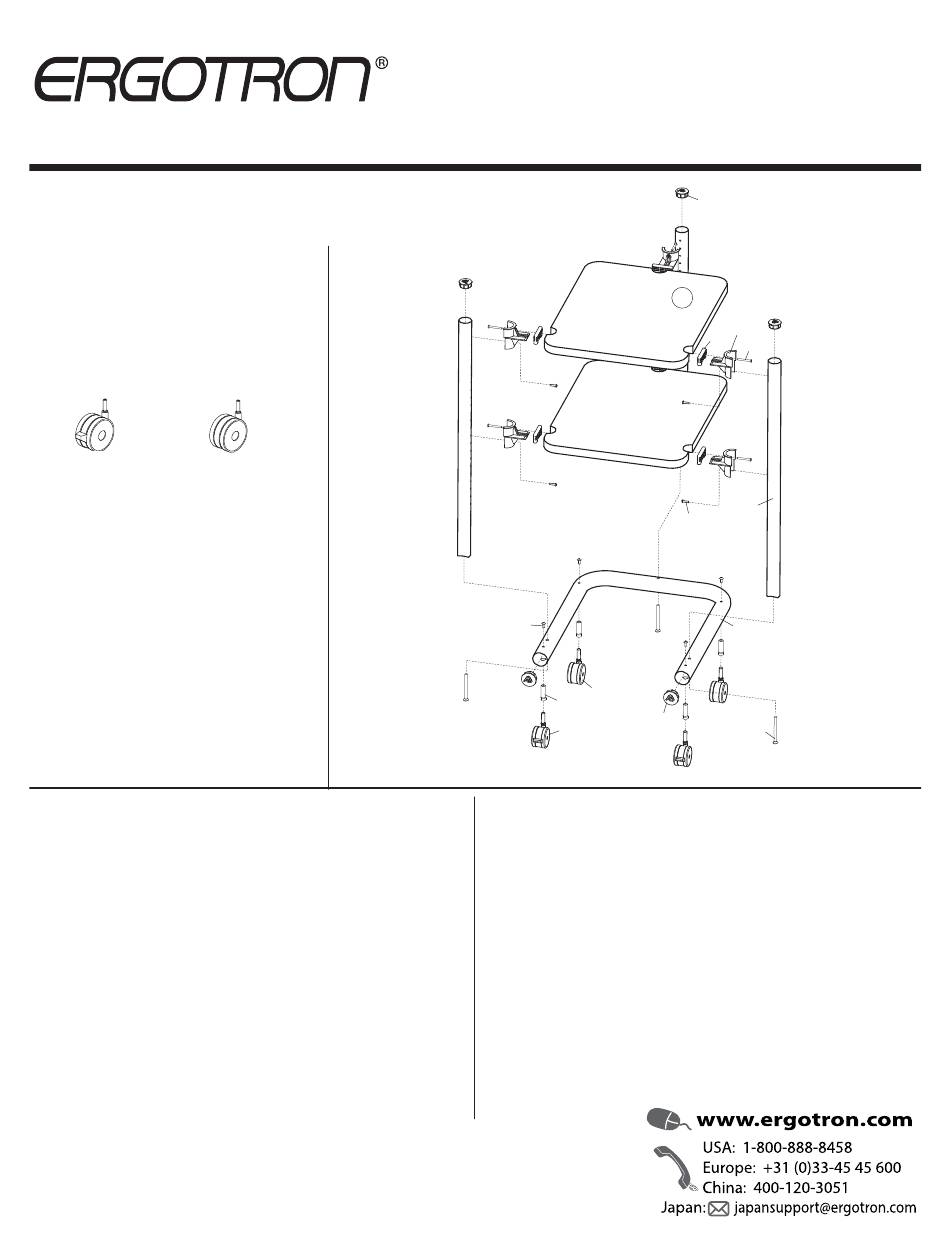

Enclosed Parts List
Detailed views of all hardware is provided with each
assembly step.
01– Insert Screws......................... Qty. 4 ................. 325-5052-00
3
02– 2 / " Non-Locking Casters .... Qty. 2 ...............150-5002-03*
8
03– Caster Inserts ....................... Qty. 4................525-1000-00*
3
04– 2 / " Locking Casters ............ Qty. 2 ...............150-5003-03*
8
05– 1.75" Large End Caps ............ Qty. 2...................175-5021-xx
06– Base Tube Screws .......................Qty. 3.................. 325-5000-00
07– MiniCart Base Tube ............... Qty. 1 ..................125-5004-xx
08– Self-threading Screws ..............Qty. 6.................. 325-5010-00
09– Vertical Legs ......................... Qty. 3..........................................
23.875" Vertical Legs (GT23xx)
10– 1-5/8" Screws ...............................Qty. 6.................. 325-5086-00
11– Shelf Supports ............................Qty. 6...................175-5060-xx
12– Shelf Clamps ................................Qty. 6...................175-5059-xx
13– MiniCart Shelves ................... Qty. 2...................100-6003-xx
14– 1.5" Small End Caps ............... Qty. 3...................175-5020-xx
• 09/18
300-068-00 rev. E
.. .............................125-5020-xx
Anthro MiniCart
Assembly Instructions
01
02
03
05
04
All fastener quantities listed here are the minimum needed for
your cart assembly. Your shipment may include a few extras.
Cable Management Components
Cable Alley, 9" .................. Qty 1 ....................................... 175-5061-03
Cable Alley, 3" .................. Qty 1 ....................................... 175-5062-03
Cord Handler ................... Qty 1 ....................................... 175-5001-03
Self-threading Screws .... Qty 6 ....................................... 325-5010-00
14
13
11
12
10
09
08
07
06
