American Dynamics SpeedDome Ultra III Quick Reference Manual

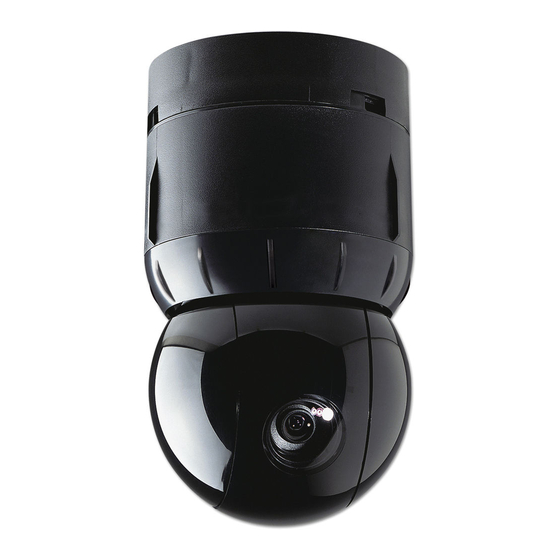

SpeedDome Ultra III Camera Dome
Configuration Utility Quick Reference Guide
This Quick Reference illustrates the screens found in the
SpeedDome Ultra III Configuration Utility. The large numbers in
the circles represent the number of the screen. The small numbers
appearing to the right of the menu choices represent the screen
you will see if you pick that choice. Note: The numbers in the
circles do not actually appear on the screens.
To start the configuration utility, press and hold Iris Open, press
and hold a Focus button, then press Zoom Out. Refer to the
keyboard or T T
OUCH RACKER
locations of the control buttons.
DOME CONFIGURATION MENU
1
PAN/TILT/ZOOM OPTIONS
CAMERA / LENS FUNCTIONS
ALARMS / AREAS / HOME
ON-SCREEN TEXT DISPLAY
LANGUAGE / PASSWORD
EXIT AND SAVE CHANGES
QUIT WITHOUT SAVING
RESET TO FACTORY SETTINGS
NOTE: If password protection is enabled, you must enter the
password before the Dome Configuration Menu will display.
Refer to screen 19 for information.
The following table describes the functions of the controls used
to interact with the screens. Where a specific Focus button is not
specified, either the Focus Near or Focus Far button may be used.
Function
Display configuration menu
Save and exit utility from any screen
Moves highlight bar up
Moves highlight bar down
Moves highlight bar right
Moves highlight bar left
Selects the highlighted item
Increases the value or displays the next
choice
During naming, moves the cursor to the
right of the current character in the name
Decreases the value or displays the previous
choice
During naming, moves the cursor to the left
of the current character in the name
8000-1966-01, Rev. C
operating instructions for the
2
3
4
5
6
Control
Iris Open, Focus,
then Zoom Out
Iris Close then
Focus
Tilt Up
Tilt Down
Pan Right
Pan Left
Focus Far
Zoom In
(Zoom Tele)
Zoom Out
(Zoom Wide)
2
PAN / TILT / ZOOM OPTIONS
PROPORTIONAL FLIP
1ST ZOOM STOP X
MAX TOTAL ZOOM X
RESET TO FACTORY SETTINGS
Settings (Defaults in Bold)
Proportional Flip ON / OFF
1st Zoom Stop X 12 / 18
Max Total Zoom X 24/ 36/ 48/ 60/ 72/ 84/ 96
3
CAMERA / LENS FUNCTIONS
LINE LOCK
AGC MODE
AGC GAIN
AUTO WHITE BAL
RED WHITE BAL
BLUE WHITE BAL
RESET TO FACTORY SETTINGS
Settings (Defaults in Bold)
Line Lock ON / OFF
AGC Mode ON / OFF
AGC Manual Gain: 0 - 448*
Auto White Bal ON/OFF
Red White Bal 128-1023**
Blue White Bal 128-1023**
* AGC Mode must be OFF to change
** Auto White Bal must be OFF to change
SpeedDome Ultra III Camera Dome Quick Reference Guide
OFF
18
96
EXIT 1
OFF
ON
112
ON
457
563
EXIT
1
