Installation and Service Guide
Installing and Servicing
1
the SpeedDome Ultra
Camera Dome
RAS515 and RAS516 Series with
On-Screen Menu Programming

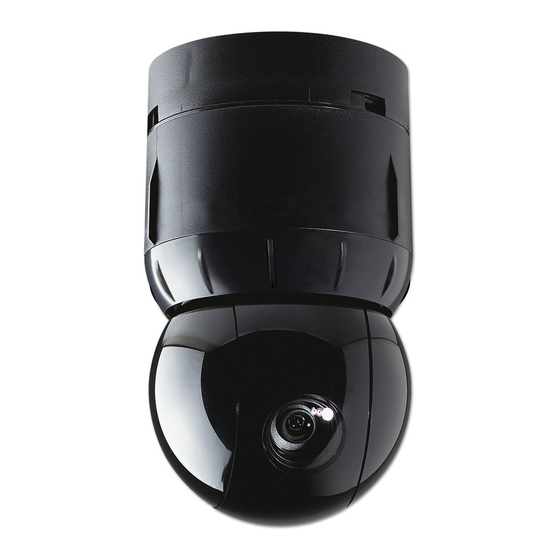

Figure 1. SpeedDome Ultra III camera dome
Mounting
Base
Housing
Eyeball
SpeedDome, Sensormatic, and the Sensormatic logo are
registered trademarks of Sensormatic Electronics Corporation.
Other product names (if any) mentioned herein may be
trademarks or registered trademarks of other companies.
No part of this guide may be reproduced in any form without
written permission from Sensormatic Electronics Corporation.
© Copyright 1998. All rights reserved.
MDR 7/98
8000-2573-01, Rev. B (34 pages)
Contents
III
®
About this Guide.................................................... 1
About the Camera Dome ...................................... 2
Warnings and Cautions......................................... 9
Base Mounted Indoors ........................................ 11
Using the Install/Removal Tool............................ 16
Troubleshooting Indoor Domes ........................... 18
Ordering Parts ..................................................... 28
Specifications-Indoor Dome.............................. 30
Specifications-Outdoor Housing ....................... 31
Specifications-Camera...................................... 32
Declarations ........................................................ 33
About this Guide
This guide explains how to:
Install the camera dome
Service the camera dome.
This guide does not explain how to:
Determine the best location for the camera
dome. Because the best location is determined
by customer requirements, you will be supplied
this information separately.
Attach the mounting base. See information
shipped with the base.
Assemble indoor housings used with this dome.
See information shipped with the housing.
Install and service the dome outdoors. See
information shipped with the outdoor housing.
Assemble mounting structures used with this
dome. See information shipped with the
structure.
Program the dome. See operator's guide
shipped with the dome.
SpeedDome Ultra III Camera Dome
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for American Dynamics SpeedDome Ultra III
Summary of Contents for American Dynamics SpeedDome Ultra III
-
Page 1: Table Of Contents
Installation and Service Guide Installing and Servicing the SpeedDome Ultra Camera Dome RAS515 and RAS516 Series with On-Screen Menu Programming Figure 1. SpeedDome Ultra III camera dome Mounting Base Housing Eyeball SpeedDome, Sensormatic, and the Sensormatic logo are registered trademarks of Sensormatic Electronics Corporation. -
Page 2: About The Camera Dome
An electronic zoom provides selectable magnification up to 96X. Color PAL Black & White EIA RAS516LS-1 RAS515LS RAS516LSP-1 RAS515LSP RAS516LSI-1 RAS515LSI Blk & White CCIR RAS515LS-1 RAS515LSP-1 RAS515LSI-1 SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... - Page 3 Figure 2. Mounting base and housing and eyeball assembly RUPTB Standard RUIOB Mounting Base Mounting Base with I/O Board Housing and Eyeball Assembly SpeedDome Ultra III Camera Dome INSTALLATION AND SERVICE GUIDE 8000-2573-01, Rev. B...
-
Page 4: Ceiling Mounting
Enables dome to suspend from I-beam at least 6m (20') high. * Option in white, but can be painted to match decor. † Top hat housing/dome assembly also mounts to structure. (continued on page 6) SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... - Page 5 Figure 5. Indoor mounting structures (optional) RHIUFB RHIUAB RHIUIB Only I-Beam Clamp Supplied RHIUPNDT RHIU3X3 Only Plate RHIU4X4 Supplied SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B RHIUHC RHPLA RHIUTH RHIUTR RUCLR RUSLV RUSMK RUGLD INSTALLATION AND SERVICE GUIDE RHIU2X2...
- Page 6 An environmental PC board is used to pre-wire cables. A round spring-finger connector on the board makes electrical contact with the housing and eyeball assembly as it is connected. Figure 7. RHODUL outdoor housing (optional) SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
- Page 7 Figure 8. Outdoor mounting structures (optional) RHORM over roof mount RHOCM ceiling mount SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B RHOPM pole mount RHOWM wall mount RH170 corner bracket (shown with RHOWM mount) INSTALLATION AND SERVICE GUIDE Top View...
- Page 8 Figure 9. RHIRT indoor install/removal tool RHIRT Removal Tool Telescopic Pole 08140 by Recreational Water Products. See page 16 to order. SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
-
Page 9: Warnings And Cautions
This installation should be made by a qualified service person and should conform to all local codes. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B WARNING! EU power requirements: This product runs on 24Vac. In the EU, it is intended to be powered from a Limited Power Source. - Page 10 If disassembling the dome: Dome contains electrostatic-sensitive devices! Use a ground strap when handling PC boards. Once disassembled, parts of housing and eyeball assembly are “extremely fragile” and may break. Proceed using extreme care! SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
-
Page 11: Connecting The Dome To A Base Mounted Indoors
Thoroughly review the project to ensure that all work meets or exceeds the above require- ments. Bring alleged discrepancies to the attention of the CCTV Project Coordinator. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Items You Will Need You should have on hand the following software,... - Page 12 Locate screw whose protective ridge is notched. b. Remove this screw. c. Use screw to secure lanyard to housing. Figure 11. Attaching coiled safety lanyard SpeedDome Ultra III Camera Dome Only use this location to secure lanyard. 8000-2573-01, REV. B...
- Page 13 (Figure 13). CAUTION: DO NOT connect 9-pin plug unless you have performed step 3 first! SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B 6. Check LEDs to verify that power and data are reaching dome (Figure 13).
- Page 14 (unterminated). If dome is to be connected at the end of a communications line, place jumper across pins 2–3 (terminated). d. Reattach I/O board. Figure 15. I/O board cable clamp Remove clamp if board has one. I/O BOARD SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
- Page 15 I/O board. b. Mate housing and eyeball assembly to base and turn it clockwise until you hear a click. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B 5. Wait 10 seconds for dome to begin its homing routine.
-
Page 16: Using The Install/Removal Tool
4. Lower pole “vertically” to prevent camera dome from falling out. CAUTION: Turning pole horizontally as it is lowered can cause camera dome to fall out of tool and possibly break on floor. 5. Remove dome for service. SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... - Page 17 Figure 19. How to use the install/removal tool Skirt or Bubble Attachment/Detachment Snap tool into pole. Attachment Dome Connection (Reverse steps to disconnect) SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Catch notch and pull down. Detachment Line up Line up...
-
Page 18: Troubleshooting Indoor Domes
Socket wrench with 5” extension and 5.5mm, 6mm, 8mm, and 10mm sockets 14-18 AWG and 20-22 AWG wire strippers Install/Removal tool to connect/disconnect dome to indoor bases with I/O boards, and to attach/detach skirts and bubbles—without a ladder. SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... -
Page 19: Routine Troubleshooting
CAUTION: Connector screws on the I/O board are delicate. DO NOT overtighten them! Use a 2.5mm (0.1") slotted screwdriver. Wider blade widths can damage connectors. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Procedure Follow steps until the problem is corrected. - Page 20 RS422 Data In High (+) Green RS422 Data In Low (–) Yellow RS422 Data Out High (+) Brown RS422 Data Out Low (–) Orange SensorNet 485 Yellow SensorNet 485 RS422 Test Pushbutton Comm. LED Power LED SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
-
Page 21: Detailed Troubleshooting
If you must perform detailed troubleshooting, use extreme care when disassembling parts! See “Detailed Troubleshooting,” next. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Detailed Troubleshooting Use this procedure to determine if the problem is a simple cable connection or a major component. -
Page 22: Disassembling The Dome
Proceed using extreme care! This section also explains how to update and reprogram dome software (Page 28). To order parts, see page 28. Tools required Phillips-head screwdriver. Small slotted screwdriver. SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... - Page 23 Figure 22. Removing the CPU board Metal fingers of ribbon cable must face contacts of connector. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Removing the P/S Board Referring to Figure 23. 1. Perform procedure “Removing the CPU Board” (this page).
- Page 24 3. Gently pry off slot cover. 4. Gently swivel eyeball to totally expose remaining slot cover. With other cover removed, this cover can be easily removed. Figure 25. Removing slot covers SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
- Page 25 2) carefully lift the camera out. Figure 27. Removing the camera Reverse steps to reassemble. Ensure ribbon cable pins are inserted “face down”. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Detaching the Eyeball 1. Perform procedure “Removing the Slot Covers”...
- Page 26 9. Reverse steps to reassemble. Figure 32. Removing the camera/lens board Prongs (3) DO NOT unplug cable from J1 Camera/Lens Board Bearing Assembly SpeedDome Ultra III Camera Dome J3 (Pins on ribbon cable must face contacts on connector.) 8000-2573-01, REV. B...
- Page 27 5. Gently pry off yoke bracket covering pan gear assembly to access tilt cable assembly (Figure 34). Figure 34. Removing the yoke brackets SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B 6. Access tilt motor. To do this, loosen captive retaining screw holding tilt cable assembly in place and gently remove this assembly.
-
Page 28: Ordering Parts
Ordering Parts This section helps you to identify parts that make up the base and housing and eyeball assembly. See Figure 37 for parts breakdown. Order parts through your parts distribution network. SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... - Page 29 2003-0037-04 BW CCIR Washer, 1/4 Flat (2848-8100-07) Screw, 1/4-20 x 3/8 (2802-7407-65) Screws, M2 x 3 (4x) (5801-0011-120) SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Housing Assembly (0400-0925-01) Slot Cover Tilt Motor (0500-6709-02) (3501-0018-01) (Supplied with Final Assy., not Eyeball Assy.)
-
Page 30: Specifications-Indoor Dome
Base (standard) ..09 kg (.20 lbs.) Base (with I/O board) ..16 kg (.35 lbs.) Bubble Density RUCLR (Clear) ... f0 RUSLV (Silver) ... f1.5 to f2 RUSMK (Smoke) ... f0.5 RUGLD (Gold) ... f1.5 to f2 SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... -
Page 31: Specifications-Outdoor Housing
Alarm Relay: Contact Type ... Form 1-C Isolation ... 1000 V Contact Rating... 1 A at 30 Vac/dc SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Environmental Operating Temperature ... –40°C to 50°C (–40°F to 122°F) Relative Humidity ... 0 to 95% non-condensing Storage Temperature ... -
Page 32: Specifications-Camera
Example: Wide angle view with lens at 4mm and viewed object at 10 m. 3.2 mm x 10 m = 8m horizontal view 4 mm 2.4 mm x 10 m = 6m vertical view 4 mm SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B... -
Page 33: Declarations
Sensormatic Electronics Corporation, the party responsible for FCC compliance, could void the user's authority to operate the equipment and could create a hazardous condition. SpeedDome Ultra III Camera Dome 8000-2573-01, Rev. B Other Declarations WARRANTY DISCLAIMER: Sensormatic Electronics... - Page 34 Sensormatic CCTV Systems Division One Blue Hill Plaza Pearl River, NY 10965 Technical Support Center 1-800-442-2225 Business (914) 624-7600 Sensormatic Electronics 951 Yamato Road Boca Raton, FL 33431-4425 Technical Support Center 1-800-543-9740 Business (561) 989-7000 SpeedDome Ultra III Camera Dome 8000-2573-01, REV. B...
