System Control Panel (SCP)

The System Control Panel (SCP) in mainly used to perform various system
configuration tasks. The SCP user interface is menu driven, with illuminated keys
indicating available user options. The SCP will have a big button telephone
connected to it, this is used for various call related features as detailed later.

Standby and Initial Screens

Standby Screen

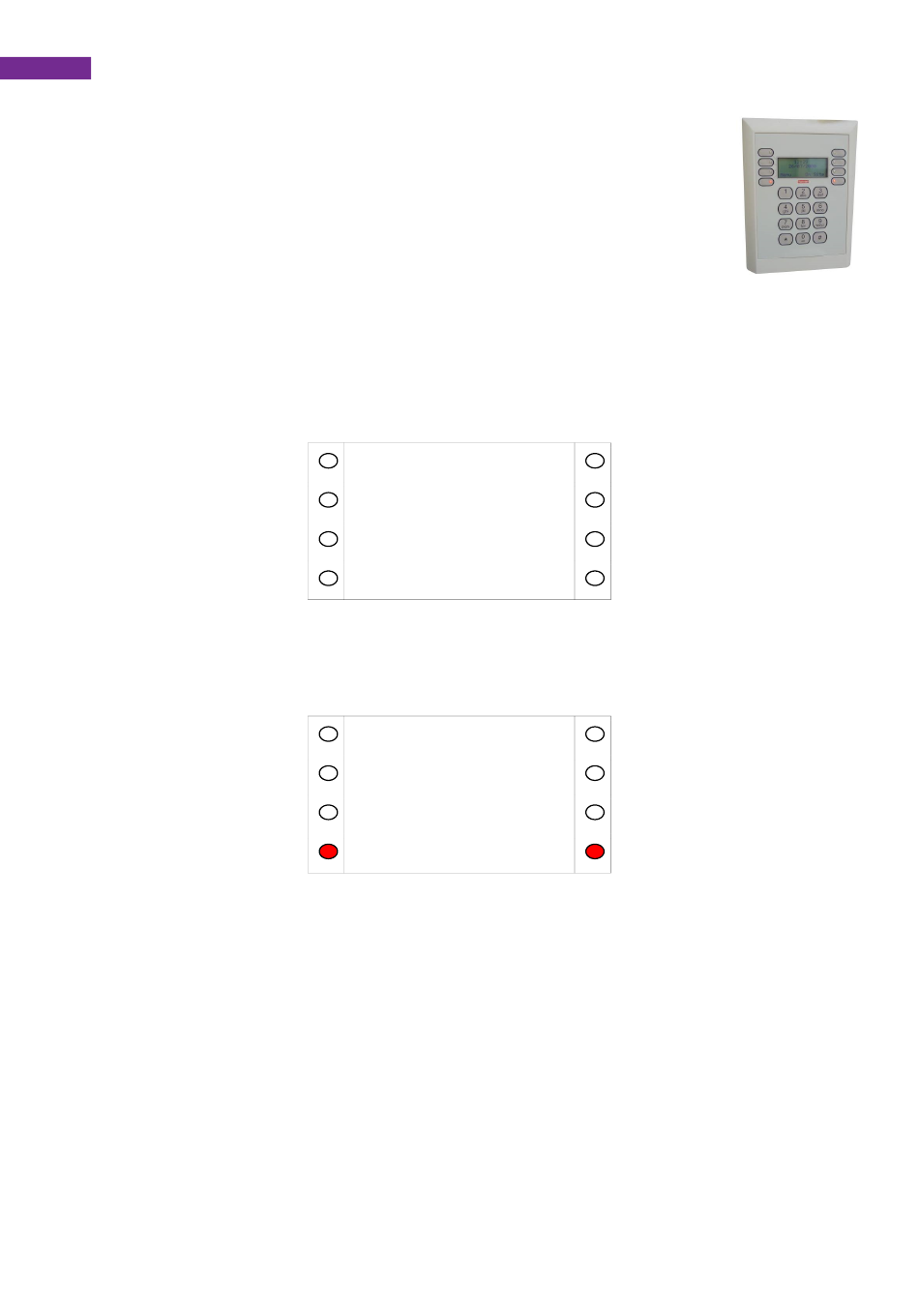

The 'standby' screen (Fig. A.1) displays the scheme system time, date and onsite / offsite
status. To move from the standby to the initial screen it is necessary to press the '*' (star) key
to unlock the SCP.
Initial Screen
After unlocking the SCP, the initial screen (Fig. A.2) allows the user the option of either
selecting 'Menu' or 'On Site/Off Site'. Press the relevant illuminated key to move to the
Change Site Status screen (Fig. A.3) or to the Main Menu (Fig. A.4).

Change Site Status

This screen (Fig. A.3) enables the user to change the current site status to either On Site or
Remote Off Site. When in On Site mode, an alarm's call group settings are processed as
normal. In Remote Off Site all alarms calls are routed to the specified Monitoring Centre
numbers for the system.
23:59
01/07/2016
On Site
* To Unlock
Figure A.1 Standby Screen
23:59
01/07/2016
Menu On Site
Figure A.2 Initial Screen
