Omax ProtoMAX Operation Manual page 9

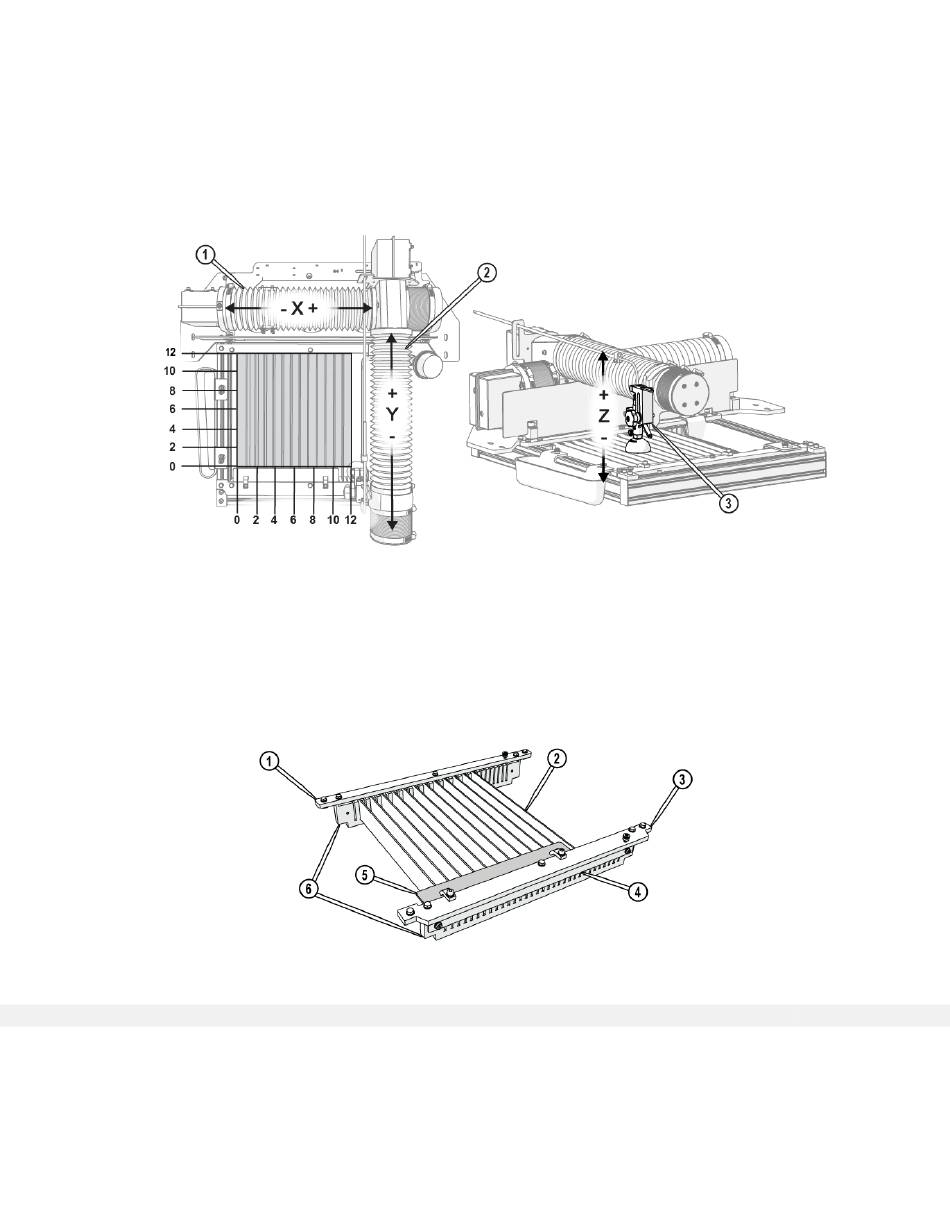

The cutting stage uses the same grid and coordinate system as in the Intelli-
MAX software. When looking down on the table, the X-axis runs left to right and the
Y-axis runs front to back. The Z-axis allows vertical movement of the cutting head.
When the ProtoMAX is homed, the nozzle is moved to the position X=0 and Y=0
coordinate at the lower left corner of the cutting envelope.
Slat Bed
The cutting stage has a removable slat bed assembly to support cutting materials.
The slat bed assembly is removed to access the cutting tank for cleaning and
maintenance. The slat bed assembly is secured to the cutting stage frame and
provides support for the part being machined.
[1] Mounting plate, rear
[2] Slats
Catcher Tank
Figure 212
[1] X-axis
Figure 213
[3] Mounting plate, front
[4] Slat comb bracket (x 2)
[2] Y-axis
[5] Square fixture plate
[6] Slat comb (x 2)
