24. Apply a light coat of blue goop to the first and second nozzle body threads [1],
then spread the lubricant evenly around the nozzle body threads.
25. Wipe the excess Blue Goop from the end of the nozzle body [1].
Once the nozzle is completely clean:
NOTICE
Always orient the orifice assembly so the brass [1] is visible from the top of the
nozzle body. Inserting the orifice assembly in nozzle body in the incorrect
orientation [2] may cause damage to the orifice assembly.

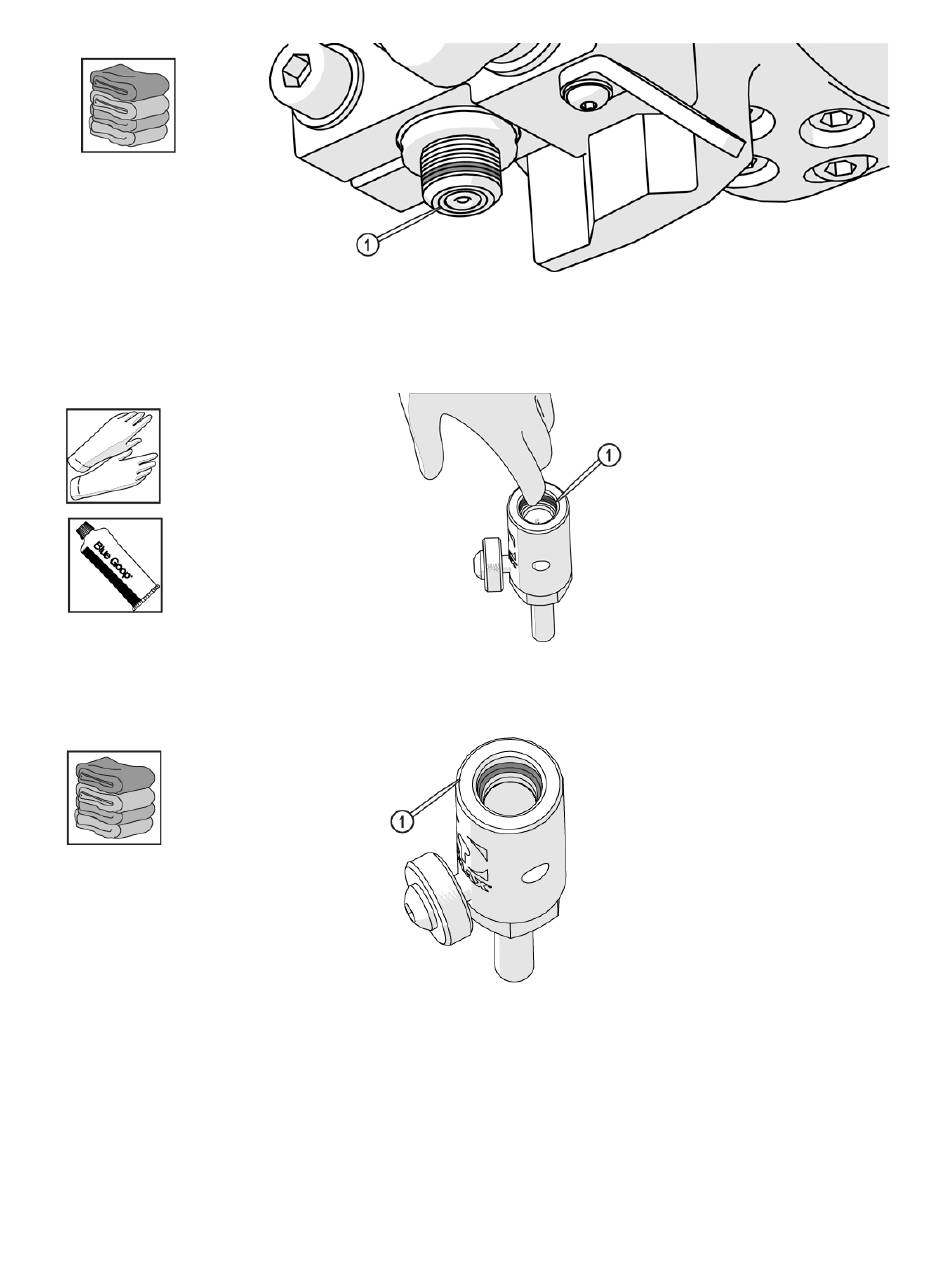

Figure 283
Figure 284
Figure 285
