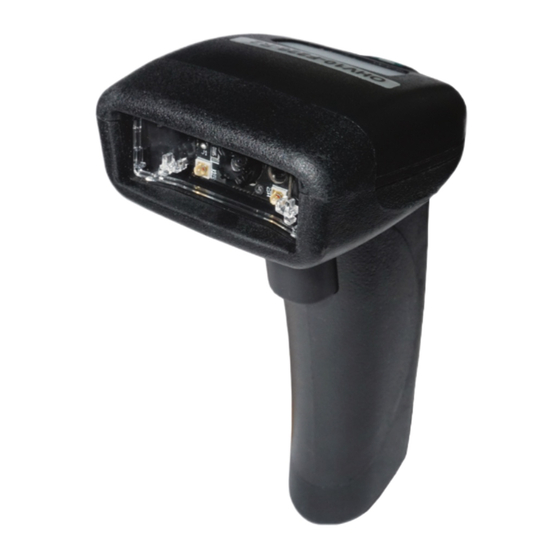

- Page 1 FACTORY AUTOMATION BRIEF INSTRUCTIONS OHV10-F228-R2 1-D/2-D Code Handheld Reader...
- Page 2 OHV10-F228-R2 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Elec- trical Industry, published by the Central Association of the Electrical Industry (Zen- tralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent...
-
Page 3: Table Of Contents
OHV10-F228-R2 Contents Purpose of These Brief Instructions ..........2 Product Description................3 Use and Application ................... 3 Indicators and Operating Elements ............4 Scope of Delivery ..................5 Accessories ....................5 Storage and Disposal................. 6 Installation .................... 7 Installing/Removing the Cable..............7 Establishing a USB Connection .............. -
Page 4: Purpose Of These Brief Instructions
OHV10-F228-R2 Purpose of These Brief Instructions Purpose of These Brief Instructions These brief instructions contains basic instructions for operating the device. However, the manual takes priority over the brief instructions. 2-EN... -
Page 5: Product Description
OHV10-F228-R2 Product Description Product Description Use and Application Caution! Irritation caused by optical radiation The optical unit on the handheld reader is equipped with very bright LEDs that can cause irritation in dark environments. Do not point the handheld reader at people. -
Page 6: Indicators And Operating Elements
OHV10-F228-R2 Product Description Protection of the personnel and the plant is not ensured if the device is not used according to its intended use. Indicators and Operating Elements Function indicator 10-pin connector socket Trigger button Optical unit 4-EN... -
Page 7: Scope Of Delivery
OHV10-F228-R2 Product Description Scope of Delivery Check the packaging and contents for damage. Check if you have received every item and if the items received are the ones you ordered. Handheld reader OHV10-F228-R2 Brief instructions Accessories Designation Description V45-G-2M-PVC-ABG-USB-G Connection cable for USB connection, approx. 1.8 meters V45-G-2M-PVC-SUBD9 Connection cable for RS-232 connection, approx. -
Page 8: Storage And Disposal
OHV10-F228-R2 Product Description Storage and Disposal Keep the original packaging. Always store and transport the device in the original packaging. Store the device in a clean and dry environment. The permitted ambient conditions must be considered, see datasheet. The device, built-in components, packaging, and any batteries contained within must be disposed in compliance with the applicable laws and guidelines of the respective country. -
Page 9: Installation
OHV10-F228-R2 Installation Installation Installing/Removing the Cable Installing the Cable Hold the end of the cable with the RJ50 plug and insert the plug into the RJ50 socket underneath the handle. Make sure that the cable audibly snaps into place. EN-7... - Page 10 OHV10-F228-R2 Installation Removing the Cable Insert a thin object such as a straightened paper clip into the hole at the bottom of the handle at the side. Carefully pull the cable complete with RJ50 plug out of the handle. 8-EN...
-
Page 11: Establishing A Usb Connection
OHV10-F228-R2 Installation Establishing a USB Connection Establishing a USB Connection Insert the USB plug on the connection cable into a free USB port on the PC. This step can be carried out even during operation. Wait approx. 2 seconds. If the connection is successful, the function indicator lights up green, an acoustic signal sounds, and the handheld reader vibrates. -
Page 12: Keyboard Layout
OHV10-F228-R2 Installation Figure 3.1 Keyboard Mode The function indicator on the handheld reader briefly lights up green. Note Data is transferred using a US English keyboard layout by default. If data is not transferred correctly in keyboard mode, modify the keyboard layout. - Page 13 OHV10-F228-R2 Installation Microsoft Windows German (Germany) English (US International) French (France) EN-11...
- Page 14 OHV10-F228-R2 Installation Italian Japanese Russian Spanish (Spain) Chinese (Simplified) US English (default) 12-EN...
-
Page 15: Establishing An Rs-232 Connection
OHV10-F228-R2 Installation Establishing an RS-232 Connection Establishing an RS-232 Connection Switch off the PC. Insert the RS-232 plug on the connection cable into the RS-232 port on the PC. Insert the low-voltage plug on the power supply unit into the low-voltage socket on the RS-232 connection cable. - Page 16 OHV10-F228-R2 Installation Figure 3.2 RS-232 Connection The function indicator on the handheld reader lights up green. An RS-232 connection is established. The handheld reader uses the following RS-232 factory settings: 115,200 baud 8 data bits No parity 14-EN...
-
Page 17: Operation
OHV10-F228-R2 Operation Operation Reading Codes The handheld reader reads both very small 2-D codes (e.g., QR codes) and larger 1-D codes (e.g., barcodes). The handheld reader offers a field of view comprising two areas that can be read at the same time. - Page 18 OHV10-F228-R2 Operation 10 cm 10 cm Figure 4.1 Code recognition Press the trigger button If the reading process is successful, the function indicator on the handheld reader briefly lights up green. When activated, an audible signal is emitted and the handheld reader vibrates.
-
Page 19: Factory Setting
OHV10-F228-R2 Operation Factory Setting Resetting factory settings when a USB connection is established Read the following code with the handheld reader when the handheld reader is connected to the PC via the USB interface. Figure 4.2 Resetting factory settings when a USB connection is established The function indicator on the handheld reader briefly lights up green. - Page 20 OHV10-F228-R2 Operation Resetting factory settings when a RS-232 connection is established Read the following code with the handheld reader when the handheld reader is connected to the PC via the RS-232 interface. Figure 4.3 Resetting factory settings when a RS-232 connection is established The function indicator on the handheld reader briefly lights up green.
- Page 21 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-Mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapur 139942 Tel. +65 67799091 E-Mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com 70132151 tdoct-7109__eng Subject to modifications • Copyright Pepperl+Fuchs • Printed in Germany 01/2021...
