Summary of Contents for EMUGE FRANKEN Softsynchro 6

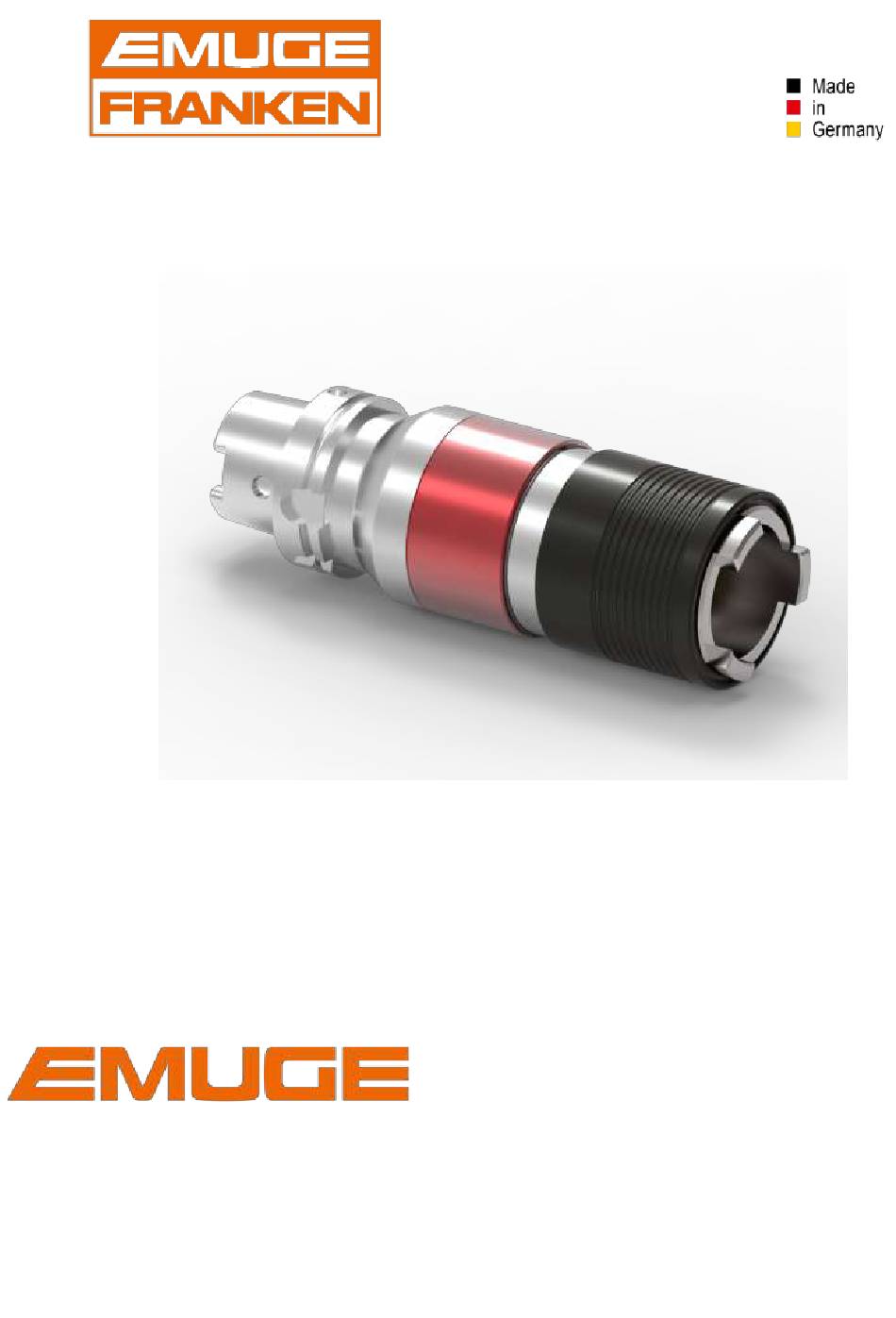

- Page 1 ® Softsynchro ® Quick-change tap holder Softsynchro Operating instruction...
-
Page 2: Table Of Contents
® Softsynchro Contents: 1 Application range, safety instructions and technical data ... 4 Application range, determined use ..............4 Safety instructions and hints ................5 Proprietary rights ....................5 Dimensions and technical data ................. 6 2 Putting the quick-change tap holders into operation ....7 Unpacking ...................... - Page 3 ® Softsynchro Warnings, symbols In this operating instruction the following symbols are used: Attention Marks special instructions, rules and prohibitions, which are important in order to avoid any damage. Please observe these instructions! Note Marks application instructions and other useful information. Sectional view: ®...
-
Page 4: Application Range, Safety Instructions And Technical Data
® Softsynchro 1 Application range, safety instructions and technical data 1.1 Application range, determined use ® The quick-change tap holder type Softsynchro 6 are used on CNC machining centres with synchronous control. They are intended for clamping of taps/cold- forming taps for thread production. The integrated minimal length compensation on tension and compression compensates arising minimal pitch differences between synchronous spindle and tap/cold-forming tap which would lead to high thread flank friction forces. -
Page 5: Safety Instructions And Hints
Any form of multiplication, processing, broadcasting, passing on to third parties - also in the form of extracts - and any kind of use outside the boundaries of proprietary rights requires the written consent of EMUGE GmbH&Co.KG. Operating instruction edition: 01.04.2018... -
Page 6: Dimensions And Technical Data
® Softsynchro 1⅜ - 2⅜ IKZ(Z) Further outer dimensions of the individual types depend on the required shank. The dimensions may be taken from the EMUGE main catalogue. Length compensation on compression Length compensation on tension Operating instruction edition: 01.04.2018... -
Page 7: Putting The Quick-Change Tap Holders Into Operation
® Softsynchro 2 Putting the quick-change tap holders into operation 2.1 Unpacking Take the quick-change tap holder from the packing Clean the quick-change tap holder with a duster to remove any conservation Note Do not use any aggressive solvents. Do not use fibrous materials i.e. -
Page 8: Assembly Of The Coolant-Lubricant Tube For Quick-Change Tap Holders With Hollow Taper Shank (According To Din 69893-Hsk-A)
2. Slide on thread nut c) Mount coolant-lubricant tube in the shank Note Required tool: Choose appropriate assembly wrench for the shank size (For the assembly wrench please refer to the EMUGE main catalogue, category accessories) Plug assembly wrench on Groove the coolant-lubricant tube... -
Page 9: Re-Putting Into Operation
® Softsynchro 2.3 Re-putting into operation If the quick-change tap holder is back into operation as described in chapter 4, page 14, please go through the following steps: Clean the quick-change tap holder with a duster to remove any conservation oil Note Do not use any aggressive solvents. -
Page 10: Insert Taps/Cold-Forming Taps Into The Quick-Change Adapter
® Softsynchro 2.4.2 Insert taps/cold-forming taps into the quick-change adapter Attention Choose the appropriate quick-change adapter for the used tap/cold-forming tap! Note Required tool: Type HE 2-IKZ(Z): Hexagon socket wrench, width across flats 4 Screws for tightening the tap/cold- 1. Push tap/cold-forming forming tap tap into the adapter. -
Page 11: Insert Quick-Change Adapter
® Softsynchro 2.5 Insert quick-change adapter Attention The change of the adapter must not be executed while the machine spindle rotates! Tap/cold-forming tap 1. Fix the shank. i.e. by adapting the holder in the machine spindle Grip sleeve Shank Holder Quick-change adapter 2. -
Page 12: Remove Quick-Change Adapter
® Softsynchro 2.6 Remove quick-change adapter Attention The change of the adapter must not be executed while the machine spindle rotates! Holder Quick-change adapter 1. Push grip sleeve in direction of shank and hold it. Tap/cold-forming tap Shank Grip sleeve 2. -
Page 13: Detach Tap/Cold-Forming Tap
® Softsynchro 2.7 Detach tap/cold-forming tap Note Required tool: Type HE 2-IKZ(Z): Hexagon socket wrench, width across flats 4 Screws for tightening the tap/cold-forming tap 1. Loosen the three screws Tap/cold-forming tap Quick-change adapter 2. Remove tap/cold- forming tap Note The instruction is valid for all quick-change adapters types: HE 2-IKZZ and HE 2-IKZ Operating instruction edition: 01.04.2018... -
Page 14: Maintenance
® Softsynchro 3 Maintenance 3.1 Maintenance schedule What? When? Who? External cleaning Periodically, depending on the degree Operator of dirt 3.2 External cleaning Clean the quick-change tap holder at periodic intervals with a duster, depending on how dirty the holder is. Attention Do not use any aggressive solvents. - Page 15 ® Softsynchro Notes: Operating instruction edition: 01.04.2018...
- Page 16 Operating instruction Article number: ZB10047.DE 10385707 Original in German, Edition: 2, last change: 01.04.2018, change stage: 1 Please keep the operating instruction for future use! EMUGE-Werk Richard Glimpel GmbH & Co. KG Fabrik für Präzisionswerkzeuge Nürnberger Straße 96-100 91207 Lauf GERMANY...
