- Page 1 ® Softsynchro 1 / MMS ® Softsynchro 3 / MMS ® Softsynchro 4 / MMS ® Collet holder Softsynchro Modular Operating instruction...
-
Page 2: Table Of Contents
® Softsynchro / MMS Contents: 1 Application range, safety instructions and technical data ... 4 Application range, determined use ..............4 Specifications ....................5 Safety instructions and hints ................6 Proprietary rights ....................6 Dimensions and technical data ................. 7 2 Putting the collet holders into operation ........ - Page 3 ® Softsynchro / MMS Warnings, symbols In this operating instruction the following symbols are used: Attention Marks special instructions, rules and prohibitions, which are important in order to avoid any damage. Please observe these instructions! Note Marks application instructions and other useful information. Sectional view: ®...
-
Page 4: Application Range, Safety Instructions And Technical Data

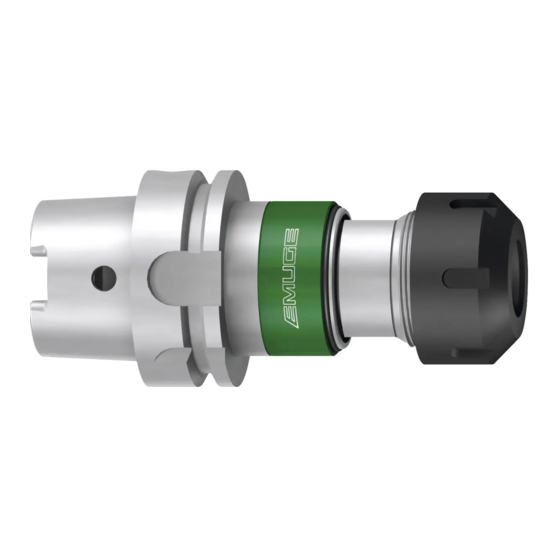

® Softsynchro / MMS 1 Application range, safety instructions and technical data 1.1 Application range, determined use ® The collet holders type Softsynchro /MMS are used on CNC machining centres with synchronous control working with minimum-quantity lubrication (MQL). They are intended for clamping of taps/cold-forming taps for thread production. -
Page 5: Specifications
® Softsynchro / MMS 1.2 Specifications ® Features of the collet holders type Softsynchro /MMS are: Small and compact overhang Minimum-quantity lubrication (MQL): Target-oriented, flow-optimized guidance of the MQL aerosol through the center of the collet holder up to the tap/cold-forming tap Environmentally sound lubrication ... -
Page 6: Safety Instructions And Hints
Any form of multiplication, processing, broadcasting, passing on to third parties - also in the form of extracts - and any kind of use outside the boundaries of proprietary rights requires the written consent of EMUGE GmbH&Co.KG. Operating instruction edition: 01.02.2017... -
Page 7: Dimensions And Technical Data
The collet holders are available for 1-channel and 2-channel MQL-systems and in design with shank HSK-C for 1-channel MQL-systems. Further outer dimensions may be taken from the EMUGE main catalogue. Dimension according to DIN ISO 6499 Length compensation on compression Length compensation on tension Operating instruction edition: 01.02.2017... -
Page 8: Putting The Collet Holders Into Operation
® Softsynchro / MMS 2 Putting the collet holders into operation 2.1 Unpacking Take the collet holder from the packing Clean the collet holder with a duster to remove any conservation oil Note Do not use any aggressive solvents. Do not use fibrous materials i.e. -
Page 9: Re-Putting Into Operation
® Softsynchro / MMS 2.3 Re-putting into operation If the collet holder is back into operation as described in chapter 4, page 15, please go through the following steps: Clean the collet holder with a duster to remove any conservation oil Note Do not use any aggressive solvents. -
Page 10: Sealing Disks For Clamping Nuts
® Softsynchro / MMS 2.4 Sealing disks for clamping nuts 2.4.1 Application The sealing disks are inserted into the clamping nuts for producing threads with minimum quantity lubrication. The sealing disks additionally avoid the penetration of dirt and chips into the collet slots. We do recommend the use of sealing disks. Note Normally a nut for sealing disks is part of the delivery. -
Page 11: Collets
® Softsynchro / MMS 2.5 Collets 2.5.1 Application The adaptation of the tap/cold-forming tap is executed via collets type ER and/or ER/GB. With collets type ER the tap/cold forming tap is centered and clamped via the shank diameter. With collets type ER/GB the torque - arising during the thread producing operation - is additionally transferred via the square integrated in the collet. - Page 12 ® Softsynchro / MMS 3. Insert tap/cold-forming tap Attention If collet and tool are provided with a square, the tool must be turned into position in order to be inserted into the square of the collet. 4. Tighten the clamping nut with the appropriate wrench.
- Page 13 Hi-Q/ER(C) 32 holder. Hi-Q/ER(C) 40 Note To find out the correct tightening torque we recommend the use of a torque wrench with suitable shell-type wrench, see our EMUGE main catalogue, chapter accessories. Operating instruction edition: 01.02.2017...
-
Page 14: Remove Tap/Cold-Forming Tap And Clamping Nut
® Softsynchro / MMS 2.5.3 Remove tap/cold-forming tap and clamping nut 1. Remove the clamping nut with wrench Attention In order to avoid damaging the collet holder it is necessary to support the spindle with the open-ended spanner when loosening the clamping nut with the wrench. See tool set table 2, page 13. -
Page 15: Maintenance
® Softsynchro / MMS 3 Maintenance 3.1 Maintenance schedule What? When? Who? External cleaning Periodically, depending on the degree Operator of dirt 3.2 External cleaning Clean the collet holder at periodic intervals with a duster, depending on how dirty the holder is. - Page 16 Operating instruction Article number: ZB10014.GB 10575182 Original in German, Edition: 6, last change: 01.02.2017, change stage: 5 Please keep the operating instruction for future use! EMUGE-Werk Richard Glimpel GmbH & Co. KG Fabrik für Präzisionswerkzeuge Nürnberger Straße 96-100 91207 Lauf GERMANY...
