EMUGE SoftSynchro Assembly

1) Assembly of the Sealing Disk: Insert the small diameter of the disk center into the
center of the clamping nut and apply even finger pressure until the disk is properly
seated and snaps into face of nut.
2) Important: The disk must be flush with the outside of the nut and the size marking
on the disc face must be readable on the inside of the nut from the backside.
3) Removing the Sealing Disk: To remove the disk, simply press evenly on the outside
face of the disk until is snaps out.
Marking
1

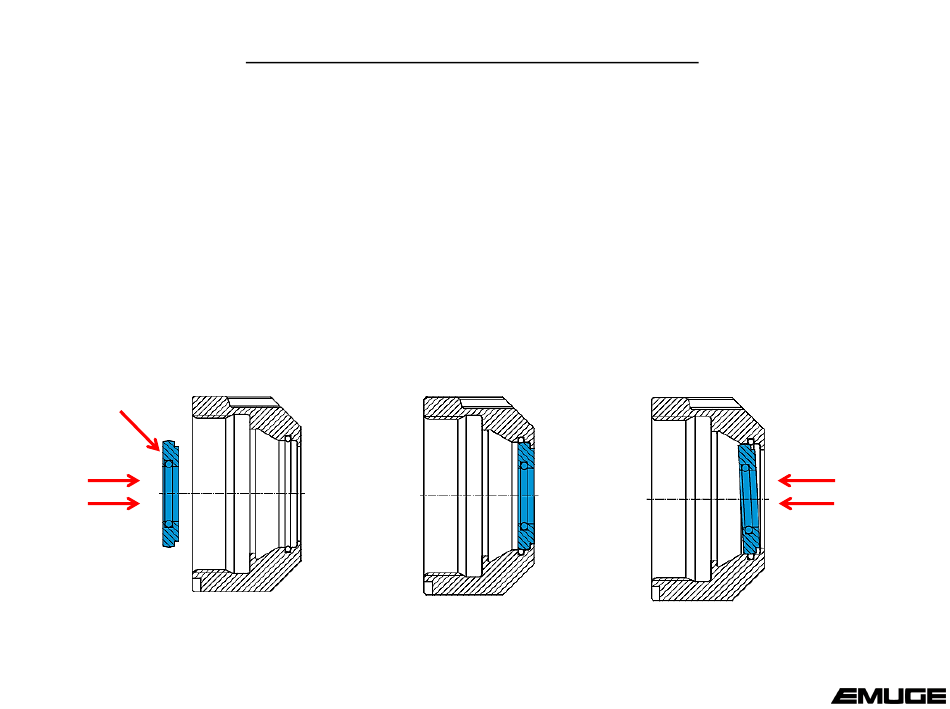

Assembly of Sealing Discs into Clamping Nuts

2
3
