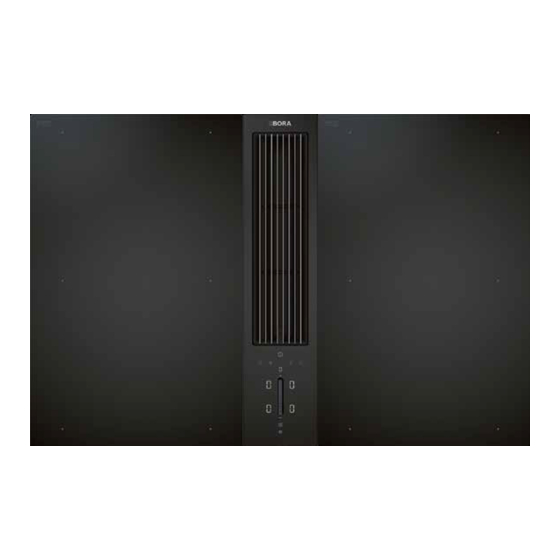

bora Classic 2.0 Installation Instructions Manual
Cooktop extractor and cooktops
Hide thumbs
Also See for Classic 2.0:
- Installation instructions manual (36 pages) ,
- Operating instructions manual (48 pages) ,
- Operating instructions manual (60 pages)
Subscribe to Our Youtube Channel
Related Manuals for bora Classic 2.0
Summary of Contents for bora Classic 2.0
- Page 1 BORA Classic 2.0 system installation instructions Cooktop extractor and cooktops C2XIMEN-005 www.bora.com...
-
Page 2: Table Of Contents
CKA2/CKA2AB .............. 22 Installing the cooktop extractor ........23 4.9.1 Fitting and positioning the cooktop extractor ....23 4.10 Installing the duct system ..........23 4.10.1 Fitting the duct system to cooktop extractor CKA2/CKA2AB .............. 23 4.10.2 Installing the additional fan ..........25 www.bora.com... -
Page 3: General Information
Instructions are indicated with an arrow. referred to as BORA – does not assume any liability for damage arising from disregard for or non-adherence to the documents Always follow all instructions in the prescribed order. -
Page 4: Safety
Any other use or any use that goes beyond that which is described here is classed as unintended. Try not to repair or replace damaged components yourself. BORA does not assume any liability for Contact BORA Service. damages caused by improper use or incorrect operation. -
Page 5: Safety Instructions For Installation
“Troubleshooting” chapter. Do not operate any damaged appliances. In the event of any faults or errors that are not mentioned, switch the appliance off and contact 2.3.1 Safety instructions – cooktop BORA Service. extractor installation Pets DANGER! ÿ... - Page 6 (available as an changing the gas nozzles in the nozzle table accessory). (see Operating instructions). BORA gas cooktops must only be used with BORA 2.3.2 Safety instructions for cooktop cooktop extractors. installation DANGER! ÿ...
-
Page 7: Safety Instructions - Repairs, Servicing And Spare Parts
Special safety instruction for the disassembly of gas cooktops The gas connection must only be worked on by reliable trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies. www.bora.com... -
Page 8: Technical Data
Supply voltage 220 - 240 V Frequency 50/60 Hz Power consumption (including external max. 550 W BORA Universal article fans) Fuse protection (internal) TR 3.15 A Dimensions (width x depth x height) 439 x 515 x 190 mm Weight (incl. accessories/packaging) 7.5 kg... -
Page 9: Ckfi
Cooking zones bridged 230 x 460 mm 207.0 (Wh/kg) Total (average) 190.3 (Wh/kg) Tab. 3.2 Technical data CKFI Fig. 3.5 CKFI device dimensions top view 13,5 Fig. 3.6 CKFI device dimensions front view Fig. 3.7 CKFI device dimensions side view www.bora.com... -
Page 10: Cki
Rear cooking zone (zone 2) Ø 165 mm 178.7 (Wh/kg) Total (average) 179.6 (Wh/kg) Tab. 3.3 Fig. 3.8 Technical data CKI CKI device dimensions top view 13,5 Fig. 3.9 CKI device dimensions front view Fig. 3.10 CKI device dimensions side view www.bora.com... -
Page 11: Ckiw
Cooking zone power setting Ø 250 mm 2400 W 3000 W Tab. 3.4 Technical data CKIW Fig. 3.11 CKIW device dimensions top view 22,5 12,5 Fig. 3.12 CKIW device dimensions front view 32,5 12,5 Fig. 3.13 CKIW device dimensions side view www.bora.com... -
Page 12: Ckch
Rear cooking zone (zone 2) Ø 120/180 mm 197.6 (Wh/kg) Total (average) 194.5 (Wh/kg) Tab. 3.5 Fig. 3.14 Technical data CKCH CKCH device dimensions top view 43,5 13,5 Fig. 3.15 CKCH device dimensions front view 17,5 Fig. 3.16 CKCH device dimensions side view www.bora.com... -
Page 13: Ckcb
195.5 (Wh/ Fig. 3.17 CKCB device dimensions top view Ø 180 x 410 mm Total (average) 194.4 (Wh/ Tab. 3.6 Technical data CKCB 43,5 13,5 Fig. 3.18 CKCB device dimensions front view 17,5 Fig. 3.19 CKCB device dimensions side view www.bora.com... -
Page 14: Ckg
1.0 kPa test point pressure: 19.5 Mj/h Fig. 3.21 CKG device dimensions front view Cooktop energy consumption AUS/NZS natural gas/ 1.00 kPa test point pressure: High power front burner 12.0 Mj/h Normal back burner 7.5 MJ/h Fig. 3.22 CKG device dimensions side view www.bora.com... -
Page 15: Ckt
250 x 220 mm 1750 W Temperature control range 70 - 250 °C Tab. 3.8 Technical data CKT Fig. 3.23 CKT device dimensions top view 48,5 Fig. 3.24 CKT device dimensions front view 27,5 Fig. 3.25 CKT device dimensions side view www.bora.com... -
Page 16: Installation
The gas hose must meet the requirements of AS/NZS 1869. No window contact switches may be installed that separate the control unit from the power supply (phase separation). Only the Home In interface is to be used. www.bora.com... -
Page 17: Checking The Delivery
Tools and aids Make sure the delivery is complete and check it for damage. The following special tools are required to correctly install the If there are any missing or damaged parts, please notify BORA system: After Sales Service. Screwdriver/Torx screwdriver 20... -
Page 18: Recirculation When Using The Cooktop Extractor As A Recirculation System
The gas connection hose line must not come into contact Air cleaning unit (ULB1, ULB3, ULBF) with smoke or the flue outlet of an oven. BORA plinth fan EC (ULS) Recirculation return flow aperture The hose line must not come into contact with hot (Total opening cross section per air cleaning unit ≥500 cm²... -
Page 19: Cut-Out Dimensions
The minimum distance of 50 mm from the front edge of sides may affect the flames. the worktop to the worktop cut-out is a recommendation from BORA. Air supply to gas cooktop CKG Comply with the instructions of the worktop manufacturer. -
Page 20: Surface Mounting
Fig. 4.10 Dimension of support for surface mounting ≥720 ≥800 Cooktops/cooktop extractor B in mm 1197 1525 Tab. 4.4 Cut-out dimensions of the appliance combinations in the case of surface mounting Fig. 4.12 Minimum installation dimensions with round silencer USDR50 www.bora.com... -
Page 21: Installation Options
Installation option overview min. 460 max. 443 The installation options shown below can be fitted on the right or left-hand side. The following airflow options can be implemented with the BORA Classic 2.0 system: 389* *Ausblasrichtung Sockellüfter ULS nach links Fig. 4.14... -
Page 22: Assembling The Extraction System
There are two different models of cooktop extractor CKA2/ Check that the adapter panel [2] seal is positioned correctly. CKA2AB, depending on the planned airflow: Position the adapter panel [2] in such a way that the duct connection is facing left or right as required. www.bora.com... -
Page 23: Installing The Cooktop Extractor
150 mm or extractor the BORA Ecotube duct system. Use only BORA Ecotube duct parts. Do not use flexible or fabric hoses. 4.10.1 Fitting the duct system to cooktop extractor CKA2/CKA2AB The floor unit must not be supported on the plinth fan housing. - Page 24 EFRV [8] to the shallow silencer USDF [5]. Ensure that the seal [2] is not displaced. Connect the shallow silencer USDF [5] to the BORA Ecotube shallow, vertical 90° bend EFBV90 [4]. Connect the BORA Ecotube shallow, vertical 90° bend EFBV90 [4] to the 90°...
-
Page 25: Installing The Additional Fan
Install an additional fan in the exhaust duct if necessary. Ensure that a minimum clearance of 3 m is maintained between the fan units. Use only BORA Universal fans. If additional fans are installed at a later date: When installing additional fans at a later date, carry out the initial operation procedure (see Initial operation). -
Page 26: Securing The Cooktops
4 angled plates [1] must be fitted. Locks Housing subshell Secure the cooktop using the four mounting brackets [5]. Screw To do this, tighten the mounting brackets with the screws [2] Electronic unit and [4] using the washer [3] with max. 2 Nm. www.bora.com... - Page 27 25 mm on the insulated wire [2]. If external switching devices are connected both to the Home In and Home Out interfaces, both cables should be secured with the strain relief clamp. www.bora.com...
-
Page 28: Establishing Communication And Power Connection
4.13 Establishing communication and Only use the cables supplied in the scope of delivery. power connection The cooktops of the BORA Classic 2.0 system can only be operated with the central operating unit of the cooktop extractor CKA2/CKA2AB. The communication link between the cooktop extractor and cooktops is established via the control lines of the central operating unit. -
Page 29: Establishing Contact Between The Operating Unit And Control Unit
Secure the main switch/automatic circuit breaker against does not matter if you use socket 1 or 2 on the control unit. being switched back on without permission. Make sure the power to the appliance is disconnected. Only connect the cooktop using a fixed mains connection. www.bora.com... -
Page 30: Gas Installation (Only In The Case Of Gas Cooktop Ckg)
The connection with a bayonet hose is to be created in accordance with DIN 3383 with a maximum length of Please note all previous information in this section. 1500 mm. In addition, adhere to the requirements of the currently applicable version of the regulations and AS/NZS 5601.1 . www.bora.com... -
Page 31: Gas Connection Au/Nz
Note the gas flow direction of the gas regulator [1]. The burner nozzles, gas type and pressure may only Liquid gas (LPG) be changed by a certified engineer or BORA service technician. He/she also assumes responsibility for the When converting from NG to ULPG, the sticker in the proper gas installation and commissioning. - Page 32 Cooktop burner with gas burner nozzle NG/1.0 kPa (G20/10) 1.22 1.55 Gas burner ULPG/2.75 kPa (G31/27,5) 0.75 0.92 Gas burner nozzle Tab. 4.12 Nozzle table (Australia and New Zealand) Unscrew the gas burner nozzle [2] from the gas burner [1] www.bora.com...
-
Page 33: Gas Configuration
Detailed instructions on how to operate and configure the (see fig. 4.46) and on the inside of the back cover of the BORA Classic 2.0 system can be found in the operating operating instructions. instructions (see the Operation and Menu sections). -
Page 34: Function Test
CKG gas cooktop operating instructions. Provide the user with the accessories and operating and installation instructions, which are to be kept in a safe place. www.bora.com... -
Page 35: Decommissioning, Disassembly And Disposal
Never put your old appliance in domestic waste. Take the old appliance to a regional collection point for return and recycling electrical and electronic components and other materials. www.bora.com... - Page 36 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes. © BORA Vertriebs GmbH & Co KG All rights reserved.
