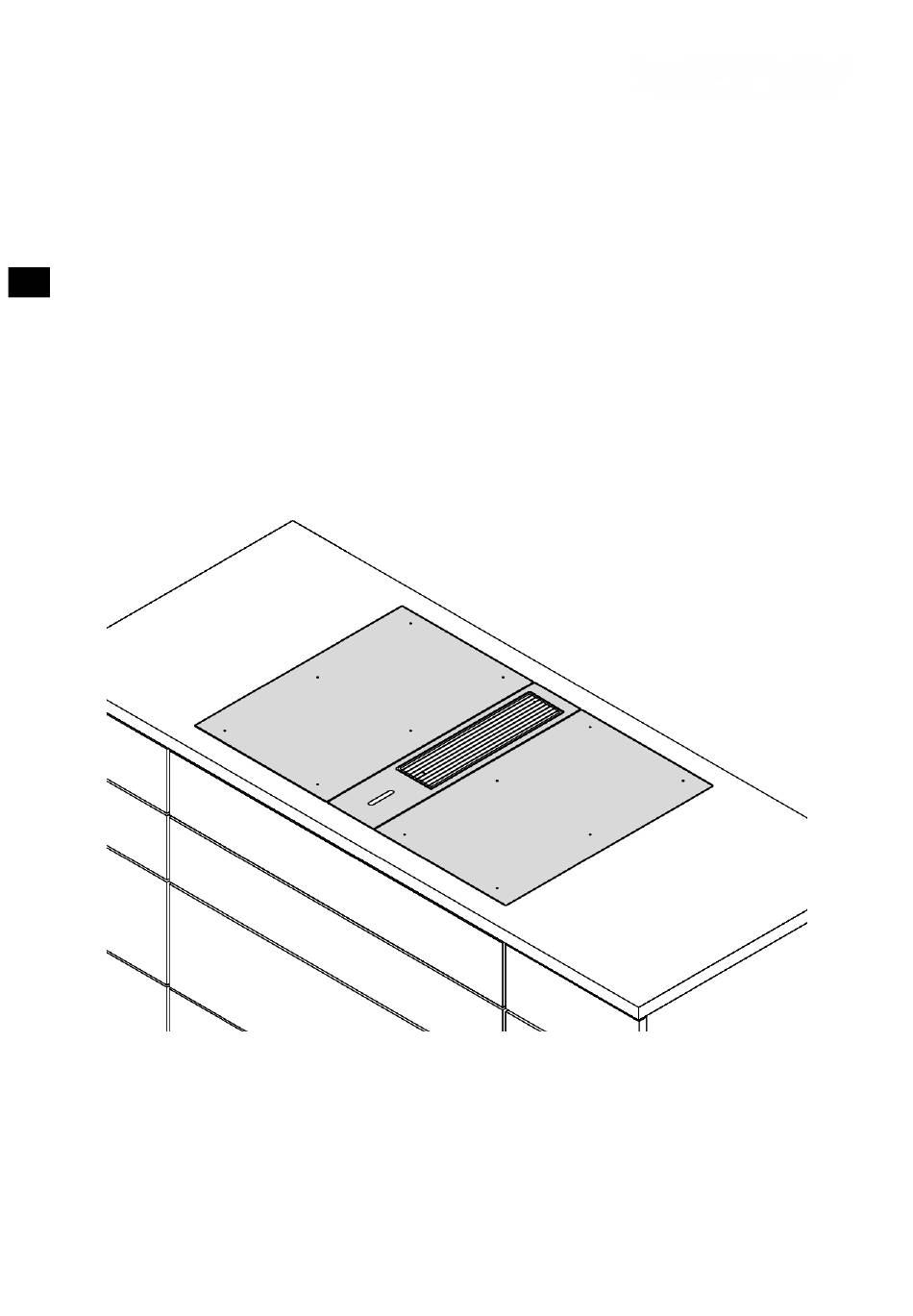

- Page 1 Operating instructions Classic 2.0 000098-10006 bora.com...
-
Page 2: Table Of Contents
7.1.1 Cleaning products for glass ceramic cooktops ..41 Touch control ............23 7.1.2 Cleaning products for the Tepan stainless steel grill ................. 41 Operating the system ..........23 4.3.1 How it works............. 23 Looking after your appliances.........41 4.3.2 Switching on ............. 23 bora.com... - Page 3 System troubleshooting ..........45 Cooktop extractor troubleshooting......45 Cooktop troubleshooting.........46 Gas cooktop troubleshooting ........46 Dealing with errors ..........47 Warranty, technical service, spare parts, accessories BORA manufacturer’s warranty.......48 9.1.1 Warranty extension........... 48 Service..............48 Spare parts...............48 Accessories ..............48 Identification plates Energy data sheets 11.1 CKA2 energy data sheet ..........51...
-
Page 4: General Information
Results of non-compliance Liability Measures to minimise risk . BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Please note: Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as warning symbols draw attention to a high risk of injury. -
Page 5: Safety
Any other use or any use that goes beyond that which is described ö here is classed as unintended. DANGER BORA does not assume any liability for damages caused by Packaging components are a choking hazard incorrect installation, improper use or incorrect operation. Packaging components (e.g. film, polystyrene) can be life-threatening for children. -
Page 6: Safety Instructions - Operation
Do not operate the appliance. BORA Service. Do not try to repair or replace damaged components yourself. PLEASE NOTE Contact BORA Service. Appliance damage caused by pets CAUTION Pets may damage the appliance or injure Appliance components can cause injury if themselves. -
Page 7: Safety Instructions - Cooktop Extractor Operation
Only operate the integrated cooktop extractor with the grease filter fitted. CAUTION Damage caused by grease and dirt deposits Grease and dirt deposits can prevent the cooktop extractor from functioning properly. Never use the cooktop extractor without a correctly fitted stainless steel grease filter. bora.com... -
Page 8: Safety Instructions - Cooktop Operation
Touching hot surfaces can cause serious burns. Never touch the cooktop extractor when it is hot. Keep children away from the cooktop extractor when it is hot or ensure they are supervised at all times. bora.com... -
Page 9: Safety Instructions - Cleaning And Maintenance
Safety instructions – cleaning and maintenance of cooktops ö WARNING Risk of burns from hot surfaces There is a risk of burns when cleaning hot cooktops. Only clean the cooktops once they have cooled. Pay attention to the residual heat indicator. bora.com... -
Page 10: Safety Instructions - Repairs, Servicing And Spare Parts
Insufficient expertise can lead to injury when disassembling the appliance. The gas connection must only be worked on by reliable trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies. bora.com... -
Page 11: Appliance Description
Cooktop extractor Safety shut-down Control unit Active error monitoring 3.1.3 How it works Overview of features and functions Tab. 3.2 Depending on the model you purchased, the cooktop extractor can be operated as an exhaust air or a recirculating air version. bora.com... -
Page 12: Usb Interface
(e.g. window contact switch). The Home Out contact can be used to control external installations. System description Always use the latest system software to operate the BORA Classic 2.0 system. The latest software is available free of charge on the BORA Fig. 3.2 Central touch/slider operating panel website (www.bora.com –... -
Page 13: Symbols
3.2.4 Colour concept Fundamentally, all fan setting ranges are shown in blue and all cooking zone setting ranges are shown in red in the operating panel. Other colours are used for functions and messages. List of all colour indicators: bora.com... -
Page 14: Lighting
The volume of the acoustic signals can be set in the menu zones 1-ring/2-ring/roaster (10% to 100% ). Classic gas glass ceramic cooktop with 2 cooking zones Classic Tepan stainless steel grill with 2 cooking zones Safety-relevant acoustic signals are always emitted with the Model description Tab. 3.9 volume at 100%. bora.com... -
Page 15: Structure
Classic cooktop CKFI Fig. 3.9 Size of the cooking zones Front induction cooking zone (zone 1) Fig. 3.7 Size of the cooking zones Rear induction cooking zone (zone 2) Front surface induction cooking zone (zone 1) Rear surface induction cooking zone (zone 2) bora.com... - Page 16 Cooktop CKIW Cooktop CKCH Fig. 3.10 Classic cooktop CKIW Fig. 3.12 Classic cooktop CKCH Fig. 3.11 Size of the cooking zone Fig. 3.13 Size of the cooking zones Induction wok cooking zone Hyper front cooking zone (zone 1) 2-ring rear cooking zone (zone 2) bora.com...
- Page 17 Fig. 3.16 Classic gas glass ceramic cooktop CKG Fig. 3.15 Size of the cooking zones Fig. 3.17 Size of the cooking zones Front cooking zone (zone 1) Front high-power burner Roaster cooking zone Normal rear burner Front cooking zone (zone 1) Rear pan support Front pan support bora.com...
-
Page 18: How The Induction Cooktops Work
Observe the minimum pot base diameter. structure and material of the cookware. The induction wok (HIW1) is ideal for the Induction wok cooktop and is available as an accessory. bora.com... -
Page 19: How The Hyper And Hilight Cooktops Work
A gas leak is therefore prevented. Suitable cookware is made of: Suitable cookware stainless steel, copper or aluminium Cookware with this symbol is suitable for gas cooktops. enamelled steel cast iron Suitable cookware is made of: bora.com... -
Page 20: How The Tepan Stainless Steel Grill Works
Tab. 3.16 Temperature recommendations (the specifications provided of the cooktop and the cooktop extractor. Bora shall not be in the table are standard values) held liable for any such damage. -
Page 21: Safety Features
The appliance is fitted with overheating protection. The overheating protection can be triggered if: cookware is heated up empty; oil or fat is heated on high power; a hot cooking zone is switched on again after a power cut. bora.com... -
Page 22: Functions And Operation
If the diameter is too large, the hot gases and software 03.00 (or higher). flames flowing outwards from under the base may damage Clean the cooking zone before using the cooktop for the first the worktop or any non-heat-resistant surfaces, e.g. walls time (Cleaning and maintenance). bora.com... -
Page 23: Touch Control
In recirculation mode the recirculated air affects the gas cooktop extractor. Bora shall not be held liable for any such cooktop. If the gas flame goes out, is excessively affected by damage. -
Page 24: Switching Off
Activating the short-time timer the control lock will no longer be active when the appliance is Tap the short-time timer button switched on again. The time appears in the 7-segment display above the sliders in hours, minutes and seconds ( : bora.com... -
Page 25: Operating The Cooktop Extractor
(adjustment in twos) the automatic after-run function is started. As soon as the automatic after-run stops, the cooktop extractor fan is switched off. bora.com... -
Page 26: Automatic After-Run
Additional instructions for induction cooktops: extractor switches itself off. If after setting a power level on induction cooktops no BORA expressly recommends use of the cooktop extractor suitable cookware is detected (pan size recognition) within 9 after-run function. minutes, the corresponding cooking zone will be automatically switched off. -
Page 27: Automatic Heat Up Function
Power adjustment takes place (exception: gas cooktop and Tepan stainless steel grill). If a power simultaneously (both cooking zones are operated on the same power level). The bridging function is suitable for heating food, e.g. in a roaster. bora.com... -
Page 28: Heat Retention Function
Tap the required cooking zone CKT) Long press on the heat retention button 3 (simmering) ≈ 94°C (130°C in the case of tap the minus button until the power level is 0 CKT) The cleaning function is deactivated. Heat retention levels Tab. 4.6 bora.com... -
Page 29: 4.5.10 Cooking Zone Timer
Tap a cooking zone with an active timer The remaining time is displayed. Long press on the timer button The timer is switched off. The system switches to the standard display. The cooking zone remains active on the set power level. bora.com... -
Page 30: User Menu
Demo mode indicate that the basic configuration is incomplete. Display and button test You can find a video guide on basic configuration on the BORA factory reset website. Gas configuration menu (only on CKG): Scan the QR code or follow this link: www.bora.com/service/... -
Page 31: Standard Menu
The automatic extractor function is permanently activated. Permanently deactivating the automatic extractor function Tap the bottom slider segment The display shows Confirm and save the setting. The automatic extractor function is permanently deactivated. Fig. 5.2 Menu item 1: volume of the acoustic signals bora.com... -
Page 32: Menu Item 4: Duration Of The Cleaning Lock
5.4.6 Menu item 6: Software version cleaning lock The system software version may be needed by the BORA Service Team during an error search. Setting the duration of the cleaning lock The current system software version is displayed after 2 seconds. -
Page 33: Menu Item 8: System Software Update
If the update is completed without errors, all three segments will light up green. The system will then be restarted automatically. The latest software for the BORA Classic 2.0 system is The update has been completed successfully if is shown available free of charge on the BORA website (www.bora.com... -
Page 34: Menu Item A: Recirculation Filter Service Life
Selecting the filter type and resetting the filter service life: service life Top slider segment: > 20 h Green filter change not yet required Filter type 1 (F1) = BORA air purification box ULBF (with 300 h 5–20 h Orange filter change due soon service life) < 5 h... -
Page 35: Menu Item H: Air Extraction System Configuration
Filter type 3 (F3) = air purification box ULB3X (600 h service life) Select the type of filter installed (tap the corresponding segment on the slider Confirm and save the setting. Check that the system has recognised all fans correctly. bora.com... - Page 36 If the additional fan is the ULIE (additional duct fan), this is not considered to be an additional fan as such and will not be displayed. If a window contact switch is connected during fan recognition, it must be taken into account that this will also give approval (window open). bora.com...
-
Page 37: Extended Menu
If the access code cannot be confirmed (the system does not access code. The access code to the extended menu is available in the BORA react), the code has been entered incorrectly and the PartnerNet for those with the corresponding access rights. The BORA extended menu cannot be unlocked. -
Page 38: Menu Item E: Display And Button Test
Gas configuration The burner nozzles, gas type, gas pressure and gas characteristic curve may only be changed by a certified engineer or BORA service technician. They also assume responsibility for the proper gas installation and commissioning. It is important that the gas type, gas pressure and characteristic curve are set correctly to ensure safe, failure- free operation of the gas cooktop. -
Page 39: Menu Item P
(G20, G25, G25.3). The best-case scenario is when: no cooktop extractor is in operation; or the cooktop, when using the cooktop extractor in exhaust air mode, is used with sufficient ventilation; or bora.com... - Page 40 Extended menu Fig. 6.7 Display menu item T: GAS bora.com...
-
Page 41: Cleaning And Maintenance
7.1.1 Cleaning products for glass ceramic cooktops To clean the cooktop, you need a special glass ceramic scraper and suitable cleaning agents. Do not use the glass ceramic scraper in the curved cooking zone of the wok cooktop. bora.com... -
Page 42: Cleaning The Components
You can obtain activated charcoal filters from your specialist The air inlet nozzle, grease filter and tray can be cleaned manually or supplier or from the BORA Shop via the website at http:// in a dishwasher. Disassemble the grease filter unit prior to cleaning. -
Page 43: Cleaning The Surface Of The Tepan Stainless Steel Grill
Use the cleaning function to clean the Tepan stainless steel grill. Clean stainless steel surfaces in the polishing direction only. Light soiling Make sure that the cooktop is switched off. Wait until the stainless steel grill surface has cooled. Remove light soiling with a damp cloth and detergent. bora.com... - Page 44 Position the burner head correctly on the gas outlet. Ensure that the safety thermocouple and the electric igniter are positioned in the correct opening. Position the burner cap so that it fits perfectly, sitting straight on the burner head. bora.com...
-
Page 45: Troubleshooting
The fan has stopped working or is jammed Contact the BORA Service Team (the system can be used but without the extraction function) In a system with 2 fans, 1 fan has stopped... -
Page 46: Cooktop Troubleshooting
(only in the case of the Tepan stainless steel grill) Contact the BORA Service Team The cooktops have no output although a power The demo mode is active Contact your BORA retailer or the BORA Service Team level has been set and is displayed Troubleshooting Tab. 8.3... -
Page 47: Dealing With Errors
Try restarting the system. As a last resort, briefly disconnect the power supply. In the event of any errors not listed here or should errors recur, please contact the BORA service team and specify the error number shown and appliance type. -
Page 48: Warranty, Technical Service, Spare Parts, Accessories
The manufacturer’s warranty requires expert installation (in accordance with the valid BORA ventilation handbook and operating In the case of faults you cannot fix yourself, contact your BORA instructions at the time of installation) of the BORA products by an specialised retailer or the BORA Service Teamappears in the authorised BORA retailer. - Page 49 Gas nozzle set natural gas G25/20 mbar PKGDS2520 Gas nozzle set natural gas G20/25 mbar PKGDS2025 Gas nozzle set liquid gas G30/G31 50 mbar PKGDS3050 Gas nozzle set liquid gas G30/G31 28-30 mbar PKGDS3028 Burner set PKGBS Pan support small PKGTK Pan support large PKGTG bora.com...
-
