Summary of Contents for FLIR VT8 Series

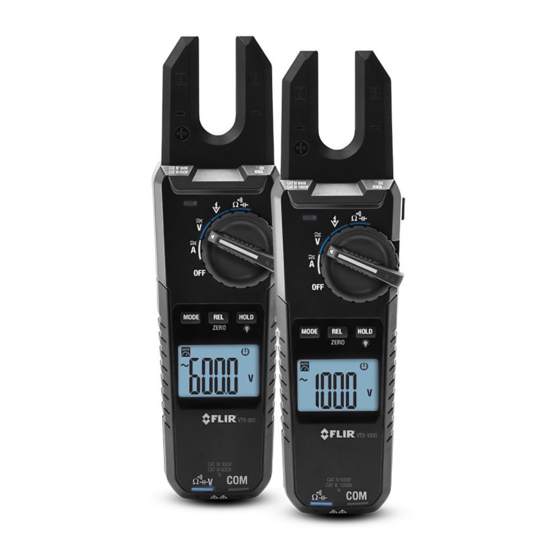

- Page 1 Quick Start FLIR VT8 Series Voltage, Continuity, and Current Testers VT8-600 and VT8-1000...
- Page 2 VT8 Series - QUICK START Introduction The True RMS VT8 Series measures AC/DC Voltage, AC/DC Current, Resistance, Continuity, and Capacitance and has a Non-Contact Voltage Detector (NCV). Features include Data Hold, Relative/Zero, Worklight, backlit LCD and APO (auto power off). The VT8-1000 (CAT III 1000V/CATIV 600V) is rated for 1000V/200A and the VT8-600 (CAT III 600V/CAT IV 300V) is rated for 600V/100A.
- Page 3 Button Descriptions REL/ZERO: Short press to enter/exit the Relative mode (for ACV/DCV, ACA, and Capacitance). For DCA, short press to ZERO, long press to exit ZERO mode : Short press for Data Hold ON/OFF. Long press for low intensity LCD backlight;...
- Page 4 Display Description 1. Auto Range 2. Data Hold 3. Relative mode 4. DCA Zero 5. Non-Contact Volt Detector (NCV) 6. Electrical signals detected 7. Auto Power OFF (APO) active 8. Battery status 9. Unit of measure and function icons 10. Main display digits 11.
- Page 5 Ω VT8-600_1000-QS-en-US_AA 10/18...
- Page 6 +1 855-499-3662 option 3 (toll free) Publication Identification No.: VT8-600_1000-QS Release version: Release Date: September 2018 Language: en-US Copyright © 2018 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.flir.com VT8-600_1000-QS-en-US_AA 10/18...
