Summary of Contents for FLIR Extech Instruments 382252

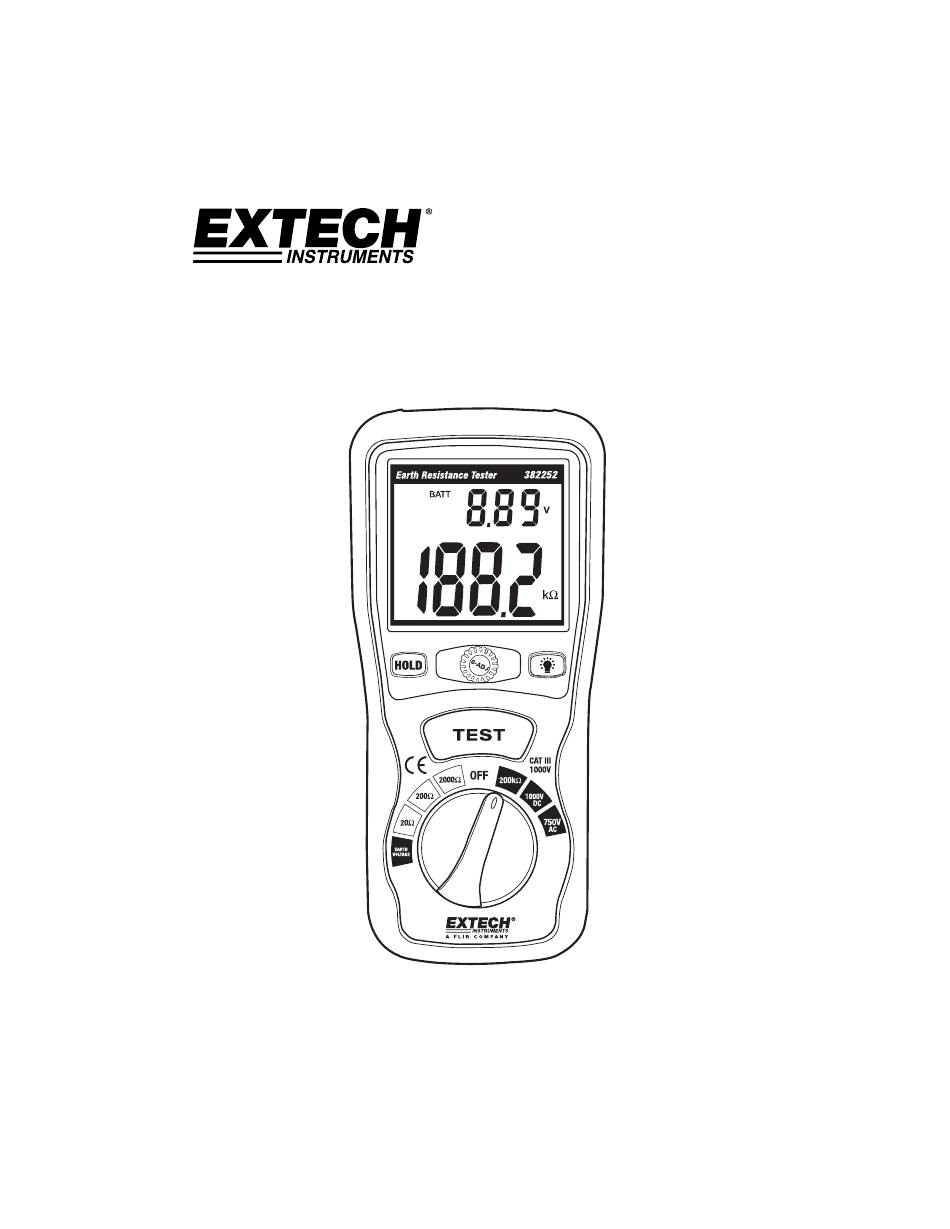

  • Page 1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 Introduction Congratulations on your purchase of the Extech 382252 Earth Ground Resistance Tester Kit. This device can measure Earth Ground Resistance (in 3 ranges), Earth Voltage and Resistance (up to 200kand AC and DC voltage. This device was designed to meet EN61010-1 safety standards. Careful care and use of this meter will provide years of reliable service.
  • Page 3: Meter Description

    Meter Description Digital Display – See Display Description below HOLD key – Freezes measurement value on display Zero ADJ control- Adjusts Zero value on display Backlight key – Turns on Backlight TEST key – Enables Earth Resistance and Earth Voltage Tests Function Selector switch –...
  • Page 4: Operation

    Operation ZERO Adjustment of Earth Resistance Ranges Connect the long test leads to the meter as follows: a. Green lead to the 'E' terminal (Green jack) b. Yellow lead to the 'P' terminal (Yellow jack) c. Red lead to the 'C' terminal (Red jack) Set the function selector switch to the desired measurement range.
  • Page 5 Earth Ground Resistance test 1. Connect the 3 test leads to the meter (1) as follows:  Green lead (2) to the 'E' terminal  Yellow lead (3) to the 'P' terminal  Red lead (4) to the 'C' terminal 2.
  • Page 6 200k Resistance Measurement Connect the red test lead to the V(C) connector and the black test lead to the COM (E) connector. Set the function selector switch to the 200kposition. Connect the test probes to the circuit under test. Note the displayed Resistance value. AC Voltage Measurement Connect the red test lead to the V(C) connector and the black test lead to the COM (E) connector.
  • Page 7: Maintenance

    Maintenance Battery Replacement When the low battery icon ' ' appears on the LCD, the meter's batteries must be changed. 1. Remove power and disconnect the test leads from the meter. 2. Remove the tilt stand from the rear of the meter. 3.
  • Page 8: Kit Contents

    3 Ground rod test cables - Red (15m), Yellow (10m), Green(5m) 2 Test leads for Ground Resistance with alligator clips (Red and Green) (1.5m) 2 Test leads for Voltage/Resistance (Black and Red) (1m) User’s manual Cloth Carrying case Copyright © 2014‐2017 FLIR Systems, Inc.  All rights reserved including the right of reproduction in whole or in part in any form  ISO‐9001 Certified  www.extech.com   382252-en-GB_V1.5 1/17 GlobalTestSupply www.
