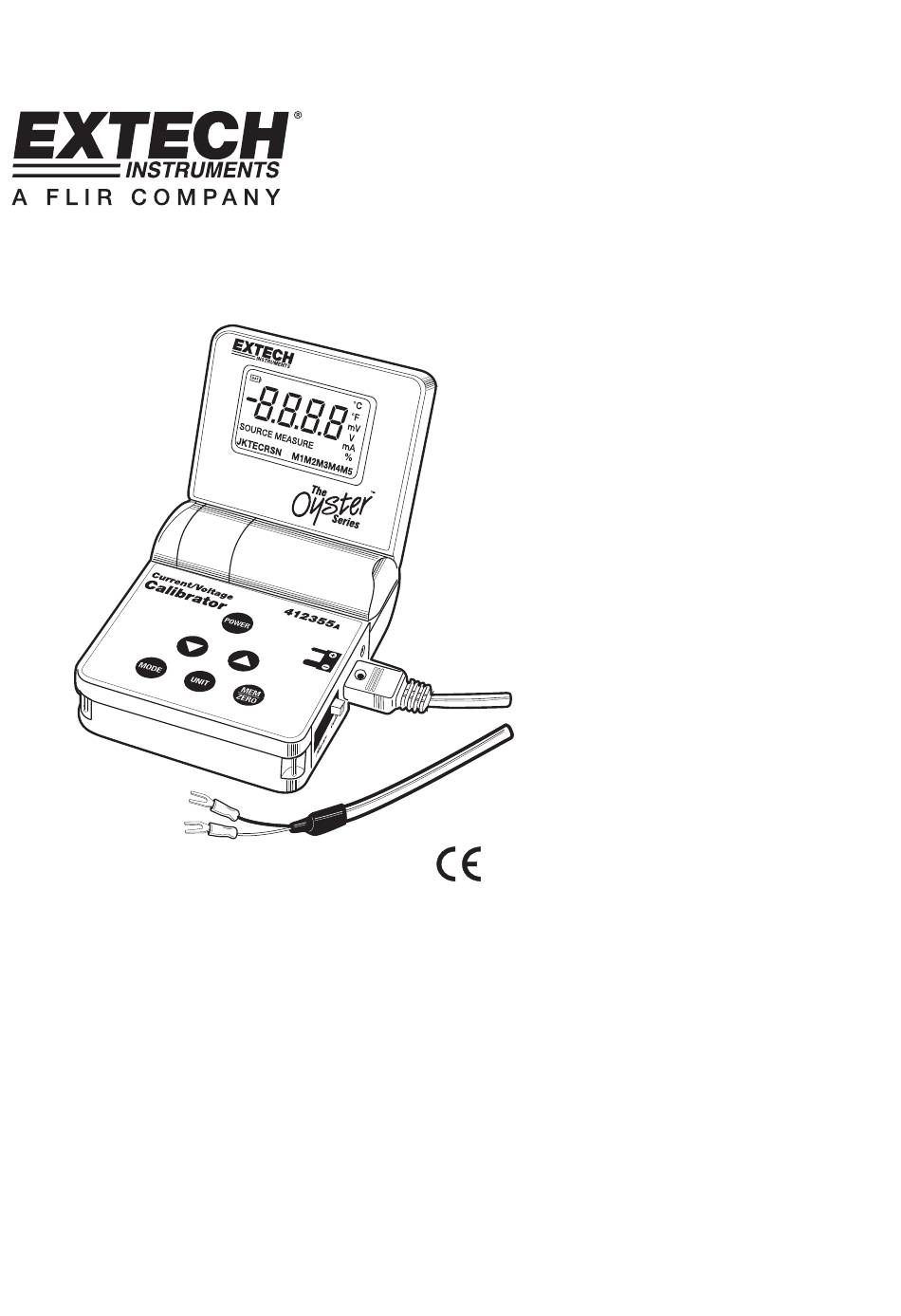

- Page 1 User's Guide Model 412355 Current / Voltage Calibrator...
-
Page 2: Meter Description
Introduction Congratulations on your purchase of the Extech Current/Voltage Calibrator. The Model 412355A can measure and source current and voltage. The Oyster Series meters have a convenient flip up display with neck-strap for hands-free operation. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Meter Description LCD display POWER button... -
Page 3: Operation
Operation POWER BUTTON and AUTO POWER OFF FEATURE 1. Use the POWER button to turn the unit ON or OFF. When the unit is powered up, a short self-test will ensue after which the display will stabilize. 2. This meter can either be powered by one 9V battery or an AC adapter. 3. - Page 4 MEM BUTTON The memory feature provides 5 user settable source values for stepped calibration outputs. The feature is available for Voltage, mA and % in the SOURCE mode. The memory values are stored in nonvolatile memory and are not erased when power is turned off.
-
Page 5: Measure And Source
Measure and Source MEASURE (Input) In this mode, the unit will measure voltage or current. Select Voltage or Current on the Function switch. Turn the meter ON Press the MODE button to select MEASURE Press the UNIT button to select mA or % if current is selected. Connect the Calibration Cable to the meter. -
Page 6: Specifications
2.00 to 20.00V 0.01V Current 0.00 to 24.00mA 0.01mA -25.0 to 125.0% 0.1% Copyright © 2008 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. 412355A-EU V3.1 4/08...
