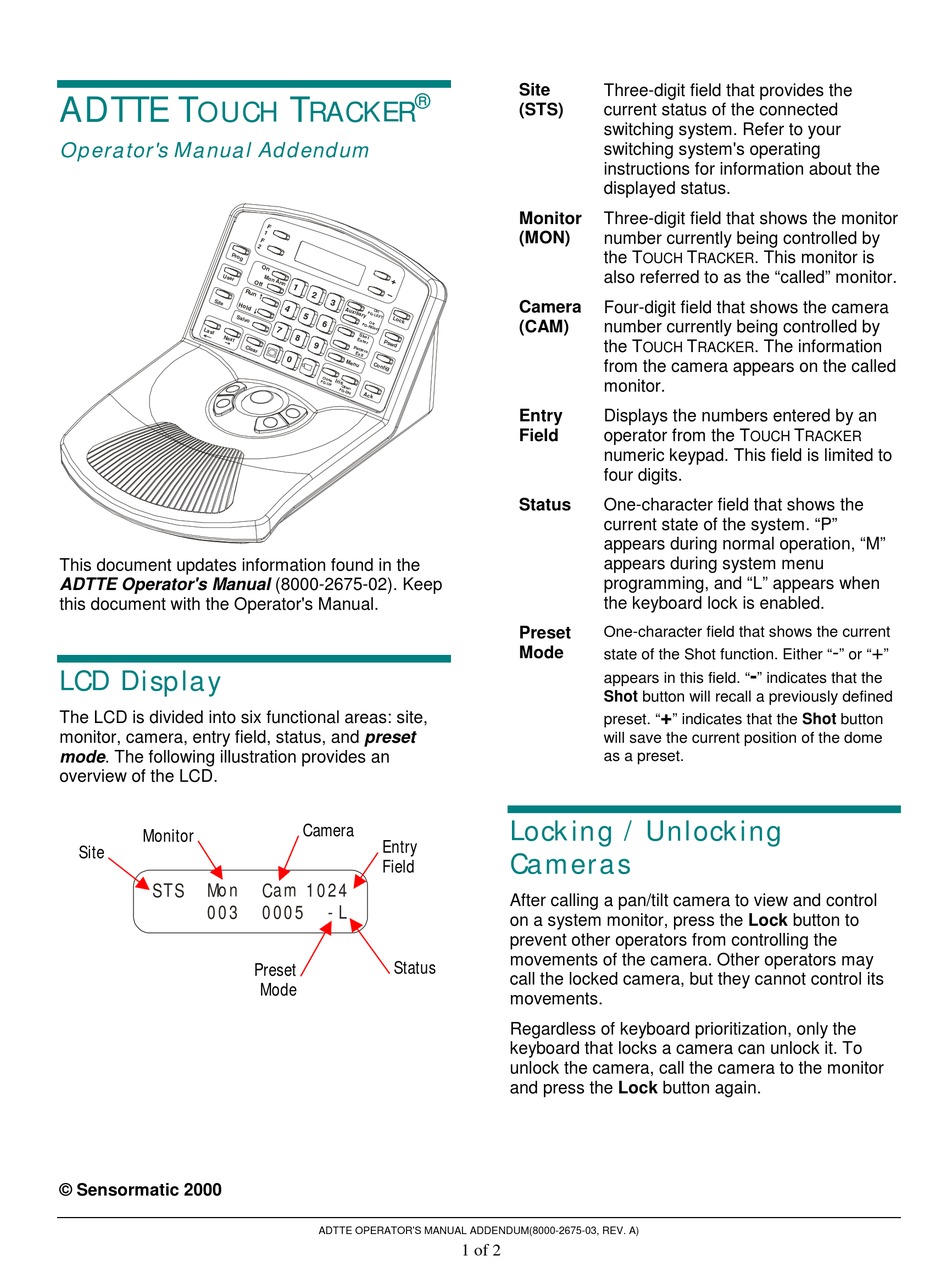

American Dynamics ADTTE Operator's Manual Addendum

ADTTE T
OUCH
Operator's Manual Addendum
This document updates information found in the
ADTTE Operator's Manual (8000-2675-02). Keep
this document with the Operator's Manual.

LCD Display

The LCD is divided into six functional areas: site,
monitor, camera, entry field, status, and preset
mode. The following illustration provides an
overview of the LCD.
Monitor
Site
STS Mon
003
© Sensormatic 2000
T ®
RACKER
Camera
Entry
Field
Cam 1024
0005 -L
Status
Preset
Mode
ADTTE OPERATOR'S MANUAL ADDENDUM(8000-2675-03, REV. A)
Site Three-digit field that provides the
(STS) current status of the connected
switching system. Refer to your
switching system's operating
instructions for information about the
displayed status.
Monitor Three-digit field that shows the monitor
(MON)
number currently being controlled by
the T
OUCH
also referred to as the "called" monitor.
Camera Four-digit field that shows the camera
(CAM) number currently being controlled by
the T
OUCH
from the camera appears on the called
monitor.
Entry Displays the numbers entered by an
Field operator from the T
numeric keypad. This field is limited to
four digits.
Status One-character field that shows the
current state of the system. "P"
appears during normal operation, "M"
appears during system menu
programming, and "L" appears when
the keyboard lock is enabled.
Preset One-character field that shows the current
Mode
state of the Shot function. Either "
appears in this field. "
Shot button will recall a previously defined
preset. "
will save the current position of the dome
as a preset.
Locking / Unlocking
Cameras
After calling a pan/tilt camera to view and control
on a system monitor, press the Lock button to
prevent other operators from controlling the
movements of the camera. Other operators may
call the locked camera, but they cannot control its
movements.
Regardless of keyboard prioritization, only the
keyboard that locks a camera can unlock it. To
unlock the camera, call the camera to the monitor
and press the Lock button again.
1 of 2
T . This monitor is
RACKER
T . The information
RACKER
T
OUCH RACKER
-
" or "
-
" indicates that the
+
" indicates that the Shot button
+
"
