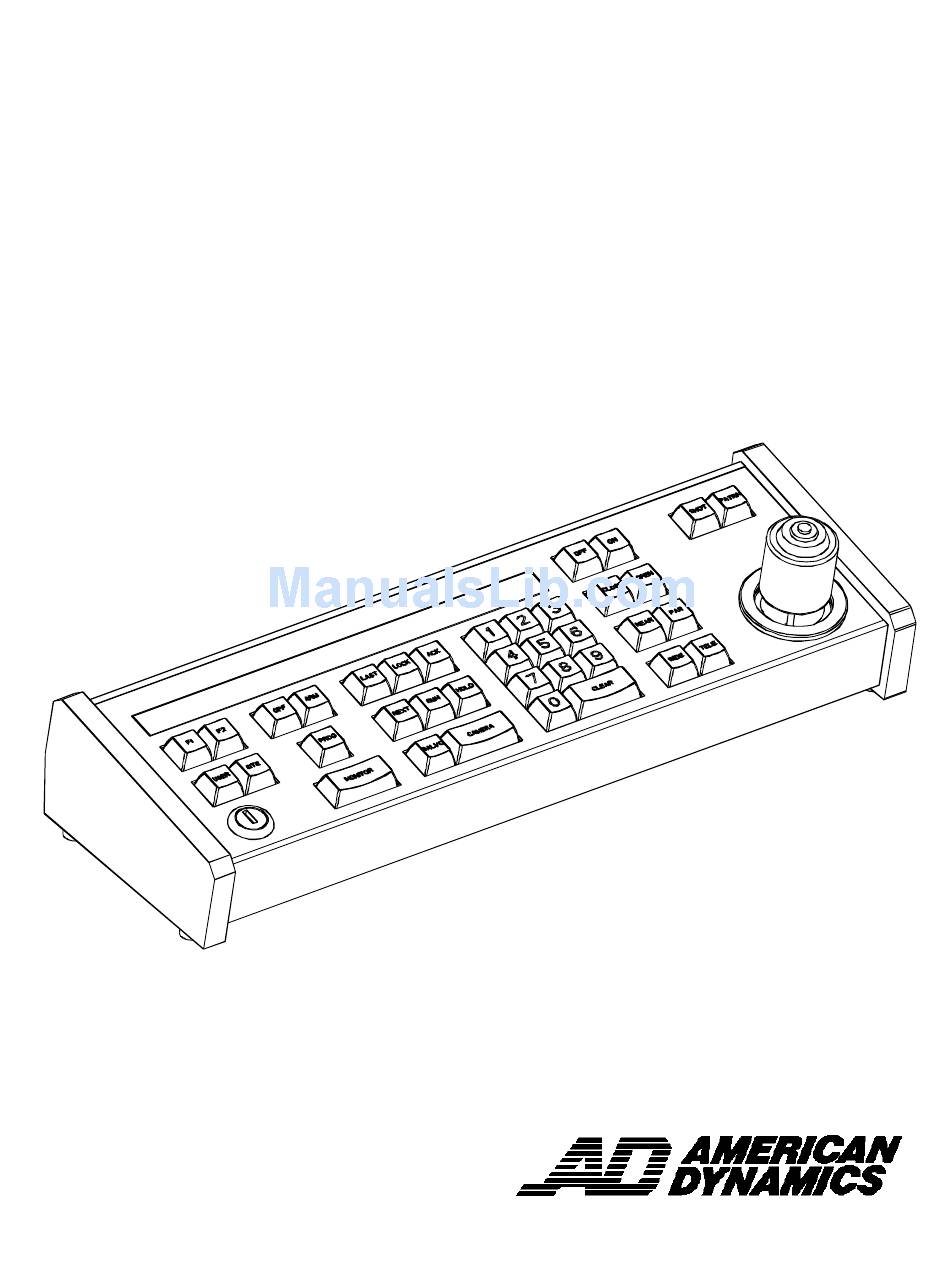

  • Page 1 AD2079 Keyboard Operator’s Manual...
  • Page 3 AD2079 Keyboard Operator’s Manual Copyright 1998 All rights reserved. No part of this manual may be reproduced in any form without written permission from Sensormatic ® Electronics Corporation. 8000-0901-01, Revision A JGC 9/98...
  • Page 4 SOFTWARE LICENSE AGREEMENT A Software License Agreement appears in Appendix A of this manual. Please read it carefully. Using the AD2079 system software indicates that you accept the terms and conditions of this agreement.

  • Page 5: Table Of Contents

    ... 1-1 EATURES AD2079 K ... 1-2 EYBOARD VERVIEW CHAPTER 2: CONNECTION AND SETUP OF THE AD2079 ... 2-1 ... 2-1 UPPLIED QUIPMENT Connecting to a Switching System ... 2-1 Connections for Cable Distance of Seven Feet or Less ... 2-1 Connections for Cable Distance of Greater than Seven Feet ...
  • Page 6 Acknowledging Alarms ... 3-4 Viewing Satellite Sites ... 3-5 Running Patterns... 3-5 CHAPTER 4: PROGRAMMING WITH THE AD2079 ... 4-1 AD2079 SING THE ROGRAM Setting Presets... 4-1 Setting Scratch-Pad Tours... 4-1 Programming Patterns ... 4-1 Defining Patterns (for use with AD168 and CCM only) ... 4-2 Clearing Patterns (for use with AD168 and CCM only) ...

  • Page 7: Chapter 1: About The Ad2079 Keyboard Controller

    Chapter 1: About the AD2079 Keyboard Controller This chapter describes the features and setup of the AD2079 keyboard. It also describes the location and function of the keyboard's front panel components. AD2079 Features The AD2079 is a video control station that is compatible with several models of American Dynamics matrix switcher/controller systems.

  • Page 8: Ad2079 Keyboard Overview

    MONITOR MENU AD2079 Keyboard Overview The AD2079 keyboard is comprised of the following elements: Site Display - shows the number of the site entered with the keypad when the SITE key (Ak) is pressed. Monitor Display - shows the number of the monitor entered with the keypad when the MONITOR key (Bk) is pressed.

  • Page 9: Chapter 2: Connection And Setup Of The Ad2079

    RJ-45 connector at the bottom of the block. The J1 connector is connected to the AD2079 keyboard via one of the seven foot modular cables. The J2 connector is connected to the switching system via the other seven foot modular cable.

  • Page 10: Connections For Cable Distance Of Greater Than Seven Feet

    After connecting the three-wire cable to the respective terminal blocks, connect one of the seven foot modular cables supplied with the AD2079 from the J1(keyboard) jack of the dual terminal block to the RJ-45 jack of the keyboard. Connect the other seven foot modular cable from the RJ-45 jack of the single terminal block to the appropriate RS-232 port on the switching system.

  • Page 11: Keyboard Setup

    Keyboard Setup Setting up the AD2079 keyboard involves selection of the appropriate communications protocol, and setting the keyboard's baud rate, LED brightness, speaker volume, and PTZ motion control. Communications Protocols The AD2079 keyboard can operate with one of three communications protocols:...

  • Page 12: To Set The Speaker Volume

    To Set the Pan / Tilt / Zoom Motion Control Option Depending on the particular switching system that is used with the AD2079 keyboard, the pan, tilt, and zoom (PTZ) motions of the system cameras are controlled by one of two methods: Repeat or Make/Break.

  • Page 13: Built-In Keyboard Operations Test

    The following procedures expose internal electrical components and should be performed by qualified service personnel only. The AD2079 has built-in test capability to verify the operational integrity of the unit's hardware and firmware. Built-in test functions include the following: speaker test...

  • Page 14: Speaker Test

    If the dashes are not displayed when the joystick is physically centered (when the operator releases the joystick), then the joystick is not properly calibrated. Contact American Dynamics Technical Support Center at 1-800-442-2225. AD2079 Operator's Manual...
  • Page 15 “255” is the upper limit. MONITOR display: Clockwise Motion MONITOR display: Counter-Clockwise Motion Connection and Setup of the AD2079 pan speed (1-8) pan direction (left or right) tilt speed (1-8) tilt direction (up or down)

  • Page 16: Key Functionality Test

    CONTROL sections of the keyboard, as well as the “flip” button on the joystick. To verify proper operation, each key on the AD2079 keyboard must be pressed once. The keys can be pressed in any order. When a key is pressed, An audible tone is sounded, verifying key recognition by the keyboard's microprocessor.

  • Page 17: Rom Checksum Test

    In this test a software checksum of the ROM contents is calculated for comparison with a known checksum value. The known value is printed on a label on the AD2079 microprocessor. The label is visible on the bottom of the unit, adjacent to the test switch button.
  • Page 18 2-10 AD2079 Operator's Manual...

  • Page 19: Chapter 3: Using The Ad2079 In Operate Mode

    Depending on the setup of the switching system being used, an operator may have to enter a user code and passcode on the AD2079 keyboard in order to gain system access. If a user code is required, the letters “UC” appear in the CAMERA display to prompt the operator. After entering the appropriate user code, the operator is prompted by the letters “PSC”...

  • Page 20: Calling A Camera To View On A Monitor

    Calling a Camera to View on a Monitor After a monitor has been called to the control of the AD2079 (see page 3-1), a camera can be called to view on the monitor. Each system camera has a unique identification number documented by the system administrator.

  • Page 21: Controlling Camera Flip

    The flip feature is active with the AD168 system. Note: on suitably equipped domes with the auto-flip function turned on, the dome can be flipped by holding the AD2079’s joystick in the down position.

  • Page 22: Holding A Tour

    Either type can be controlled by the AD2079 keyboard using the auxiliary ON and auxiliary OFF keys. A momentary auxiliary remains active as long as its control key is pressed. An example of momentary auxiliary action is a door that remains unlocked as long the auxiliary ON key is pressed.

  • Page 23: Viewing Satellite Sites

    ACK each alarm until all appropriate alarms have been cleared. Alarm signaling capability will vary depending on which switching system is connected to the AD2079. Consult your switching system manual to determine the particulars of the alarm interface.
  • Page 24 AD2079 Operator's Manual...

  • Page 25: Chapter 4: Programming With The Ad2079

    Chapter 4: Programming with the AD2079 This chapter provides step-by-step instructions for keyboard operations performed with the keyswitch in the PROGRAM position. The chapter also includes a discussion of operations available with the keyswitch set in the MENU position. Using the AD2079 in Program Mode When operating with the keyswitch in the PROGRAM position, you can set presets, scratch-pad tours, and patterns.

  • Page 26: Defining Patterns (For Use With Ad168 And Ccm Only)

    1. Call the monitor to be disarmed (see Chapter 3). 2. Turn the three-position keyswitch to the PROGRAM position. 3. Press the OFF key to disarm the called monitor. (for use with AD168 and CCM only) (for use with AD168 and CCM only) AD2079 Operator's Manual...

  • Page 27: Using The Ad2079 In Menu Mode

    Enter (Shot) - stores entered menu data Exit (Patrn) - exits the current screen and returns to the previously displayed screen Several American Dynamics switching systems provide menu programming for a variety of functions. Camera groups, system tours, system salvos, alarm contact tables, monitor arming, and event timers are among the variables that may be defined through menu programming.
  • Page 28 AD2079 Operator's Manual...

  • Page 29: Appendix A: Specifications

    Central Processor: Processor: Motorola MC68HC711-E9 Package: 52 Pin PLCC package Environmental: Operating Temp: 0° to +50° C (32° to 122° F ) Humidity: 5 to 95% non-condensing Storage Temp: -40° C to 70° C (-40° to 155° F ) AD2079 Specifications...
  • Page 30 AD2079 Operator's Manual...

  • Page 31: Appendix B: Troubleshooting

    8 Cannot access main menus of system CPU. 8Pan/tilt cameras move continuously and/or cursor scrolls continuously in MENU mode. AD2079 Troubleshooting Check List ü ü Check AC outlet ü ü Check wall transformer connections ü ü Check modular cable connections to keyboard and terminal block.
  • Page 32 AD2079 Operator's Manual...

  • Page 33: Appendix C: Typical System Connections

    Modular Cable CAMERAS TYPICAL SYSTEM CONNECTIONS Connection shown where distances between keyboard and AD2150/2350 are less than seven feet AD2079 XMIT Keyboard AD2079 to AD2150/2350 Jumper wires DUAL TERMINAL BLOCK Transformer System Modular Cable ALARMS CODE MONITORS 120V 60Hz KEYBOARDS...

  • Page 34: Ad2079 To Ad2150/2350 ( Greater Than Seven Feet

    TYPICAL SYSTEM CONNECTIONS AD2079 TO AD2150/2350 Modular Cable Wall Transformer CAMERAS Connection shown where distances between keyboard and AD2150/2350 are over seven feet AD2079 XMIT DUAL TERMINAL BLOCK 3-wire, shielded Belden 8770, or equivalent SINGLE TERMINAL BLOCK Modular Cable ALARMS...

  • Page 35: Ad2079 To Ad1996 Cpu ( Seven Feet Or Less

    Modular Cable DATA LINE TYPICAL SYSTEM CONNECTIONS AD2079 to AD1996 CPU Connection shown where distances between keyboard and AD1996 controller are less than seven feet AD2079 Jumper wires XMIT Keyboard System Modular Cable PORTS DUAL TERMINAL BLOCK Wall Transformer PROG MON...

  • Page 36: Ad2079 To Ad1996 Cpu ( Greater Than Seven Feet

    AD2079 XMIT HP0082 TERMINAL BLOCK * JJ0007 Cable ** PORTS Items supplied with AD2079 keyboard **Items supplied with AD1996 system Connection shown where distances between keyboard and AD1996 are over seven feet 3-wire, shielded Belden 8770, or equivalent HP0047 TERMINAL...

  • Page 37: Ad2079 With Ad1981 Port Expander

    Modular Cable J1 J2 DATA LINE NOTE: AD1996 shown for illustration. Any controller with RS-232 ports can be controlled from AD2079 via AD1981 Port Expander TYPICAL SYSTEM CONNECTIONS AD2079 with AD1981 Port Expander AD2079 Modular Cable Dual Terminal Block 3-wire, shielded...

  • Page 38: Ad2079 Ad168 Cpu M

    TYPICAL SYSTEM CONNECTIONS AD2079 TO AD168 Modular Cable Connection shown where distances between keyboard and AD168 are less than seven feet AD2079 Jumper wires XMIT DUAL TERMINAL Keyboard System Modular Cable connection to AD168 CPU Module BLOCK Wall Transformer AD168 REAR PANEL...

  • Page 39: Ad2079 Ad168 Cpu M

    AD168 are over seven feet AD2079 XMIT DUAL TERMINAL BLOCK Modular Cable connection to AD168 CPU Module AD2079 TO AD168 3-wire, shielded Belden 8770, or equivalent SINGLE TERMINAL BLOCK Modular Cable connection to AD168 CPU Module AD168 REAR PANEL...

  • Page 41: Appendix D: Software License Agreement

    Appendix D: Software License Agreement By using the AD2079 software, you accept the terms and conditions of this license agreement. Read this license agreement carefully. General. Software is being licensed to the Customer pursuant to the following terms and conditions, which supplement any purchase or lease agreement (the "Equipment Agreement") between Customer and Sensormatic Electronics Corporation ("SEC").
  • Page 42 States patent or copyright or the violation of any trade secret, if SEC is notified thereof promptly after its commencement and is given control of the defense thereof and any negotiations for its settlement and full cooperation by Customer. AD2079 Operator's Manual...
  • Page 43 Software and Documentation in the possession of Customer to SEC, at SEC's request, and SEC will refund a reasonable portion of the license fees paid by Customer to SEC. This Section 8 sets forth SEC's entire liability regarding infringement and the like. AD2079 Software License Agreement...
  • Page 44 AD2079 Operator's Manual...

  • Page 45: Appendix E: Speeddome Series Commands

    Appendix E: SpeedDome Series Commands (for use with AD2083-02A Code Translator) SpeedDome Function AD2079 Keyswitch Position Call Presets Operate Return to Auto Iris/Auto Focus Operate Set Auxiliary 4 OFF Operate Set Auxiliary 4 ON Operate Flip (camera position 180º) Operate...
  • Page 46 AD2079 Operator's Manual...

  • Page 47: Glossary

    The monitor that displays the video that is being controlled by the AD2079. camera command A directive issued to the camera via the AD2079 - a pan, tilt, zoom, focus, or iris command. camera lock...
  • Page 48 (pan, tilt, and zoom) of a pan/tilt camera or dome. keypad The portion of the AD2079 containing the buttons that enable you to call up an individual camera, control a camera's iris, display shots, run Monitor Tours, and arm or disarm monitors.
  • Page 49 The method by which data is transmitted. Essentially, the language a system speaks. RS-232, RS-422, and RS-485 are protocols that can be used by the AD2079. salvo A salvo is a simultaneous display of multiple camera scenes appearing on a contiguous set of monitors.
  • Page 50 AD168 System Administrator’s Manual...

  • Page 51: Index

    · 4-2 display descriptions, LEDs · 1-2 dome commands · E-1 dual function keys · 4-3 equipment supplied · 2-1 Index features, AD2079 · 1-1 flip definition · G-1 focus definition · G-1 focus control · 3-2 iris definition ·...
  • Page 52 HP0047 · 2-2 terminal block, HP0082 · 2-2 tilt definition · G-3 tour definition · G-3 tours holding · 3-4 re-starting · 3-4 troubleshooting · B-1 user passcodes · 3-1 zoom definition · G-3 zoom control · 3-2 AD2079 Operator's Manual...

  • Page 53: Declaration Of Conformity

    Declaration of Conformity Manufacturer: Sensormatic CCTV Systems Division Manufacturer’s Address: Sensormatic CCTV Systems Division 1 Blue Hill Plaza Pearl River, New York, 10965 USA Sensormatic Electronics Corporation State Rd. 110 Km 5.8 Poblado San Antonio Aguadilla P.R. 00690 Declares, that the product(s) listed below: Name/Type: Model Number: The system keyboard is provided with an external power supply.
  • Page 56 AMERICAN DYNAMICS Sensormatic CCTV Systems Division One Blue Hill Plaza Pearl River, New York, 10965 Technical Support Center 1-800-442-2225 Business (914) 624-7600 SENSORMATIC ELECTRONICS CORPORATION 951 Yamato Road Boca Raton, Florida 33431-4425 Business (561) 989-9740 PN: 8000-0901-01, Rev. A...
