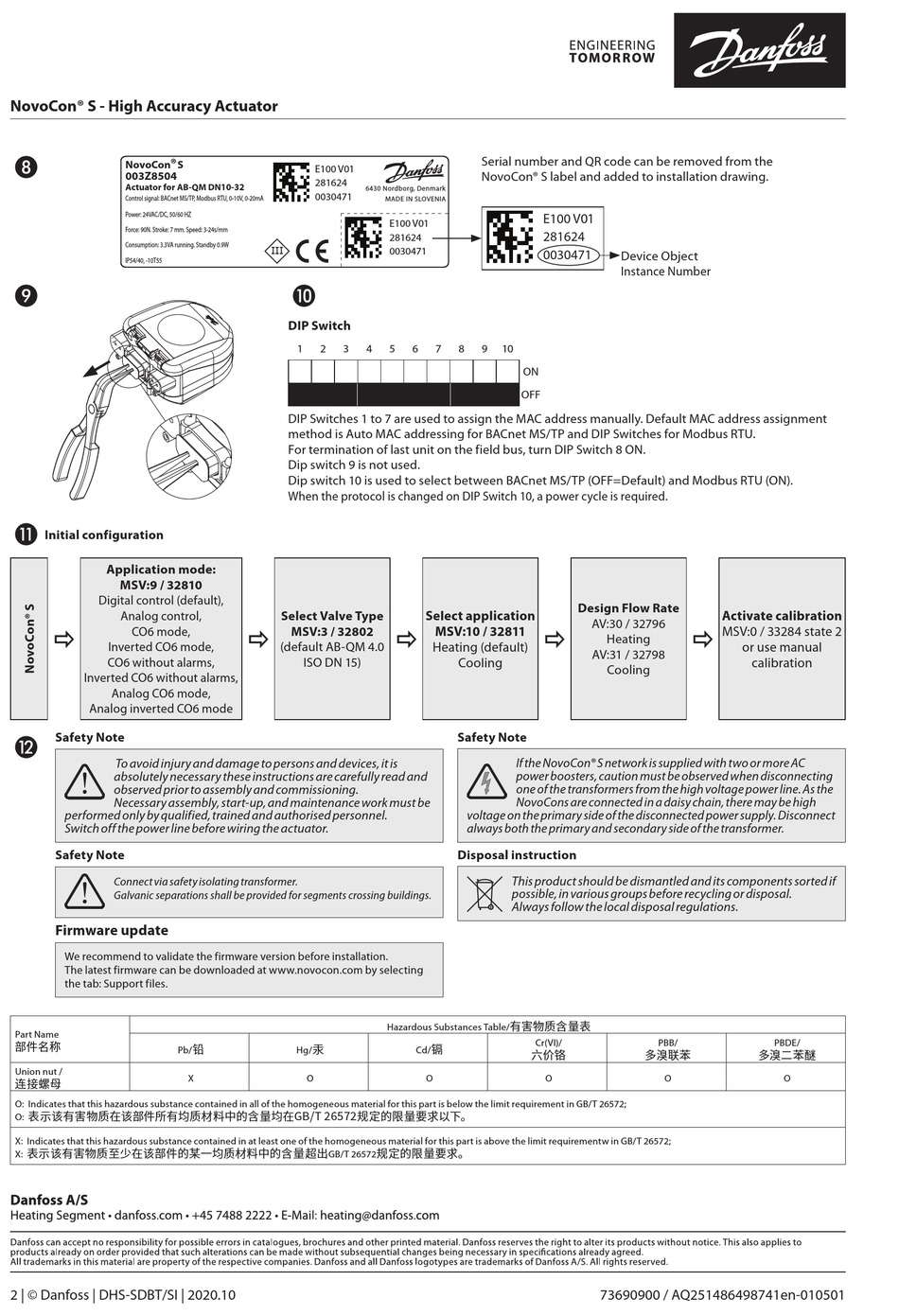

NovoCon® S - High Accuracy Actuator
❽
®
NovoCon S
003Z8504
Actuator for AB-QM DN10-32
Control signal: BACnet MS/TP, Modbus RTU, 0-10V, 0-20mA
Power: 24VAC/DC, 50/60 HZ
Force: 90N. Stroke: 7 mm. Speed: 3-24s/mm
Consumption: 3.3VA running. Standby 0.9W
IP54/40, -10T55
❾
⓫
Initial configuration
Application mode:
MSV:9 / 32810
Digital control (default),
Analog control,
CO6 mode,
Inverted CO6 mode,
CO6 without alarms,
Inverted CO6 without alarms,
Analog CO6 mode,
Analog inverted CO6 mode
Safety Note
⓬
To avoid injury and damage to persons and devices, it is
absolutely necessary these instructions are carefully read and
observed prior to assembly and commissioning.
Necessary assembly, start-up, and maintenance work must be
performed only by qualified, trained and authorised personnel.
Switch off the power line before wiring the actuator.
Safety Note
Connect via safety isolating transformer.
Galvanic separations shall be provided for segments crossing buildings.
Firmware update
We recommend to validate the firmware version before installation.
The latest firmware can be downloaded at www.novocon.com by selecting
the tab: Support files.
Part Name
部件名称
Pb/
Union nut /
连接螺母
O: Indicates that this hazardous substance contained in all of the homogeneous material for this part is below the limit requirement in GB/T 26572;
表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。
O:
X: Indicates that this hazardous substance contained in at least one of the homogeneous material for this part is above the limit requirementw in GB/T 26572;
表示该有害物质至少在该部件的某一均质材料中的含量超出
X:
2 | © Danfoss | DHS-SDBT/SI | 2020.10
®
NovoCon S
003Z8504
01
E100 VXX
Actuator for AB-QM DN10-32
281624
Control signal: BACnet MS/TP, Modbus RTU, 0-10V, 0-20mA
0030471
Power: 24VAC/DC, 50/60 HZ
Force: 90N. Stroke: 7 mm. Speed: 3-24s/mm
Consumption: 3.3VA running. Standby 0.9W
III
IP54/40, -10T55
❿
DIP Switch
1
2
3
DIP Switches 1 to 7 are used to assign the MAC address manually. Default MAC address assignment
method is Auto MAC addressing for BACnet MS/TP and DIP Switches for Modbus RTU.
For termination of last unit on the field bus, turn DIP Switch 8 ON.
Dip switch 9 is not used.
Dip switch 10 is used to select between BACnet MS/TP (OFF=Default) and Modbus RTU (ON).
When the protocol is changed on DIP Switch 10, a power cycle is required.
Select Valve Type
MSV:3 / 32802
(default AB-QM 4.0
ISO DN 15)
铅
汞
Hg/
X
O
GB/T 26572
E100 VXX
Serial number and QR code can be removed from the
281624
6430 Nordborg, Denmark
NovoCon® S label and added to installation drawing.
0030471
6430 Nordborg, Denmark
MADE IN SLOVENIA
01
E100 VXX
281624
III
0030471
4
5
6
7
8
9
10
ON
OFF
Select application
MSV:10 / 32811
Heating (default)
Cooling
Safety Note
If the NovoCon® S network is supplied with two or more AC
power boosters, caution must be observed when disconnecting
one of the transformers from the high voltage power line. As the
NovoCons are connected in a daisy chain, there may be high
voltage on the primary side of the disconnected power supply. Disconnect
always both the primary and secondary side of the transformer.
Disposal instruction
This product should be dismantled and its components sorted if
possible, in various groups before recycling or disposal.
Always follow the local disposal regulations.
有害物质含量表
Hazardous Substances Table/
镉
Cr(VI)/
六价铬
Cd/
O
规定的限量要求。
MADE IN SLOVENIA
01
E100 VXX
281624
0030471
Device Object
Instance Number
Design Flow Rate
AV:30 / 32796
Heating
AV:31 / 32798
Cooling
PBB/
多溴联苯
O
O
73690900 / AQ251486498741en-010501
Activate calibration
MSV:0 / 33284 state 2
or use manual
calibration
PBDE/
多溴二苯醚
O
