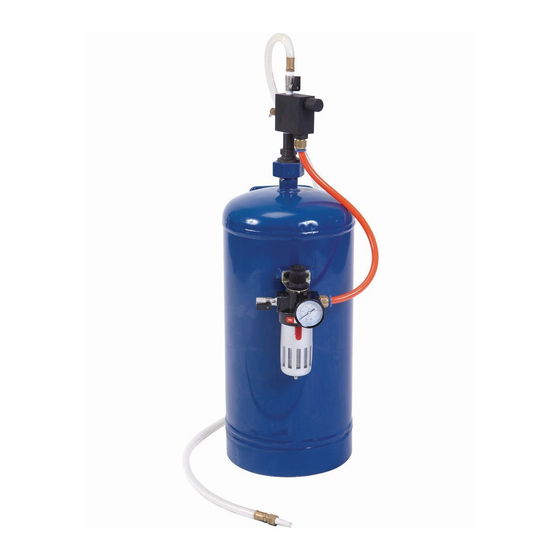

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20i
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Central Pneumatic 60801
Summary of Contents for Central Pneumatic 60801
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
2. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The tool is able to create sparks resulting in the ignition of the dust or fumes. Page 2 For technical questions, please call 1-888-866-5797. Item 60801... -
Page 3: Safety
1. Tool service must be performed only 2. When servicing a tool, use only identical by qualified repair personnel. replacement parts. use only authorized parts. 3. Do not use any lubricants with this tool. Item 60801 For technical questions, please call 1-888-866-5797. Page 3... - Page 4 5. Install an in-line shutoff valve to allow 2. DO nOt DrOp tanK, riSK OF EXpLOSiOn. immediate control over the air supply in an emergency, even if a hose is ruptured. Page 4 For technical questions, please call 1-888-866-5797. Item 60801...
- Page 5 7. To reduce vibration, maintain seek medical advice as soon as possible. tool as explained in this manual. If abnormal vibration occurs, stop immediately. SaVE tHESE inStructiOnS. Item 60801 For technical questions, please call 1-888-866-5797. Page 5...
-
Page 6: Specifications
Functional Description Specifications Maximum Air Pressure 90 PSI Air Inlet 1/4″ -18 NPT Average Air Consumption 8.5 CFM @ 90 PSI Abrasive Capacity 40 lb. Sodium Bicarbonate Abrasive Type media only Page 6 For technical questions, please call 1-888-866-5797. Item 60801... - Page 7 Media Valve Safety Valve Media regulator (on back) Knob abrasive Hose regulator Knob tank pressure Gauge air Valve abrasive Outlet pipe (not shown) nozzle Item 60801 For technical questions, please call 1-888-866-5797. Page 7...
- Page 8 5. Attach Abrasive Outlet Pipe (11) and Abrasive pressure Hose (24) to Media Regulator (15). Gauge (6) 6. Attach Air Hose (10) to Air Regulator Figure a: air regulator assembly and Media Regulator. Page 8 For technical questions, please call 1-888-866-5797. Item 60801...
-
Page 9: Operation
The air hose must be long enough to reach the work area with enough extra length to allow free movement while working. Item 60801 For technical questions, please call 1-888-866-5797. Page 9... - Page 10 Page 10 For technical questions, please call 1-888-866-5797. Item 60801...
- Page 11 Item 60801 For technical questions, please call 1-888-866-5797. Page 11...
- Page 12 Soda Blaster (90 PSI). to safely discharge back into the Tank. cautiOn! Do not exceed 90 pSi. 4. Using a funnel and screen (sold separately), pour media into the Tank. Page 12 For technical questions, please call 1-888-866-5797. Item 60801...
- Page 13 6. Use Media Regulator Knob to the Tank, and clean external surfaces of the adjust the media flow rate. Soda Blaster with clean, dry cloth. Then store the Soda Blaster indoors out of children’s reach. Item 60801 For technical questions, please call 1-888-866-5797. Page 13...
-
Page 14: Maintenance
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175328892 when ordering parts. Page 14 For technical questions, please call 1-888-866-5797. Item 60801... -
Page 15: Parts List And Diagram
Socket Head Cap Screw (M6 X 10) Ceramic Discharge Nozzle Bracket Compression Nut Air Hose (350Mm) Tank Bracket Abrasive Outlet Pipe Air Pressure Regulator Knob O-Ring (Ø35 X 3.1Mm) Abrasive Hose Item 60801 For technical questions, please call 1-888-866-5797. Page 15... -
Page 16: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
