Foldable Sit Down Table
Assembly instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foldable Sit Down Table and is the answer not in the manual?

Questions and answers

Related Manuals for Bernina Foldable Sit Down Table

Summary of Contents for Bernina Foldable Sit Down Table

  • Page 1 Foldable Sit Down Table Assembly instructions...

  • Page 3: Table Of Contents

    WARNING ............. Important information ........My BERNINA ............Introduction ............Overview of foldable sit down table ....... Unpacking and setting up the sit down table .. Adjusting the table height ......... Mounting the Q 16 ..........Mounting the insert ..........

  • Page 4: Important Safety Instructions

    Important safety instructions IMPORTANT SAFETY INSTRUCTIONS Note the following basic safety instructions when assembling the sit down table, and carefully read through the operating instructions for the BERNINA Q Series machine before using the sit down table. WARNING To protect persons from injuries: •...

  • Page 5: Important Information

    • If the product is passed on to third parties, always include the manual with the product. Proper use The foldable sit down table serves as a workstation for machines of the Q Series, which are suited for use as sit down models. Any other use is not considered proper. BERNINA assumes no liability concerning consequences resulting from an improper use.

  • Page 6: My Bernina

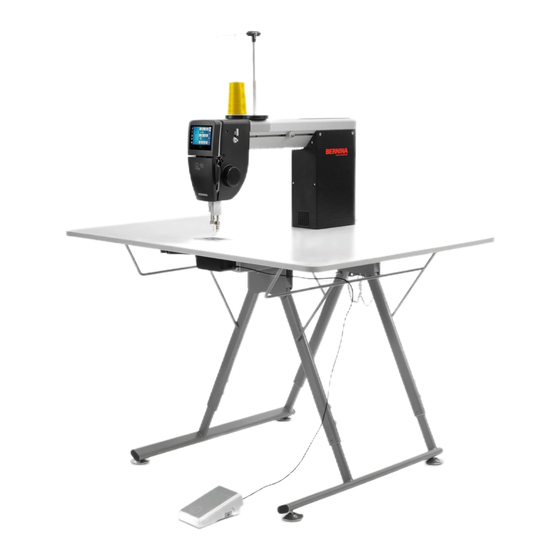

    My BERNINA 2.1 Introduction The foldable sit down table allows you to quilt comfortably while sitting, using the machines of the BERNINA Q Series, which are suited for use as table models. If the machine has already been disassembled, the sit down table can be folded and stored in a way that saves space.

  • Page 7: Unpacking And Setting Up The Sit Down Table

    Unpacking and setting up the sit down table Unpacking and setting up the sit down table Heavy sit down table WARNING Lifting the sit down table can cause back injury. Accidentally dropping the sit down table can cause injuries and damage to property. >...

  • Page 8: Adjusting The Table Height

    Adjusting the table height Adjusting the table height Prerequisite • The machine is not placed into the table. With the help of another person, tip the table so that the screws are easily accessible. Tip the table on its side, or tip the table forward, or place table on the table top.

  • Page 9: Mounting The Q

    Mounting the Q 16 Mounting the Q 16 5.1 Mounting the insert Mount the insert with rounded corners to Push the insert as far back as it will go. the rear. 5.2 Placing the machine Place the machine with the help of another Push the machine as far back as it will go.

  • Page 10: Lifting The Table Tops

    Mounting the Q 16 5.3 Lifting the table tops Align the two locking brackets as shown in First, slowly lift the right table top. the picture. Raise the support bracket and snap it in audibly.
  • Page 11 Mounting the Q 16 Lift the left table top. Raise the support bracket and snap it in audibly. Close the locking brackets.

  • Page 12: Mounting The Q 20

    Mounting the Q 20 Mounting the Q 20 6.1 Placing the machine (see page 9) 6.2 Lifting the table tops (see page 10) 6.3 Mounting the insert Remove the centerpiece. Mount the insert with rounded corners to the front.
  • Page 14 BERNINA International AG | CH-8266 Steckborn Switzerland | www.bernina.com | © Copyright by BERNINA International AG 1050655.00A.04 2020-02 EN...
