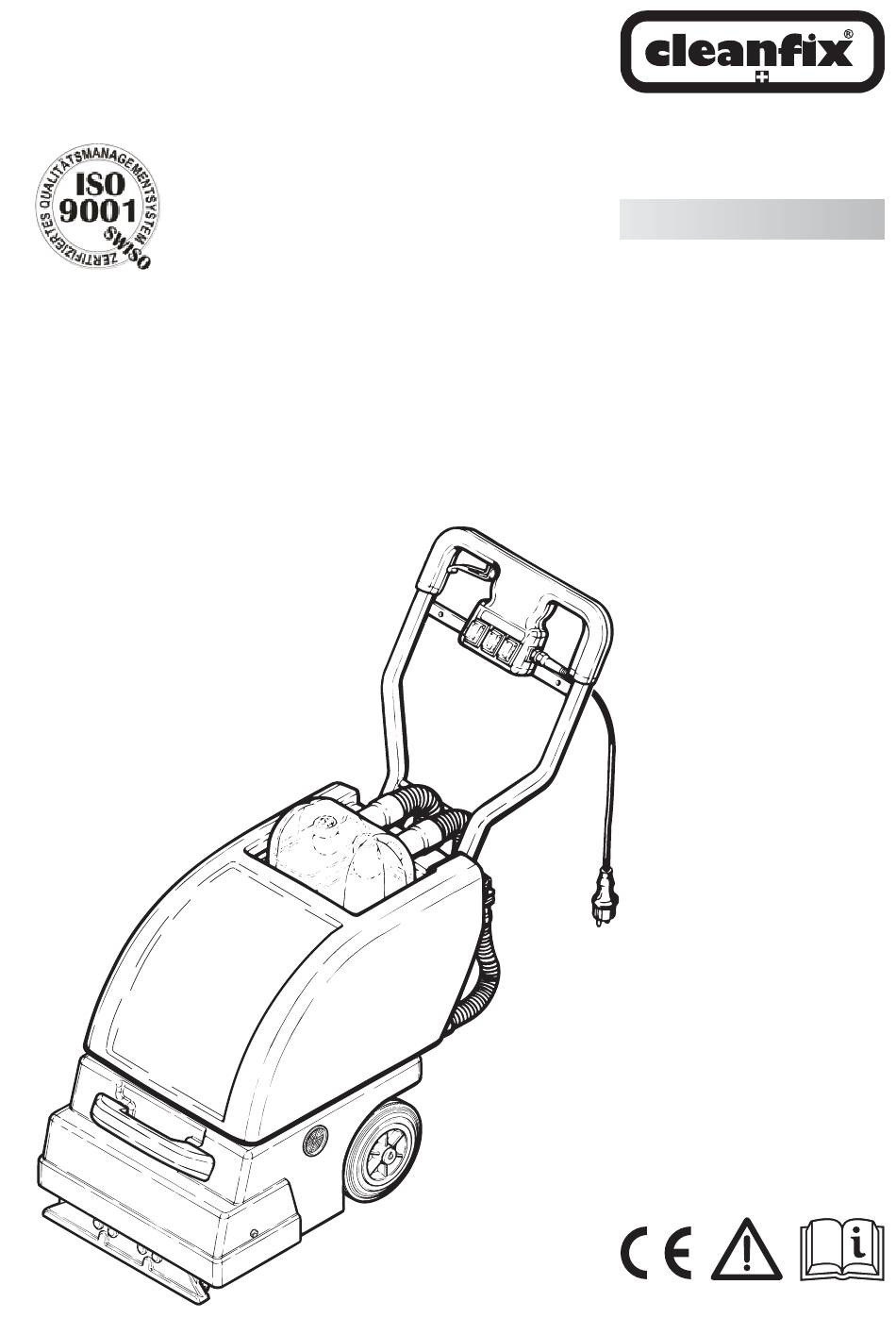

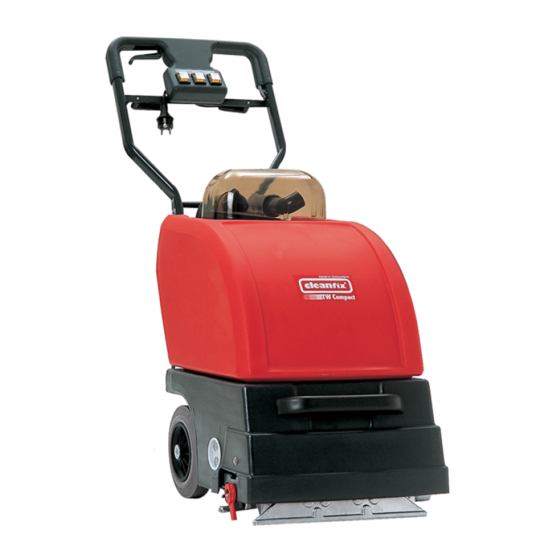

  • Page 1 TW Compact Swiss Made Quality. Englisch BA 420.000 10 / 2012...

  • Page 2: Safety Instructions

    ● fastness in a concealed spot. the cable! The instructions of the manufacturer must be ● The manufacturer accepts no liability in the case of complied with when replacing the mains supply cable improper use. or appliance connectons. TW Compact...

  • Page 3: Standard Accessories

    Description of pictures TW Compact Push handle with operating elements Suction motor switch Switch brush drive Spray pump switch Lever - forward / backward Hose vacuum motor 6a Hose to Suction nozzle Cover fresh water tank Fresh and dirty water tank...

  • Page 4: Operation

    The fresh-water tank can be emptied using the spray ☞ crease the service life of the pump (4) and the PVC drain hose, which must be brush. connected to the coupling (connection for special accessories) at the rear of the cleaner. TW Compact...

  • Page 5: Care And Maintenance

    ☞ Spray nozzles clogged Spray nozzles for clogging, clean ● eventually. Insufficient supply of cleaning agent ☞ Lines or spraying jets plugged with Flush fresh water tank and line ● cleaning agent system. Rinse sieve in tank cover with water. ● TW Compact...

  • Page 6: Environmental Protection

    Old appliances contain valuable materi- als that can be recy-cled; these should be sent for recycling.. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems. TW Compact...
  • Page 7 TW Compact Accessoires-Carpet tool, 2-nozzles As at: 06/19/14 Time:16:04...
  • Page 8 TW Compact Accessoires-Carpet tool, 2-nozzles As at: 06/19/14 Time:16:04 Pos. Description Reference 01 Carpet tool complete, including items 2-22 602.000.1 02 Stainless steel handle Ø 32 mm P...581 D 03 Stainless steel tube 645.002 A 04 Suction nozzle complete including items 6 602.550...
  • Page 9 TW Compact Accessoires-Hard floor attachment As at: 06/19/14 Time:16:04...
  • Page 10 TW Compact Accessoires-Hard floor attachment As at: 06/19/14 Time:16:04 Pos. Description Reference 01 Hard floor attachment compl. 632.000 02 Tube P...581 D 03 Stainless steal tube 645.002 A 04 Nozzle housing 632.001 05 Back-up rubber compl. P...633 06 screw DIN 7981 C 4,8 x 19 A2 P...483 O...
  • Page 11 TW Compact Accessoires-Spray nozzle with hose As at: 06/19/14 Time:16:04...
  • Page 12 TW Compact Accessoires-Spray nozzle with hose As at: 06/19/14 Time:16:04 Pos. Description Reference 01 Spray nozzle with hose 660.000 02 Male connector P...501 C 03 Clamp 17.0-706R P...550 C 04 Hose HD, 10 M 110.560 C 05 Cup nut compl.
  • Page 13 TW Compact Accessoires-Upholstery tool As at: 06/19/14 Time:16:04...
  • Page 14 TW Compact Accessoires-Upholstery tool As at: 06/19/14 Time:16:04 Pos. Description Reference 01 Upholstery tool 617.000 02 Nozzle housing 8 cm 617.623 A 03 Guide bride complete including items 4-6 P...683 04 Guide bride P...683 A 05 Cylindrical screw M 5x18 P...683 B...
  • Page 15 TW Compact Accessories-Spray and suction hose As at: 06/19/14 Time:16:04...
  • Page 16 TW Compact Accessories-Spray and suction hose As at: 06/19/14 Time:16:04 Pos. Description Reference 20 Spraying valve cpl. with fitting including items 21-30 P...681 21 Valve body P...681 A 22 Tapped nipple 1/4’’ P...501 B 23 Lever P...681 C 24 Cyl. Pin Ø 1,5x14,5 mm P...681 K...
  • Page 17 TW Compact Brush housing and nozzles As at: 06/19/14 Time:16:05...
  • Page 18 TW Compact Brush housing and nozzles As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Brush canal 420.510 02 Suction nozzle (front) 420.520 03 Suction nozzle (rear) 420.530 04 Pump holder 420.569 05 Adaptor for suction nozzle 420.560 06 Weight (right) 420.567...
  • Page 19 TW Compact Brush motor and brush supportPos. 1-27 As at: 06/19/14 Time:16:05...
  • Page 20 TW Compact Brush motor and brush supportPos. 1-27 As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Brush motor complete including Items 2-4 420.281 02 Brush motor 370W 400.281 A 03 Threaded pin M 6x10 P...484 Y 04 Belt pulley 420.290 05 Motor holder 110x90x3 400.291...
  • Page 21 TW Compact Brush motor and brush supportPos. 28-46 As at: 06/19/14 Time:16:05...
  • Page 22 TW Compact Brush motor and brush supportPos. 28-46 As at: 06/19/14 Time:16:05 Pos. Description Reference 28 Cyl. Head screw M 4x20 P...478 L 29 Spring washer M 4 P...498 A 30 Hexagon nut M 4 P...491 Q 31 Brush support complete including: items 32-39 420.450...
  • Page 23 TW Compact Chassis As at: 06/19/14 Time:16:05...
  • Page 24 TW Compact Chassis As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Chassis compl. 400.110 02 Right support 400.114 03 Left support 420.112 04 Hexagon socket screw M 6x25 P...486 T 05 Frame 420.352 06 Hexagon socket screw M 4x12 P...486 A 07 Hexagon socket screw M 8x25 P...487 D...
  • Page 25 TW Compact Lower pushbarPos. 1-22 As at: 06/19/14 Time:16:05...
  • Page 26 TW Compact Lower pushbarPos. 1-22 As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Hexagon nut M 4 P...491 Q 02 Spring ring M 4 P...498 A 03 Screw M 4x20 P...481 E 04 Upper pushbar 420.650 05 Rubber clamp P...408 K 06 Wiring to handle 420.305...
  • Page 27 TW Compact Lower pushbarPos. 23-54 As at: 06/19/14 Time:16:05...
  • Page 28 TW Compact Lower pushbarPos. 23-54 As at: 06/19/14 Time:16:05 Pos. Description Reference 23 Switch P...242 24 PT screw KA 30x20 mm P...482 P 25 Lever complete including Items 26-33 400.620 26 O-ring 5,23 mm P...681 F 27 Valve body 400.622 28 Valve pin P...681 D...
  • Page 29 TW Compact Pump As at: 06/19/14 Time:16:05...
  • Page 30 TW Compact Pump As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Flojet-pump 230 V with filter compl. P...821 B 02 Upper Housing Kit with Bypass P...821 C 03 Check valve Kit P...821 D 04 Cam / Diaphragm Kit P...821 E...
  • Page 31 TW Compact Pump assembling and hoses As at: 06/19/14 Time:16:05...
  • Page 32 TW Compact Pump assembling and hoses As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Flojet-Pump P...821 B 02 Clamp 14,5 mm P...550 A 03 Angled nipple 8-3/8" P...541 M 04 Pressure hose 12/6x400 mm 420.261 05 Pressure hose 12/6x200 mm 420.269...
  • Page 33 TW Compact Suction motor and hoses As at: 06/19/14 Time:16:05...
  • Page 34 TW Compact Suction motor and hoses As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Suction motor 420.210 02 Pair of carbon brushes P...870 KH 03 Noise absobing hose 400.227 04 Tube for motor cooling 420.361 05 Screw 2,9x6,5 P...483 H 06 Round buffer Ø...
  • Page 35 TW Compact Tank and chassis cover As at: 06/19/14 Time:16:05...
  • Page 36 TW Compact Tank and chassis cover As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Tank 420.721 04 Hose support complete including Items 5-7 400.445 05 Hose support P...109 A 06 Washer M 5 P...497 G 07 Hexagon socket srew M 5x12 P...488 B...
  • Page 37 TW Compact Tank cover and fresh water tank As at: 06/19/14 Time:16:05...
  • Page 38 TW Compact Tank cover and fresh water tank As at: 06/19/14 Time:16:05 Pos. Description Reference 01 Tank cover complete including Items 2-7 400.750 02 Tank cover with filter 400.756 03 Filter 400.766 A 04 Seal for cover 420.723 05 Clean water tank cover cpl. pos. 6+7 530.765...
  • Page 39 TW Compact Wiring Plan As at: 06/19/14 Time:16:05...
