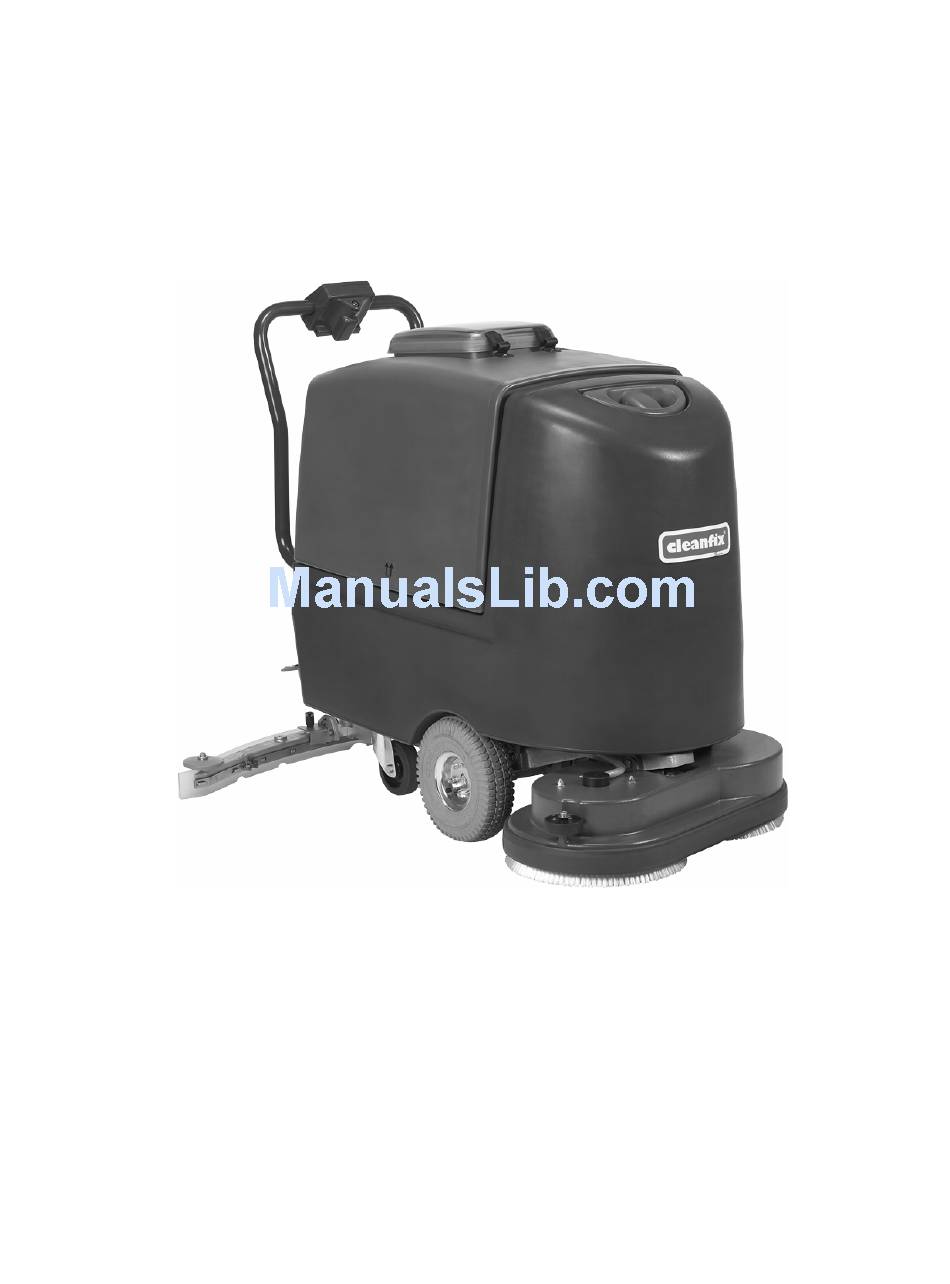

Cleanfix Eagle RA 700 B Safety, Operations & Maint. Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Safety, Operations & Maint. Manual
Cleanfix
®
Eagle
(RA 700 B / RA 701 B)
This unit is intended for commercial use
This manual is furnished with each new Eagle (RA 700 B / RA 701 B). It provides necessary operation
and maintenance instructions.
READ AND FOLLOW ALL INSTRUCTIONS, WARNINGS AND CAUTIONS BEFORE AND WHEN
USING THIS AUTO-SCRUBBER. THE MACHINE MAY ONLY BE USED BY PERSONS WHO HAVE
BEEN INSTRUCTED IN ITS HANDLING AND EXPRESSLY ENTRUSTED WITH THE OPERATION
THEREOF.
All information and specifications printed in this manual are current at the time of printing. However,
because of Cleanfix' policy of continual product improvement, we reserve the right to make changes at
any time without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle RA 700 B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cleanfix Eagle RA 700 B

Summary of Contents for Cleanfix Eagle RA 700 B

  • Page 1 BEEN INSTRUCTED IN ITS HANDLING AND EXPRESSLY ENTRUSTED WITH THE OPERATION THEREOF. All information and specifications printed in this manual are current at the time of printing. However, because of Cleanfix’ policy of continual product improvement, we reserve the right to make changes at any time without notice.

  • Page 2: When The Machine Is Delivered

    SHIPMENT IS PICKED UP BY THE CARRIER. the wrapping for signs of damage. Unpack the Cleanfix will furnish any information needed to machine and inspect it for any possible damage. expedite the claim process.
  • Page 3 GENERAL PRECAUTIONS (continued) • • Never drive over power cords! Danger of When cleaning and servicing the machine, changing parts or converting to a different electric shock! function, turn off the drive and withdraw the • In elevators always turn-off unit with key and key from the key switch.

  • Page 4: Intended Use

    • Do not use the auto-scrubber on public • roadways. Modifications made to the auto-scrubber by the user releases Cleanfix from all liability • The autoscrubber is not to be used at for resulting damage. temperatures under 32°F (0°C). •...

  • Page 5: Installing The Batteries

    BEFORE USING THE AUTO-SCRUBBER QUICKGUIDE 1. Check that the machine is in proper 4. Fill the machine with clean water using a condition. clean bucket or a hose attached to a water source. 2. Remove obstacles, such as furniture etc. from the area to be cleaned. Large 5.

  • Page 6: Charging The Batteries

    BEFORE USING THE AUTO-SCRUBBER (cont.) CHARGING THE BATTERIES • • Turn machine off with the key switch and Connect cable of charger with battery cable. main switch. • Turn-on battery charger. • Empty recovery tank completely and tilt • Turn main switch on (D8). sideways.
  • Page 7 FUNCTIONAL PARTS AND ACCESSORIES Safety, Operation and Maintenance Manual for Eagle (RA 700 B / RA 701 B);...
  • Page 8 OPERATING THE AUTO-SCRUBBER Turn on the different applications in the following order by pressing switches: 1. Turn on main switch (D8) 2. Turn on key switch (B8) 3. Push button for solution (B3), if necessary adjust water flow (A7) 4. Push button for vacuum motor (B1) 5.

  • Page 9: Finishing The Job

    FINISHING THE JOB • Turn off the solution flow (B3). • Drain recovery tank completely. • Turn solution flow meter to “0” (A7). • Rinse recovery tank with clean water. • Turn of brushes (B2). • Clean below the machine with a damp cloth. •...

  • Page 10: Maintenance And Repair

    MAINTENANCE AND REPAIR • • Only do maintenance work described in Do not use pressure washer or steam this manual. cleaner on unit. • • Before repairing machine disconnect Always use original spare parts. any chargers attached and unplug • WARNING! Do not make any technical batteries from machine and turn of main alterations to auto-scrubber.
  • Page 11 3. Charging WARNING! Only use chargers approved by Cleanfix for charging. Safety, Operation and Maintenance Manual for Eagle (RA 700 B / RA 701 B);...
  • Page 12 INSTRUCTIONS FOR GEL AND LEAD-ACID BATTERIES (cont.) 4. Maintenance Maintenance-free, Lead-acid batteries sealed gel batteries − Charge battery/batteries after every discharge or partial discharge Daily − Visual inspection for dirt and mechanical damage. Weekly − Grease terminals with terminal grease (Vaseline) and check to ensure firm fit. −...

  • Page 13: Troubleshooting

    TROUBLESHOOTING WARNING Service and repairs should only be performed by authorized personnel. Symptom: Machine does not run! No power to the machine! Problem: Batteries not correctly installed in machine. Solution: Install batteries correctly in machine. Follow instructions give above (see page 5 + 11). Problem: Internal fuse or FI protection switch tripped.
  • Page 14 TROUBLESHOOTING (cont.) Symptom: Motors (vacuum, brush & pump) will not run! Problem: Faulty ON/OFF switch. Solution: Have an authorized service technician replace switch or switches. Problem: Loose wiring. Solution: Have an authorized service technician trace and repair. Problem: Faulty motor. Solution: Have an authorized service technician replace motor.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical specifications Technische gegevens Technische Daten Tekniska data Caracteristiques techniques Especificaciones técnicas Caratteristiche tecniche Dados Técnicos RA 700 B / RA 701 B Spannung Voltage 24 Volt Tension Bürstenmotor Brush motor 750 Watt Moteur de brosse Theoretische Flächenleistung Capacity 26,910 m2/h Surface possible à...
  • Page 16 No person, agent, representative or distributor the written warranty. Cleanfix will not be liable for any other is authorized to give any warranties on behalf of Cleanfix, or to damages, including but not limited to incidental, indirect or...
