  • Page 1 RA 300 E Swiss Made Quality. English BA 300.001 01 / 2012...

  • Page 2: Product Liability

    ● These operating instructions have been made for the instructions are also an important part of the proper operators of the RA 300 E. operation. Please get acquainted with the components, safety The appropriate accident prevention rules, as well as ☞...

  • Page 3: Optional Accessories

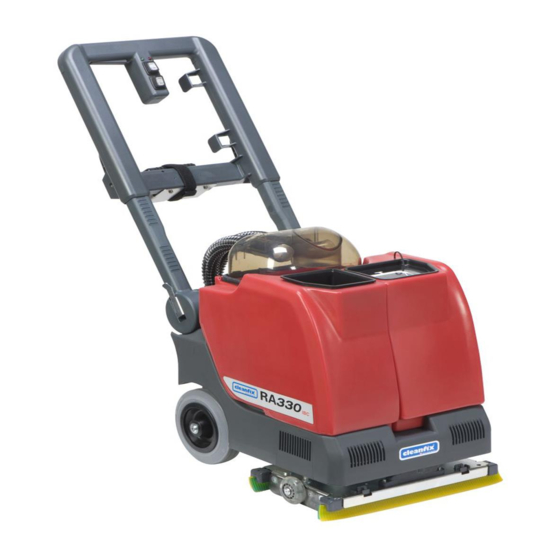

    Machine description RA 300 E Electrical cable with plug Pushbar (adjustable in height and in angle) Lever for height adjustment Knob for adjusting angle of the pushbar Switch for vacuuming Switch for brush drive Lever for spraying solution Tank cover...
  • Page 4 (12) and empty the waste uming switch (5), brush water. Remove membrane tank by drive (6) and lever for pulling the tab of the mem- spraying solution (7). brane tank upwards gently. English 8 RA 300 E - English...

  • Page 5: Maintenance

    Not enough water flow or no water ● leeding to the brushes. coming to the brushes Clean vacuuming filtre in the tank. ● Should the vacuum cleaner not work after checking above faults, please contact authorised service agent! English 8 RA 300 E - English...

  • Page 6: Declaration Of Conformity

    +A1:01+A2:05 (Cons. ed. 1.2) ( title and/or number and date of issue of the standard(s) ). following the provisions of Directive 2006 / 95 / EG - 2006 / 42 / EG - 2004 / 108 / EG RA 300 E - English...
  • Page 7 RA 300 E Cover As at: 07/07/15 Time:10:26...
  • Page 8 RA 300 E Cover As at: 07/07/15 Time:10:26 Pos. Description Reference 01 Tank cover complete - including: items 2-17 300.700 02 Bent tube 380.552 03 Tank cover 380.510 04 Ring for filter 380.556 05 Filter 400.766A 06 Partition complete - including: items 7-9 300.580...

  • Page 9: Handle Housing

    RA 300 E Handle housing As at: 07/07/15 Time:10:26...
  • Page 10 RA 300 E Handle housing As at: 07/07/15 Time:10:26 Pos. Description Reference 01 Handle housing 300.610 02 Cover for handle 300.620 03 Controlling lever 380.267 04 Switch 950.453 05 Cable tightener 380.252 06 PT-screw KA 40x16 mm P...516C 07 Mains cable Europe P...276...
  • Page 11 RA 300 E Pump As at: 07/07/15 Time:10:27...
  • Page 12 RA 300 E Pump As at: 07/07/15 Time:10:27 Pos. Description Reference 01 NDS-L - pump 220-240V 50Hz P...815 02 Ring P...815 H 03 Cover P...815 B 04 Counter ring P...809 N 05 Valve spring P...809 P 06 Valve cone P...810 S 07 Valve seating P...809 Q...

  • Page 13: Pump Assembly

    RA 300 E Pump assembly As at: 07/07/15 Time:10:27...
  • Page 14 RA 300 E Pump assembly As at: 07/07/15 Time:10:27 Pos. Description Reference 01 Brush motor 300.281 02 Motor fixing plate 300.357 03 PT-screw KA 40x16 mm P...516 G 04 Air canal cover 300.058 05 Air canal plate 300.061 06 Rubber clamp P...014 A...
  • Page 15 RA 300 E Suction nozzle As at: 07/07/15 Time:10:27...
  • Page 16 RA 300 E Suction nozzle As at: 07/07/15 Time:10:27 Pos. Description Reference 01 Angled connector P...533H 03 Sealing ring P...533I 04 Connection hose 640mm 300.165 05 Water canal isolation 300.081 06 Water canal 300.022 07 Rivet 3.2x16.2mm P...485B 08 Guide sleeve 300.435...
  • Page 17 RA 300 E Vaccum motor As at: 07/07/15 Time:10:27...
  • Page 18 RA 300 E Vaccum motor As at: 07/07/15 Time:10:27 Pos. Description Reference 01 Chassis cover 300.052 02 Suction motor P...870C 03 Pair of Charbon brushes P...870KB 04 Motor sealing ring P...971C 05 Sealing ring 380.019 06 Hose connection cap 380.021 07 Screw 2.9x9.5 mm...
  • Page 19 RA 300 E Wheel As at: 07/07/15 Time:10:27...
  • Page 20 RA 300 E Wheel As at: 07/07/15 Time:10:27 Pos. Description Reference 01 Bottom plate 300.111 02 Wheel 380.135 03 Distance piece 380.137 04 Washer M8 P...496Q 05 Screw DIN 912 M 8x60 mm P...487 Fa 06 Wheel cover 300.242 07 Isolation 300.065...
  • Page 21 RA 300 E Brushes As at: 07/07/15 Time:10:25...
  • Page 22 RA 300 E Brushes As at: 07/07/15 Time:10:25 Pos. Description Reference 01 Belt 300.121 02 Hexagon nut M8 P...490 E 03 Washer M8 P...497 T 04 Wheel 300.362 05 Hub S 24x12.8 mm 300.369 06 Washer Ø 22 mm 300.352 07 Bearing housing complete - including:items 8-10 300.365...

  • Page 23: Wiring Plan

    RA 300 E Wiring plan As at: 07/07/15 Time:10:27...
  • Page 24 RA 300 E Wiring plan As at: 07/07/15 Time:10:27 Pos. Description Reference BM Brush motor 300.281 C1 Working capactior P...385I C2 Capacitor P...387A. D Diode P Pump NDS-L P...815 S1 Tumbler switch brush motor - pump P...240M S2 Tumbler switch vacuum motor P...240...
