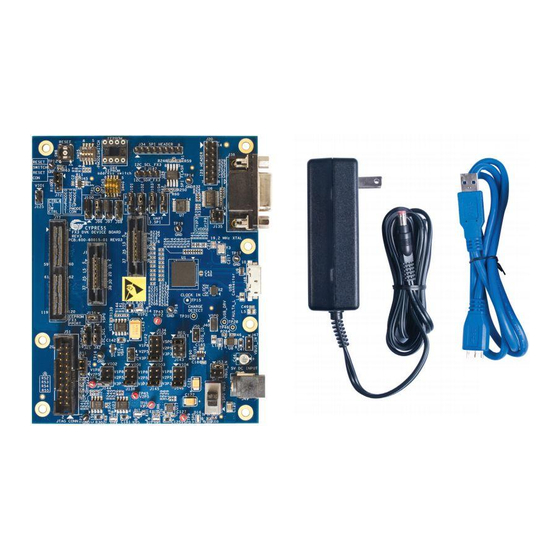

Cypress EZ-USB CYUSB3KIT-001 Quick Start Manual

CYUSB3KIT-001 EZ-USB
1

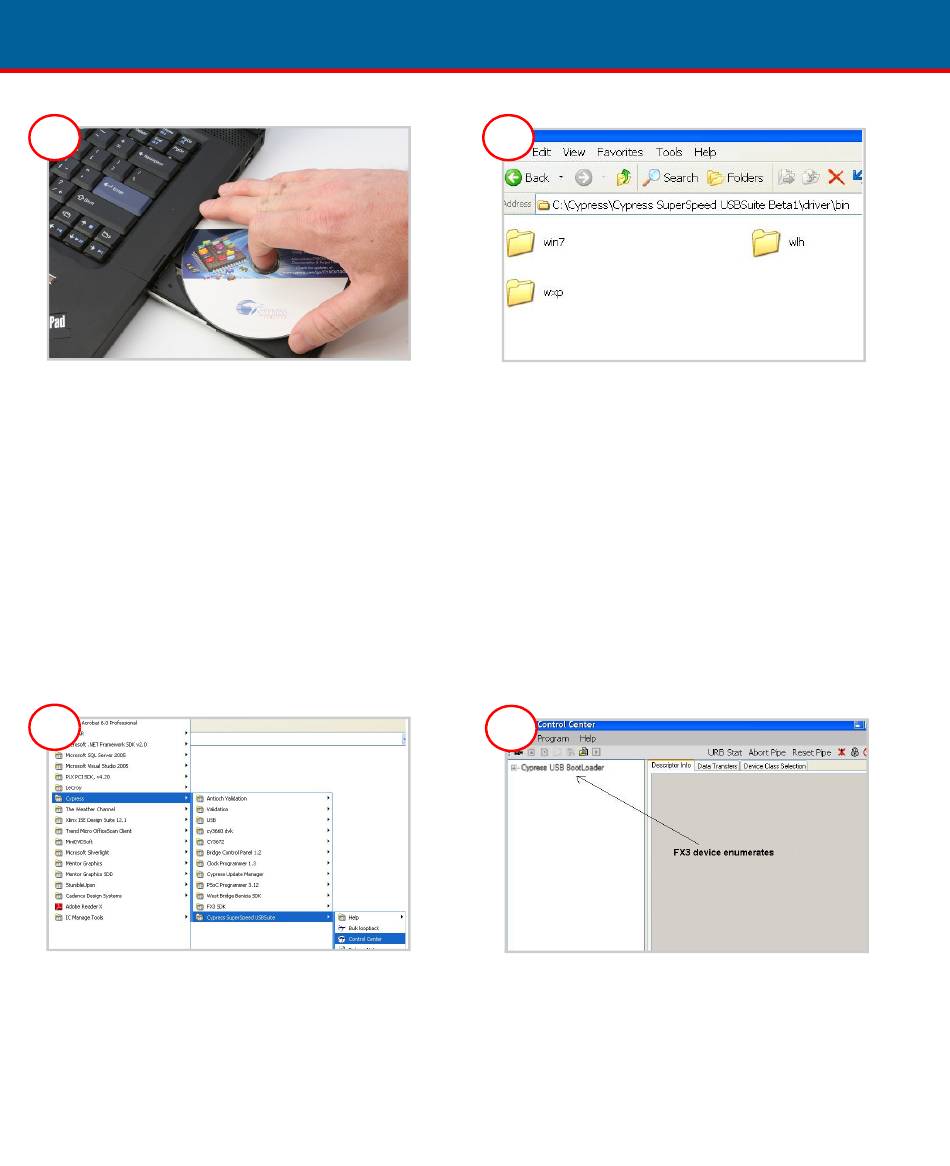

Install Software
1. Insert the kit CD into the CD/DVD-ROM
drive of your PC.
2. Install the FX3 SDK and Cypress Super-
Speed USBSuite software.
Note: For first time users, Cypress recom-
mends accepting the default options at each
stage of the setup.
3
Run Cyconsole EZ-USB
Run Cypress USB Control Center by clicking
Start > All Programs > Cypress > Cypress
SuperSpeed USBSuite > Control Center
®
FX3 DEVELOPMENT KIT
QUICK START GUIDE
2
Install Driver
1. Connect the board to your PC using the
USB cable provided with the kit.
2. Follow the prompts to install the driver.
The driver is located in C:\Cypress\Cypress
SuperSpeed USBSuite\driver\bin. Select a
driver based on the operating system.
Note: The Cypress Generic USB Driver is not
a digitally signed driver and Windows may
display a warning. Click Continue Anyway.
4
Confirm Successful Enumeration
1. The USB Control Center window opens.
2. The text in the left column reads "Cypress
USB BootLoader".
