INSTRUCTIONS FOR USE
Flowtron Excel
247933EN_10 • 12/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowtron Excel and is the answer not in the manual?

Questions and answers

Related Manuals for Arjo Flowtron Excel

Summary of Contents for Arjo Flowtron Excel

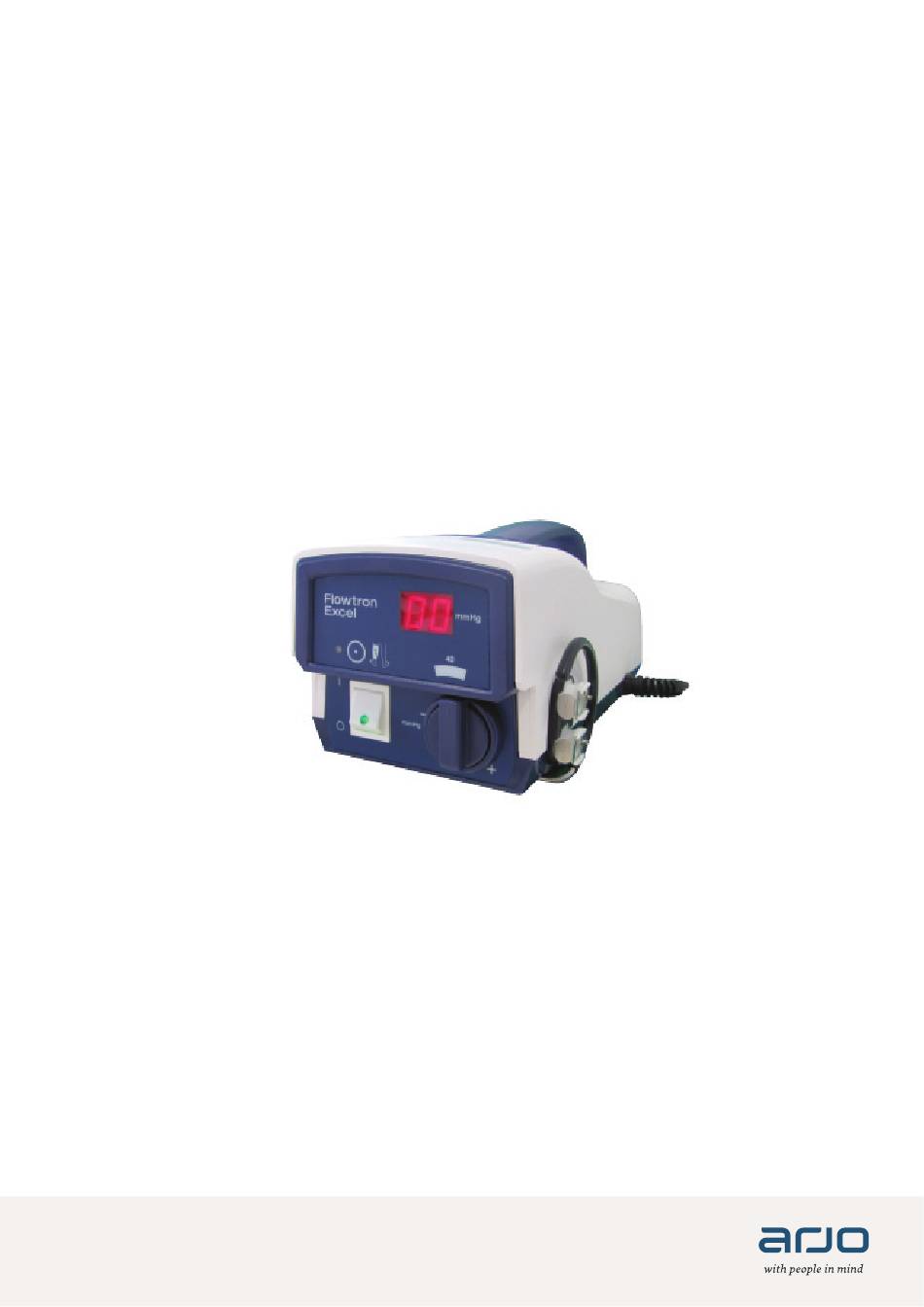

  • Page 1 INSTRUCTIONS FOR USE Flowtron Excel 247933EN_10 • 12/2020...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2020. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Flowtron Excel System ........
  • Page 4 Intentionally left blank (ii)

  • Page 5: General Safety

    • Do not use the pump in the presence of uncontained flammable liquids or gases. • Only the pump and garment/insert combination as indicated by Arjo should be used. The correct function of the product cannot be guaranteed if incorrect pump and garment combinations are used.
  • Page 6 Arjo. Do NOT use unapproved accessories or attempt to modify, disassemble or otherwise misuse the Flowtron Excel system. Failure to observe this caution could result in injury, or in extreme cases, death. End of Life Disposal •...

  • Page 7: Introduction

    Thrombosis (DVT). The garments are single patient use only. It is not for use in the home healthcare environment. The Flowtron Excel system should be used as part of a prescribed plan of care (refer to “Indications” on page 3).

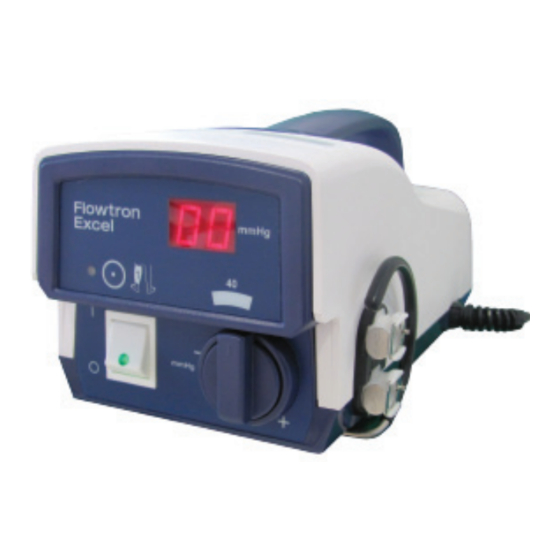

  • Page 8 Carry Handle Pressure Display Single Leg Mode Button and Indicator Garment Connectors Mains Power Switch Pressure Control Flowtron Excel Pump - Front View...

  • Page 9: Clinical Applications

    2. Clinical Applications Indications The application of the Flowtron Excel system is for the prevention of Deep Vein Thrombosis (DVT) when combined with an individualised monitoring programme. This system represent one aspect of a DVT strategy; if the patient's condition changes the overall therapy regimen should be reviewed by the prescribing clinician.

  • Page 10: Guidelines And Recommendations

    • The Flowtron Excel system should be applied to the DVT Prophylaxis patient pre-operatively, prior to the induction of anaesthesia.

  • Page 11: System Set Up

    3. System Set Up Installing the Pump Attach the pump to the bed frame using the bed bracket, or place the pump on the floor under the bed. Garment Application 1. Check that the mains power switch on the pump is in the off ( ) position.

  • Page 12: Pre-Use Check

    4. Pre-Use Check Before powering on the Flowtron Excel system, ensure that: • The pressure control knob has been set to the mid position marked 40 mmHg • Garments have been applied to the patient’s legs correctly, close-fitting and without creases or folds.

  • Page 13: Operation

    If the operation or performance of the pump changes during use, refer to “Troubleshooting - Alarm Condition” on page 11 of this IFU before calling a service engineer or contacting your local Arjo sales office. NOTE Loss of mains power will halt therapy.

  • Page 14: Pressure Adjustment

    The recommended pressure setting is 40 mmHg. Alternatively, use the pressure prescribed by the treating physician. The Flowtron Excel pump pressure monitoring system is independent of the pressure control and delivery system, providing added reliability and safety. The digital display indicates the actual pressure that is delivered to the garments, and provides immediate and continuous feedback regarding pump performance.

  • Page 15: Decontamination

    Healthcare Facility or the country of use. If you are uncertain, you should seek advice from your local Infection Control Specialist. The Flowtron Excel pump should be routinely decontaminated between patients and at regular intervals while in use, as is good practice for all reusable medical devices.

  • Page 16: Routine Maintenance

    Servicing Arjo component parts lists and other information necessary trained personnel to repair the system. Arjo recommends that the Flowtron Excel pump is Service Period Arjo serviced every 12 months by an authorised service Arjo agent.

  • Page 17: Troubleshooting - Alarm Condition

    9. Troubleshooting - Alarm Condition The Flowtron Excel system features an audible and visual alarm. If a problem occurs, the system will sense the fault and briefly flash a message on the front panel pressure display. If the same fault continues for 10 successive inflations, the audible alarm will sound and a flashing message will remain on the pressure display until corrective action is completed.

  • Page 18: Troubleshooting

    Troubleshooting Display Problem Corrective Action No displays, 1. Power failure. 1. Check mains power supply. no indications, Check power cable. no operation 2. Fuse blown. 2. Call the service engineer. Yellow LED on the top Internal electronic fault DO NOT USE PUMP. panel flashes Call the service engineer.

  • Page 19: Accessories

    10. Accessories GARMENTS AND TUBING Garment Size Description Part No. DVT10 Circumference up to 43cm (17”) Standard Calf Garment DVT20 Circumference up to 58cm (23”) Large Calf Garment DVT30 Circumference up to 71cm (28”) Standard Thigh Garment DVT40 Circumference up to 89cm (35”) Large Thigh Garment DVT60L Circumference...

  • Page 20: Technical Specification

    11. Technical Specification Table 1: Pump Supply Voltage and Frequency: 230V / 50 Hz, 230V / 60 Hz, 220V / 60 Hz, 120V / 60 Hz, 100V / 50 Hz 100V / 60 Hz Power Input: 35 VA MAX Size: 133 x 152 x 275 mm Weight: 2.7 kg...
  • Page 21 Symbols The operator must read this document Power: (Instructions for Use) before use. Disconnects from the mains (Off) Note: This symbol is blue on the product label. supply With respect to electric shock, fire and mechanical hazards only in accordance with CAN/CSA-C22.2 No.

  • Page 22: Electromagnetic Compatibility (Emc)

    EMI (electromagnetic interference) from external sources. Some procedures can help reduce electromagnetic interferences: • Use only Arjo cables and spare parts to avoid increased emissions or decreased immunity which can compromise the correct functioning of the equipment.
  • Page 23 Guidance and manufacturer’s declaration - electromagnetic immunity Immunity Test IEC 60601-1-2 Compliance Electromagnetic environment - guidance Test Level Level Electrostatic ±2kV, ±4kV, ±8kV, ±2kV, ±4kV, Floors should be wood, concrete or ceramic discharge ±15kV air ±8kV, ±15kV tile. If floors are covered with synthetic (ESD) material the relative humidity level should be at least 30%...
  • Page 24 Guidance and manufacturer’s declaration - electromagnetic immunity Surge ±0,5kV ±1kV; ±2 kV, ±0,5kV ±1kV; Mains power quality should be that of AC Mains, Line to ±2 kV, AC a typical commercial or hospital Ground Mains, Line environment. to Ground ±0,5kV ±1kV, ±0,5kV ±1kV, AC IEC 61000-4-5 AC Mains,...
  • Page 25 Intentionally left blank...
  • Page 26 Intentionally left blank...
  • Page 27 AUSTRALIA FRANCE Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi 11 Talavera Road CS 70133 Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Australia Tél: +33 (0) 3 20 28 13 13...
  • Page 28 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
