QMA401 User's Manual
1.4

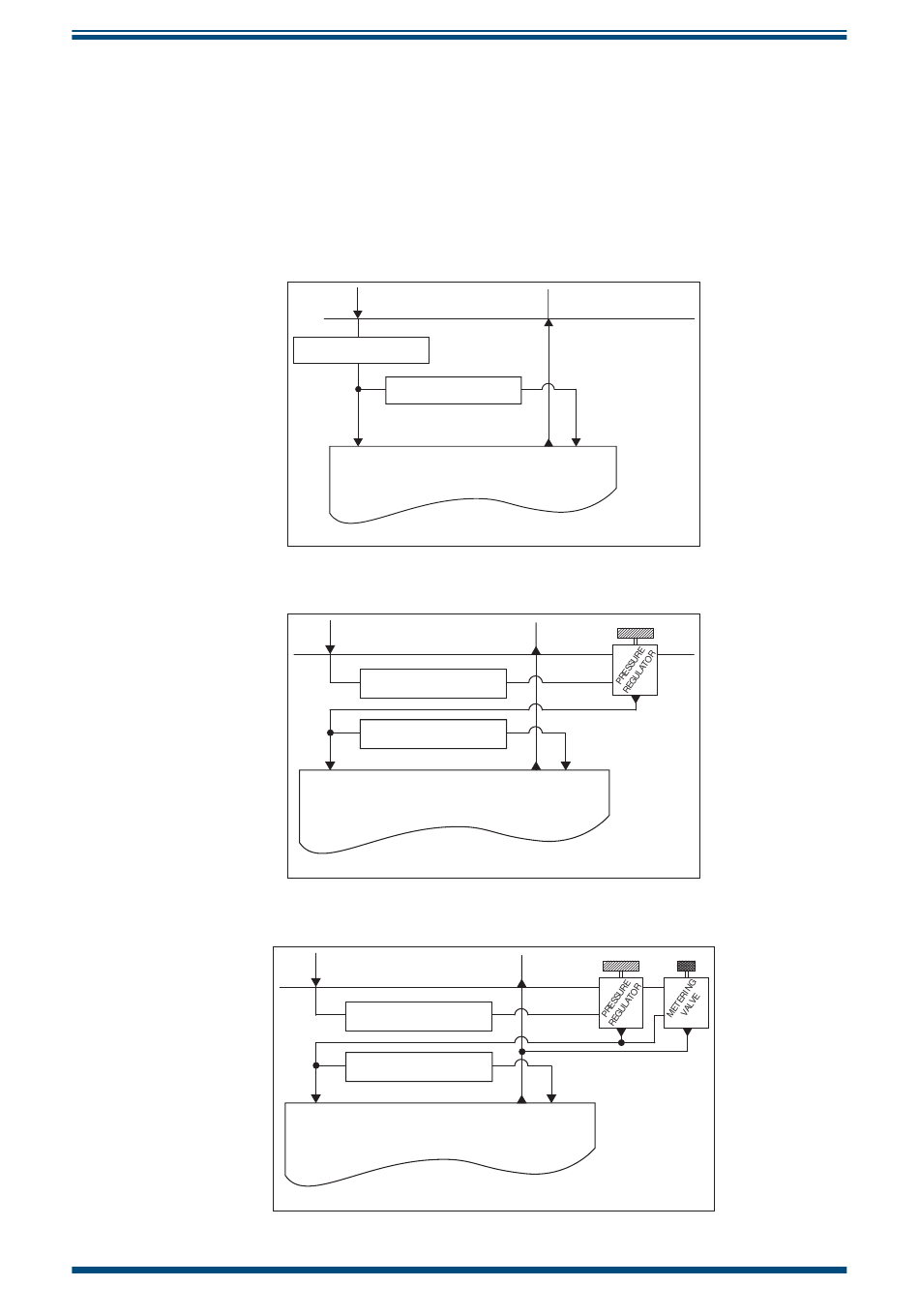

Internal Sampling Options
The QMA401 is available with a Pressure regulator, or a fast loop bypass with flow
control. Either of these options can be configured independently or together with either
an internal or external particulate filter:
•
Pressure regulator
•
Fast-loop bypass with flow control
Michell Instruments
GAS IN
FILTER
S0 - No sample system. With 15μm internal filtration
GAS IN
FILTER
DRYER
S1 - Input pressure regulator. With 15μm internal filtration
GAS IN
FILTER
DRYER
OVEN
S2 - Input pressure regulator and Fast-loop bypass with
flow control. With 15μm internal filtration
GAS OUT
DRYER
OVEN
GAS OUT
OVEN
GAS OUT
INTRODUCTION
3
