3
4
5
(b)

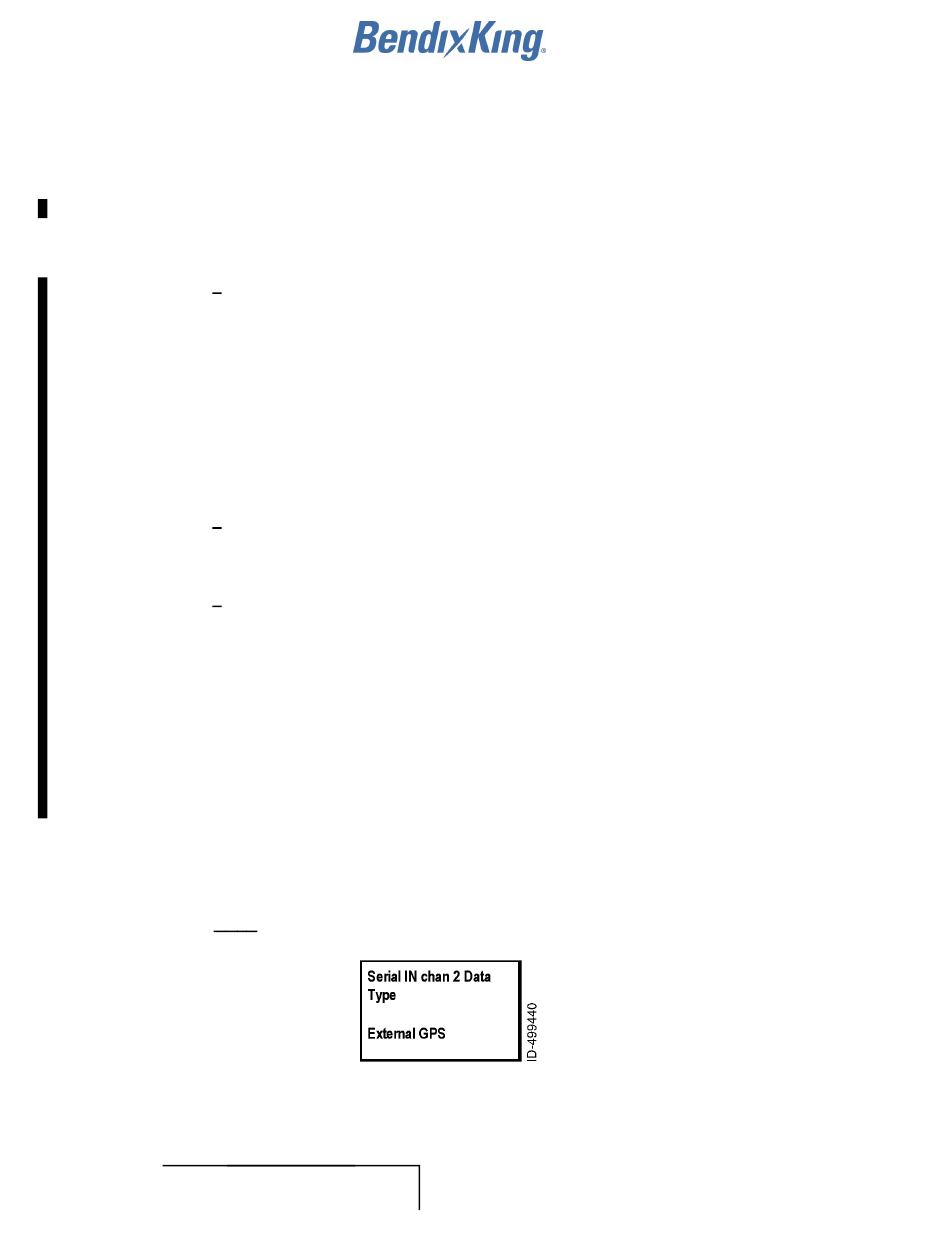

The display screen is as shown in Figure 3055 with one of the options from above.
(c)
Rotate the CODE knob either clockwise or counterclockwise to display the options above
and select the correct serial input type. Once selected, press the ENT key to confirm your
selection and move to the next configuration item in the configuration mode.
NOTE:
Figure 3055. (Sheet 1 of 1) Serial IN Channel X Data Type Display
(9)
Serial IN Channel X Line Speed
EFFECTIVITY
ALL
© Honeywell International Inc. Do not copy without express permission of Honeywell.
SYSTEM INSTALLATION MANUAL
89000016
• Air data computer
• Altitude encoder
• Control panel
• GTX remote
• TIS/FIS.
Channel 4:
• Not Used
• GPS-FreeFlight
• GPS-Aviation
• GPS-GNS ADS-B
• Air data computer
• Altitude encoder
• Control panel
• GTX remote.
Channel 5:
• Not Used
• TIS/FIS.
Channel 6:
• Not Used
• GPS-FreeFlight
• GPS-Aviation
• GPS-GNS ADS-B
• Air data computer
• Altitude encoder
• Control panel
• TIS/FIS.
If "not used" is selected then the serial input line speed configuration mode will
not be displayed and the next configuration mode item will be displayed.
Page 3046
22 Dec 2016
