BENDIXKing KY 96A Maintenance Manual

Vhf communication transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

h

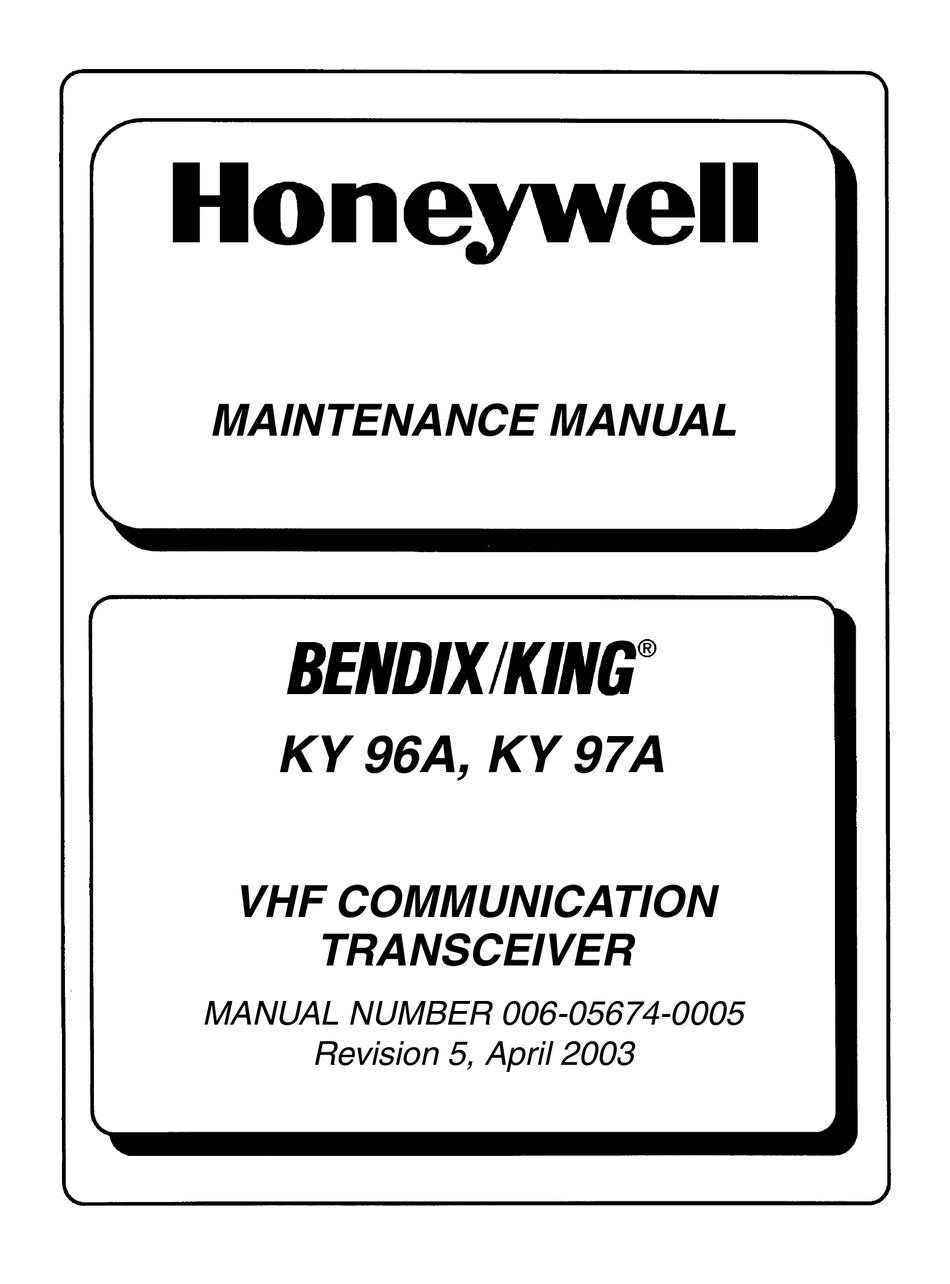

MAINTENANCE MANUAL
KY 96A, KY 97A
VHF COMMUNICATION
TRANSCEIVER
MANUAL NUMBER 006-05674-0005
Revision 5, April 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KY 96A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BENDIXKing KY 96A

Summary of Contents for BENDIXKing KY 96A

  • Page 1 MAINTENANCE MANUAL KY 96A, KY 97A VHF COMMUNICATION TRANSCEIVER MANUAL NUMBER 006-05674-0005 Revision 5, April 2003...
  • Page 2 WARNING THE ENCLOSED TECHNICAL DATA IS ELIGIBLE FOR EXPORT UNDER LICENSE DESIGNATION NLR AND IS TO BE USED SOLELY BY THE INDIVIDUAL/ ORGANIZA- TION TO WHOM IT IS ADDRESSED. DIVERSION CONTRARY TO U.S. LAW IS PRO- HIBITED. COPYRIGHT NOTICE ©1989, 1992, 1994, 1997, 2003 HONEYWELL INTERNATIONAL INC. REPRODUCTION OF THIS PUBLICATION OR ANY PORTION THEREOF BY ANY MEANS WITHOUT THE EXPRESS WRITTEN PERMISSION OF HONEYWELL IS PROHIBITED.
  • Page 3 KY 96A, KY 97A REVISION HISTORY MAINTENANCE MANUAL BENDIX/KING KY 96A, KY 97A VHF Communication Transceiver PART NUMBER DATE DESCRIPTION --------------------------------------------------------------------------------------------------------------------- 006-05674-0005 Apr/2003 Incorporated -0020 SW/HW versions. 006-05674-0004 Apr/1994 Incorporated IM Rev 3. 006-05674-0003 Jan/1994 Revised Section VI. Incorporated IM Rev 2.
  • Page 4 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd RH-2...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS KY 96A, KY 97A SECTION IV THEORY OF OPERATION Paragraph Page General ....................4-1 General Circuit Theory................4-1 Detailed Theory of Operation..............4-3 LIST OF ILLUSTRATIONS Figure Page Receiver Block Diagram ................ 4-13 Transmitter Block Diagram ..............4-15 Microprocessor Block Diagram..............

  • Page 6: List Of Illustrations

    Illustrated Parts List ................6-17 6.4.1 KY 96A VHF Communication Transceiver..........6-17 6.4.2 KY 97A VHF Communication Transceiver..........6-41 6.4.3 KY 96A, KY 97A Unit Software Set ............6-53 6.4.4 LCD Processor Board................6-57 6.4.5 KY 97A (14V) Modulator Assembly ............6-71 6.4.6 KY 96A (28V) Modulator Assembly ............
  • Page 7 Assembly..(Dwg 300-07799-0001) ..6-223 6-16C KY 96A (28V) Main Board Assembly..(Dwg 300-07799-0001) ..6-227 6-17 KY 96A, KY 97A Main Board Schem..(Dwg 002-07799-0000) ..6-231 6-17A KY 96A, KY 97A Main Board Schem..(Dwg 002-07799-0000) ..6-249...
  • Page 8 TABLE OF CONTENTS KY 96A, KY 97A APPENDIX S SOFTWARE/ HARDWARE CONFIGURATION LIST OF ILLUSTRATIONS Figure Page KY 96A Software/ Hardware Configuration ..........S-3 KY 97A Software/ Hardware Configuration ..........S-9 Rev 5, Apr 2003 MM 006-05674-0005.dwd TOC-4...

  • Page 9: Theory Of Operation

    THEORY OF OPERATION GENERAL The KY 96A, KY 97A Comm Transceiver is comprised of: A. A single conversion VHF receiver utilizing a four pole varactor tuned prese- lector, field effect transistors for the RF amplifier and mixer, an 8 pole mono- lithic crystal IF filter and integrated circuit IF amplifier.
  • Page 10 KY 96A, KY 97A It proceeds through the low pass filter which attenuates all audio frequencies above 2.5 kHz. The audio signal is fed through the volume control to the integrated circuit audio pre-amplifier. Its output will provide more than 100 milliwatts to a headphone, or to an external audio mixer/amplifier.

  • Page 11: Detailed Theory Of Operation

    KY 96A, KY 97A DETAILED THEORY OF OPERATION Refer to schematics in Section VI of this manual. 4.3.1 Receiver 4.3.1.1 Antenna Input Circuit In the receive mode Q101 is switched on, forward biasing the T/R diodes located on the transmitter board. The desired signal passes through the first pole of the low pass filter, then to the T/R diodes, and then to the receiver board.
  • Page 12 KY 96A, KY 97A The desired signal is coupled from T102 to the first IF amplifier, I101. The first IF am- plifier has about 45 dB of gain with 60 dB of dynamic range. IF AGC voltage is applied to I101 on pin 5 through R124. R124 converts the AGC voltage to an AGC current.
  • Page 13 KY 96A, KY 97A the input signal to the noise amp is shorted to ground, causing the noise squelch circuit to be inhibited. Transistor Q112 amplifies the noise from the collector of the detector and limits its am- plitude so that impulse spikes (such as ignition noise) will not be of a higher amplitude than other noise.
  • Page 14 KY 96A, KY 97A 4.3.2.1 Synthesizer The stabilized master oscillator is based around synthesizer I103 which is serial pro- grammable by the microprocessor. A 3.975 MHz crystal is attached to the gate oscillator, and the reference divider divides it by 159 to produce the 25 kHz reference frequency. The RF frequency is divided by the internal pre-scaler and divider then compared by the phase detector to the refer- ence frequency.
  • Page 15 Q123 is the regulating transistor and on the 28 volt versions Q122 is used to buffer the regulating transistor. The KY 96A drops the modulator bias an additional 6.2 volts through CR123. R251, R254, and R256 set the regulated voltage, with R256 being adjustable.
  • Page 16 Q125 with R247 being the current limit resistor. 4.3.3.6 Modulator (28 Volts KY 96A) The audio signal is applied to the primary of T108, which has a 4 to 1 turns ratio. This steps up the voltage swing to the bases of the modulator transistors Q124 and Q130 enough to make a 1 to 12 V swing on the transmitter final and driver.
  • Page 17 KY 96A, KY 97A The microprocessor (uP), pin 32, sends two 24 bit serial data streams to the synthe- sizer PLL IC (I103) on the main board. Only the last 20 bits are used by the synthe- sizer PLL IC. The first stream provides the crystal divide ration and the second pro- vides the frequency to be divided.
  • Page 18 KY 96A, KY 97A The display is a liquid crystal (LCD) type with three sections (“USE,” “STBY,” and “CHAN”). The “USE” frequency, which is the active frequency, is displayed in the “USE” window at all times. A standby frequency, which can be exchanged with the “USE”...
  • Page 19 KY 96A, KY 97A auxiliary inputs to the desired level to be fed to the Mic Intercom input. C1207 filters high frequency noise and C1210 filters low frequency noise. The output of the sum- ming amplifier is routed through the main board Mic Intercom input and back through the main board Comm Audio Out.
  • Page 20 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 4-12...

  • Page 21: Receiver Block Diagram

    KY 96A, KY 97A FIGURE 4-1 Receiver Block Diagram (Dwg No 696-5674-01 Rev 0) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 4-13...

  • Page 22: Transmitter Block Diagram

    KY 96A, KY 97A FIGURE 4-2 Transmitter Block Diagram (Dwg No 696-5674-02 Rev 0) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 4-15...

  • Page 23: Microprocessor Block Diagram

    KY 96A, KY 97A FIGURE 4-3 Microprocessor Block Diagram (Dwg No 696-5674-03 Rev 0) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 4-17...

  • Page 24: General Information

    GENERAL INFORMATION This section contains information on tests, alignment, inspection, cleaning, repair and troubleshooting procedures for the KY 96A, KY 97A. Before maintenance of the KY 96A, KY 97A is attempted, a thorough understanding of the theory of operation (Section IV) is recommended.

  • Page 25: Linear Detector

    KY 96A, KY 97A TABLE 5-1 Required Test Equipment TYPE CHARACTERISTICS REPRESENTATIVE MODELS Linear Detector Figure 5-2 Mic Test Circuit Figure 5-3 40 dB Attenuator Figure 5-4 Bench Test Harness Figure 5-5 TABLE 5-2 Optional Test Equipment TYPE CHARACTERISTICS REPRESENTATIVE MODELS Distortion Analyzer 5.2.2...
  • Page 26 KY 96A, KY 97A FIGURE 5-1 Typical Test Equipment Setup Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 5-3...

  • Page 27: Performance Test Procedure

    KY 96A, KY 97A PERFORMANCE TEST PROCEDURE This section is a cover on return-to-service performance test. The unit shall pass this performance test after removal of covers, modification, alignment, or repair of the unit before return to service. The performance test can also be used to locate faults within the radio.
  • Page 28 KY 96A, KY 97A NOTE: Disable the audio compressor by grounding pin 10 on P96A1, P97A1. 5.3.2.A. Sensitivity: 5.3.2.A.1 Input a 2 uV standard audio test signal into the unit and monitor receiver audio while switching modulation off. S+N/N: 118.000 MHz ______ NLT 6dB 126.975 MHz ______ NLT 6dB...
  • Page 29 KY 96A, KY 97A is referenced to 1 kHz, compressor enabled. (This is an optional test that re- quires a distortion analyzer). 5.3.2.F. Audio Response: 350 Hz = ___NMT 6dB down 1 kHz = ___ 0dB 2.5 kHz = ___NMT 6dB down Input a 100 uV standard audio test signal into the unit.
  • Page 30 KY 96A, KY 97A After 2 minutes continuous key: NOTE: Units with Mic-key Disable will shut down transmitter after 2 minutes. To ex- tend transmit time re-key transmitter. 118.00 MHz ______ 1.25 watts Min. 13.75 V units ______ 1.25 watts Min. 27.5 V units 126.97 MHz...
  • Page 31 KY 96A, KY 97A 350 Hz = ___NMT 6dB down 1 kHz = ___ 0 2.5 kHz = ___NMT 6dB down Input a standard modulator signal, except voltage is 0.2 Vrms, into Mic Audio. Monitor the audio output. 5.3.3.B.5 Demodulated Audio Response:...

  • Page 32: Alignment Procedure

    ______ % (NMT 15%) ALIGNMENT PROCEDURE The following procedure is for aligning a KY 96A, KY 97A to meet the minimum per- formance specifications. If partial alignment is desired, use only the initial control set- tings that apply to the section being aligned.
  • Page 33 KY 96A, KY 97A 5.4.3 VCO Adjust Set frequency to 135.975 MHz and put unit in transmit mode. Adjust the Tx frequency to 135.975 MHz using C134. This should be done with- in 60 seconds of turn on. Put unit in receive mode. Read voltage at TP102 and adjust T105 for 7.1 volts.

  • Page 34: Overhaul

    KY 96A, KY 97A Load L107 tune L105 Load L105 tune L107 Adjust T101, T102, T103, and T104 for maximum ACG voltage. During the above adjustments, the RF signal should be reduced to keep the AGC voltage near 4.75 volts.
  • Page 35 KY 96A, KY 97A 5.5.2.3 Clean electrical contacts with a burnishing tool or cloth lightly moistened with an approved contact cleaner. 5.5.2.4 Clean the receptacles and plugs with a hand controlled dry air jet (not more than 25 psi) and a clean, lint-free cloth, lightly moistened with an approved cleaning agent.
  • Page 36 KY 96A, KY 97A FIGURE 5-2 Linear Detector FIGURE 5-3 Mic Test Circuit Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 5-13...
  • Page 37 KY 96A, KY 97A FIGURE 5-4 40 dB Attenuator Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 5-14...
  • Page 38 KY 96A, KY 97A FIGURE 5-5 Bench Test Harness Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 5-15...

  • Page 39: Introduction

    KY 96A, KY 97A SECTION VI ILLUSTRATED PARTS LIST 1000 INTRODUCTION The Illustrated Parts List (IPL) contains parts lists of assemblies and discrete components re- quired for the unit. The IPL provides the proper identification and part number of each replace- ment part.
  • Page 40 KY 96A, KY 97A Table 6-1: Reference Designator Abbreviations Ferrite Bead Filter Feedthru Integrated Circuit Item (Non-electrical) Jack, Fixed Connector Relay Inductor Meter, Transistor Mixer Plug, Removable Connector Transistor Resistor Reference Document Resistor Network Thermistor Varistor Switch Socket Switch Transformer...

  • Page 41: Software Documentation

    KY 96A, KY 97A 6.2.3 PART NUMBER COLUMN The part number column contains the Honeywell part number for each part. Special purpose part number series may appear in the parts list and are described below. 6.2.3.1 U401 122-XXXXX-9999 PLACE HOLDER Circuit U401 is a programmed device with a -9999 place holder.
  • Page 42 KY 96A, KY 97A Table 6-2: Description Abbreviations Ampere, Amplifier Antenna ASSY Assembly Board BIFLR Bifilar Black Blue Bill of Material (= Parts List) Brown Cable Carbon Composite Carbon Film Chip, Choke Capacitor CER, CR Ceramic Circuit CNTCT Contact CONN...
  • Page 43 KY 96A, KY 97A Table 6-2: Description Abbreviations Fixed Composition FERR Ferrite Field Effect Transistor Flat Head Phillips FLTR Filter FREQ Frequency Feedthru Gigahertz Ground Green Gray Header Hardware High Frequency High Voltage Half Watt Hardware Integrated Circuit ID, IDT...
  • Page 44 KY 96A, KY 97A Table 6-2: Description Abbreviations Milliamp Monolithic Ceramic Microfarad Millihenry Megahertz Modification Metal Oxide Semiconductor Minimum Performance Specification Mylar Nanofarad Negative-Positive-Negative transistor type OCTAL Eight OP AMP Operational Amplifier ORG, ORN Orange Oscillator Power Amplifier Polycarbonate, Printed Circuit...
  • Page 45 KY 96A, KY 97A Table 6-2: Description Abbreviations PRGA Programmable Gate Array PROM Programmable Read Only Memory Polystyrene, Power Supply Power QUAD Four Quarter Watt Random Access Memory RCVR Receiver RECPT Receptacle Reference Regulator Resistor Radio Frequency Read Only Memory...
  • Page 46 KY 96A, KY 97A Table 6-2: Description Abbreviations Synthesizer SYNC Synchronizer System TCXO Temperature Controlled Crystal Oscillator TERM Terminal Tantalum Test Point Three TRML Terminal TRNSB Transorber TST PT Test Point TURR Turret Tenth Watt Transmit, Transmitter Integrated Circuit Microamp...
  • Page 47 KY 96A, KY 97A Table 6-2: Description Abbreviations Weather XFMR Transformer XMIT Transmit, Transmitter XSTR Transistor XTAL Crystal Yellow Zener 6.2.6 ASSEMBLY (A) COLUMN An “A” in this column indicates that the part is a sub-assembly. Each sub-assembly has a sep- arate parts lists following the parent assembly.
  • Page 48 KY 96A, KY 97A vice sets. The 122-XXXXX-XXXX P/N series designates discrete programmed devices within the 126- P/N and 125- P/N device sets. The top unit parts list contains the 206- P/N unit software/hardware configuration set. In some cases, specific versions of 206- P/N unit SW/HW configuration sets must be used in specific versions of unit part numbers.
  • Page 49 KY 96A, KY 97A 6.3.2.1.1 For 9-digit 205-WWWW-RN board labels, the first 7 digits are contained on a label part number 057-050WW-00WW, and the last two digits are specified by 057-05252-00RN. The revision number (RN) of the 205-WWWW-RN and the 057-05252-00RN part numbers are in- cremented when the revision number of any 125-0XXXX-XXRN part number is incremented.
  • Page 50 KY 96A, KY 97A The 126- P/N non-software programmable device sets that fulfill hardware requirements ap- pear on the 200- P/N or 300- P/N parts list. 6.3.3.2 The 122- P/N programmed devices: The 122- P/N programmed devices appear on the 200- P/N or 300- P/N parts list. These ref- erences resolve device location on the board.
  • Page 51 KY 96A, KY 97A Figure 6-0 Sample Parts List (Sheet 1 of 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-13...
  • Page 52 KY 96A, KY 97A Figure 6-0 Sample Parts List (Sheet 2 of 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-14...
  • Page 53 KY 96A, KY 97A Figure 6-0 Sample Parts List (Sheet 3 of 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-15...
  • Page 54 KY 96A, KY 97A Figure 6-0 Sample Parts List (Sheet 4 of 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-16...

  • Page 55: Find No Description

    KY 96A, KY 97A ILLUSTRATED PARTS LIST 6.4.1 KY 96A VHF Communication Transceiver 064-01052-0010 96A 25KHZ SEL REV AB 064-01052-0011 96A 50KHZ SEL REV AB 064-01052-0030 96A 25K SEL 136975 REV AB 064-01052-0099 COMMOM BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER...
  • Page 56 150-00103-0000 SLDR SLEEVE 2.00 200-04271-0000 28V MODULATOR ASSY 1.00 200-07479-0000 LCD DISPLAY BD 1.00 200-07540-0001 KY 96A 28V 5W TX B 1.00 200-07799-0021 96A MN BD 25K FUJI 1.00 1.00 200-07799-0023 96A MN BD 50K FUJI 1.00 206-00021-0020 TOP SW BOM, KY96A/ 1.00...

  • Page 57: Bushing

    KY 96A, KY 97A 064-01052-0031 96A 50K SEL 136975 REV AB 064-01052-0050 96A 25KHZ W/AUDAMP REV AB 064-01052-0051 96A 50KHZ W/AUDAMP REV AB 064-01052-0099 COMMOM BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0031 -0050 -0051 -0099 ------------------------------------------------------------------------------------...
  • Page 58 200-04271-0000 28V MODULATOR ASSY 1.00 200-07475-0000 LCD PROCESSOR BD 1.00 200-07479-0000 LCD DISPLAY BD 1.00 200-07540-0001 KY 96A 28V 5W TX B 1.00 200-07797-0000 AUDIO AMP BOARD 1.00 1.00 200-07799-0021 96A MN BD 25K FUJI 1.00 200-07799-0023 96A MN BD 50K FUJI 1.00...
  • Page 59 KY 96A, KY 97A 064-01052-0060 96A 25KHZ36975W/AM REV AB 064-01052-0061 96A50KHZ36975W/AMP REV AB 064-01052-0070 KY96A FINAL ASSY REV AF 064-01052-0099 COMMOM BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0060 -0061 -0070 -0099 ------------------------------------------------------------------------------------ I108 120-03026-0000 IC MC7805CT 1.00...
  • Page 60 200-04271-0000 28V MODULATOR ASSY 1.00 1.00 200-07479-0000 LCD DISPLAY BD 1.00 200-07479-0001 LCD DISPLAY BD 1.00 200-07540-0001 KY 96A 28V 5W TX B 1.00 1.00 200-07797-0000 AUDIO AMP BOARD 1.00 1.00 1.00 200-07799-0021 96A MN BD 25K FUJI 1.00 1.00...
  • Page 61 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-23...
  • Page 62 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-24...
  • Page 63 KY 96A, KY 97A FIGURE 6-1 KY 96A Final Assembly (Sht 1 of 2) (Dwg No 300-04268-0000, Rev AG, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-25...
  • Page 64 KY 96A, KY 97A FIGURE 6-1 KY 96A Final Assembly (Sht 2 of 2) (Dwg No 300-04268-0000, Rev AG, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-27...
  • Page 65 KY 96A, KY 97A FIGURE 6-1A KY 96A Final Assembly (Sht 1 of 2) (Dwg No 300-04268-0000, Rev 12, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-29...
  • Page 66 KY 96A, KY 97A FIGURE 6-1A KY 96A Final Assembly (Sht 2 of 2) (Dwg No 300-04268-0000, Rev 12, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-31...
  • Page 67 KY 96A, KY 97A FIGURE 6-1B KY 96A Final Assembly (Sht 1 of 2) (Dwg No 300-04268-0000, Rev 11, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-33...
  • Page 68 KY 96A, KY 97A FIGURE 6-1B KY 96A Final Assembly (Sht 2 of 2) (Dwg No 300-04268-0000, Rev 11, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-35...
  • Page 69 KY 96A, KY 97A FIGURE 6-1C KY 96A Final Assembly (Sht 1 of 2) (Dwg No 300-04268-0000, Rev 8, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-37...
  • Page 70 KY 96A, KY 97A FIGURE 6-1C KY 96A Final Assembly (Sht 2 of 2) (Dwg No 300-04268-0000, Rev 8, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-39...

  • Page 71: Ky 97A Vhf Communication Transceiver

    KY 96A, KY 97A 6.4.2 KY 97A VHF Communication Transceiver 064-01051-0010 97A 25 KHZ SEL REV AB 064-01051-0011 97A 50 KHZ SEL REV AB 064-01051-0030 97A 25K SEL 136975 REV AB 064-01051-0099 COMMON BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER...
  • Page 72 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0010 -0011 -0030 -0099 ------------------------------------------------------------------------------------ 150-00072-0004 SLDR SLEEVE .62 2.00 150-00103-0000 SLDR SLEEVE 2.00 200-04270-0000 14V MODULATOR ASSY 1.00 200-07479-0000 LCD DISPLAY BD 1.00 200-07540-0000 KY97A 14V 5W TX BD 1.00...

  • Page 73: Shrink Tubing Wht In Spiroband In Sldr Sleeve

    KY 96A, KY 97A 064-01051-0031 97A 50K SEL 136975 REV AB 064-01051-0050 97A 25KHZ W/AUDAMP REV AB 064-01051-0051 97A 50KHZ W/AUDAMP REV AB 064-01051-0099 COMMON BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0031 -0050 -0051 -0099 ------------------------------------------------------------------------------------...

  • Page 74: Sldr Sleeve

    KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0031 -0050 -0051 -0099 ------------------------------------------------------------------------------------ 150-00103-0000 SLDR SLEEVE 2.00 200-04270-0000 14V MODULATOR ASSY 1.00 200-07479-0000 LCD DISPLAY BD 1.00 200-07540-0000 KY97A 14V 5W TX BD 1.00 200-07797-0000 AUDIO AMP BOARD 1.00...
  • Page 75 KY 96A, KY 97A 064-01051-0060 97A25KHZ36975W/AMP REV AB 064-01051-0061 97A50KHZ36975W/AMP REV AB 064-01051-0070 KY97A FINAL ASSY REV AF 064-01051-0099 COMMON BOM REV AD ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0060 -0061 -0070 -0099 ------------------------------------------------------------------------------------ I108 120-03026-0000 IC MC7805CT 1.00 1.00...
  • Page 76 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0060 -0061 -0070 -0099 ------------------------------------------------------------------------------------ 091-00286-0002 INSUL XSTR .687 2.00 2.00 150-00049-0010 SHRINK TUBING WHT 1.25 1.25 150-00060-0001 SPIROBAND 5.25 5.25 150-00072-0004 SLDR SLEEVE .62 2.00 2.00 150-00103-0000 SLDR SLEEVE 2.00...
  • Page 77 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-47...
  • Page 78 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-48...
  • Page 79 KY 96A, KY 97A FIGURE 6-2 KY 97A Final Assembly (Sht 1 of 2) (Dwg No 300-04268-0001, Rev AG, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-49...
  • Page 80 KY 96A, KY 97A FIGURE 6-2 KY 97A Final Assembly (Sht 2 of 2) (Dwg No 300-04268-0001, Rev AG, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-51...

  • Page 81: Ky 96A, Ky 97A Unit Software Set

    KY 96A, KY 97A 6.4.3 KY 96A, KY 97A Unit Software Set 206-00021-0020 TOP SW BOM, KY96A/97A REV - 206-00022-0020 TOP SW BOM, KY96A/97A REV - ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0020 ---------------------------------------------------------------------- 057-03284-0020 SCM TAG 1.00 1.00...
  • Page 82 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-54...
  • Page 83 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. NOTE: Programmed chip P/N 122-00605-0000 is actually I702. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-55...
  • Page 84 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-56...

  • Page 85: Lcd Processor Board

    KY 96A, KY 97A 6.4.4 LCD Processor Board 200-07475-0000 LCD PROCESSOR BD REV 0 200-07475-0001 LCD PROC 136.975 REV 1 200-07475-0099 LCD PROC COMMON REV AB ----------------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0099 ----------------------------------------------------------------------------- C701 106-04121-0026 CAPCH120PFNPO/100V 1.00...
  • Page 86 KY 96A, KY 97A ----------------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0099 ----------------------------------------------------------------------------- R722 139-04752-0000 RES CH 47.5K EW 1% 1.00 R723 139-02742-0000 RES CHIP 27.4KEW1% 1.00 R724 139-04752-0000 RES CH 47.5K EW 1% 1.00 R725 139-04752-0000 RES CH 47.5K EW 1% 1.00...
  • Page 87 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-59...
  • Page 88 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-60...
  • Page 89 KY 96A, KY 97A FIGURE 6-3 LCD Processor Board Assembly (Dwg No 300-07475-0000, Rev AA) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-61...
  • Page 90 KY 96A, KY 97A FIGURE 6-3A LCD Processor Board Assembly (Dwg No 300-07475-0000, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-63...
  • Page 91 KY 96A, KY 97A FIGURE 6-4 LCD Processor Board Schematic (Dwg No 002-07475-0000, Rev AB) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-65...
  • Page 92 KY 96A, KY 97A FIGURE 6-4A LCD Processor Board Schematic (Dwg No 002-07475-0000, Rev 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-67...
  • Page 93 KY 96A, KY 97A FIGURE 6-4B LCD Processor Board Schematic (Dwg No 002-07475-0000, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-69...

  • Page 94: Ky 97A (14V) Modulator Assembly

    KY 96A, KY 97A 6.4.5 KY 97A (14V) Modulator Assembly 200-04270-0000 14V MODULATOR ASSY REV AA --------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 --------------------------------------------------------------- C266 111-00001-0001 CAP CR .1UF 50V 1.00 Q124 007-00168-0000 XSTR PNP 2N4398 1.00 REF1 300-04270-0000...
  • Page 95 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-72...
  • Page 96 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-73...
  • Page 97 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-74...
  • Page 98 KY 96A, KY 97A FIGURE 6-5 KY 97A (14V) Modulator Assembly (Dwg No 300-04270-0000, Rev AA) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-75...
  • Page 99 KY 96A, KY 97A FIGURE 6-5A KY 97A (14V) Modulator Assembly (Dwg No 300-04270-0000, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-77...

  • Page 100: Ky 96A (28V) Modulator Assembly

    KY 96A, KY 97A 6.4.6 KY 96A (28V) Modulator Assembly 200-04271-0000 28V MODULATOR ASSY REV AA --------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 --------------------------------------------------------------- C266 111-00001-0001 CAP CR .1UF 50V 1.00 Q124 007-00963-0000 XSTR MJ11012 NPN 1.00 Q130 007-00963-0000 XSTR MJ11012 NPN 1.00...
  • Page 101 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-80...
  • Page 102 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-81...
  • Page 103 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-82...
  • Page 104 KY 96A, KY 97A FIGURE 6-6 KY 96A (28V) Modulator Assembly (Dwg No 300-04271-0000, Rev AB) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-83...
  • Page 105 KY 96A, KY 97A FIGURE 6-6A KY 96A (28V) Modulator Assembly (Dwg No 300-04271-0000, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-85...

  • Page 106: Lcd Display Board

    KY 96A, KY 97A 6.4.7 LCD Display Board 200-07479-0000 LCD DISPLAY BD REV AC 200-07479-0001 LCD DISPLAY BD REV AC ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 ---------------------------------------------------------------------- C801 106-04104-0047 CH 100KX7R/50V 1.00 1.00 C802 113-03121-0000 CAP DC 120PF 500V 1.00...
  • Page 107 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-88...
  • Page 108 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-89...
  • Page 109 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-90...
  • Page 110 KY 96A, KY 97A FIGURE 6-7 LCD Display Board Assembly (Dwg No 300-07479-0000, Rev AC) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-91...
  • Page 111 KY 96A, KY 97A FIGURE 6-7A LCD Display Board Assembly (Dwg No 300-07479-0000, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-93...
  • Page 112 KY 96A, KY 97A FIGURE 6-7B LCD Display Board Assembly (Dwg No 300-07479-0000, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-95...
  • Page 113 KY 96A, KY 97A FIGURE 6-7C LCD Display Board Assembly (Dwg No 300-07479-0000, Rev 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-97...
  • Page 114 KY 96A, KY 97A FIGURE 6-8 LCD Display Board Schematic (Dwg No 002-07479-0000, Rev AB) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-99...
  • Page 115 KY 96A, KY 97A FIGURE 6-8A LCD Display Board Schematic (Dwg No 002-07479-0000, Rev 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-101...
  • Page 116 KY 96A, KY 97A FIGURE 6-8B LCD Display Board Schematic (Dwg No 002-07479-0000, Rev 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-103...

  • Page 117: Transmitter Board

    KY 96A, KY 97A 6.4.8 Transmitter Board 200-07540-0000 KY97A 14V 5W TX BD REV 4 200-07540-0001 KY96A 28V 5W TX BD REV 4 200-07540-0099 KY96A/97A COM TX BD REV AB ----------------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0099...
  • Page 118 KY 96A, KY 97A ----------------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0099 ----------------------------------------------------------------------------- L404 013-00006-0001 FERR BEAD 1.00 L405 013-00006-0001 FERR BEAD 1.00 L406 999-09999-0098 PLACE HOLDER L407 019-02084-0005 CH .22UH 10% 1.00 L408 013-00006-0001 FERR BEAD 1.00...
  • Page 119 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-107...
  • Page 120 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-108...
  • Page 121 KY 96A, KY 97A FIGURE 6-9 KY 97A (14V) Transmitter Board Assembly (Dwg No 300-07540-0000, Rev AA) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-109...
  • Page 122 KY 96A, KY 97A FIGURE 6-9A KY 97A (14V) Transmitter Board Assembly (Dwg No 300-07540-0000, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-111...
  • Page 123 KY 96A, KY 97A FIGURE 6-9B KY 97A (14V) Transmitter Board Assembly (Dwg No 300-07540-0000, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-113...
  • Page 124 KY 96A, KY 97A FIGURE 6-10 KY 97A (14V) Transmitter Board Schematic (Dwg No 002-07540-0000, Rev 7) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-115...
  • Page 125 KY 96A, KY 97A FIGURE 6-10A KY 97A (14V) Transmitter Board Schematic (Dwg No 002-07540-0000, Rev 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-117...
  • Page 126 KY 96A, KY 97A FIGURE 6-10B KY 97A (14V) Transmitter Board Schematic (Dwg No 002-07540-0000, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-119...
  • Page 127 KY 96A, KY 97A FIGURE 6-11 KY 96A (28V) Transmitter Board Assembly (Dwg No 300-07540-0001, Rev AA) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-121...
  • Page 128 KY 96A, KY 97A FIGURE 6-11A KY 96A (28V) Transmitter Board Assembly (Dwg No 300-07540-0001, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-123...
  • Page 129 KY 96A, KY 97A FIGURE 6-11B KY 96A (28V) Transmitter Board Assembly (Dwg No 300-07540-0001, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-125...
  • Page 130 KY 96A, KY 97A FIGURE 6-12 KY 96A (28V) Transmitter Board Schematic (Dwg No 002-07540-0001, Rev 6) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-127...
  • Page 131 KY 96A, KY 97A FIGURE 6-12A KY 96A (28V) Transmitter Board Schematic (Dwg No 002-07540-0001, Rev 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-129...
  • Page 132 KY 96A, KY 97A FIGURE 6-12B KY 96A (28V) Transmitter Board Schematic (Dwg No 002-07540-0001, Rev 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-131...
  • Page 133 KY 96A, KY 97A FIGURE 6-12C KY 96A (28V) Transmitter Board Schematic (Dwg No 002-07540-0001, Rev 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-133...

  • Page 134: Audio Amplifier Board

    KY 96A, KY 97A 6.4.9 Audio Amplifier Board 200-07797-0000 AUDIO AMP BOARD REV 9 --------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 --------------------------------------------------------------- C1201 106-04121-0026 CAPCH120PFNPO/100V 1.00 C1202 106-04121-0026 CAPCH120PFNPO/100V 1.00 C1203 106-04121-0026 CAPCH120PFNPO/100V 1.00 C1204 106-04121-0026 CAPCH120PFNPO/100V 1.00 C1205...
  • Page 135 KY 96A, KY 97A --------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 --------------------------------------------------------------- R1215 139-02742-0000 RES CHIP 27.4KEW1% 1.00 R1216 139-04320-0000 RES CH 432 EW 1% 1.00 R1217 139-06811-0000 RES CH 6.81K EW 1% 1.00 R1218 139-01002-0000 RES CHIP 10K EW 1% 1.00...
  • Page 136 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-137...
  • Page 137 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-138...
  • Page 138 KY 96A, KY 97A FIGURE 6-13 Audio Amplifier Board Assembly (Dwg No 300-07797-0000, Rev AB) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-139...
  • Page 139 KY 96A, KY 97A FIGURE 6-13A Audio Amplifier Board Assembly (Dwg No 300-07797-0000, Rev 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-141...
  • Page 140 KY 96A, KY 97A FIGURE 6-14 Audio Amplifier Board Schematic (Dwg No 002-07797-0000, Rev AA) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-143...
  • Page 141 KY 96A, KY 97A FIGURE 6-14A Audio Amplifier Board Schematic (Dwg No 002-07797-0000, Rev 4) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-145...
  • Page 142 KY 96A, KY 97A FIGURE 6-14B Audio Amplifier Board Schematic (Dwg No 002-07797-0000, Rev 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-147...

  • Page 143: Main Board

    KY 96A, KY 97A 6.4.10 Main Board 200-07799-0000 97A MAIN BD 25KHZ REV AB 200-07799-0001 96A MAIN BD 25KHZ REV AB 200-07799-0002 97A MAIN BD 50KHZ REV AA 200-07799-0099 COMMON BOM REV CK ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION...
  • Page 144 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ C158 097-00108-0021 CAP EL 1.OUF 50V 1.00 C159 106-04151-0026 CH 150PF NPO/100V 1.00 C160 106-04104-0047 CH 100KX7R/50V 1.00 C161 106-04102-0026 CH 1KPF NPO/100V 1.00...
  • Page 145 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ C220 097-00108-0007 CAP EL 10UF 16V 1.00 C221 097-00108-0021 CAP EL 1.OUF 50V 1.00 C222 106-04104-0047 CH 100KX7R/50V 1.00 C223 999-09999-0098 PLACE HOLDER C224...
  • Page 146 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ CR106 007-06222-0000 DIO DAN202K 1.00 CR107 007-06222-0000 DIO DAN202K 1.00 CR108 007-05039-0002 DIO Z 40.2V 1.00 CR109 007-06222-0000 DIO DAN202K 1.00 CR110 007-06222-0000 DIO DAN202K 1.00...
  • Page 147 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ L128 013-00028-0001 FERR BEAD W/LEAD 1.00 1.00 L129 999-09999-0098 PLACE HOLDER L130 013-00028-0001 FERR BEAD W/LEAD 1.00 L132 019-02084-0027 CH 1.8UH 10% 1.00 L133...
  • Page 148 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ R1019 139-00750-0000 RES CH 75.0 EW 1% 1.00 R102 139-01002-0000 RES CHIP 10K EW 1% 1.00 R1020 139-01003-0000 RES CHIP 100KEW1% 1.00 R1021 130-05027-0033 RES CH 2.7 QW 5%...
  • Page 149 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ R158 139-06812-0000 RES 68.1K EW 1% 1.00 R159 139-02212-0000 RES CHIP 22.1KEW1% 1.00 R160 139-03322-0000 RES CH 33.2K EW 1% 1.00 R161 139-03921-0000 RES CH 3.92K EW 1% 1.00...
  • Page 150 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ R221 133-00351-0004 POTENTIOMETER 10K 1.00 R222 139-01501-0000 RES CH 1.5K EW 1% 1.00 R223 139-03922-0000 RES CH 39.2K EW 1% 1.00 R224 130-05101-0033 RES CH 100 QW 5% 1.00...
  • Page 151 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ R281 139-02210-0000 RES CH 221 EW 1% 1.00 R282 139-01001-0000 RES CHIP 1K EW 1% 1.00 R283 139-01002-0000 RES CHIP 10K EW 1% 1.00...
  • Page 152 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0000 -0001 -0002 -0099 ------------------------------------------------------------------------------------ 150-00005-0010 TUBING TFLN 20AWG 6.40 150-00103-0000 SLDR SLEEVE 2.00 155-02031-0027 JUMPER CABLE 9C 1.00 155-02031-0030 JUMPER CABLE 9C 1.00 200-07799-0099 COMMON BOM 1.00 1.00 1.00...
  • Page 153 KY 96A, KY 97A 200-07799-0003 96A MAIN BD 50KHZ REV AA 200-07799-0099 COMMON BOM REV CK ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- C101 106-04473-0047 CAP CH 47K X7R/50V 1.00 C102 106-05399-0020 CH 3.9PF NPO/100V 1.00 C103 106-05479-0020 CH 4.7PF NPO/100V...
  • Page 154 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- C166 096-01082-0057 CAP TN 1UF 35V 1.00 C167 097-00149-0001 CAP AL 1000UF 50V 1.00 C168 097-00109-0006 CAP EL 100UF 16V 1.00 C169 106-04473-0047 CAP CH 47K X7R/50V 1.00...
  • Page 155 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- C229 106-04102-0026 CH 1KPF NPO/100V 1.00 C230 111-00001-0006 CAP CR .47UF 50V 1.00 C231 106-04221-0026 CAP CH220PFNPO/100 1.00 C232 106-04102-0026 CH 1KPF NPO/100V 1.00 C233 106-04101-0026 CH 100PF NPO/100V 1.00...
  • Page 156 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- CR115 007-05117-0017 DIO Z 16V SOT 1.00 CR116 999-09999-0098 PLACE HOLDER CR117 007-06228-0000 RF SWITCHING DIODE 1.00 CR118 007-05117-0023 DIO Z 30V SOT 1.00 CR119 999-09999-0098...
  • Page 157 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- Q105 007-00195-0001 XSTR MPSH10 1.00 Q106 007-00195-0001 XSTR MPSH10 1.00 Q107 007-00195-0001 XSTR MPSH10 1.00 Q108 007-00579-0000 XSTR 2SK241 1.00 Q109 007-00195-0001 XSTR MPSH10 1.00 Q110...
  • Page 158 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- R109 139-00475-0000 RES CH 47.5 EW 1% 1.00 R110 139-05622-0000 RES CH 56.2K EW 1% 1.00 R111 139-04322-0000 RES CHIP 43.2KEW1% 1.00 R112 139-05622-0000 RES CH 56.2K EW 1% 1.00...
  • Page 159 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- R172 999-09999-0098 PLACE HOLDER R173 139-01002-0000 RES CHIP 10K EW 1% 1.00 R174 139-04752-0000 RES CH 47.5K EW 1% 1.00 R175 139-03652-0000 RES CHIP 36.5KEW1% 1.00...
  • Page 160 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- R236 139-01002-0000 RES CHIP 10K EW 1% 1.00 R237 139-04753-0000 RES CH 475K EW 1% 1.00 R238 139-04753-0000 RES CH 475K EW 1% 1.00 R239 139-02212-0000 RES CHIP 22.1KEW1%...
  • Page 161 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0003 -0099 ---------------------------------------------------------------------- T102 019-08080-0000 XFMR IF 15PF 1.00 T103 019-08102-0000 XFMR IF 27PF 1.00 T104 019-08103-0000 XFMR IF 1.00 T105 019-02328-0081 3.5 TURN CT 1.00 T106 999-09999-0098 PLACE HOLDER...
  • Page 162 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-168...
  • Page 163 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-169...
  • Page 164 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-170...
  • Page 165 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-171...
  • Page 166 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-172...
  • Page 167 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-173...
  • Page 168 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-174...
  • Page 169 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-175...
  • Page 170 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-176...
  • Page 171 KY 96A, KY 97A THIS PAGE CONTAINS OLD REVISION BOMS, FOR REFERENCE ONLY. Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-177...
  • Page 172 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-178...
  • Page 173 KY 96A, KY 97A 200-07799-0020 97A MNBD 25K FUJI REV D 200-07799-0021 96A MN BD 25K FUJI REV D 200-07799-0022 97A MN BD 50K FUJI REV B 200-07799-0099 COMMON BOM REV CK ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020...
  • Page 174 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ C163 106-04104-0047 CH 100KX7R/50V 1.00 C164 106-04102-0026 CH 1KPF NPO/100V 1.00 C165 106-04102-0026 CH 1KPF NPO/100V 1.00 C166 096-01082-0057 CAP TN 1UF 35V 1.00...
  • Page 175 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ C225 106-04121-0026 CAPCH120PFNPO/100V 1.00 C226 106-04331-0026 CAPCH330PFNPO/100V 1.00 C227 106-04121-0026 CAPCH120PFNPO/100V 1.00 C228 106-04121-0026 CAPCH120PFNPO/100V 1.00 C229 106-04102-0026 CH 1KPF NPO/100V 1.00 C230 111-00001-0006 CAP CR .47UF 50V...
  • Page 176 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ CR111 999-09999-0098 PLACE HOLDER CR112 007-06223-0000 DIO DUAL SWITCHING 1.00 CR113 007-06222-0000 DIO DAN202K 1.00 CR114 007-06181-0000 DIO DUAL MMBD2835 1.00 CR115 007-05117-0017 DIO Z 16V SOT 1.00...
  • Page 177 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ L135 019-02084-0000 CH .15UH 5% 1.00 L136 019-02084-0005 CH .22UH 10% 1.00 L137 019-02084-0009 CH .33UH 10% 1.00 Q101 007-00254-0001 XSTR S PNP SOT-23 1.00...
  • Page 178 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ R1024 130-05000-0025 RES CHIP 0 EW CJ 1.00 R1025 130-05000-0025 RES CHIP 0 EW CJ 1.00 R103 139-01211-0000 RES CHIP1.21KEW1% 1.00 R104 139-04750-0000 RES CH 475 EW 1% 1.00...
  • Page 179 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ R164 139-04752-0000 RES CH 47.5K EW 1% 1.00 R165 139-03322-0000 RES CH 33.2K EW 1% 1.00 R166 139-01003-0000 RES CHIP 100KEW1% 1.00 R167 139-01002-0000 RES CHIP 10K EW 1% 1.00...
  • Page 180 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ R227 139-04752-0000 RES CH 47.5K EW 1% 1.00 R228 139-04752-0000 RES CH 47.5K EW 1% 1.00 R229 139-00150-0000 RES CH 15 EW 1% 1.00...
  • Page 181 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ R288 139-01000-0000 RES CHIP 100 EW 1% 1.00 R289 139-05620-0000 RES CH 562 EW 1% 1.00 R290 139-01000-0000 RES CHIP 100 EW 1% 1.00...
  • Page 182 KY 96A, KY 97A ------------------------------------------------------------------------------------ SYMBOL PART NUMBER FIND NO DESCRIPTION -0020 -0021 -0022 -0099 ------------------------------------------------------------------------------------ 200-08506-0004 PC BOARD 1.00 200-08939-0000 FILTER BD 1.00 Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-188...
  • Page 183 KY 96A, KY 97A 200-07799-0023 96A MN BD 50K FUJI REV B 200-07799-0099 COMMON BOM REV CK ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- A101 200-08777-0010 SONY REPLACEMENT 1.00 C101 106-04473-0047 CAP CH 47K X7R/50V 1.00 C102 106-05399-0020 CH 3.9PF NPO/100V...
  • Page 184 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- C168 097-00109-0006 CAP EL 100UF 16V 1.00 C169 106-04473-0047 CAP CH 47K X7R/50V 1.00 C170 106-04473-0047 CAP CH 47K X7R/50V 1.00 C171 106-04473-0047 CAP CH 47K X7R/50V 1.00...
  • Page 185 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- C231 106-04221-0026 CAP CH220PFNPO/100 1.00 C232 106-04102-0026 CH 1KPF NPO/100V 1.00 C233 106-04101-0026 CH 100PF NPO/100V 1.00 C236 111-00001-0026 CAP CR .33UF 50V 1.00 C237 096-01082-0040 CAP TN 3.3UF 35V...
  • Page 186 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- CR117 007-06228-0000 RF SWITCHING DIODE 1.00 CR118 007-05117-0023 DIO Z 30V SOT 1.00 CR119 999-09999-0098 PLACE HOLDER CR120 007-06222-0000 DIO DAN202K 1.00 CR121 999-09999-0098 PLACE HOLDER...
  • Page 187 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- Q108 007-00579-0000 XSTR 2SK241 1.00 Q109 007-00195-0001 XSTR MPSH10 1.00 Q110 007-00195-0001 XSTR MPSH10 1.00 Q111 007-00195-0001 XSTR MPSH10 1.00 Q112 007-00187-0002 XSTR SOT-23 2N5089 1.00...
  • Page 188 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- R112 139-05622-0000 RES CH 56.2K EW 1% 1.00 R113 139-02000-0000 RES CH 200 EW 1% 1.00 R114 139-01000-0000 RES CHIP 100 EW 1% 1.00 R115 139-01003-0000 RES CHIP 100KEW1% 1.00...
  • Page 189 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- R175 139-03652-0000 RES CHIP 36.5KEW1% 1.00 R176 133-00351-0004 POTENTIOMETER 10K 1.00 R177 139-02742-0000 RES CHIP 27.4KEW1% 1.00 R178 139-05111-0000 RES CHIP 5.11KEW1% 1.00 R179 139-05111-0000 RES CHIP 5.11KEW1% 1.00...
  • Page 190 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- R239 139-02212-0000 RES CHIP 22.1KEW1% 1.00 R240 139-00221-0000 RES CH 22.1 EW 1% 1.00 R241 139-01001-0000 RES CHIP 1K EW 1% 1.00 R242 139-01002-0000 RES CHIP 10K EW 1% 1.00...
  • Page 191 KY 96A, KY 97A ---------------------------------------------------------------------- SYMBOL PART NUMBER FIND NO DESCRIPTION -0023 -0099 ---------------------------------------------------------------------- T105 019-02328-0081 3.5 TURN CT 1.00 T106 999-09999-0098 PLACE HOLDER T107 019-05083-0000 XFMR AUD 1.00 T108 019-05084-0001 XFMR MOD 900T 1.00 T109 999-09999-0098 PLACE HOLDER T110...
  • Page 192 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-198...
  • Page 193 KY 96A, KY 97A FIGURE 6-15 KY 97A (14V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0000, Rev BH, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-199...
  • Page 194 KY 96A, KY 97A FIGURE 6-15 KY 97A (14V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0000, Rev BH, Sht 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-201...
  • Page 195 KY 96A, KY 97A FIGURE 6-15A KY 97A (14V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0000, Rev 18) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-203...
  • Page 196 KY 96A, KY 97A FIGURE 6-15A KY 97A (14V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0000, Rev 18) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-205...
  • Page 197 KY 96A, KY 97A FIGURE 6-15B KY 97A (14V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0000, Rev 17) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-207...
  • Page 198 KY 96A, KY 97A FIGURE 6-15B KY 97A (14V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0000, Rev 17) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-209...
  • Page 199 KY 96A, KY 97A FIGURE 6-15C KY 97A (14V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0000, Rev 7) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-211...
  • Page 200 KY 96A, KY 97A FIGURE 6-15C KY 97A (14V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0000, Rev 7) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-213...
  • Page 201 KY 96A, KY 97A FIGURE 6-16 KY 96A (28V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0001, Rev BJ, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-215...
  • Page 202 KY 96A, KY 97A FIGURE 6-16 KY 96A (28V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0001, Rev BJ, Sht 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-217...
  • Page 203 KY 96A, KY 97A FIGURE 6-16A KY 96A (28V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0001, Rev 18) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-219...
  • Page 204 KY 96A, KY 97A FIGURE 6-16A KY 96A (28V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0001, Rev 18) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-221...
  • Page 205 KY 96A, KY 97A FIGURE 6-16B KY 96A (28V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0001, Rev 17) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-223...
  • Page 206 KY 96A, KY 97A FIGURE 6-16B KY 96A (28V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0001, Rev 17) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-225...
  • Page 207 KY 96A, KY 97A FIGURE 6-16C KY 96A (28V) Main Board Assembly (Sht 1 of 2) (Dwg No 300-07799-0001, Rev 7) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-227...
  • Page 208 KY 96A, KY 97A FIGURE 6-16C KY 96A (28V) Main Board Assembly (Sht 2 of 2) (Dwg No 300-07799-0001, Rev 7) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-229...
  • Page 209 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 1 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 1) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-231...
  • Page 210 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 2 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 1, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-233...
  • Page 211 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 3 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 1, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-235...
  • Page 212 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 4 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 2) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-237...
  • Page 213 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 5 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 2, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-239...
  • Page 214 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 6 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 2, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-241...
  • Page 215 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 7 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-243...
  • Page 216 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 8 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 3, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-245...
  • Page 217 KY 96A, KY 97A FIGURE 6-17 KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 9 of 9) (Dwg No 002-07799-0000, Rev BG, Sht 3, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-247...
  • Page 218 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 1 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 1, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-249...
  • Page 219 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 2 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 1, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-251...
  • Page 220 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 3 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 2, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-253...
  • Page 221 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 4 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 2, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-255...
  • Page 222 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 5 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 3, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-257...
  • Page 223 KY 96A, KY 97A FIGURE 6-17A KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 6 of 6) (Dwg No 002-07799-0000, Rev 22, Sht 3, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-259...
  • Page 224 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 1 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 1, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-261...
  • Page 225 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 2 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 1, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-263...
  • Page 226 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 3 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 2, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-265...
  • Page 227 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 4 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 2, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-267...
  • Page 228 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 5 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 3, Sect A) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-269...
  • Page 229 KY 96A, KY 97A FIGURE 6-17B KY 96A, KY 97A (28V_14V) Main Board Schematic (Sht 6 of 6) (Dwg No 002-07799-0000, Rev 19, Sht 3, Sect B) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page 6-271...
  • Page 230 KY 96A, KY 97A APPENDIX S SOFTWARE/ HARDWARE CONFIGURATION Rev 5, Apr 2003 MM 006-05674-0005.dwd...
  • Page 231 KY 96A, KY 97A THIS PAGE RESERVED Rev 5, Apr 2003 MM 006-05674-0005.dwd...
  • Page 232 KY 96A, KY 97A FIGURE S-1 KY 96A Software/ Hardware Configuration (Sht 1 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-3...
  • Page 233 KY 96A, KY 97A FIGURE S-1 KY 96A Software/ Hardware Configuration (Sht 2 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-5...
  • Page 234 KY 96A, KY 97A FIGURE S-1 KY 96A Software/ Hardware Configuration (Sht 3 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-7...
  • Page 235 KY 96A, KY 97A FIGURE S-2 KY 97A Software/ Hardware Configuration (Sht 1 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-9...
  • Page 236 KY 96A, KY 97A FIGURE S-2 KY 97A Software/ Hardware Configuration (Sht 2 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-11...
  • Page 237 KY 96A, KY 97A FIGURE S-2 KY 97A Software/ Hardware Configuration (Sht 3 of 3) Rev 5, Apr 2003 MM 006-05674-0005.dwd Page S-13...

Table of Contents
