7.6 CN11 STLINK-V3E USB Micro-B connector
The CN11 USB connector is used to connect the onboard STLINK-V3E facility to the PC for flashing and
debugging software.
Terminal
1
2
3
UM2651 - Rev 2
Description
DP

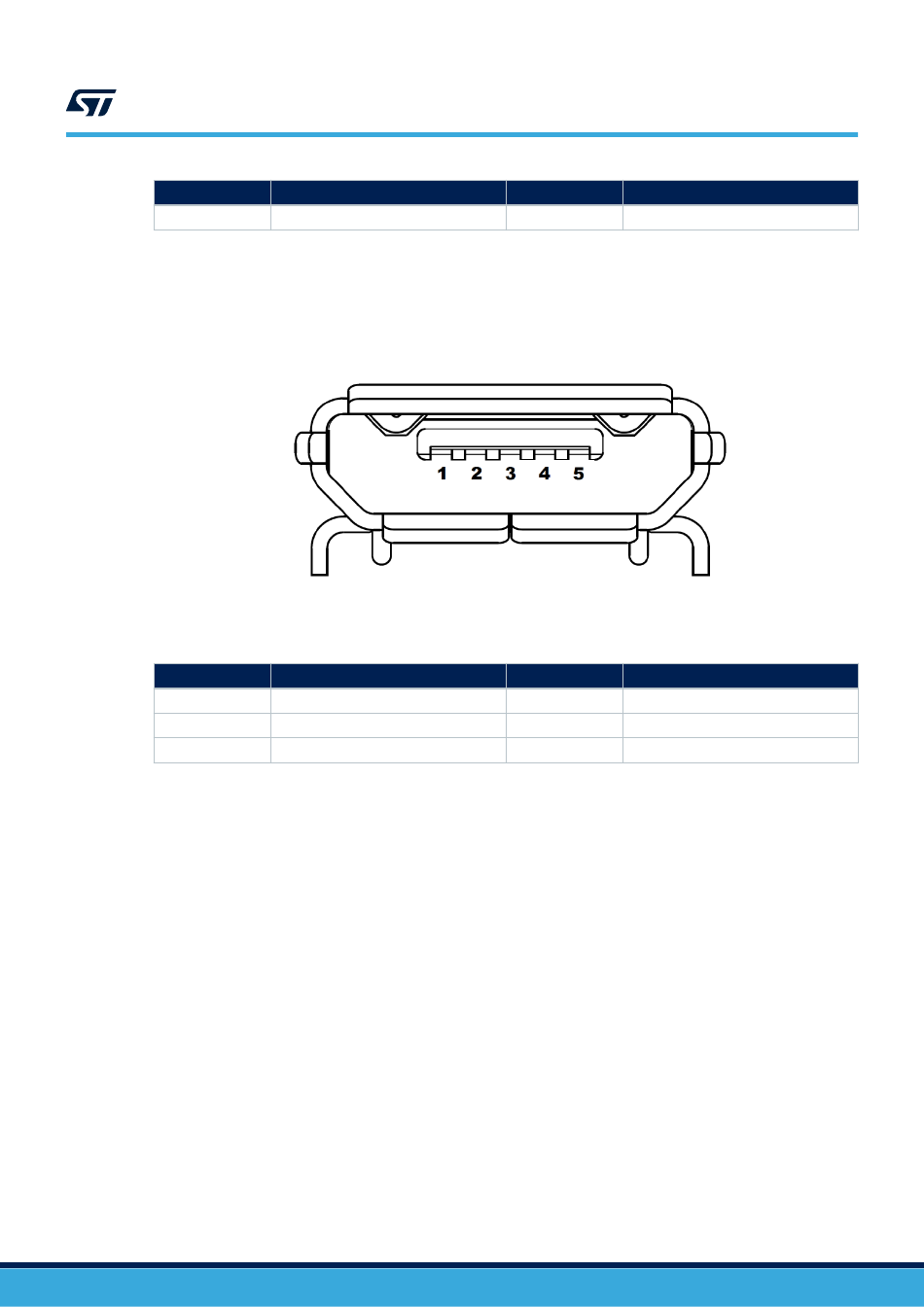

Figure 11. CN11 Micro-B connector (Top view)
Table 12. CN11 USB Micro-B connector pinout
Description
VBUS (Power)
DM
DP
CN11 STLINK-V3E USB Micro-B connector
Pin number
- -
Terminal
4 ID
5 GND
6 - 11 Shield
