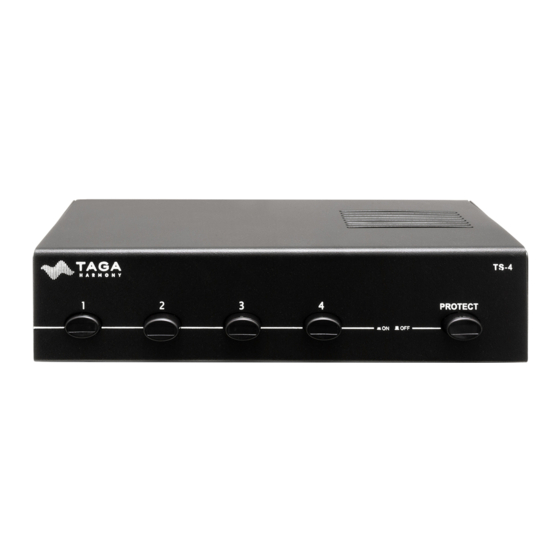

- Page 1 TS series 1-SOURCE SPEAKER SELECTORS TS-4 Instruction Manual Edition 09-2020...
- Page 2 Introduction Thank you for purchasing this TAGA Harmony 1-source, multizone speaker selector. TAGA Harmony speaker selector is a device which is an efficient, cost-effective way of expanding an audio system at home or commercial venues (bars, cafes, restaurants, shops, conference rooms etc.) into a complex multi-room sound system.
-
Page 3: Table Of Contents
Contents Safety Instructions Front and Rear Panel Hooking Up Speaker Cables Connecting Audio Source and Speakers Operation... -
Page 4: Safety Instructions
Safety Instructions An exclamation mark in a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 1. Read Instructions - All the safety and operating instruc- 10. -
Page 5: Front And Rear Panel
Front and Rear Panel / TS-4 shown / TS-4 Protecting Circuit Switch Zone selectors Amplifier (receiver) input Push-in Spring Terminals Bypass output Speakers Output to Zones... -
Page 6: Hooking Up Speaker Cables
Hooking Up Speaker Cables The Push-in Spring Terminals can accommodate up to 14AWG speaker cables. It is recommended to leave about 150 cm (5 feet) of extra cable at the selector end to facilitate positioning and installation of the selector. Do not use staples, nails or other metal objects to secure the cables. -
Page 7: Operation
Operation 1. Make sure your audio source (amplifier, receiver etc.) is switched off. 2. Make sure that the volume regulator on your audio source is set to minimum. 3. Switch OFF all the Zones on the Speaker Selector (Zone Selectors in the position). - Page 8 The RMS power of the audio source should not exceed the power supported by this speaker selector otherwise this unit, audio source and / or speakers may be damaged. This may void your warranty. In the OFF position the protecting circuit is not operating - it can be useful if you intend to use the speaker selector as a part of a planned system of impedance matching volume regulatios, allowing you to get the most out of your amplifier (receiver).
- Page 9 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Speaker Selector Instruction Manual Your product is marked with the symbol as showed on the left.
